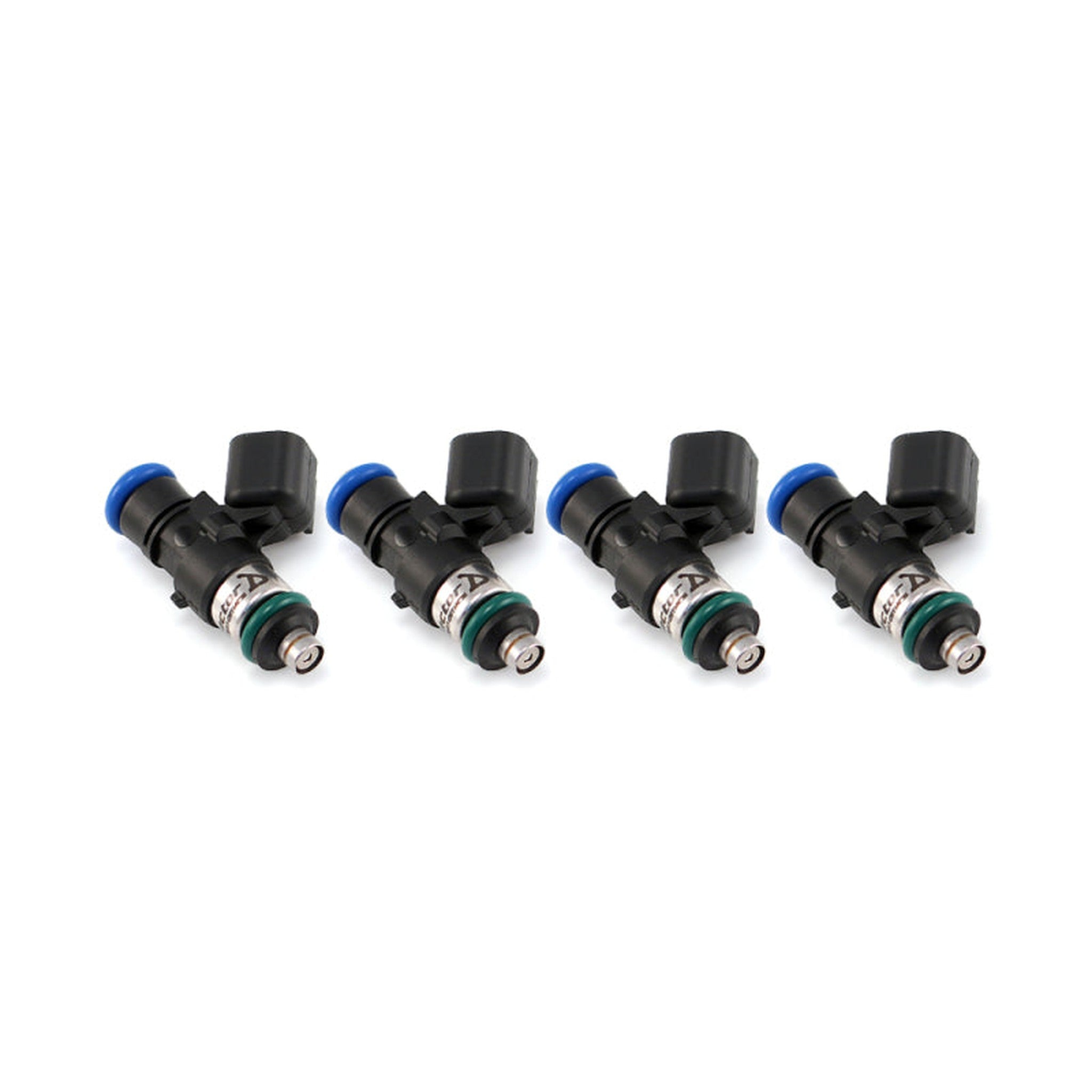

Injector Dynamics 1700cc Injectors for Proccess West Intake Subaru WRX 2015-2021 | 1700.34.14.14.4

Fitment Information:

• Subaru WRX 2015-2021

These injectors are for the Process West intake manifold for the 2015-2021 WRX PWIM007PI

The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.

The minimum fuel mass of the ID1700x is low enough to provide stable stoichiometric idle and cruise mixtures on E85, but too high to consistently deliver the same on gasoline, on most engines.

If you need flawless drivability on gasoline, the ID1300x will provide this while delivering enough fuel for approximately 150hp per injector on E85

Basic Specifications

Nominal Flow Rate – 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
Electrical Connector – USCAR
