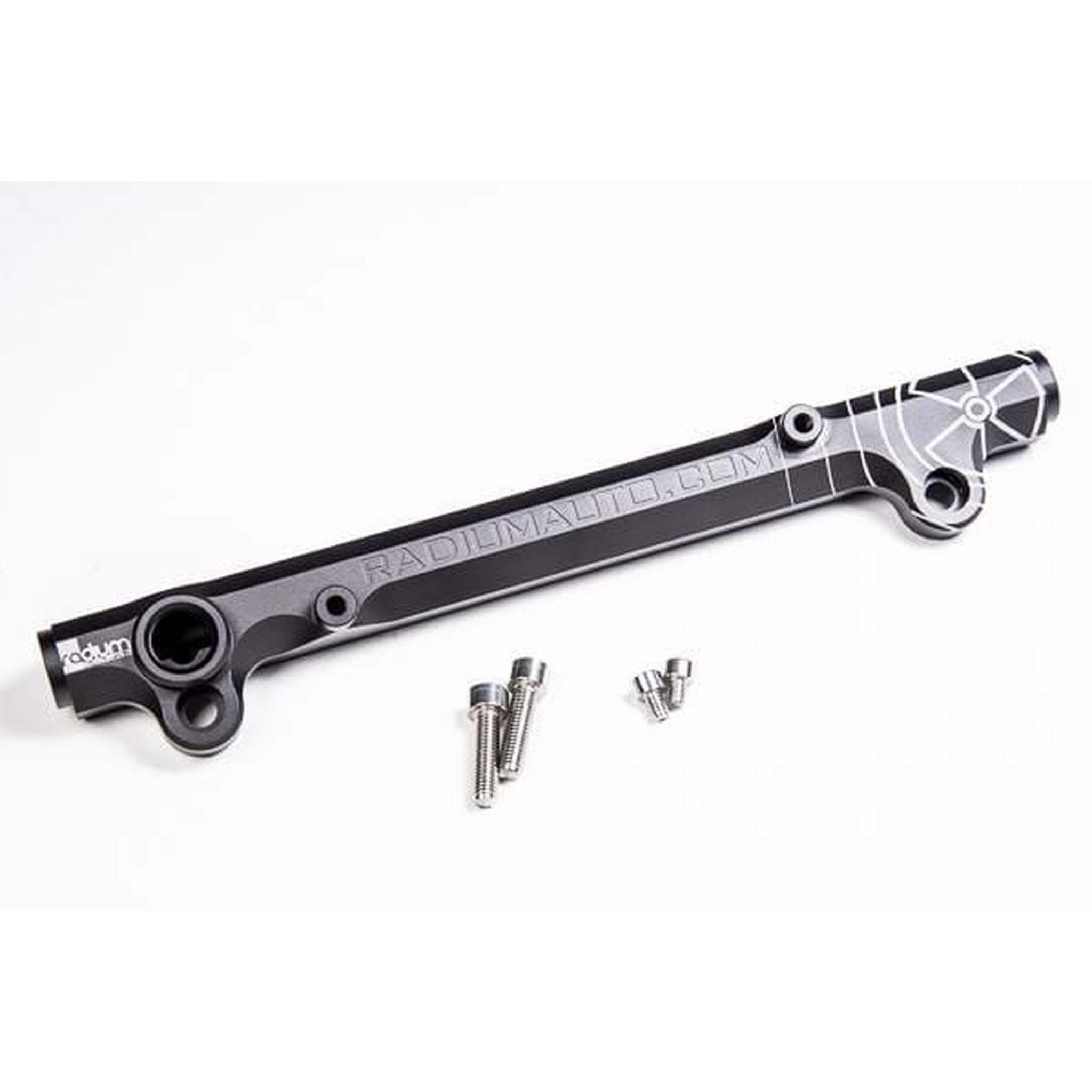

Radium Engineering Mitsubishi Evo X Fuel Rail Kit

The EVO X Billet Fuel Rail features a large 0.69" ID bore to suit even the most fuel hungry engines. The rail is CNC machined from solid 6061 aluminum and bright-dip anodized for a high quality surface finish. It is compatible with all fuel types including popular alcohol mixtures such as E85.

The 20-0112-10 and 20-0112-12 fuel rails use 8AN ORB (3/4-16 O-ring) threads on all 3 ports accepting a variety of adapter fittings for custom high flow fuel system builds.

Setup Selection
20-0112-12 Fuel Rail Kit, EVO X
This is the basic kit. Replacement stainless steel fuel rail bolts and FPR line bolts are included. All fittings must be purchased separately.

20-0112-10 Fuel Rail Kit, EVO X, OEM Configuration
This option includes everything shown in the picture below. This kit is a direct drop-in replacement for the OEM fuel rail.
-1x Radium Engineering Evolution X fuel rail with mounting hardware.
-1x 20-0290 5/16in SAE to 6AN Male fitting to adapt the incoming fuel line to 6AN male near the firewall.
-1x Pre-fabricated 24" long 6AN PTFE hose with 45deg and 90deg swivel ends is included to replace the OEM fuel line.
-1x 14-0151 8AN ORB to 6AN Male Fitting to adapt the 6AN hose to fuel rail inlet port.
-1x 20-0301 FPR Adapter is included for the outlet port permitting the reuse of the OEM pressure regulator.
-1x 14-0150 8AN ORB Plug is included for the top port.

FUEL PRESSURE GAUGE
A fuel pressure gauge can be mounted in the center port or in the inlet port using the appropriate adapter fitting. The pressure gauge and adapters can be found HERE.

FUEL PULSE DAMPER
Depending on the configuration, a fuel pulse damper can be used in one of the available ports. More information can be found HERE.

The FPD-R can be used in the center port or the outlet port (shown below) if the 20-0112-12 fuel rail kit was purchased.

Note: The larger FPD-XR (fuel pulse damper-extra range) mentioned in the link HERE will interfere with the MIVEC solenoid if installed in the outlet port. However, the FPD-XR can be used in the center port.
