Radium Engineering Mitsubishi Evo 8-9 Fuel Rail Kit

The EVO 8-9 Fuel Rail features a large 0.69" ID bore to suit even the most fuel hungry engines. The rail is CNC machined from solid 6061 aluminum, bright-dipped anodized and laser etched for a high quality surface finish. It is compatible with all fuel types including popular alcohol mixtures such as E85.

Unlike most aftermarket EVO 8-9 fuel rails on the market, the Radium fuel rail eliminates the OEM 2 bolt inlet flange which uses a restrictive 0.22" (5.7mm) orifice. All three ports use -8AN ORB threads. NOTE: Discontinued fuel rails (20-0119-00 and 20-0119-02) used a 3/8" NPT thread on the RH port.

Setup Selection

20-0119-12 Fuel Rail Kit, EVO 8-9

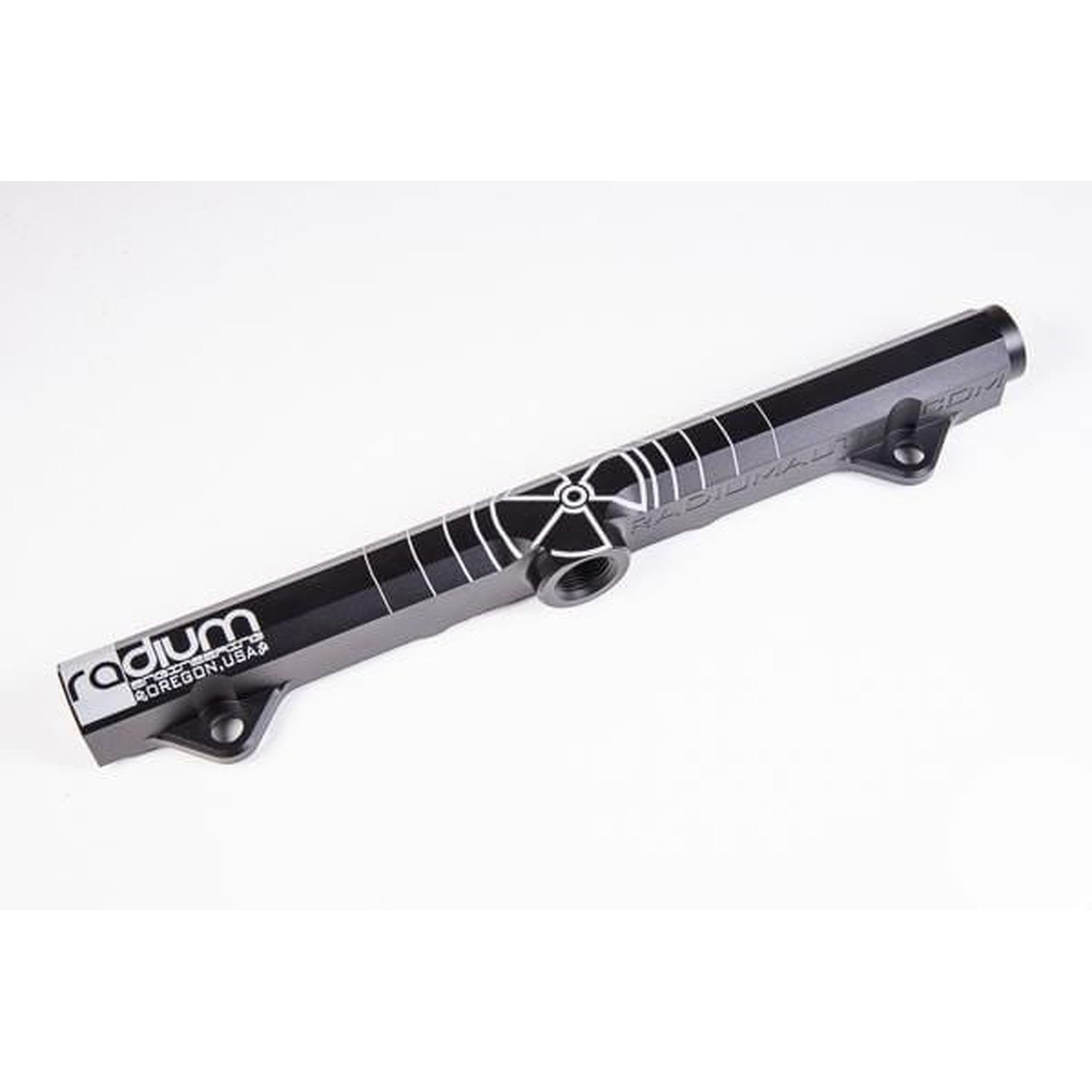

This option includes only the basic fuel rail as shown in the picture below. All fittings must be purchased separately. This option is perfect for installers building a custom fuel system.

A variety of 8AN ORB adapter fittings can be found on our site.

20-0119-10 Fuel Rail Kit, EVO 8-9, OEM Configuration
This option includes everything required to replace the OEM fuel rail. It includes the exact items as shown below in the picture.
-1x Radium Engineering EVO 8-9 fuel rail.
-1x M14 inverted flare adapter is included to adapt the OEM hard line on the firewall to -6AN male.
-1x Pre-fabricated -6AN PTFE hose (6AN-16.0-ST-ST) hose is included to replace the OEM rubber hose and restrictive 2 bolt flange.
-1x -6AN adapter for connecting the the PTFE hose to the fuel rail inlet port.
-1x Custom machined adapter to reuse the OEM fuel pressure regulator.
-1x Aluminum -8AN O-ring plug for center port.
