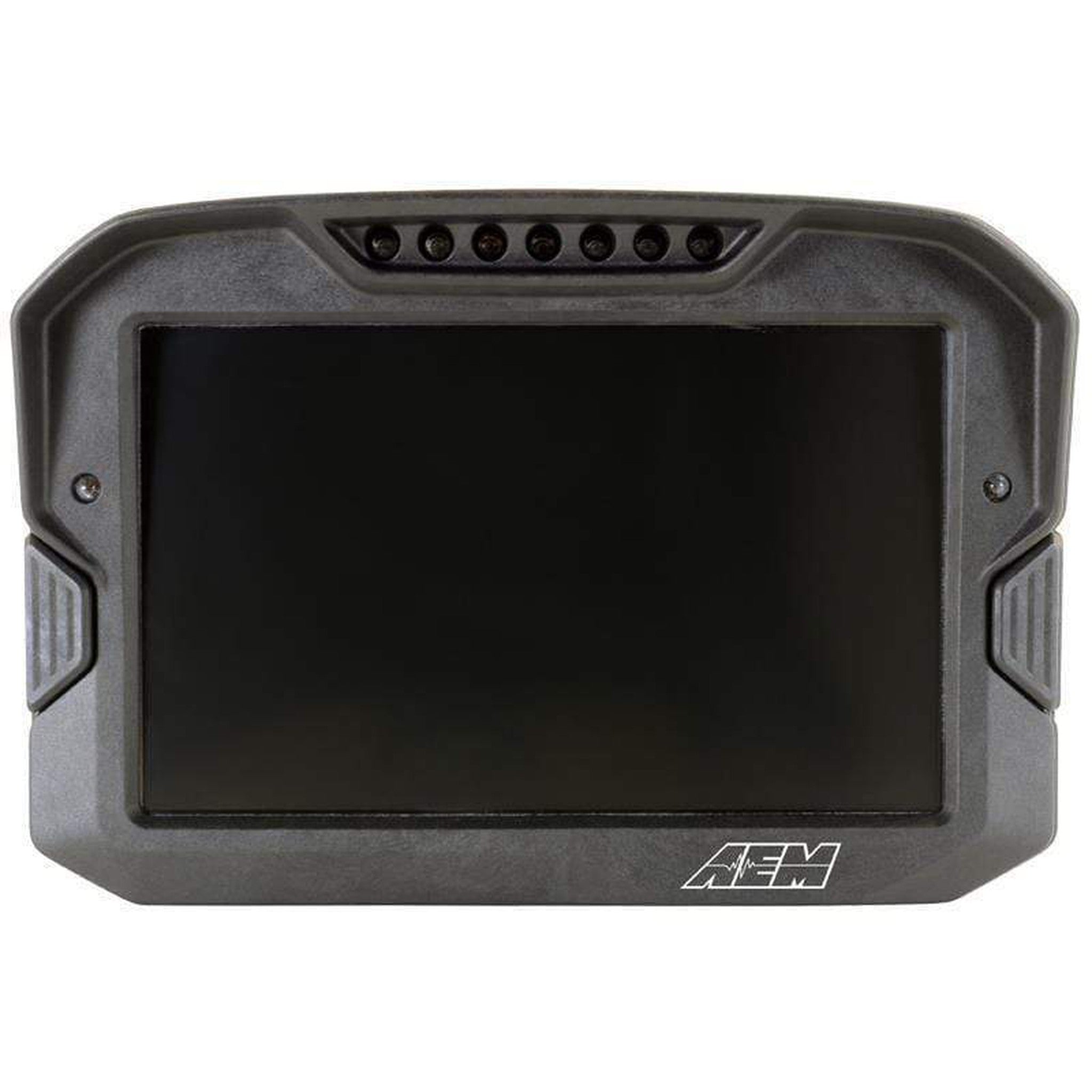

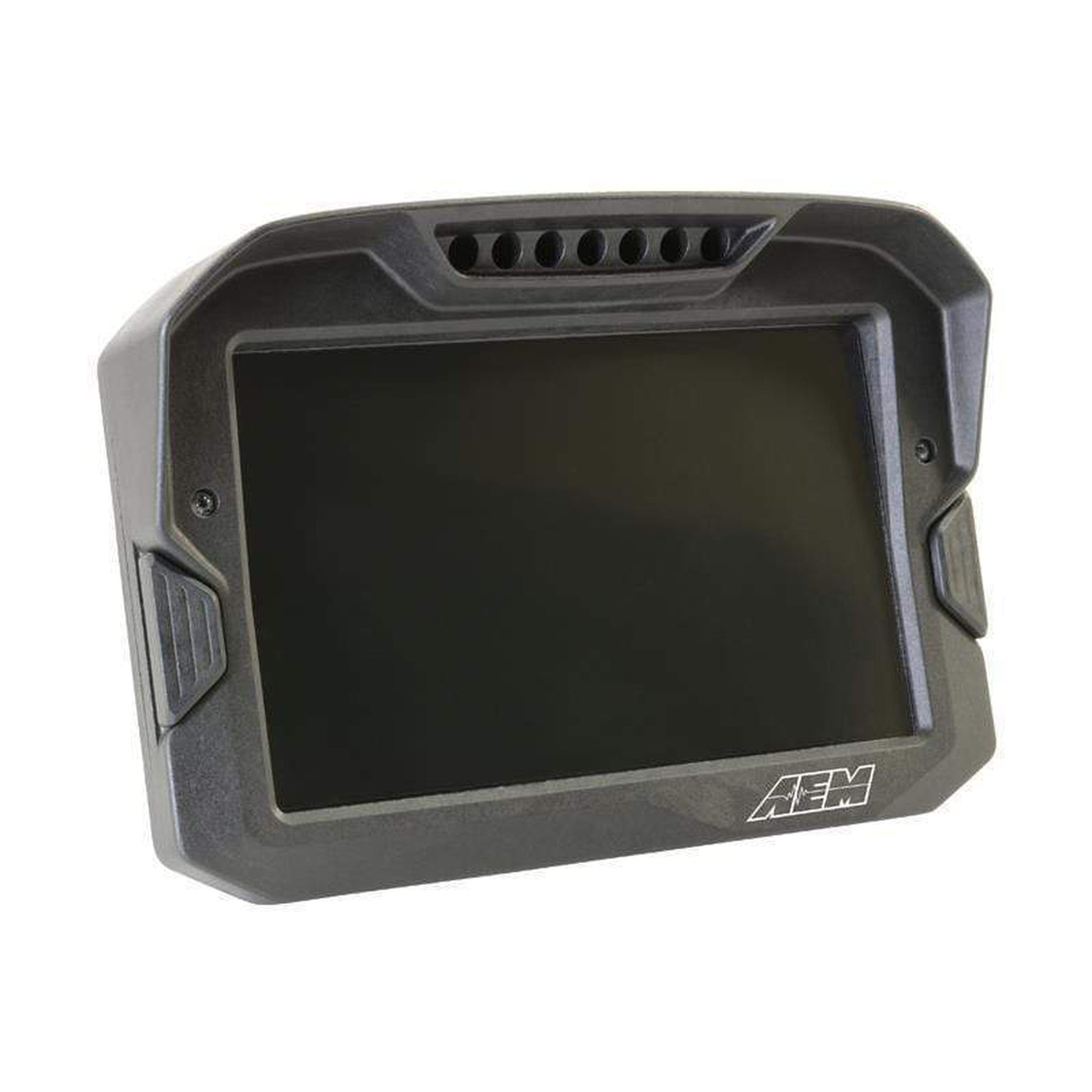

On this page, you are looking at the AEM CD-7 Carbon Digital Non-Logging Racing Dash Display. This display is protected by a carbon fiber enclosure and features a full-color daylight readable screen along with seven ultra-bright LEDs that are mounted at the top. This is a great way to monitor all the major parameters in your race car, or your street car.
Part #: 30-5700
Here are the main details:
Full color 7" screen with 800x480 resolution
Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
Layout files interchangeable with all versions of the CD-5 Carbon

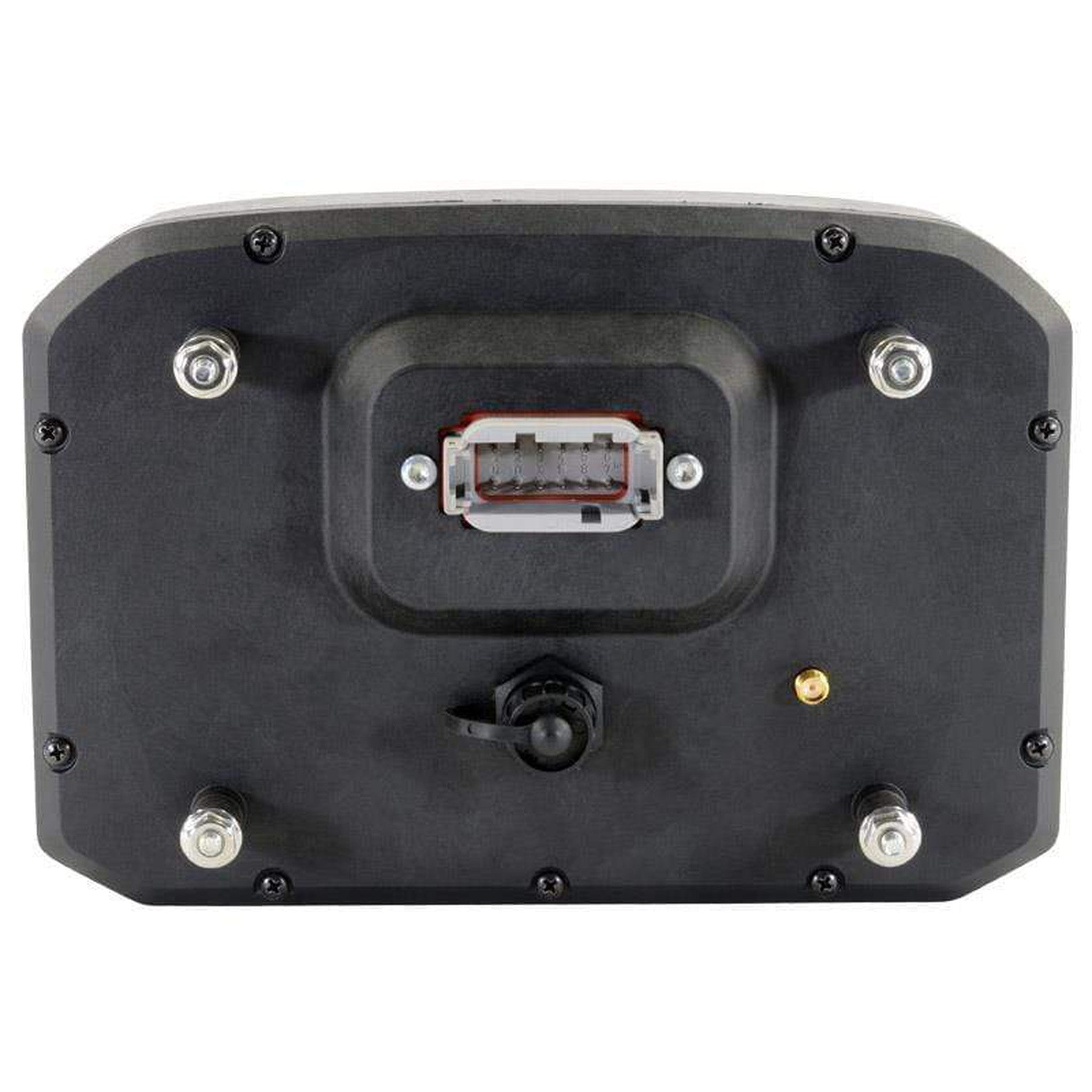

Wiring interface/harness is identical to the CD-5 carbon
Rugged, lightweight flow-molded carbon fiber composite enclosure
Total display weight of 20.9/595 grams
IP65 water resistance-open cockpit, marine and motorcycle safe
Accepts channels from two separate user programmable CAN bus connections-works with AEMnet enabled devices and non-AEM 3rd party devices side by side
Plug and play adapter cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable
Install the CD-7 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles
Available with or without 200mb internal logging
Available with or without onboard 20Hz GPS receiver and antenna
The option is available to add an 8 channel K-type EGT CAN Module for 8 additional temps
Seven programmable pages including four main pages, alarm, on-change, and start-up pages
Dedicated alarm page layouts and input your channels and text, or create your own from scratch
Free DashDesign Graphics Editor software
Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
Two programmable LEDs
Odometer function
Over 200 supplied fully programmable SAE and custom warning icons
Headlight-in connection dims the dash and LEDs during night operation
Two extra switch inputs included for displaying user-triggered events for blinkers, high beams, etc
User-supplied graphics
Convert CAN bus channel values to user-defined text in multiple languages
WIRING INCLUDED
NOTE: This is the NON-LOGGING and NON-GPS option.
