Part #: AMS.31.08.0001-2

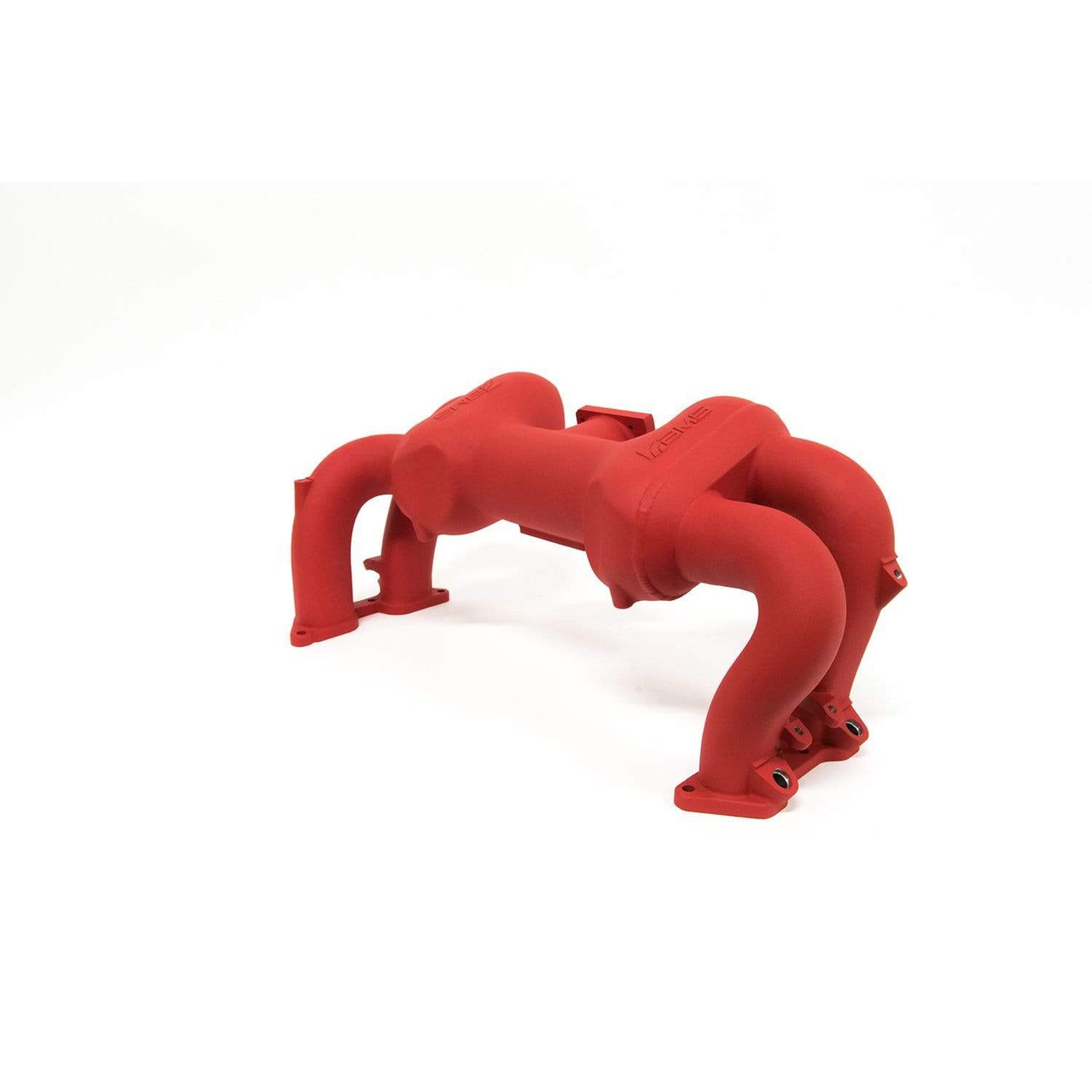

The AMS Subaru Intake Manifold was designed to outperform the competition. We referenced many modern design examples and engineering studies to bring you the best intake manifold available for the Subaru EJ20 and EJ25 WRX & STI. After extensive testing we ended up with a manifold that makes more power than anything else currently available on the market!
- 4.5 Liter Plenum Volume
- 13” Equal Length Intake Runners (Measured from Face of Bellhorn to End of Runner)
- 2.5” (63.5mm) Intake Runner Diameter (ID of Bellhorn)
- Bellhorn OD 3.8” (96.7mm)
- TGV Housing Replaced with Long Runner Design

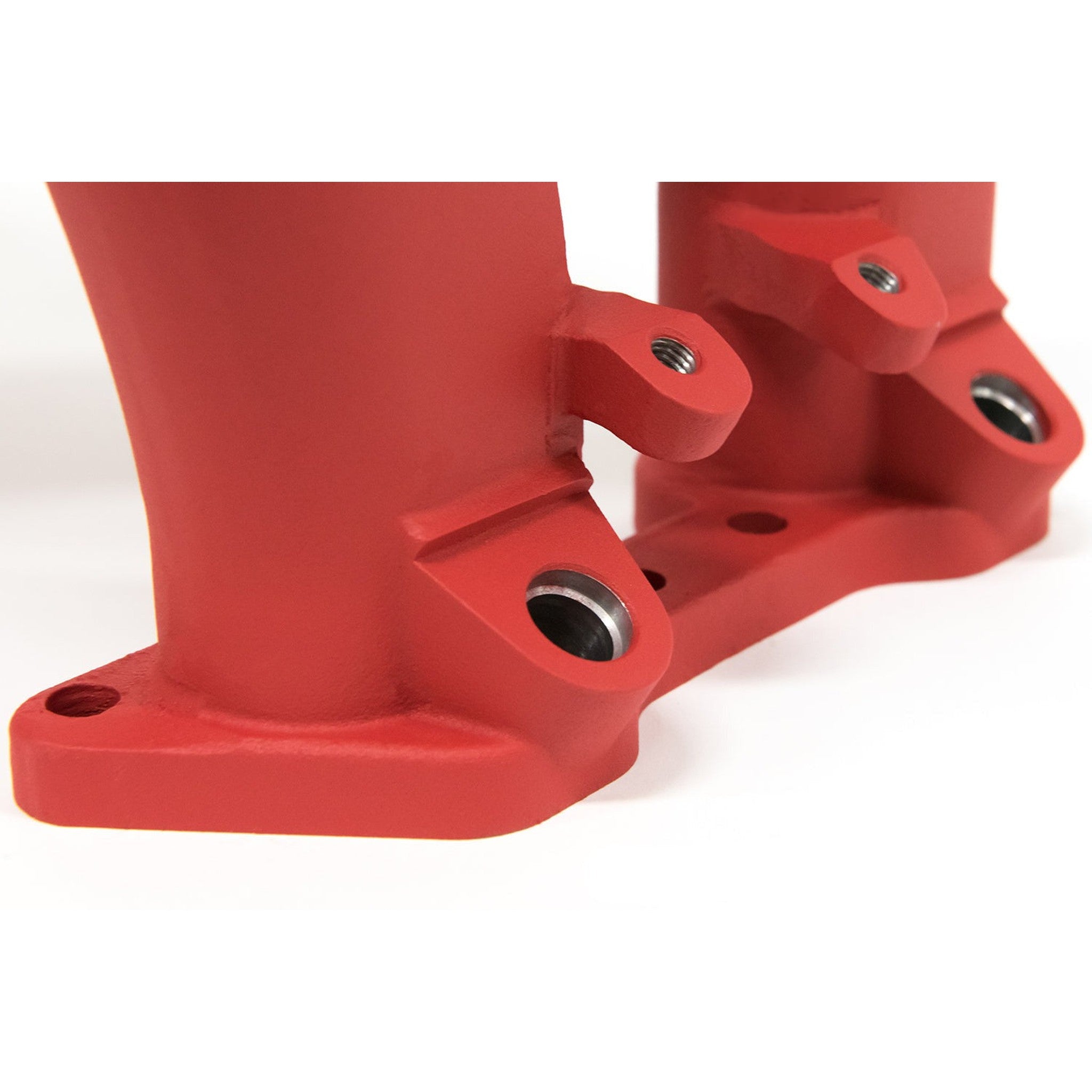

- Increased Port Size at Cylinder Heads Allow Matching to Larger Hand Ported or CNC Ported Cylinder Heads
- Available in Standard or Reversed Configuration

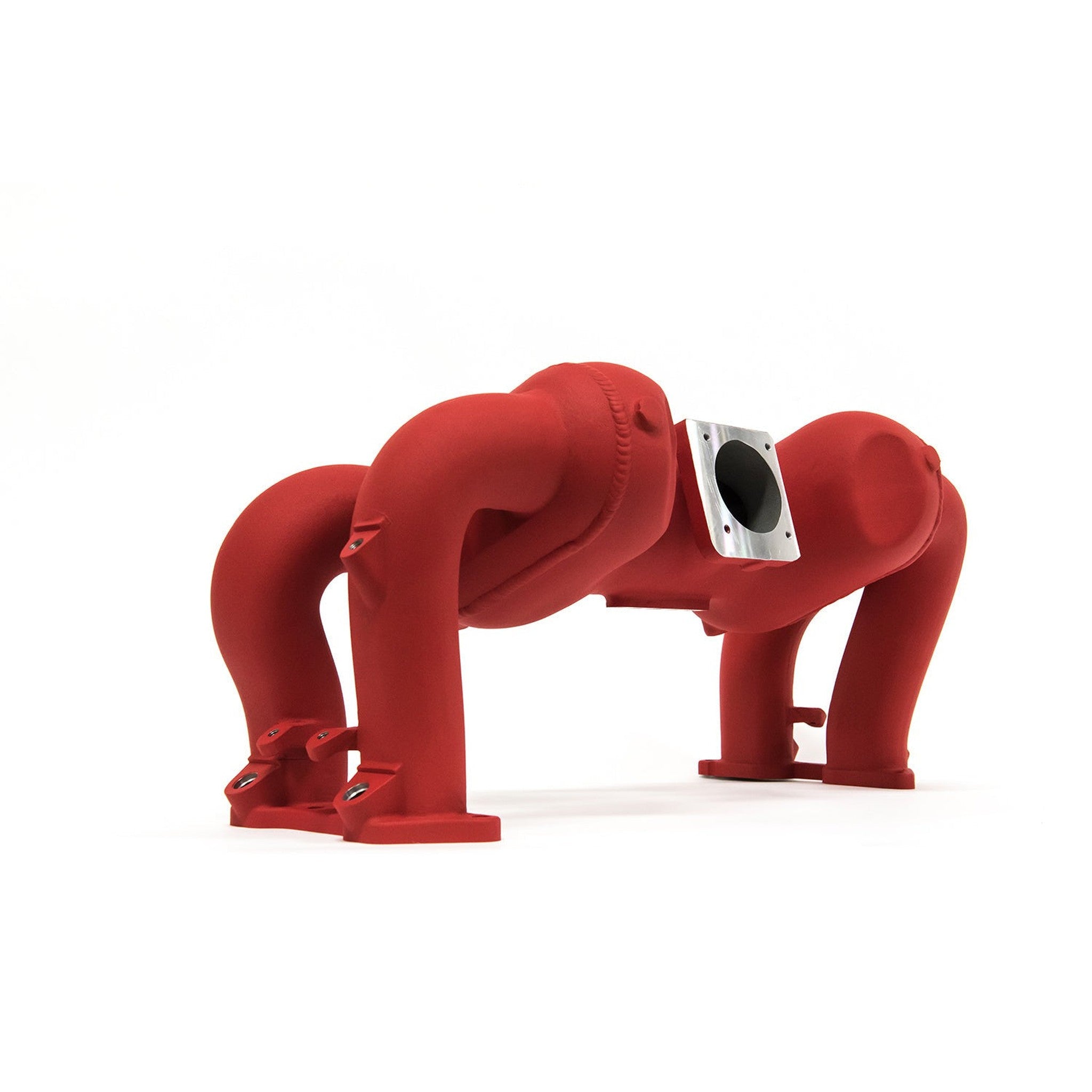

- Throttle Body Opening Accepts Larger Throttle Bodies up to 2.625” (66.675mm) or 70mm with mild porting
- Available in 4 Configurations (Standard, Standard Coated, Reversed, and Reversed Coated
- Due to the large variety of rotated turbo kits on the market, we cannot guarantee fitment with every brand. Depending on the turbo location and sizing, interference with the cylinder 3 intake runner is possible.
- Some port matching may be required when used in conjunction with CNC or hand ported cylinder heads.
- The intake manifold is available with a standard or optional reverse throttle body orientation, allowing for more direct intercooler pipe routing.
- Larger throttle bodies can be used with proper modifications (Up to 70mm with minor porting) (Larger throttle bodies may also require adapter flanges)
- The intake manifold is flanged for 04+ STI drive by wire throttle bodies, but cable throttle bodies can be used with custom fitting and flange adapter.
- Standard configuration intercooler piping will need mild custom fabrication due to placement of throttle body.
Reversed configuration requires the relocation of the alternator and removal of the A/C compressor. Installation is not a direct bolt on and will require custom intercooler piping.
- The intake manifold is designed to use a common Subaru aftermarket top feed injector size. (48mm overall length / 11mm inlet – standard Subaru rail size / 14mm outlet) We recommend the use of Injector Dynamics brand injectors.
- Standard Subaru style injectors cannot be used. (Side Feeds, Stock STI Style Injectors)
- Not compatible with stock fuel rails or lines.
- Not compatible with top mount intercoolers.
- Not directly compatible with mounting the factory upper coolant reservoir. Custom bracketry will need to be fabricated to mount.
- The bottom of the center plenum features four 1/8″ and one 1/4″ NPT ports for vacuum accessories.
- 2008+ STI may require mild clearancing of A/C compressor line
Engineered To Be The Best
For the Subaru EJ Intake Manifold the plan was simple, take our years of engineering experience and design the best intake manifold available. Designed, prototyped, and tested in house by our team of Engineers, the AMS Subaru EJ Intake Manifold was created to be the best unit available on the market. By casting this manifold it is not only stronger, but it allowed us to optimize the power output by giving us the freedom to sculpt the interior geometry for maximum efficiency and airflow.
AMS CNC Intake Bellhorns
By utilizing Solidworks© & CFD (computational fluid dynamics) software we started with an extremely large plenum size of 4.5L for the ultimate top-end power. We also designed CNC machined bellhorns which act as internal velocity stacks and allow for a broad power curve and high RPM horsepower capabilities. This allowed us to optimize massive 2.5″ tapered runners and matched cylinder port angles to minimize turbulence and maximize power output. This was only achievable with the incorporation of the TGV section of the manifold. This allowed the taper to happen over the entire 13” length of the runners instead of it happening in only a few inches through the factory style TGV housing. With the incorporation of the TGV housings into our manifold, we have made the AMS Subaru EJ Intake Manifold a cost-effective one piece solution. Gone are the days of having to purchase both an intake manifold, and separate TGV delete housings.
