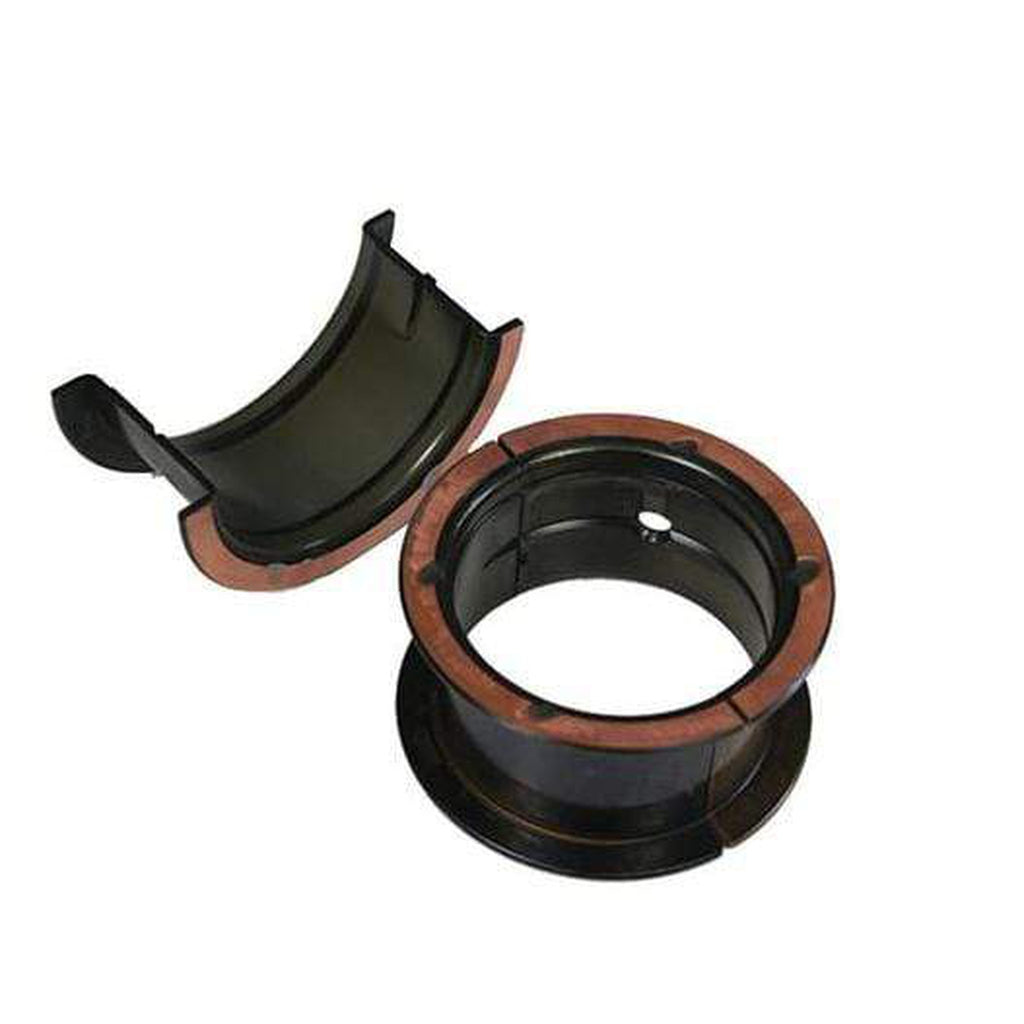

ACL Mitsubishi 4G63/4G64 7 Bolt 2nd Gen DSM and EVO I-IV Standard Size High Performance Main Bearing | 5M1186H-STD

SKU: acl5M1186H-STD
Availability: 33 In Stock
Type: Engine Bearings
Regular price
Regular price
Sale price
Instant Discount

Regular Price: $130.77 - Instant discount: $58.77 = $72.00
IIR Pay Customers get $3.60 in points

Subtotal: $72.00
Fastrak Delivery: , Order within hours minutes
$4.97 shipping over $99

Designed to withstand higher RPM conditions, ACL Race Series Connecting Rod Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:

- High strength overlay plate with reduced thickness for improved fatigue properties.

- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.

- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.


Mitsubishi 4G63, 4G63-T, 4G64, 4G64-S4 (6/1992-1997)

Min Std Shaft Size: 2.2435" (56.985mm)
Max Std Tunnel Size: 2.4024" (61.021mm)
Max Wall at Crown: 0.0783" (1.990mm)
Min Std Tunnel Size: 2.4016" (61.000mm)
Max Std Shaft Size: 2.2441" (57.000mm)
Max Overall Length: 0.827" (21.00mm) w/ 1186H/HX 1.000" (25.40mm) w/ 1187H/HX Flange
