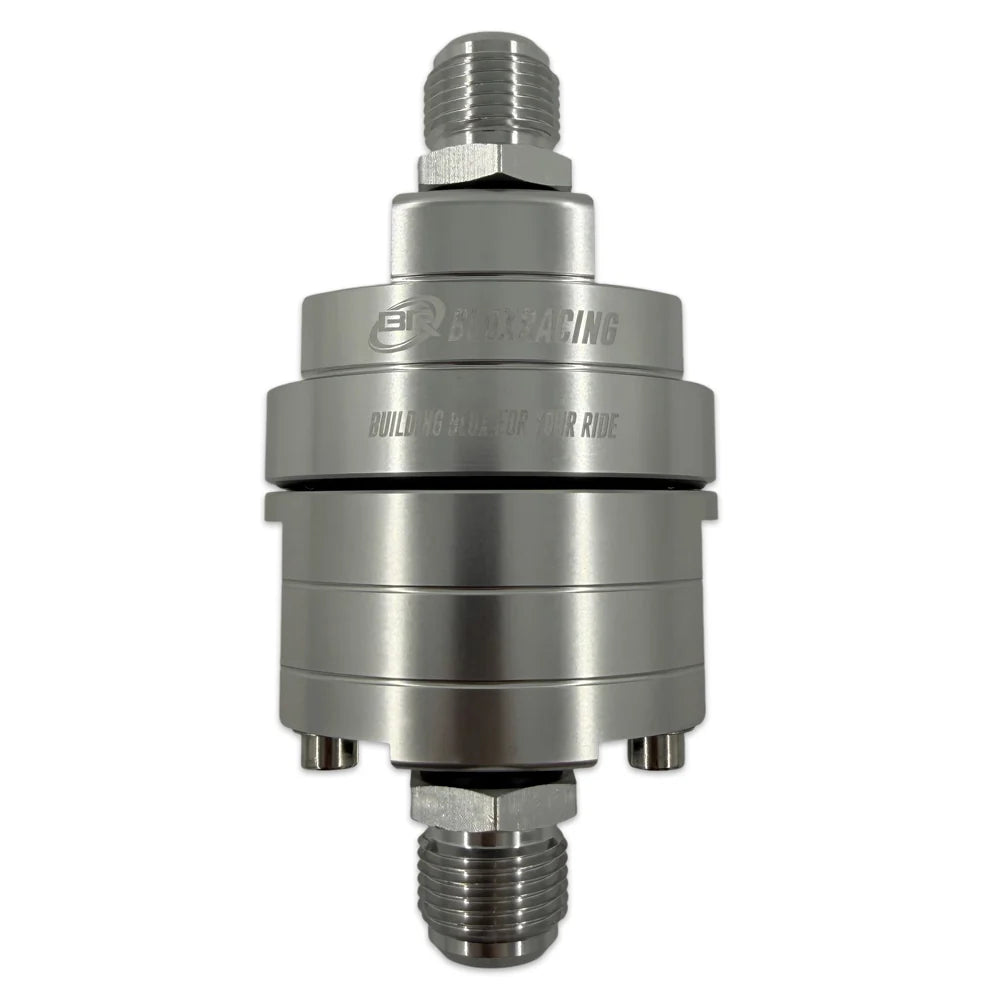

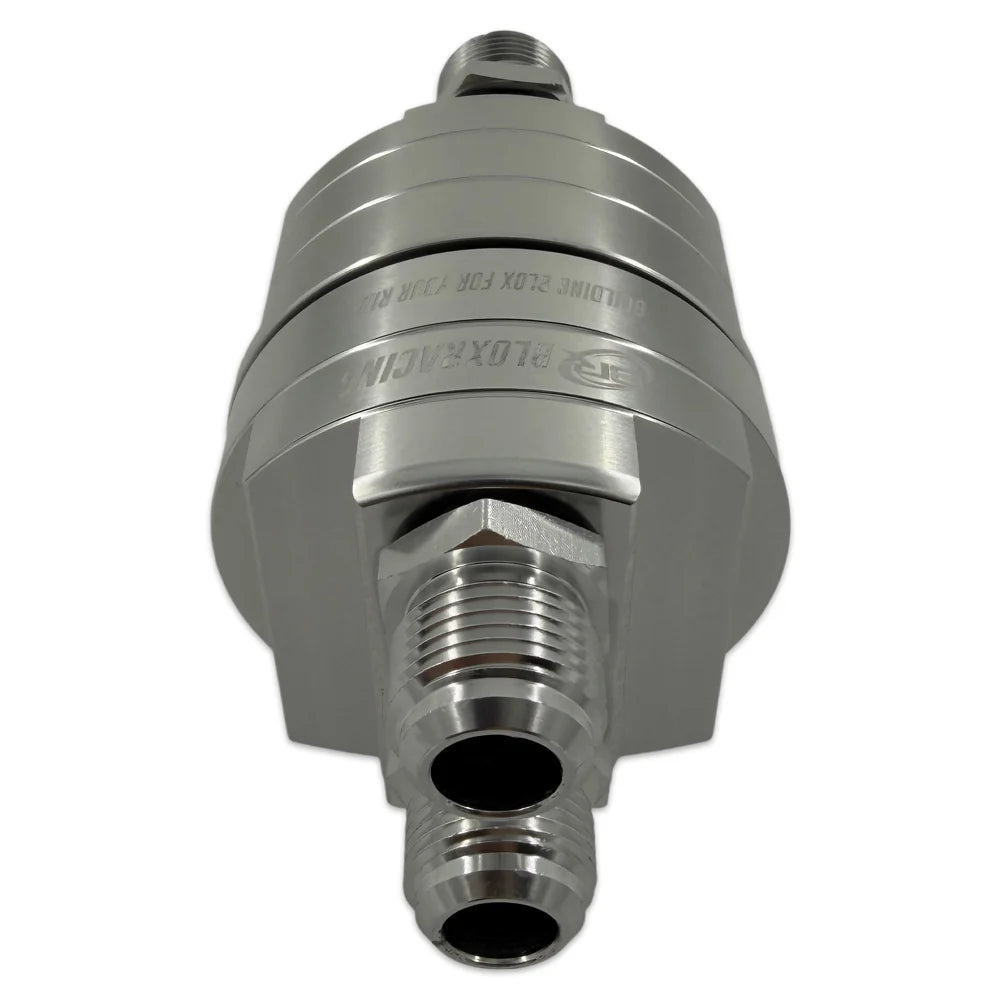

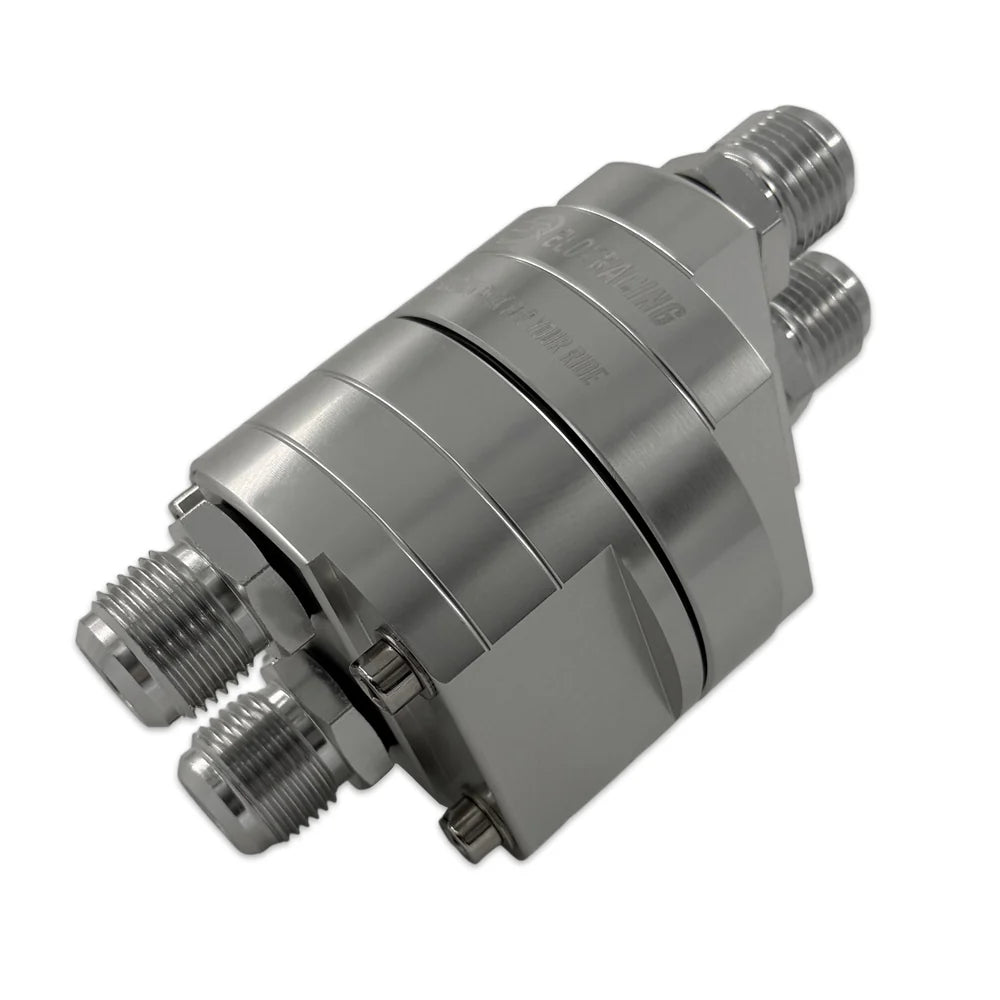

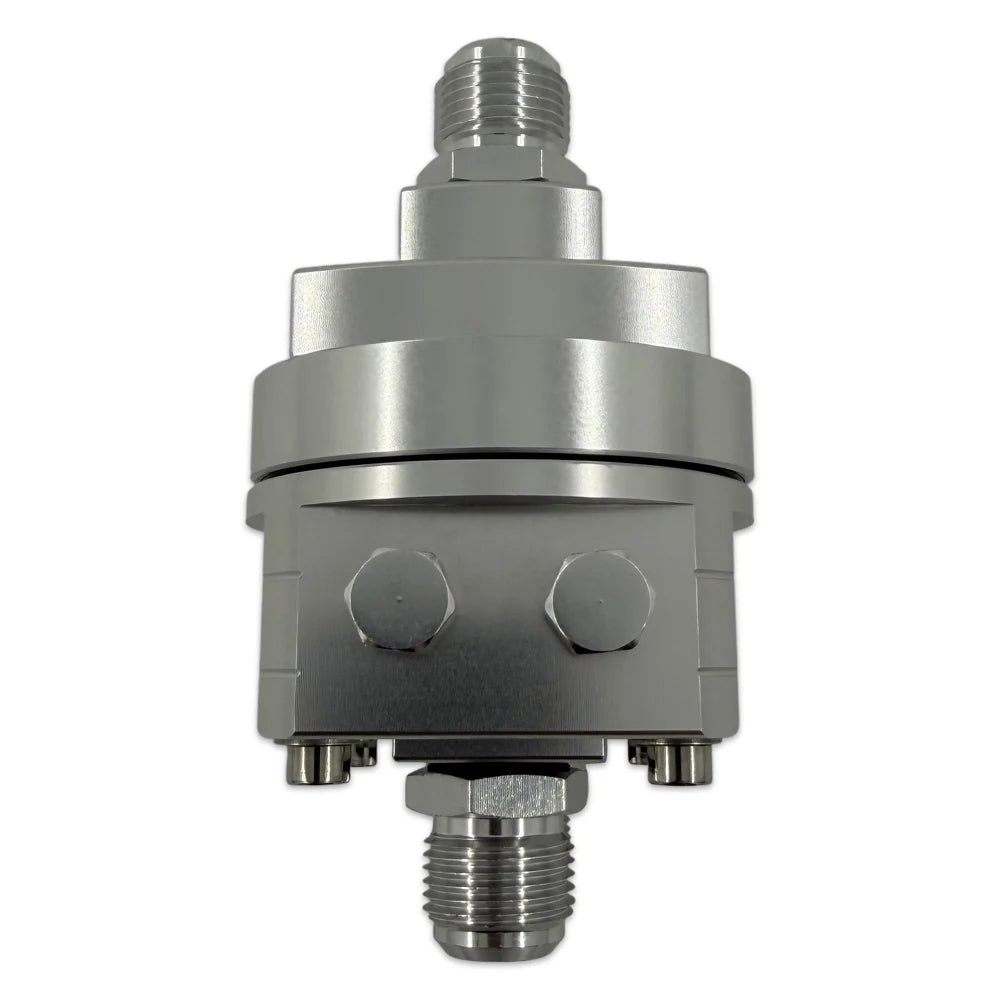

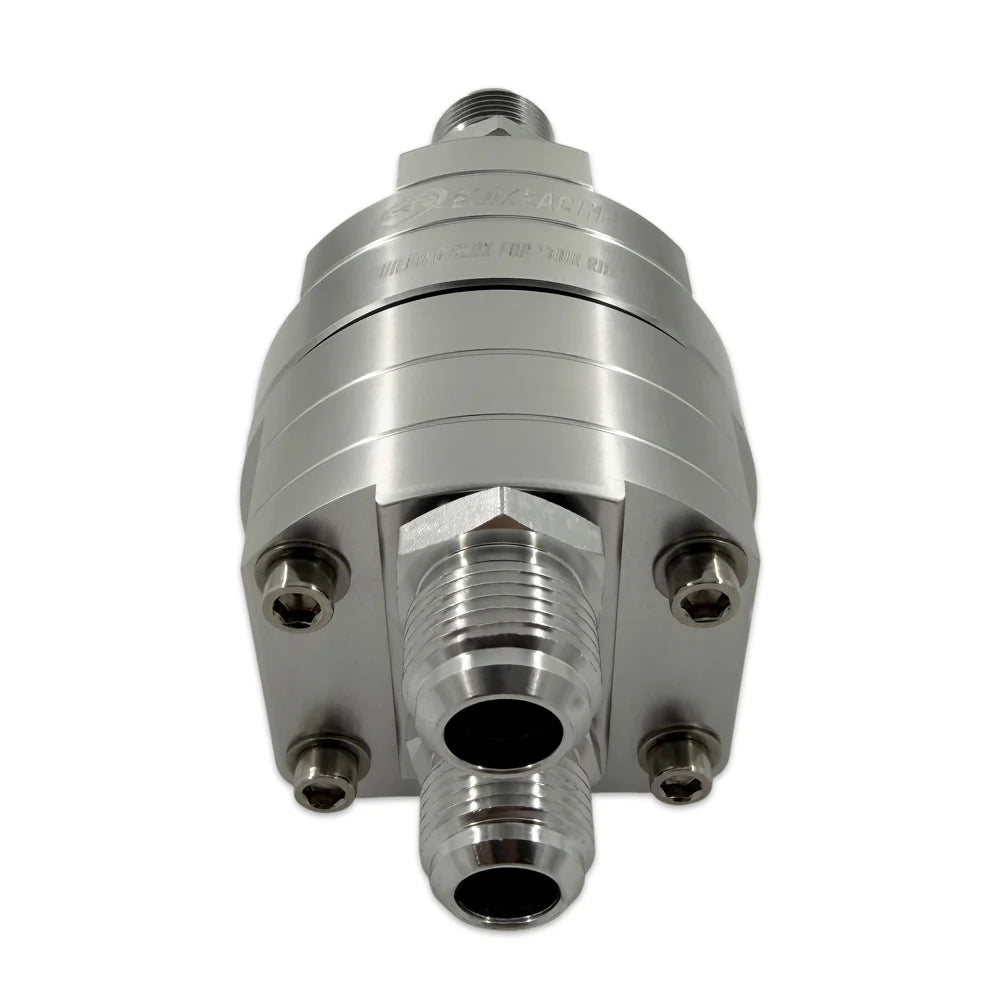

BLOX Racing Remote Oil Filter Relocation Kit - Silver | BXGA-00115-SI

The BLOX Racing Oil Filter Relocation Kit provides a convenient way to move the factory oil filter to a more accessible location. CNC-machined from billet aluminum, the system is designed as a stronger alternative to traditional cast adapters and is well suited for performance builds, custom turbo applications, engine swaps, and vehicles where access to the factory oil filter is limited.

The universal design fits many popular vehicle applications and allows the remote oil filter to be positioned where servicing is easier. Oil lines are not included, allowing the installer to select the appropriate hose type and length for the specific application.

Key Features

• CNC-machined billet aluminum construction
• Relocates the factory oil filter for easier access
• Universal design for a wide range of applications
• Ideal for performance and custom engine builds
• Suitable for turbocharged applications and engine swaps
• Includes mounting bracket and necessary adapter fittings
• Two 1/8" NPT oil sensor ports
• Supports -10AN oil lines
• Includes oil filter adapter with 20x1.5 female thread
• Includes block-off adapters for 20x1.5 and 3/4"-16 applications
• O-ring sealed block-off adapter
• Oil lines are sold separately

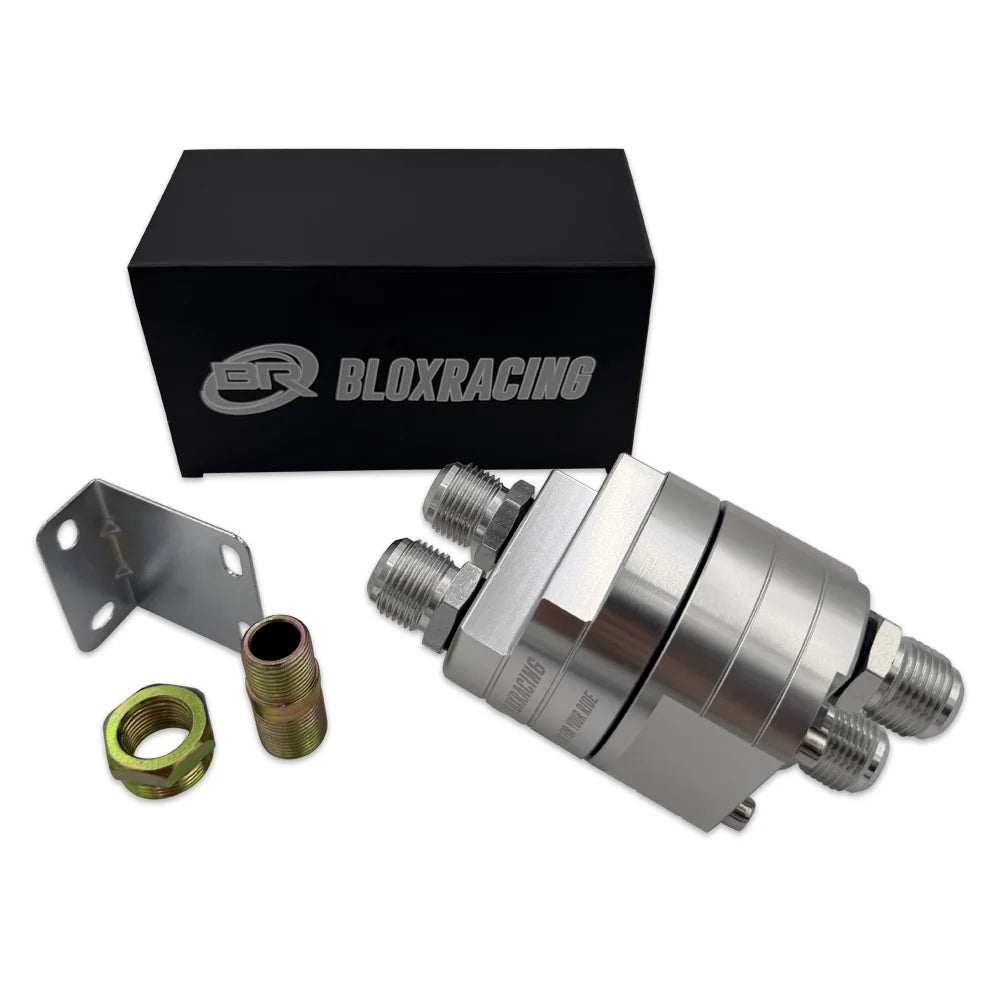

What's Included

• 1x Oil Filter Block-Off Adapter
• 2x Block-Off Adapter Male Fittings
  • 1x 20x1.5
  • 1x 3/4"-16
• 1x Oil Filter Relocation Adapter – 20x1.5 Female
• 1x Oil Filter Fitting for Relocation Adapter

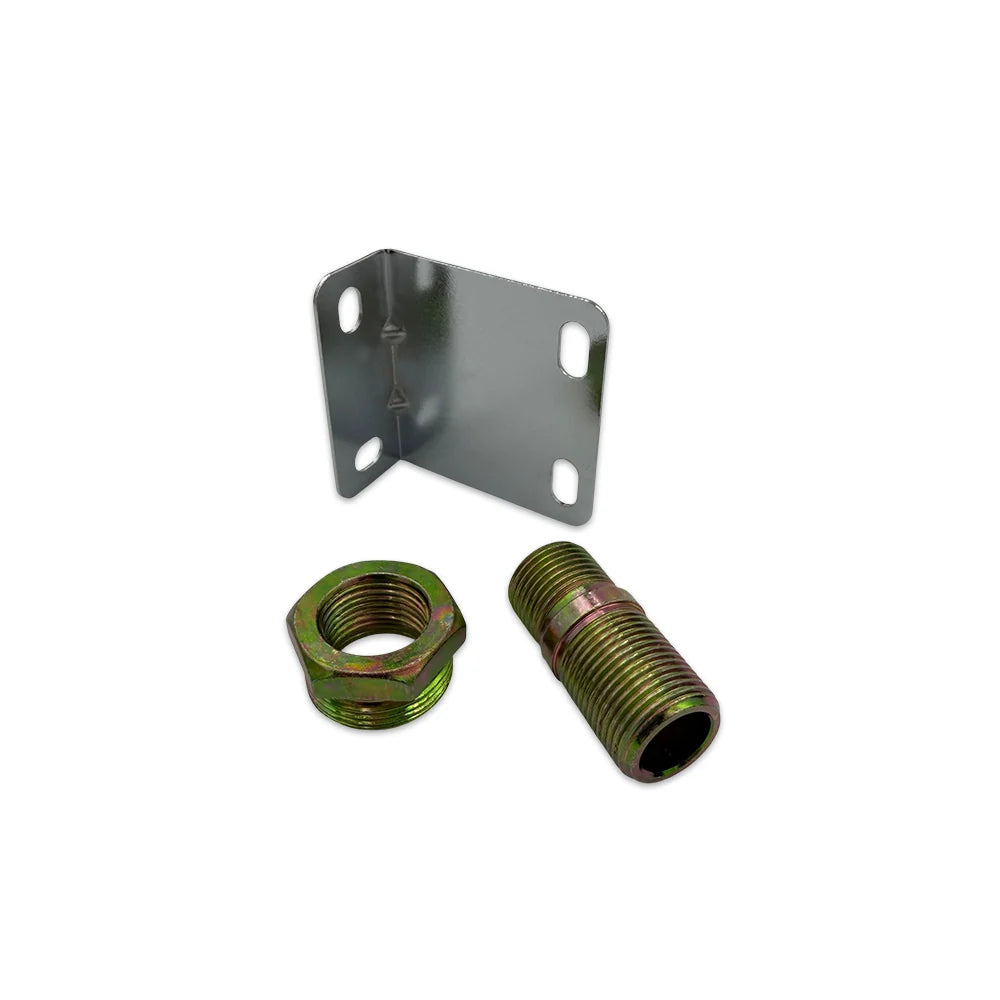

• 1x Mounting Bracket
• 4x Mounting Screws
• 4x -10AN x 8AN Port Fittings with Gaskets
• 2x 1/8" NPT Oil Sensor Plugs
• 1x AS-229 Oil Block-Off Adapter O-Ring

Why Relocate Your Oil Filter?

Relocating the oil filter can make routine maintenance significantly easier when the factory filter location is difficult to reach or obstructed by other components. A remote filter location can also provide additional flexibility when configuring custom engine bays, turbo systems, engine swaps, and performance builds.

Important Installation Note

Oil lines are not included with this kit. The installer must supply appropriately sized oil lines based on the vehicle, filter location, routing requirements, and desired hose length. Proper oil-line sizing and installation are critical to maintaining adequate engine oil flow and pressure.

Applications

The BLOX Racing Oil Filter Relocation Kit features a universal design intended to work with many popular vehicle and engine applications. Compatibility should be confirmed based on the engine's factory oil-filter mounting configuration and required adapter thread.
