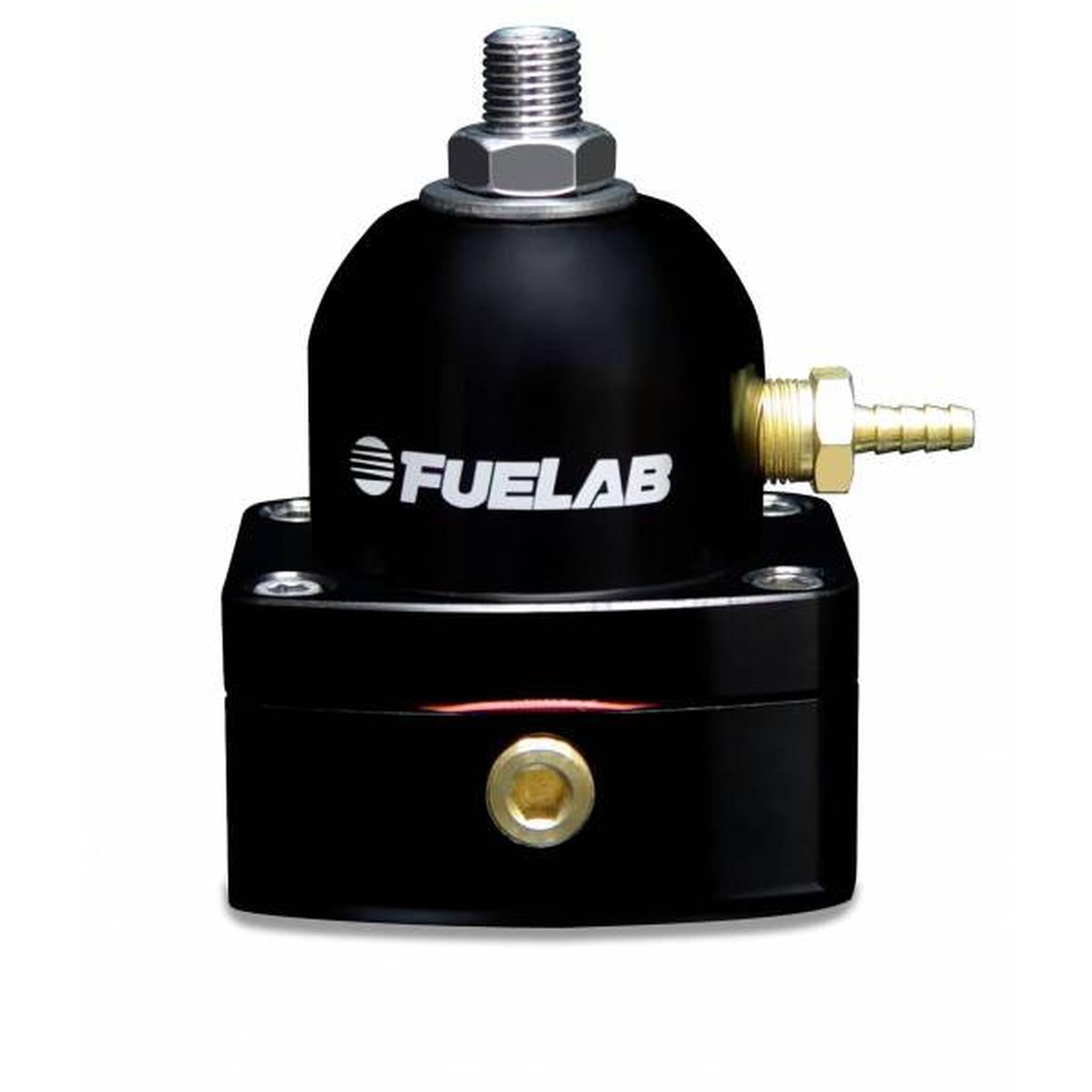

Item-detailsFUELAB® 535 Series Fuel Pressure Regulators have all the same great features as our 515 series, only smaller and weigh 50% less. They accept port style and non-port style union fittings without interference. Several configurations are available, supporting fuel injected applications up to 125 PSID. The 535 Series Fuel Pressure Regulator has a -6AN return port located on the bottom.
Dimensions: 1.50” D x 2.00” W x 2.25” H
Weighs Only: 5.25 oz.
- Two -6AN inlet ports and one -6AN return port
- Gasoline, diesel, methanol, and ethanol fuel compatible
- Billet Aluminum with anodize per military MIL-A-8625, Type II
- Fine thread pitch for precise pressure adjustment
- Versatile mounting bracket and stainless steel hardware
- 1/8” NPT gauge port with plug for external pressure gauge
- 1/8” NPT pressure reference port with barbed fitting
- Backed by a 2-year limited warranty
53501-C -6AN Inlets / Standard Seat / EFI (25-90 PSID)
This item is non application specific. Please verify compatibility before purchase. May require some modification for proper installation.
