Forced Performance Green UHF Turbocharger 60mm External Wastegate Subaru STI 2004-2021 / WRX 2002-2007 | 2029110-0502010

SKU: fpt2029110-0502010
Availability: Out Of Stock
Product Type: Turbos
$1,549.00
$1,549.00
$1,549.00
Save $0.00

BuildBUX Rewards

Great news – on this purchase, you'll enjoy a BuildBUX bonus of $15.49.

Subtotal: $1,549.00

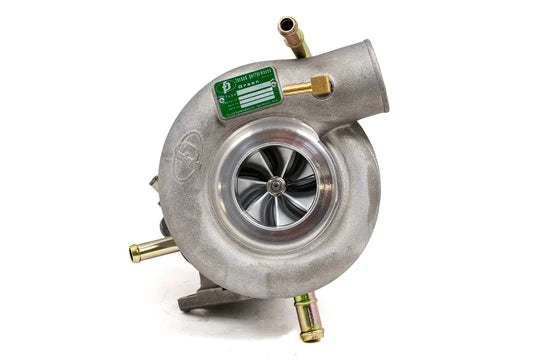

Take your Subaru WRX or STI to the next level with the Forced Performance FP UHF Green Turbocharger, configured with a 60mm small-inlet compressor cover, external wastegate configuration, and black-coated turbine housing. This performance turbo is designed to deliver a strong combination of quick response, excellent midrange power, and substantial top-end airflow for high-performance street and track applications.

The UHF Green combines FP's 76HT compressor wheel with the XR57S UHF turbine wheel, creating a responsive turbocharger capable of supporting approximately 500 WHP, depending on the engine, fuel system, exhaust, intercooling, and ECU calibration.

Product Features

  • Manufacturer: Forced Performance
  • Product: FP UHF Green Turbocharger
  • Compressor Wheel: 76HT
  • Compressor Inducer: 54.8mm
  • Compressor Exducer: 76mm
  • Compressor Cover: 60mm Small Inlet
  • Turbine Wheel: XR57S UHF
  • Turbine Inducer: 64mm
  • Turbine Exducer: 57mm
  • Turbine Housing: FP 8cm Subaru housing
  • Turbine Housing Finish: Coated Black
  • Wastegate Configuration: External Wastegate
  • Turbo Bearing: Journal Bearing
  • Flow Rating: Approximately 61 lb/min
  • Power Capability: Approximately 500 WHP
  • Designed for Subaru EJ applications

76HT Compressor Wheel

The FP UHF Green utilizes a 76HT compressor wheel measuring 54.8mm at the inducer and 76mm at the exducer.

The compressor provides the airflow necessary for substantial horsepower while maintaining a size that works well with a responsive turbine combination.

With approximately 61 lb/min of airflow capability, the UHF Green is well suited for Subaru builds targeting strong performance without moving into an excessively large turbocharger.

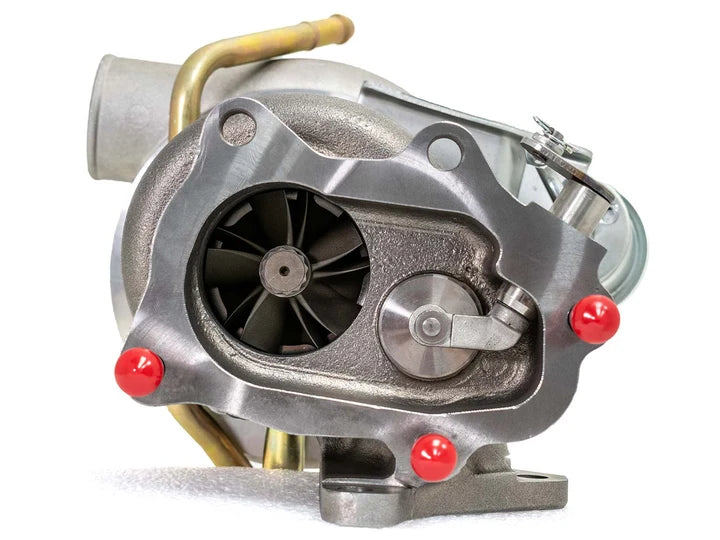

XR57S UHF Turbine

The XR57S UHF turbine wheel is designed to improve exhaust flow and turbocharger response.

The UHF turbine configuration helps provide:

  • Quick spool characteristics
  • Strong midrange response
  • Reduced exhaust backpressure
  • Improved high-RPM flow
  • Excellent power potential
  • Efficient turbocharger operation

This combination of compressor and turbine sizing gives the UHF Green a strong balance between street drivability and high-RPM performance.

60mm Small Inlet Compressor Cover

This configuration includes the 60mm small-inlet compressor cover, providing a compact inlet design while maintaining the airflow capabilities of the 76HT compressor wheel.

The small-inlet cover is an excellent choice for applications where packaging, intake routing, or a specific inlet configuration is important.

External Wastegate Configuration

The turbocharger is configured for use with an external wastegate, providing precise control over exhaust flow and boost pressure.

An external wastegate setup can offer improved boost control and greater flexibility for performance applications, particularly on engines producing significant exhaust flow.

External wastegate and related plumbing are required for proper installation.

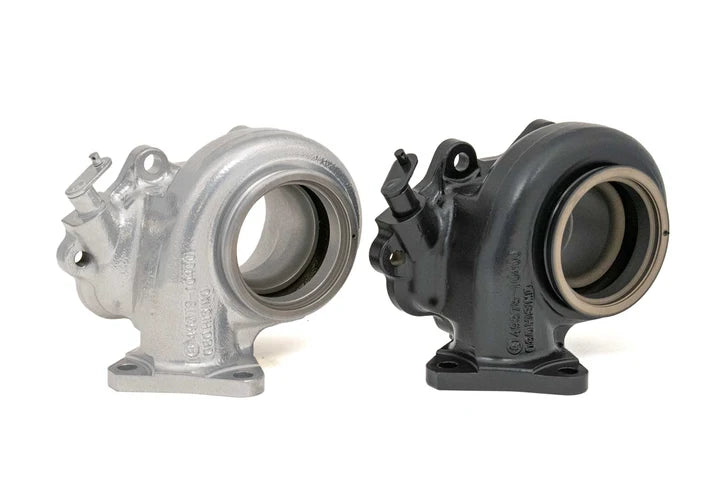

Black-Coated 8cm Turbine Housing

The UHF Green features an 8cm turbine housing with a black-coated finish.

The coated housing provides a clean, stealthy appearance while helping manage radiant heat around the turbine housing. The 8cm housing offers a balance between turbo response and high-RPM exhaust flow.

Performance Benefits

  • Approximately 61 lb/min airflow capability
  • Approximately 500 WHP potential
  • Quick spool characteristics
  • Strong midrange torque
  • Excellent top-end power
  • Improved exhaust flow
  • Reduced backpressure
  • Precise boost control with external wastegate
  • Compact 60mm compressor inlet
  • Black-coated turbine housing
  • Excellent street and track performance
