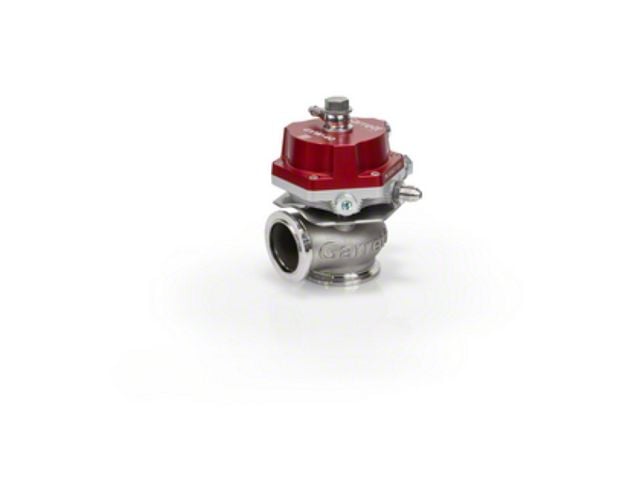

Garrett GVW-45 45mm Wastegate Kit - Red | 908828-0001

Garrett Vent external wastegates regulate turbocharger shaft speed by venting exhaust gas around the turbine stage of the turbocharger. CFD-optimized for maximum flow and thermal efficiency, the GVW-45 delivers optimum boost control, with advanced thermal optimization for diaphragm durability and a cap design that makes spring changes and servicing easier and more reliable.

Features:

• CFD tested for maximum flow and thermal efficiency
• High-temp stainless steel valve housing rated for exhaust temperatures up to 1050°C
• Nomex-reinforced elastomer diaphragm for exceptional durability and fatigue resistance
• Replaceable valve and bushing components to increase service life, with a robust design for easy diaphragm replacement
• Liquid-cooled actuator ports for severe applications, with up to a 52% reduction in body temperature
• Fully machined anodized 6061 aluminum actuator cover in red
• Ready to install: springs, fittings, flanges, V-bands, clamps and fasteners included

Specs:

• Valve diameter: 45mm
• Valve mass: 1.47 kg / 52 oz
• Standard base pressure: 1 bar / 14.5 PSI
• GVW-45 maximum base pressure: 23 PSI / 1.6 bar; minimum base pressure: 3 PSI / 0.2 bar
• Inlet OD: 63.5mm / 2.50 in; Outlet OD: 55.4mm / 2.18 in
• Air port fitting: M10x1.0 to hose barb (6mm / 0.25 in hose ID); Water port fitting: M8x1.0 to AN-3

Fitment: Universal. Verify valve size, flange dimensions and spring pressure for your turbo setup before ordering.
