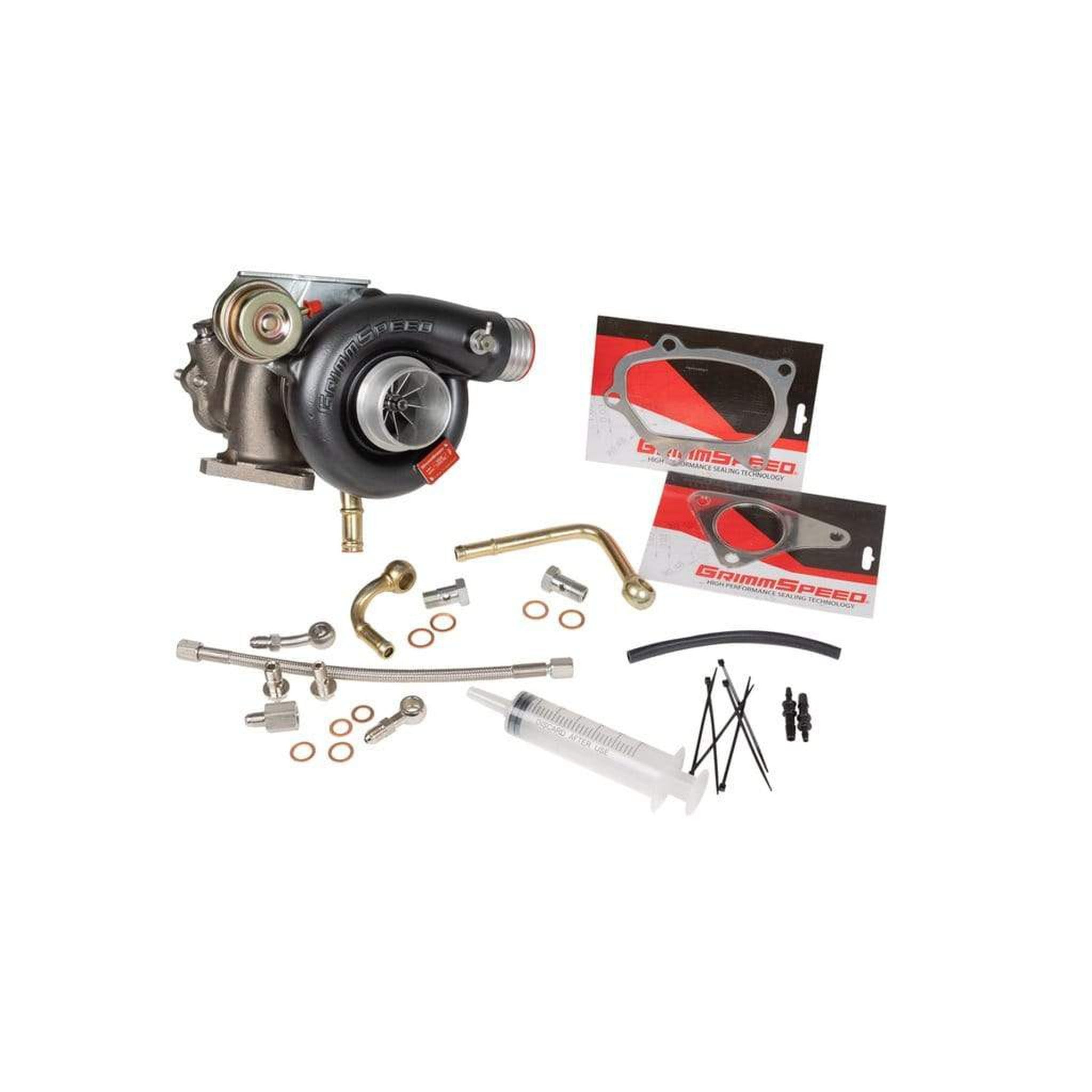

GrimmSpeed Subaru WRX/FXT/LGT/STI Overtake BB500 Turbo Kit | 123006

123006

The GrimmSpeed Overtake BB500. This turbocharger features world class power delivery and quick spool characteristics. It remains a stock location EJ turbo, but features a larger 55lb compressor wheel and massive 60mm turbine wheel to allow the engine to really breathe at high RPM. Just like with the Chase JB400, drivability was GrimmSpeed's #1 goal and by combining slick aero wheel designs with a dual ceramic ball bearing center housing rotating assembly, GrimmSpeed was able to achieve superior spool results. This allowed Grimmspeed to hit 20PSI BEFORE 4100RPM and out-spool the well-performing Chase turbo by an impressive 150 RPM! When bolted onto GrimmSpeed's 2020 STI Shop Car, GrimmSpeed was able to produce 488WHP and 515WTQ. However, the most impressive part is that the Overtake Turbocharger is able to hold 400WTQ+ from 4000RPM and hold over 400WHP from 4250RPM all the way to Redline! The design philosophy was to keep the turbo in its powerband after shifts and to hold substantially more power than the stock turbo to redline. The Overtake produces 129 horsepower and 109 ft/lbs of torque over a tuned stock STI turbo. This is all accomplished on a vehicle with only simple bolts-on, cars with additional engine work such as cams, intake manifolds, etc will be able to produce even higher gains!

Quick Specs:

• Compressor Wheel Size (Inducer/Exducer): 55.1mm / 74.6mm, 54 Trim
• Turbine Wheel Size (Inducer/Exducer): 60mm / 55.1mm, 84 Trim
• Compressor Flow: 55lb-min
• Compressor Wheel Type Material/Alloy: Billet 2618
• Compressor Housing Alloy: A356
• Turbine Housing Alloy: D5S
• Bearing Type: Ceramic Ball
  • Ceramic ball bearing design, featuring silver-plated 4340 bearing cages
  • Dual piston rings and advance oil flinger design to combat oil leakage and CHRA pressurization
• Compressor A/R: 0.65
• Turbine A/R: 0.88
• Adjustable Wastegate: Pre-set at 15Psi base pressure

Fitments

• 04-21 Subaru STI
• 02-07 Subaru WRX [Other modifications required]
• 04-08 Subaru FXT/Baja [Other modifications required]
• 08-14 Subaru WRX/FXT [Equipped with GrimmSpeed Intercooler, STI-Style Conversion Hose, etc]
• 05-09 Subaru LGT/OBXT [Equipped with GrimmSpeed Intercooler, STI-Style Conversion Hose, etc]
