Do you know what your intake manifold sits on?...a superheated engine. If you don't know already, the cooler your intake air is the more HP your car will achieve. We present you the

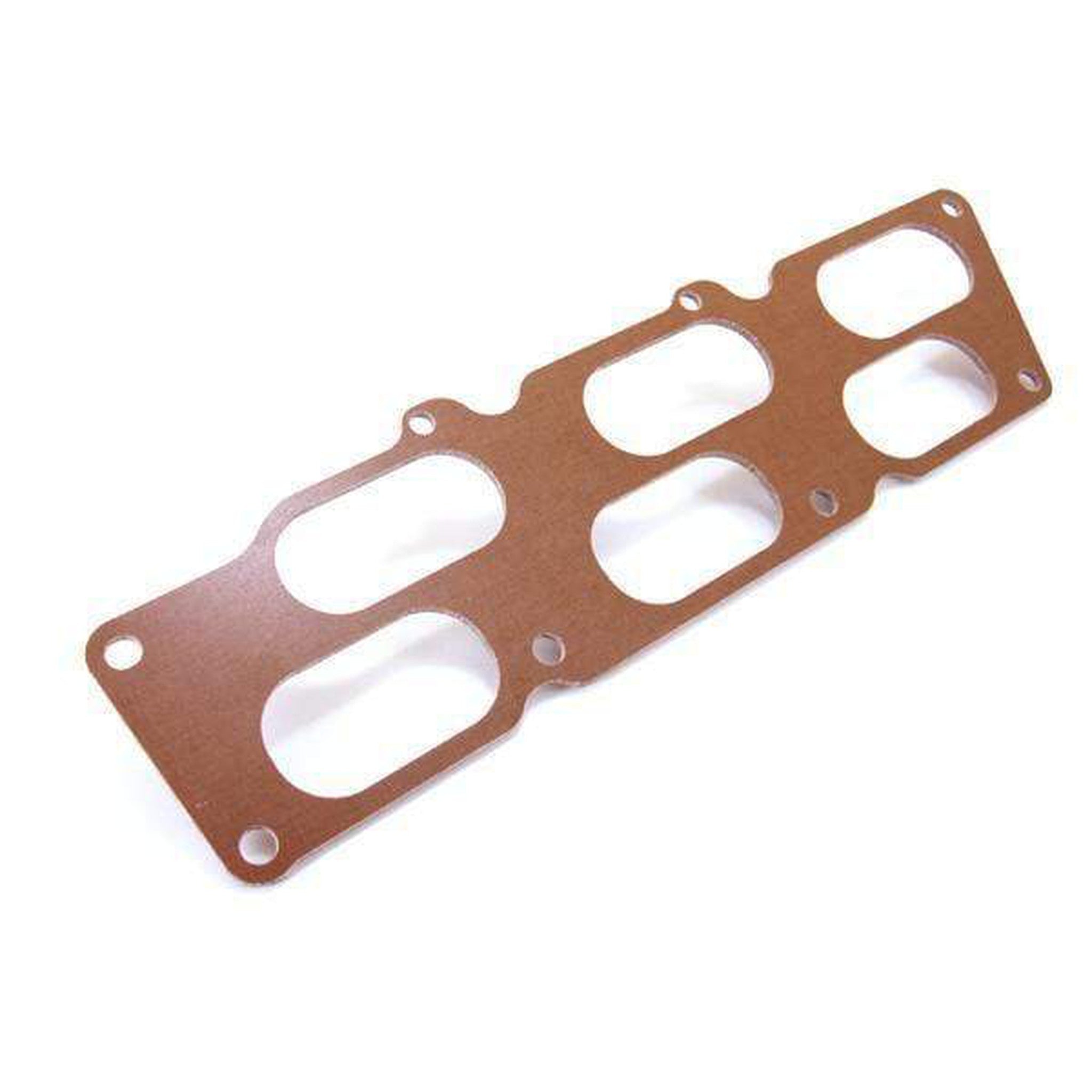

answer to this age old problem, raising the intake manifold off the engine with GrimmSpeed's new Phenolic Intake Manifold to Engine Thermal Spacer.
Phenolic Spacers have been used for years by many other specialized automotive companies, but this is new technology to the Hyundai world.
NOTE: Fitment is for 2013+ ONLY
What it does:
- Greatly reduces the transfer of heat from engine to intake manifold thus reducing heat soak.
- True Phenolic material, not cutting board material like others.
- The cooler your intake temperature is, the denser the air is which leads to more power.
For every 5 degree reduction in temperature, increases power by 1%.
- The cooler and denser the intake air that the engine sucks in, increases the amount of air that can be mixed with fuel thus increasing efficiency.
- When running the oem gasket only, your intake manifold gets very hot to the touch, enough to burn your hand. When the oem gasket is coupled with our Phenolic Spacer, your hand can be placed on the intake manifold without any issues.
- We do recommend using 2 sets of oem gaskets, one on both sides of the spacer.
- USA MADE.
How it works:
- The intake air in your engine travels through the airbox into the aluminum intake manifold. The air exits the intake manifold and goes directly into the engine.
- While the intake air is within the intake manifold it picks up a lot of heat from the aluminum intake manifold. This added heat reduces air density thus reducing engine power capabilities.
- In stock form your engine has a steel gasket between the intake manifold and engine which allows the heat from the engine to quickly transfer into the intake manifold. By replacing this steel gasket with the GrimmSpeed Phenolic Spacer you are greatly reducing the transfer of engine heat into the intake manifold.
- Phenolic Spacers are able to withstand 500+ degrees F. Hyundai engines run at around 200 degrees F, so the Phenolic Spacer is well within its max running temperature. GrimmSpeed has tested that it is also safe to run race fuel, E85 and methanol with the Phenolic Spacers.
- The Phenolic Spacer will conduct 300-900 times less heat than the oem steel gasket.
Below is an excerpt from a 3rd party's study(non-Hyundai)...
"Why it Works
While many avenues exist for boosting the power output of an engine, most approaches focus on ways to increase the volumetric efficiency of the system. Ported heads, larger diameter exhausts, headers, and bigger throttle bodies serve to decrease the resistance to airflow through the engine. The modification shown here, however, does not increase the volume of air flowing through an engine, but rather increases its mass flow.
Cold air is more dense than hot air and takes up less space. So if your engine can ingest cooler air, more air can be mixed with more fuel, which gives more power. An additional benefit is that cooler air has a higher resistance to knock, allowing more ignition timing advance - or boost in supercharged applications. Either way, they both equal more power! This is the theory behind cold air intakes, ice on the manifold, and intercoolers.
The intake air in EFI engines is drawn through the airflow meter and throttle body, and then into an alloy intake manifold. During its residence in the intake manifold casting, the air charge picks up unwanted heat from the manifold, increasing its volume and lowering the resistance of the engine to knock.
When compared to the 0.025 inch steel gasket it replaces, a quarter inch thick phenolic insulator will conduct 200-1000 times less heat! Although the insulation benefits increase with thickness, ¼ inch (6.4mm) sheet was chosen because this is the thickest that can generally be used with stock mounting studs and bolts.
Manifold Temperature Data
The basic function of the insulators is to reduce intake manifold temperatures, so what better way to test than to record and compare temp data before and after the install? I took the temperature readings from the front centre intake runner using a professional quality CPS T200 temperature sensor with a time constant of the order of 5 seconds. The sensor was mounted on the front middle intake runner for all tests and the vehicle was driven as close to 60 mph (~100 km/h) as traffic would allow. After the driving test, the engine was allowed to idle for a sufficient time to show the maximum temperature.
The data is shown as a temperature change above ambient. As you can see, the temperature of the intake manifold reached a steady state of approximately 30 degrees F (17 degrees C) lower - 40 degrees F versus 70 degrees F - with the insulators than without during 60 mph cruising. During the idle test (the higher temps at the right end of the graph), the non-insulated engine was 52 degrees F (29 degrees C) hotter and still climbing when the test was aborted. A non-quantitative comment: I can place my hand on the intake after a drive with the insulators installed, whereas I would have burned myself previously!
Having seen many people shell out hundreds of dollars for performance mods of dubious value, I wanted as much data as possible to show that this intake manifold insulator thing really worked. I was able to show that:
The intake ran 30 degrees F (17 degrees C) cooler at cruise and at least 50 degrees F (28 degrees C) cooler at idle; According to my dyno plots, I gained up to 7 horsepower and 11 ft-lbs of torque over the major portion of the power curve. My best time at the track was ~0.1 seconds quicker and ~1 mph faster "
