Haltech WB1 Bosch Single Channel CAN O2 Wideband Controller Kit | HT-159976

Fitment:

• Haltech Nexus, Elite, and Platinum ECUs via CAN
• Supported third-party ECUs via CAN — check Haltech documentation
• Off-road / competition, non-emissions-controlled vehicles only

Features:

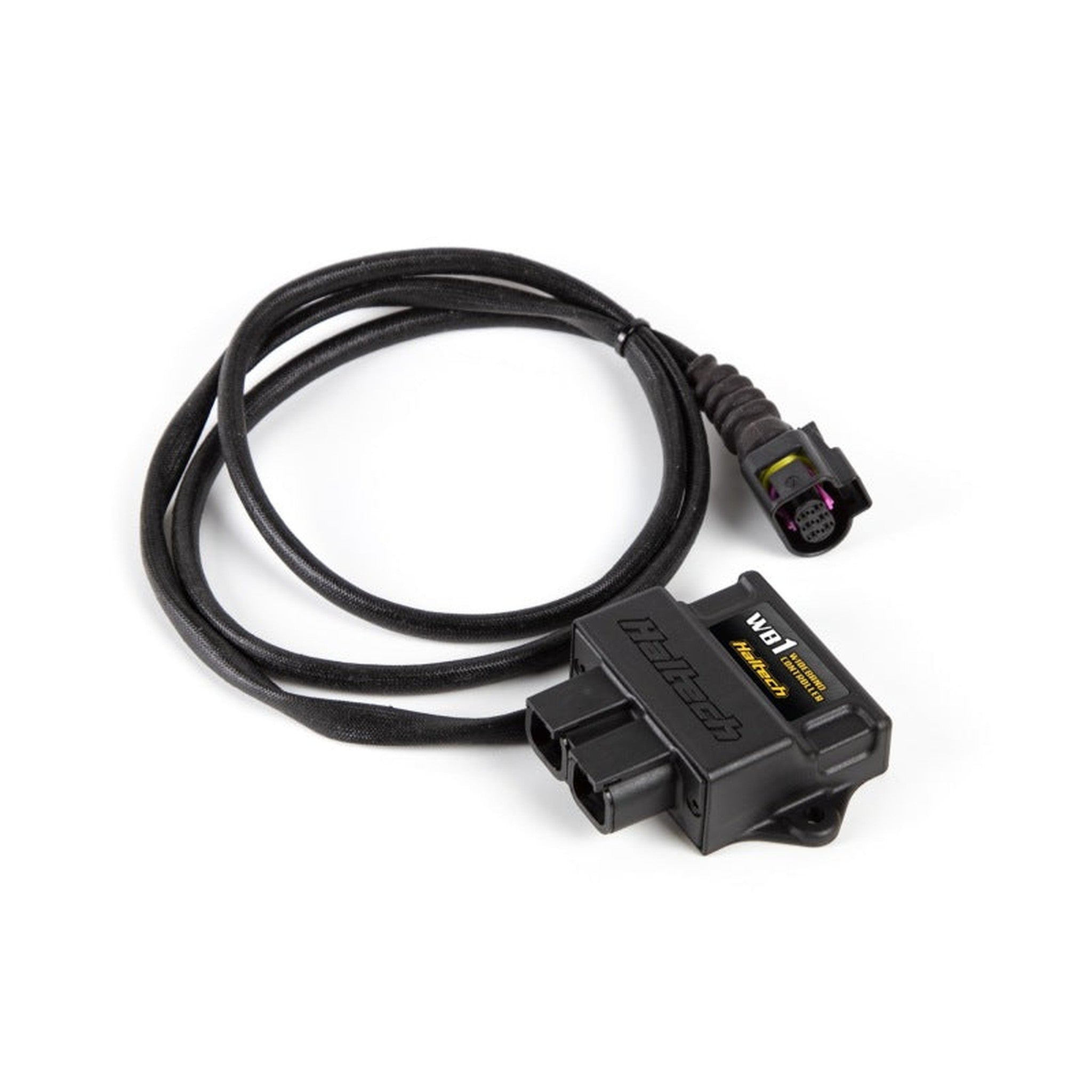

Single-channel CAN wideband controller built around a Bosch LSU 4.9 sensor. It measures air/fuel ratio and delivers it over CAN to the ECU, programmed through Haltech NSP, ESP, or ECU Manager software. Sealed unit, mountable in the engine bay.

• Bosch LSU 4.9 sensor
• Single-channel CAN output at 1 Mbit/sec
• Plug-and-play CAN connection

Specs:

• Supply voltage: 6.5–16 V
• Supply current: 650 mA typical / 3 A peak
• Max ambient temperature: 125 °C
• Controller dimensions: 86 × 77 × 28 mm

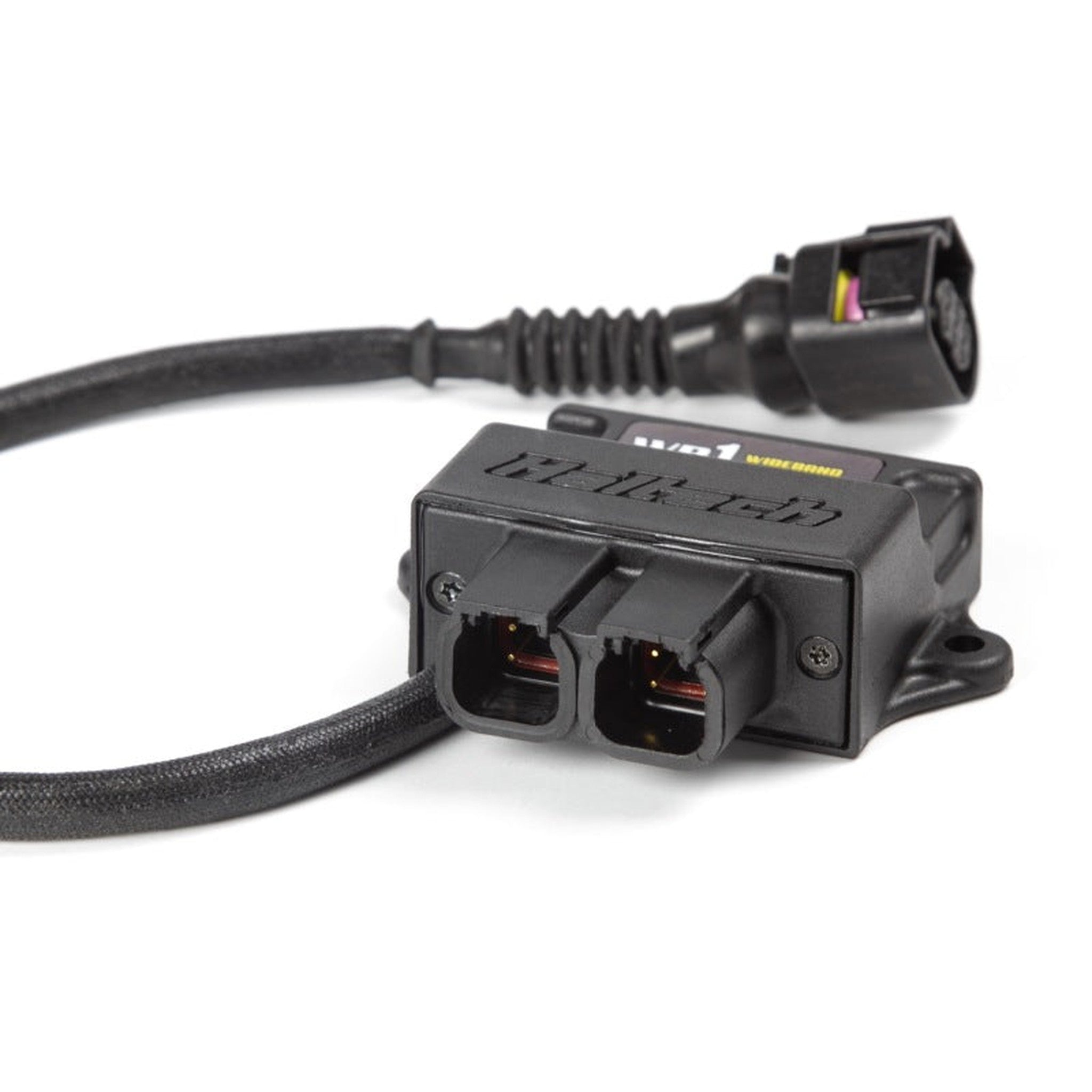

• Connectors: 2 × integrated DTM-4
• CAN cable length: 1.2 m (4 ft)

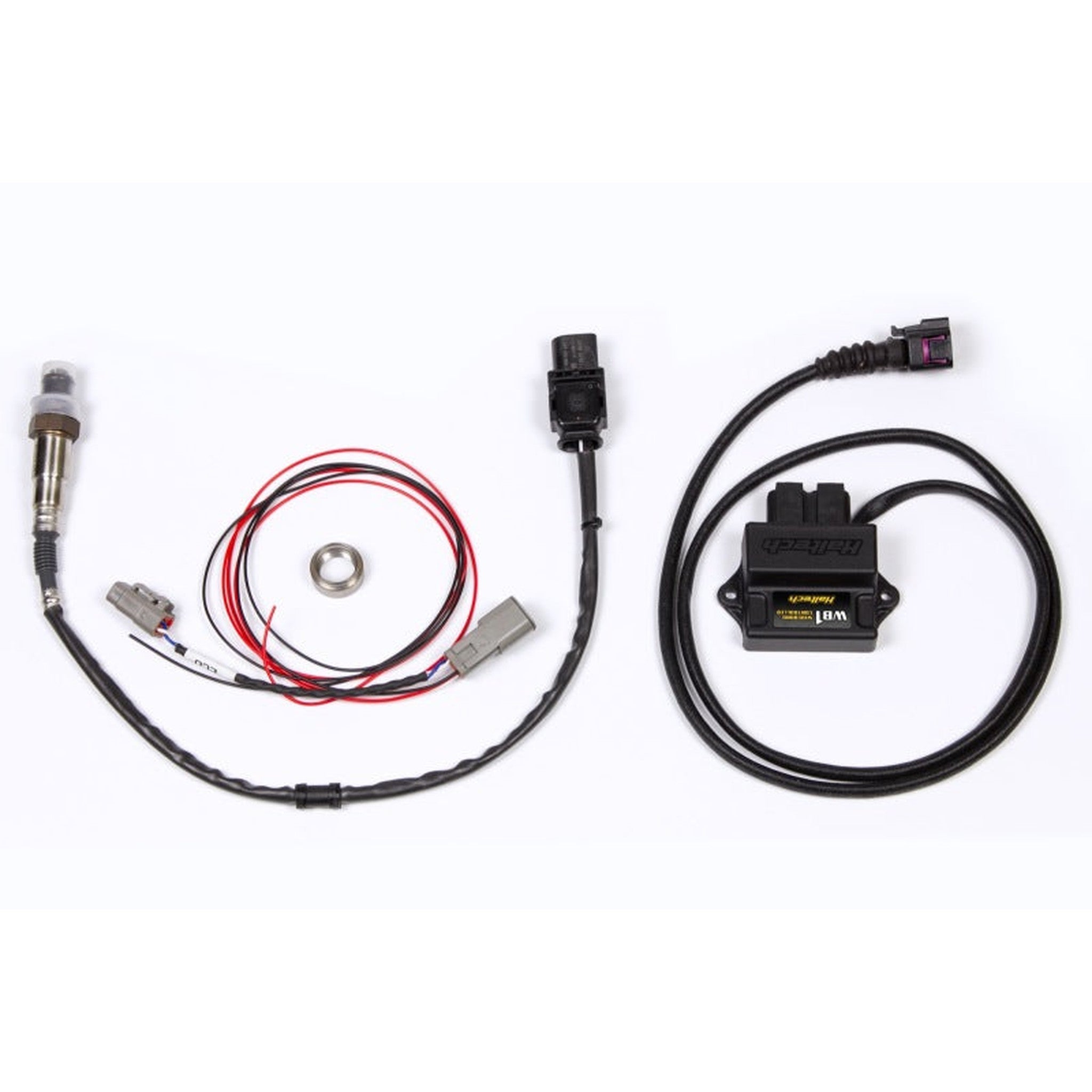

What's included:

• Single Channel CAN Wideband Controller
• Bosch 4.9 LSU sensor
• CAN cable, 1.2 m
• Power supply cable
• Weld-on bung
• Quick Start Guide

Note: this is not the NTK version (HT-159978) and not the dual-channel WB2 (HT-159986).
