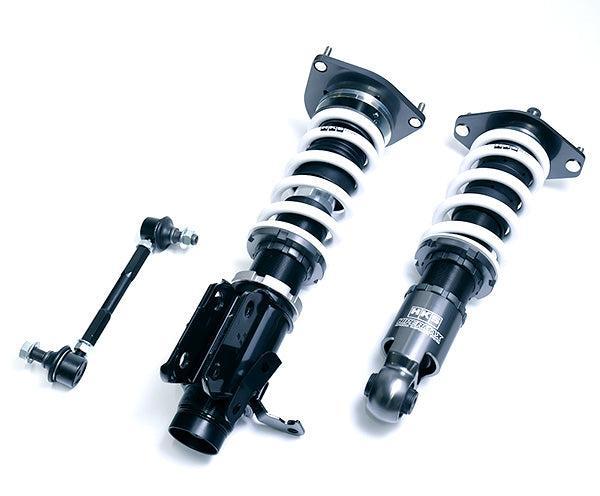

HKS Hipermax R Cup Coilover Kit Toyota GR86 / Subaru BRZ 22-26 | 86CUP-AT002

Product Fitment:

2022-2026 Subaru BRZ

2022-2026 Toyota GR86

This is a designated professional series product developed for the TOYOTA GAZOO Racing GR86/BRZ Cup. For the 2025 season, the damping force, bumper rubber, and front outer fastening structure have been revised. Development driver Nobuteru Taniguchi was invited to help fine-tune the product!

Compared to the 2023 model, cornering and acceleration / deceleration feedback have been enhanced, improving both understeer and traction performance.

Hipermax Technology for the GR86/BRZ Cup:

• Front and rear bump steer rubbers are not shorter to minimize posture disturbance when driving over curbs
• Full length adjustable front end link is included and should be used in conjunction with the height-adjustable suspension
• Registered under ASEA standards, with T.R.A. Approval Number T.R.A. 250220-213
• The settings are designed and produced for circuit driving
• Suepr Response Fluid: Special oil with high viscosity that is resistant to heat dissipation. In addition, the damping starts from the very low speed range, providing reliable handling, good stability, and excellent feel.
• Low Vibration Spring (Front only): Newly developed dedicated spring made of high-strength wire material that is ideal for sports driving provides excellent response and a smooth ride.
• Spring Retainer: A retainer is standardly equipped on the top of the spring, which does not allow side to side movement. Allowing the spring to follow posture changes firmly and improves driving stability.

Specs:

• Front Spring Rate: 8kg
• Rear Spring Rate: 10kg
• Front and Rear Upper Pillowball Mounts

Note: While this product can be overhauled, specification change services are not available.
