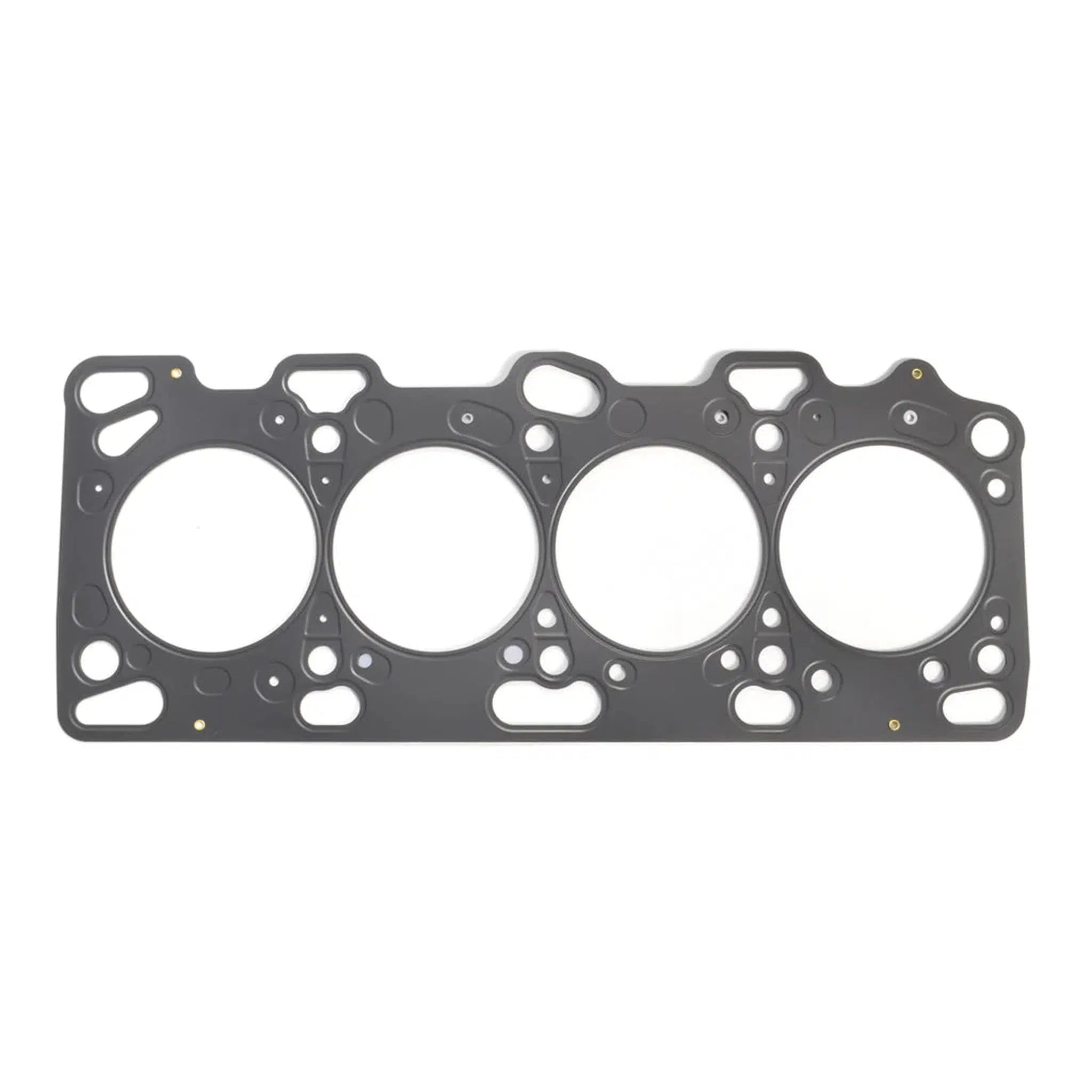

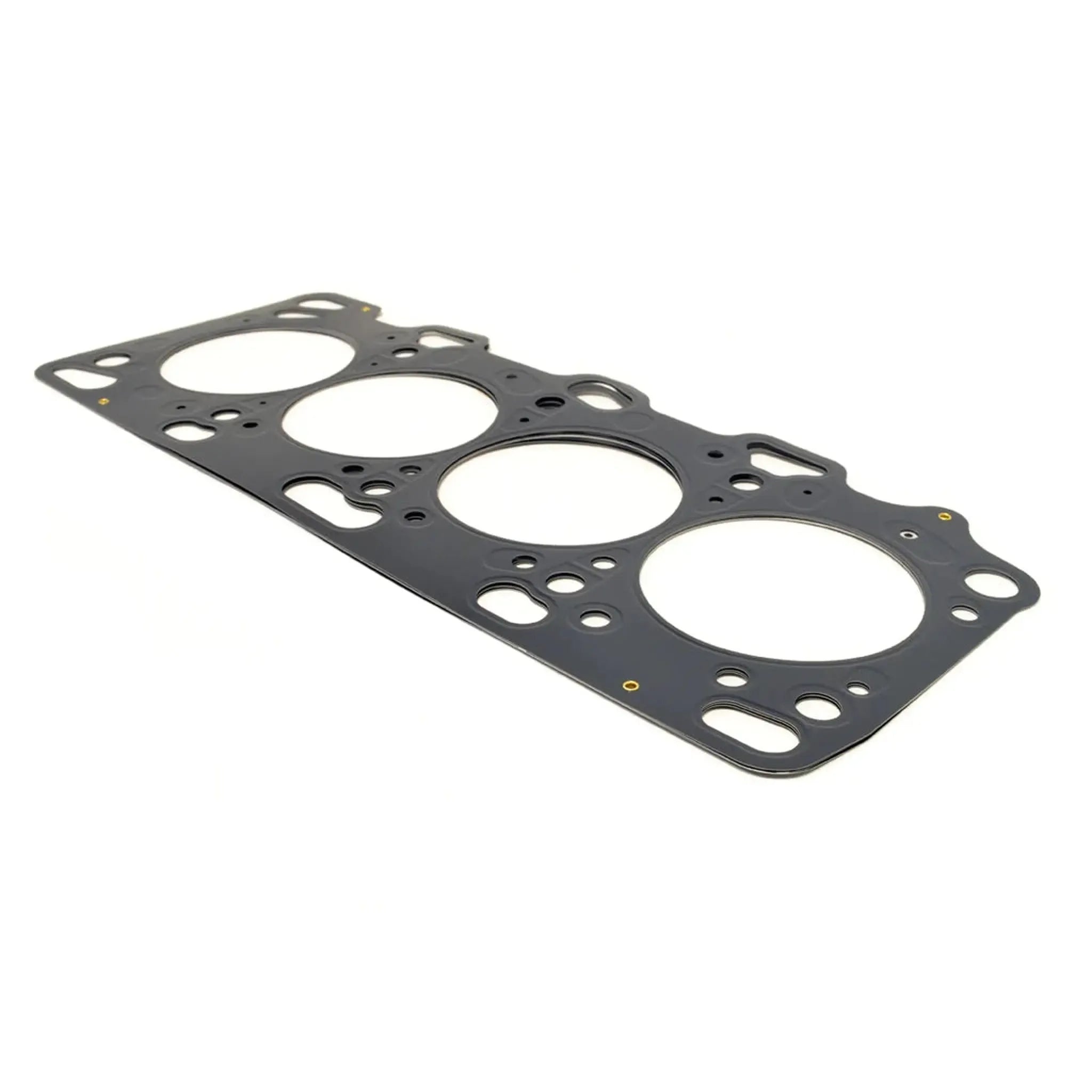

HKS Stopper Head Gasket 86mm Mitsubishi EVO 8 / EVO 9 2003-2006 | 23001-AM004

Fitment Information:

2003-2005 Mitusbishi Evolution 8

2006 Mitsubishi Evolution 9

Features:

• Multi-layer steel
• Resistant to heat and corrosion
• Fluorine rubber coating

• One Head Gasket Included

Specs:

• Bore Size: 86mm
• Thickness: 1.2mm
• Compression Ratio: 8.5:1

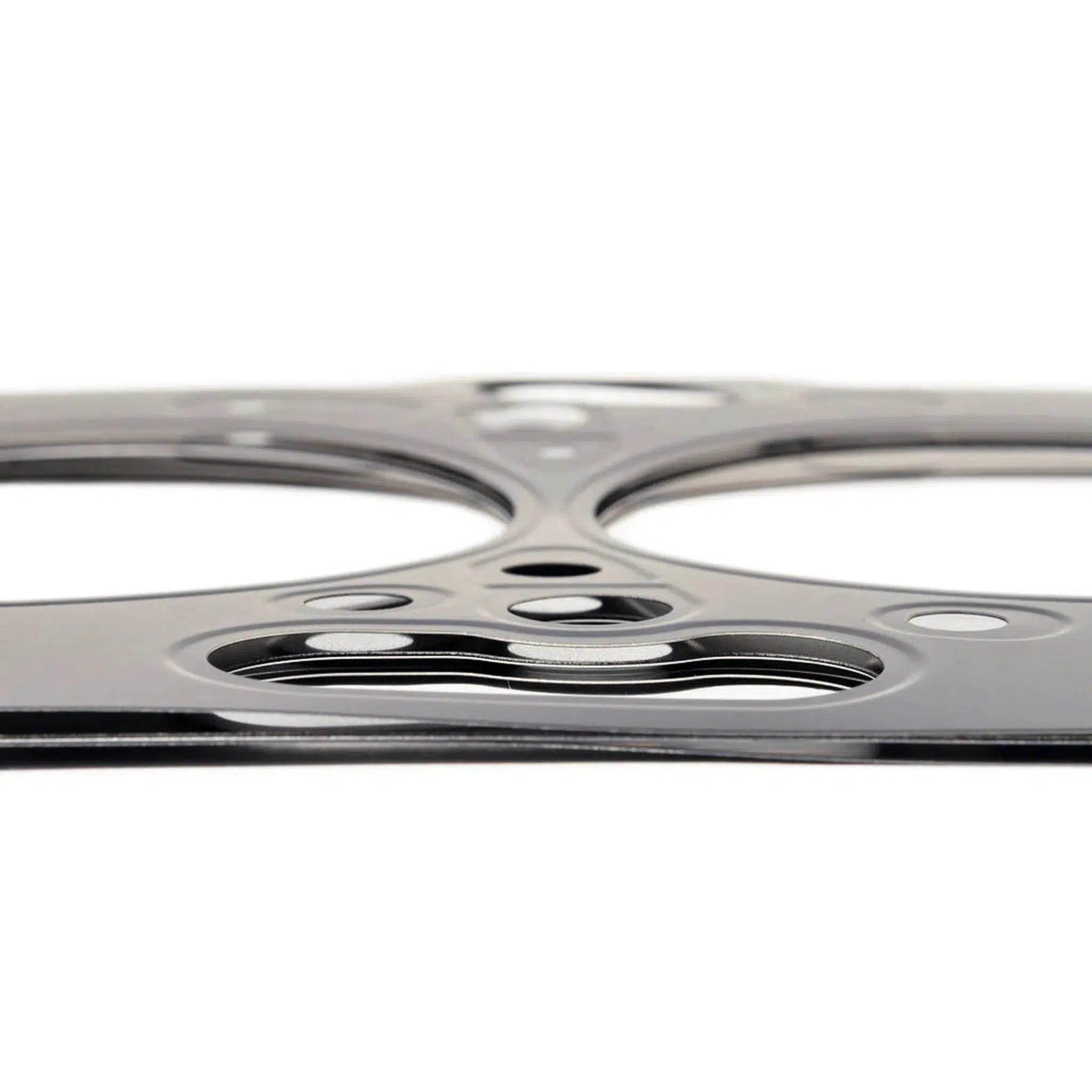

HKS metal head gaskets are engineered to resist severe levels of heat that are generated by high-horsepower and high-boost applications. All HKS head gaskets are constructed with multiple layers of steel and coated with a special fluorine rubber to provide exceptional sealing. HKS head gaskets are designed to accommodate standard and certain oversized cylinder bores. For most applications, multiple gasket thicknesses are available to change the dynamic compression ratio for various levels of tuning and engine conditions. A high pressure seal is formed around the combustion chamber through the use of stoppers which create a step within the gasket for optimum sealing. By making the stopper part of the plate also allows the fold to be smaller while maintaining structural integrity. One side of the plate is completely flat meaning that it can be layered with the stopper to allow stoppers to be used in even the tightest of locations around the combustion chamber forming a high quality seal.
