Fitment Information:
2002-2014 Subaru WRX
2004-2021 Subaru STI
2005-2009 Subaru Legacy GT
2004-2013 Subaru Forester XT
Features:

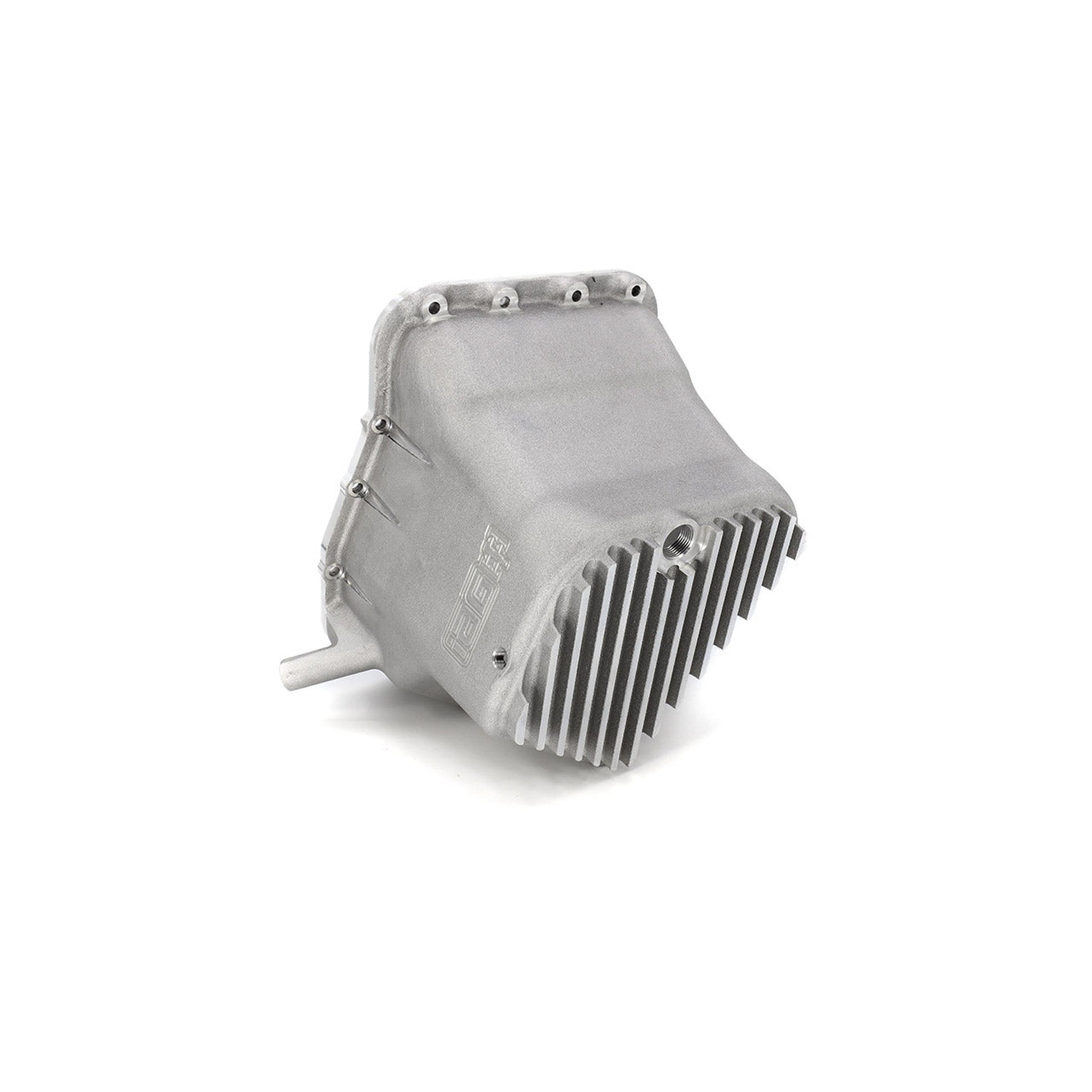

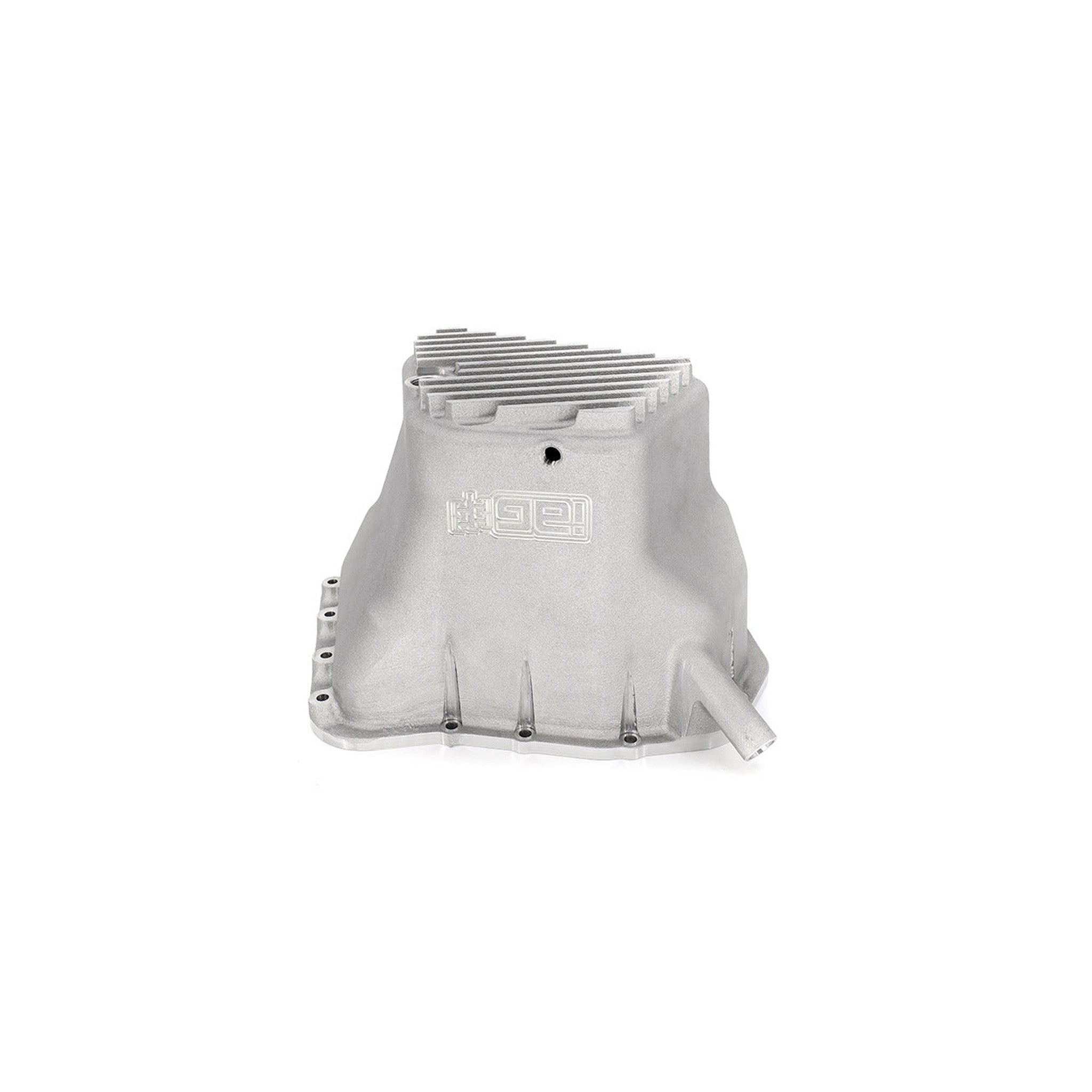

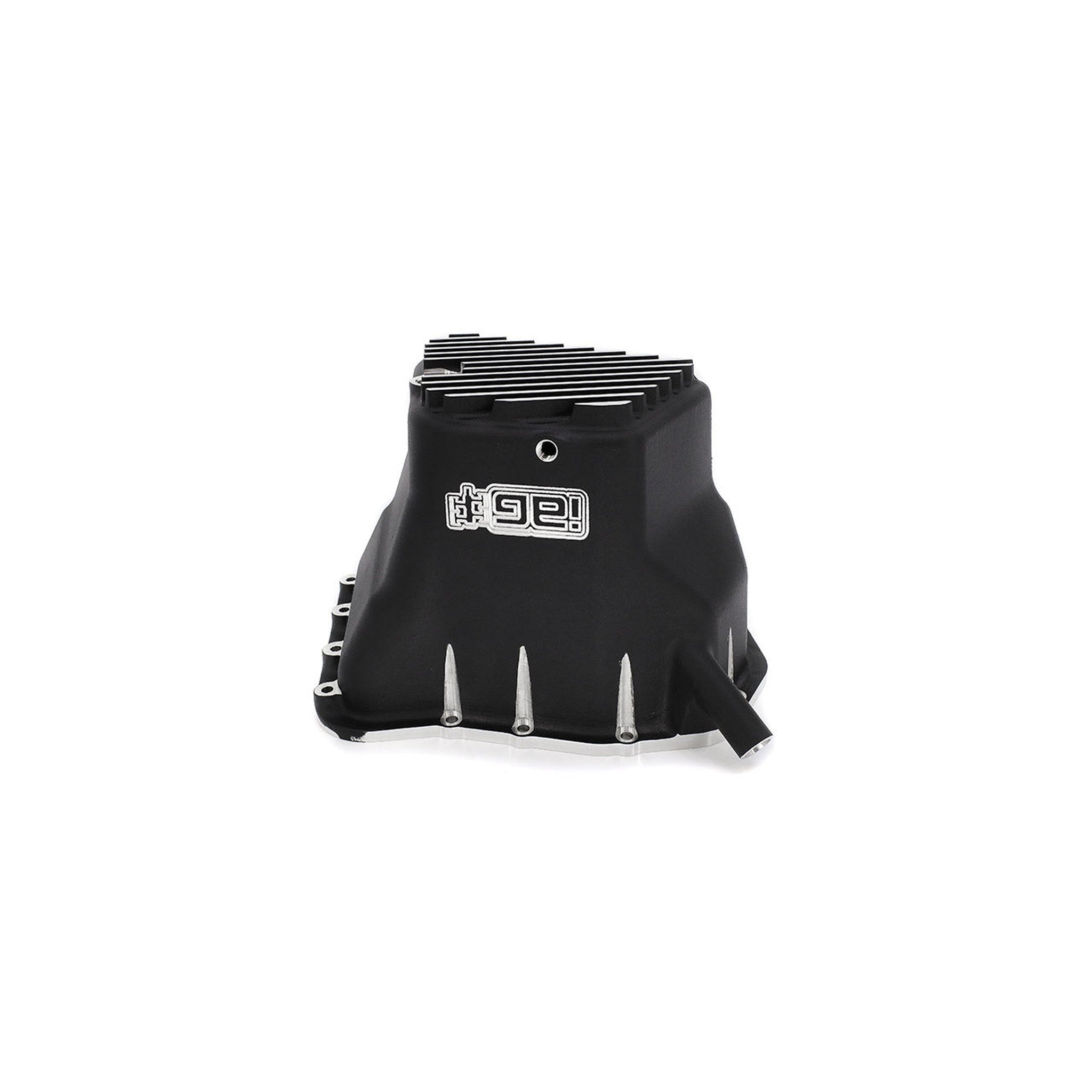

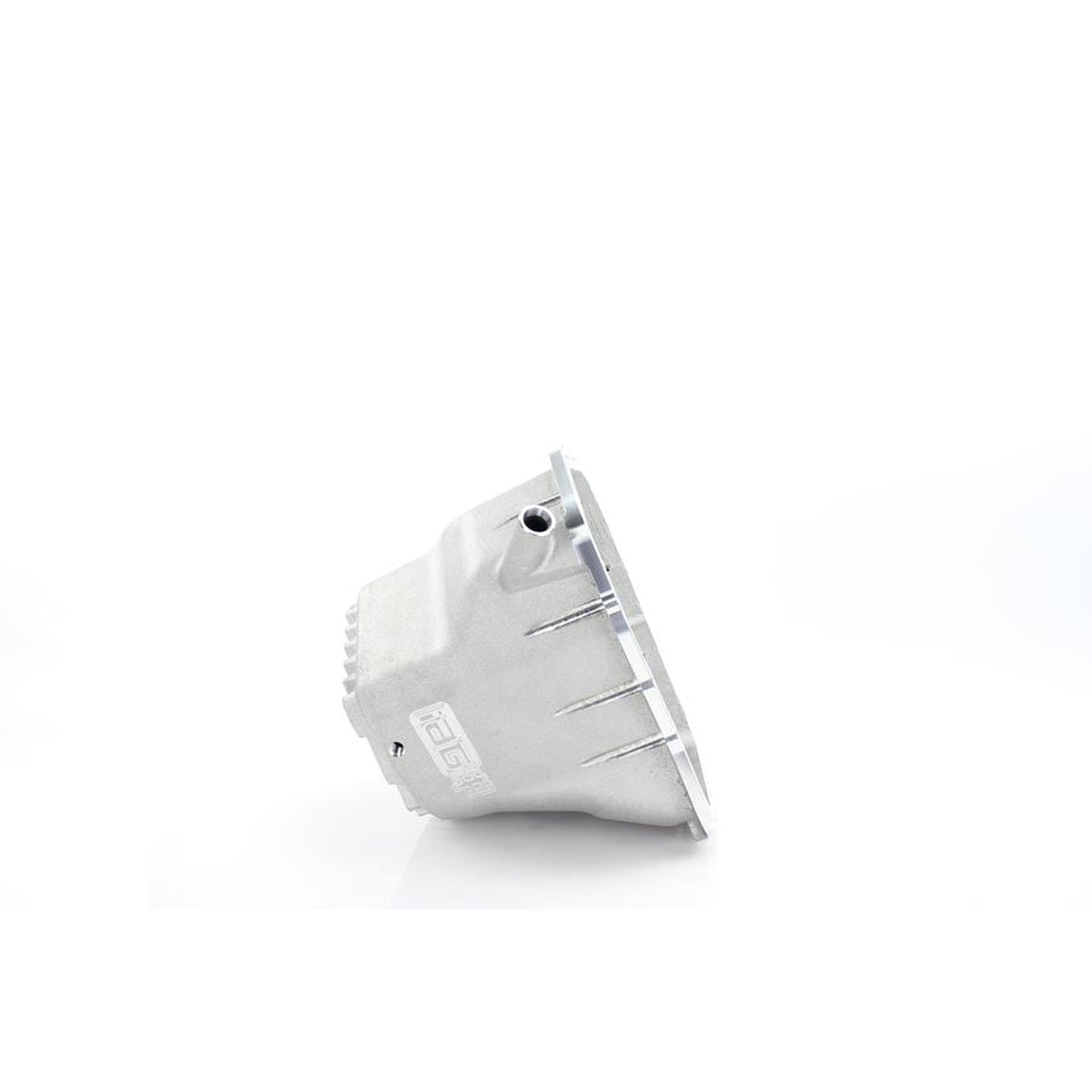

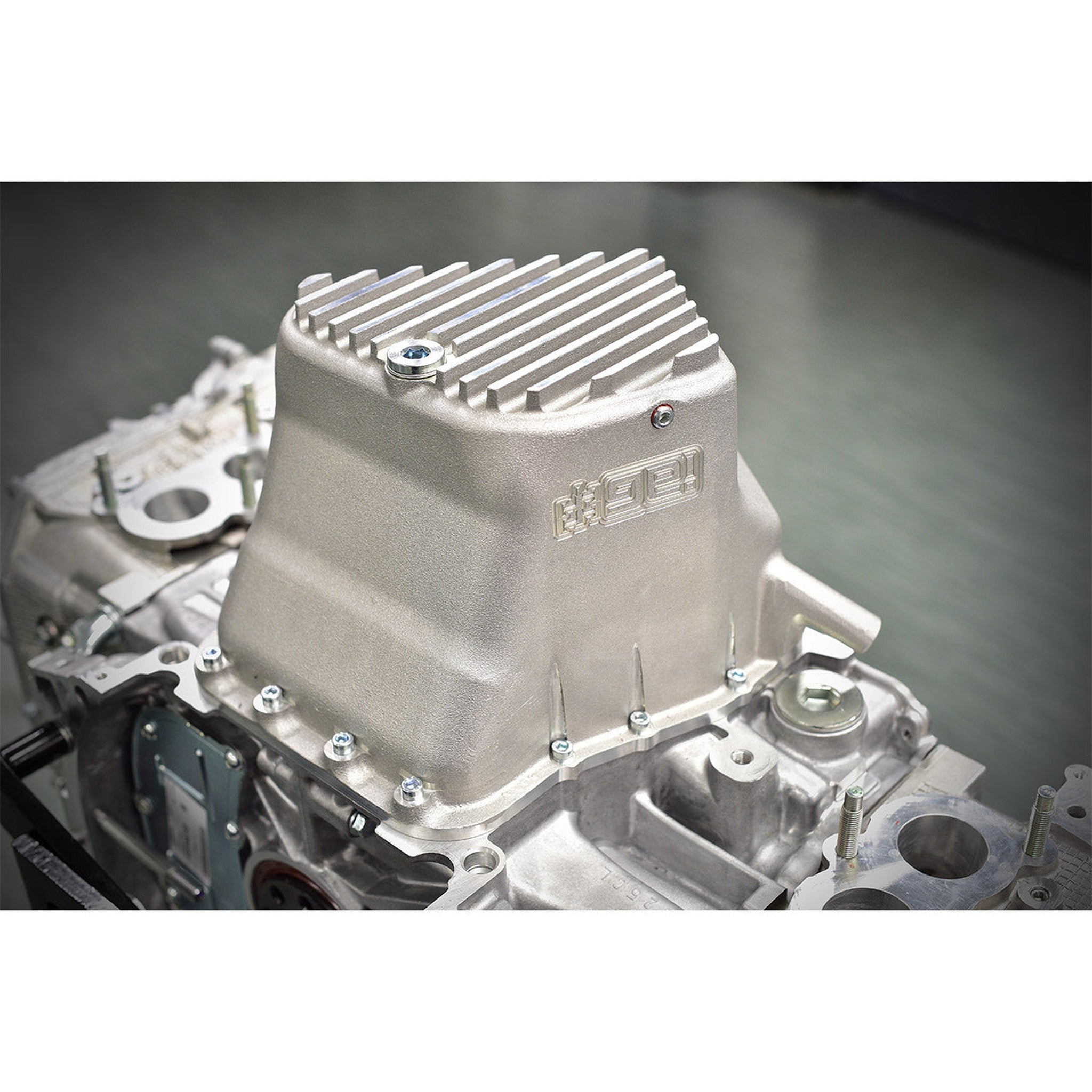

The IAG Performance Street Series Oil Pan for the Subaru WRX and STI is uniquely designed and CNC machined to suit a wide range of street and track applications.

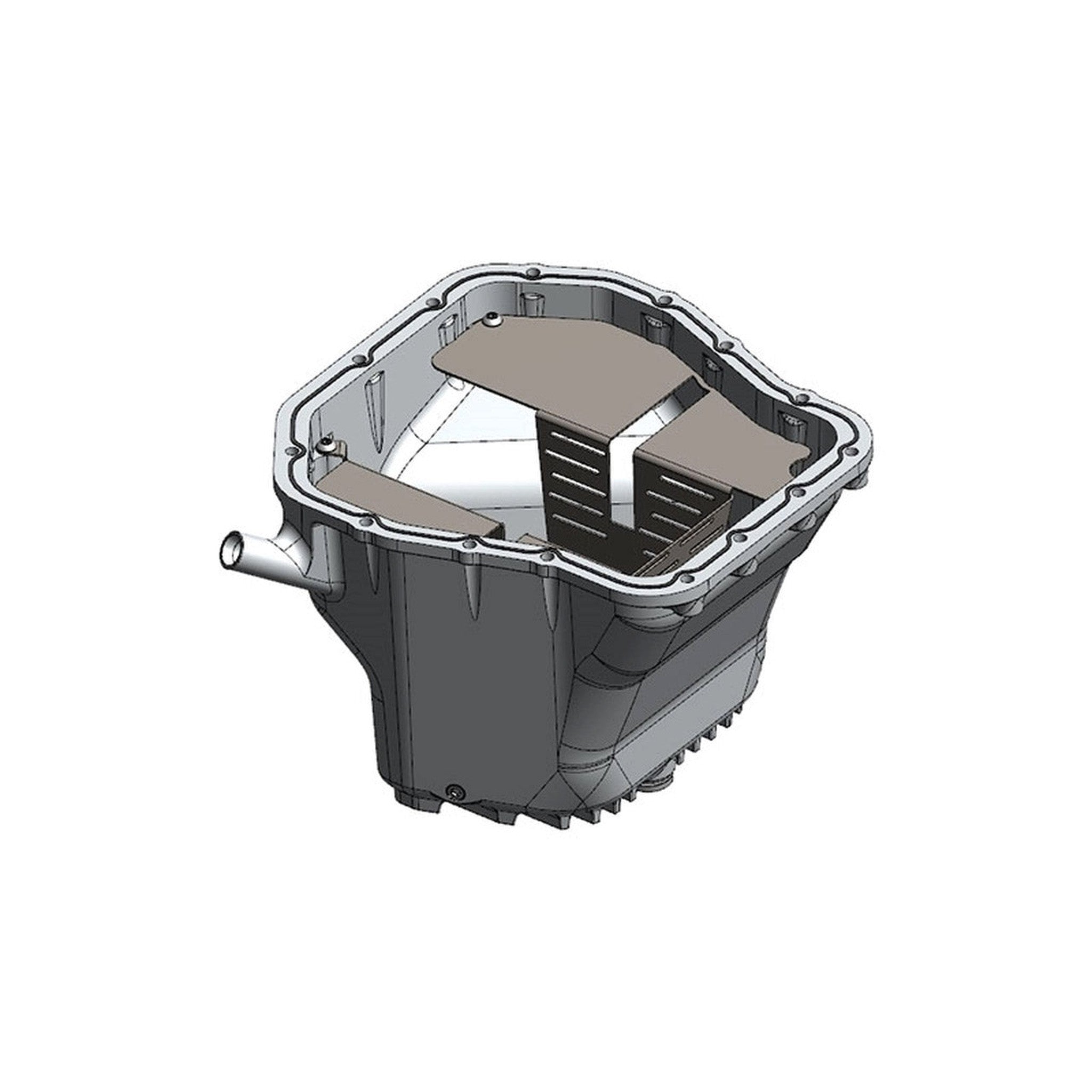

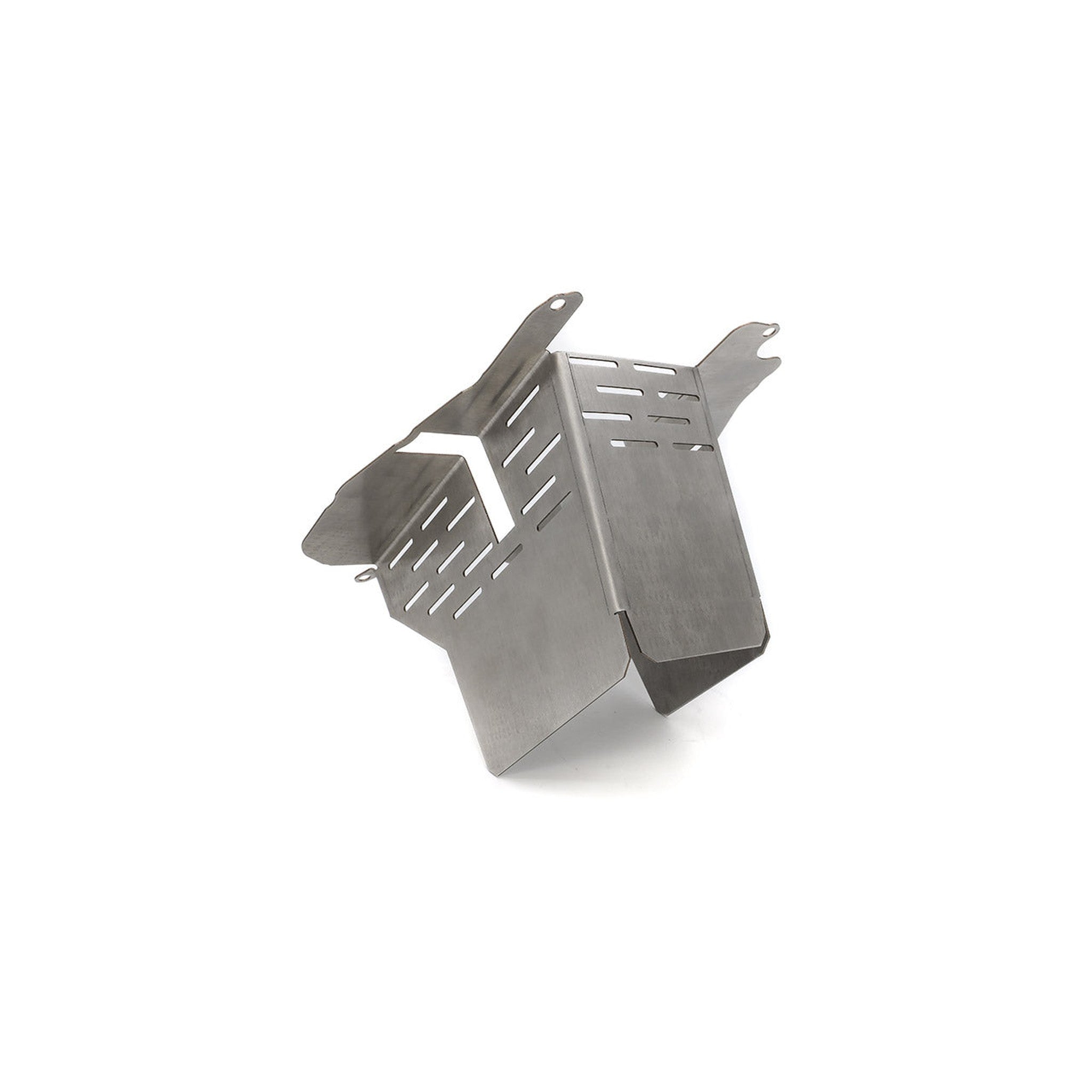

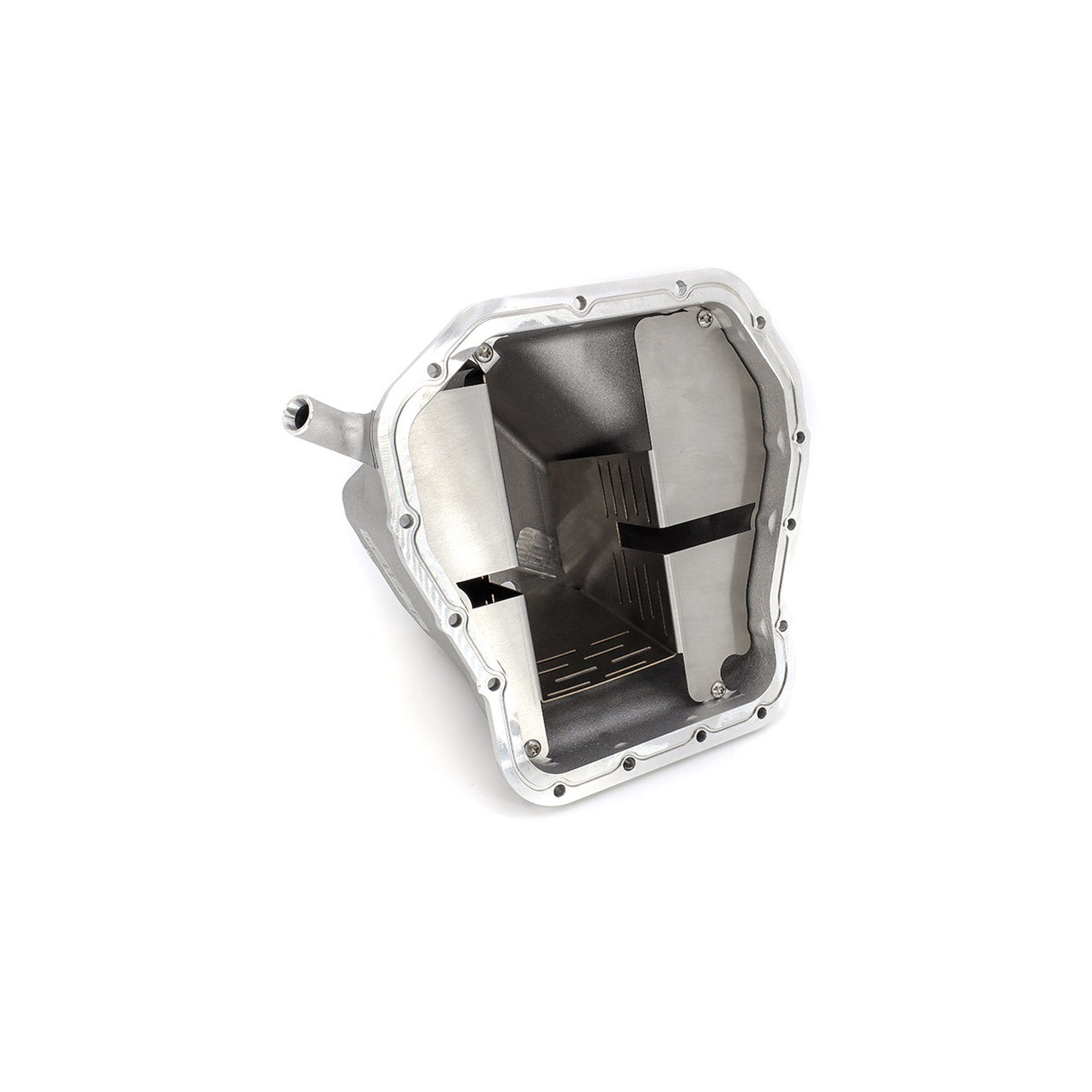

The cast aluminum oil pan was designed with fitment for a larger variety of popular headers in mind, while still increasing oil capacity up to 30% over OEM. The integrated, stainless steel Street Series Oil Baffle is designed to prevent oil inside the pan from sloshing around and creating cavitation, which can lead to oil starvation. This baffle is engineered to be removable for future upgrades and easy cleaning.
What's in the Box:
Install Notes
About Street Series EJ Oil Pan

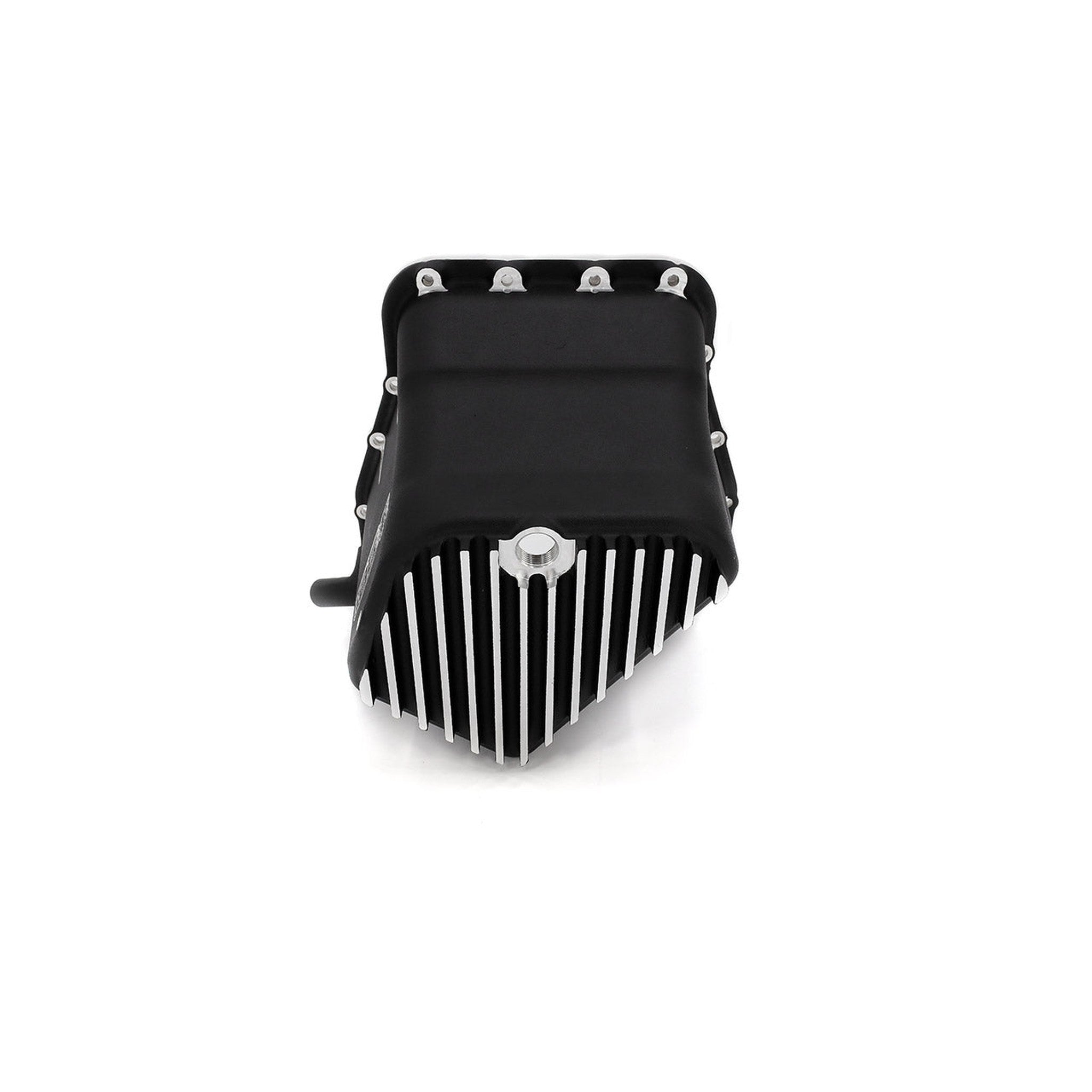

This design incorporates cooling fins to aid in dissipating heat from the oil as air passes over them. The included oil drain plug is integrated into the lower cooling fins at the absolute bottom of the pan to make sure all the waste oil is removed during maintenance changes. The oil drain plug uses an OEM style crush washer. The oil pan is also threaded with 1/8th inch NPT port to accept many popular oil temperature sensors. 1/8th inch NPT plug is also included in the event that the sensor port is not used.
The upper flange mounting surface is CNC machined for better hardware fitment. The flange features a sealing O-ring for easier installation and removal. The pan is designed to use the included OEM style Viton dipstick o-rings with a unique chamfer to aid in the installation of the dipstick.
This oil pan is really high quality, was a little bit of a pain to install the gasket for the oil pan and they could have gone with regular bolts instead of hex

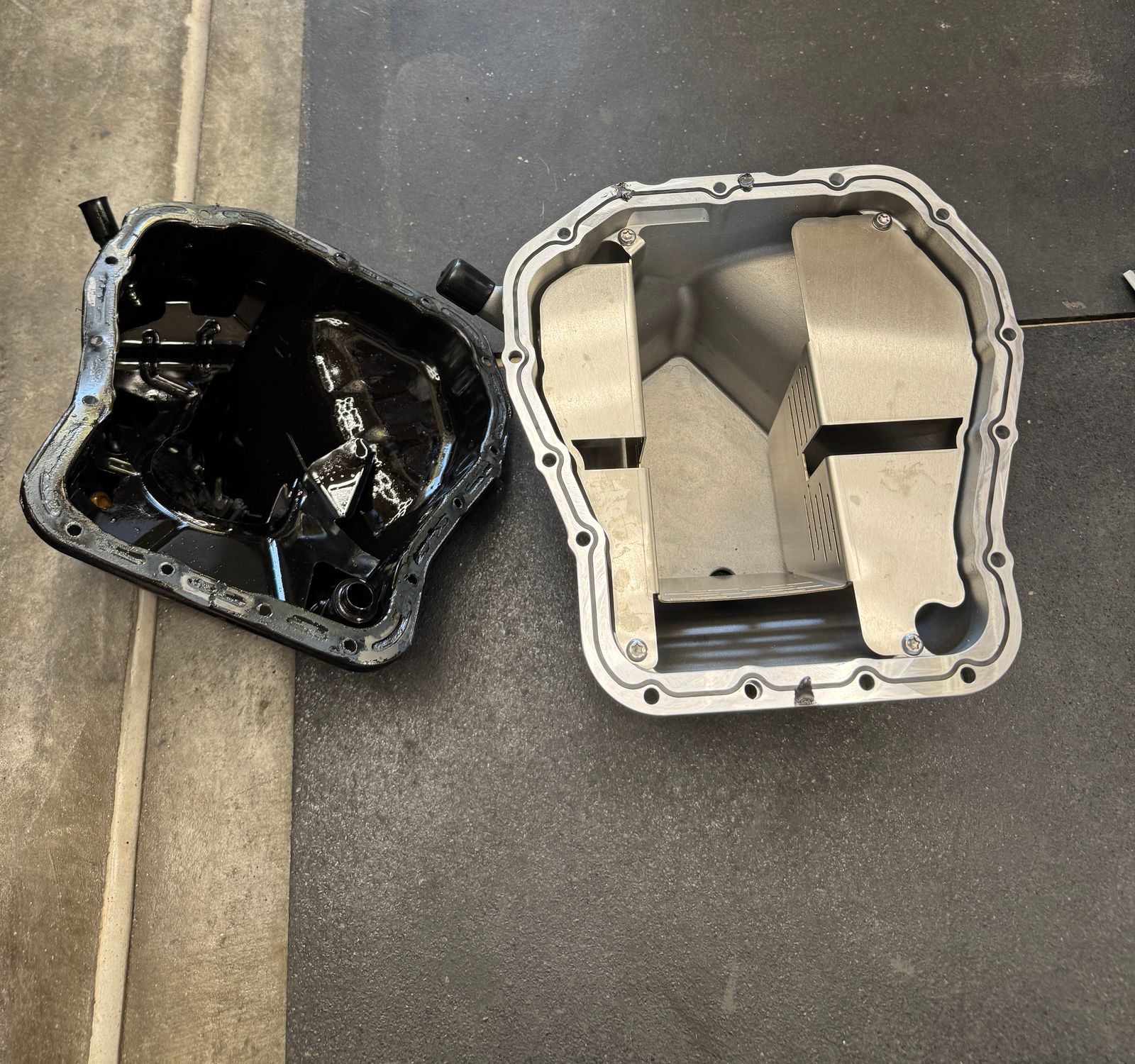

Very impressed with the quality of the IAG Oil Pan. Purchased it to replace my stock pan bc it was leaking and I can safely say it is very well worth the price!
My only concern is that it hangs so low that I may need to buy a skid pan to protect it
Quality is top notch!!!
The build quality on this is amazing and I’m looking forward to getting it on the car
Super high quality and came with everything i needed to fix my oil leak on my oem pan. it’s a peace of mind knowing that this part will hold up for quite awhile. love the design and an option to put a temp sensor in. would recommend 10/10
