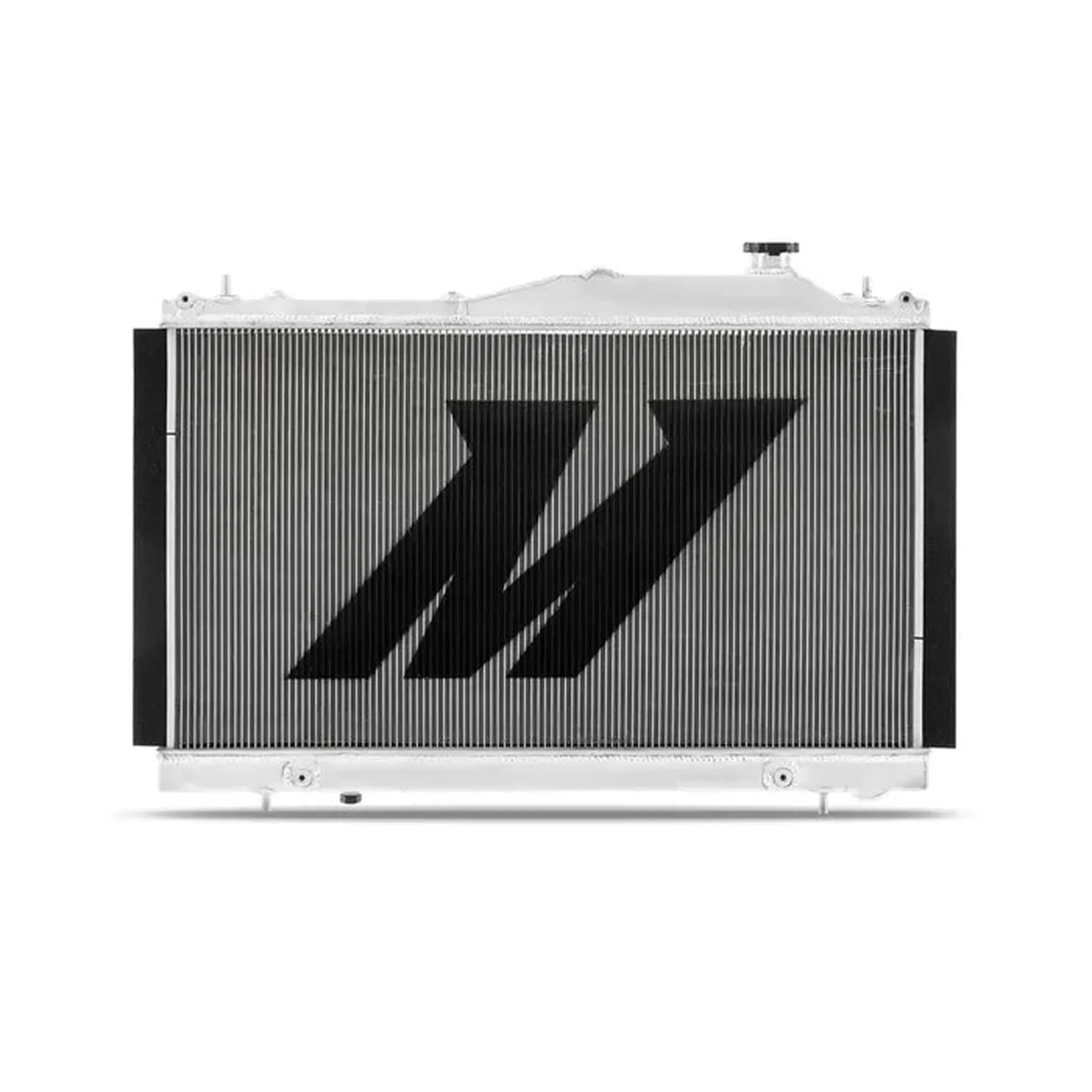

Mishimoto Aluminum Radiator Subaru WRX 2022-2025 | MMRAD-WRX-22

Fitment Information:

2022-2025 Subaru WRX

Features:

Take your 22-23 WRX closer to its rally roots and push it to its limits with the Mishimoto Performance Aluminum Radiator. This radiator features aluminum end tanks that are precision TIG-welded to withstand the vibrations and impacts that rally, track, or everyday driving throw at it. To help keep your FA24 boxer engine cool for miles of wide-open-throttle, we've sandwiched a two-row, 36 mm-thick core between those end tanks. This core features densely packed and louvered fins that effectively circulate air throughout the core for maximum heat transfer. The larger core also translates to a 32% increase in core volume, meaning our radiator can pull more heat out of more coolant, for more efficient cooling. A slotted drain plug helps direct coolant into your drain pan, instead of onto the floor during service. Like all Mishimoto radiators, this 22-23 WRX performance aluminum radiator is backed by Mishimoto's Lifetime Warranty.

• 32% increase in core volume over stock for improved cooling efficiency

• 50% greater fin surface area for improved heat transfer

• Two-row core balances optimal flow with cooling performance

• Precision TIG-welded end tanks resist vibration and impacts on the street, gravel, or dirt

• 36mm-thick core with louvered fins makes the most of air moving through the grille

• Slotted drain plug makes services mess-free

• Mishimoto Lifetime Warranty

Specs:

• Overall height: 21.49 inches
• Overall length: 29.41 inches
• Core length: 28 inches
• Core height: 15.75 inches
• Fluid capacity: 0.978 gallon
• Rows: 2
• Inlet: 1.65 inches
• Outlet: 1.65 inches
• Core thickness: 1.42 inches

What's Included:

• (1) Mishimoto Performance Aluminum Radiator
• (1) M12x1.5 Slotted Drain Plug
• (1) Mishimoto Radiator Cap

Note: Your vehicle will require 1 bottle of full strength coolant or premixed coolant.
