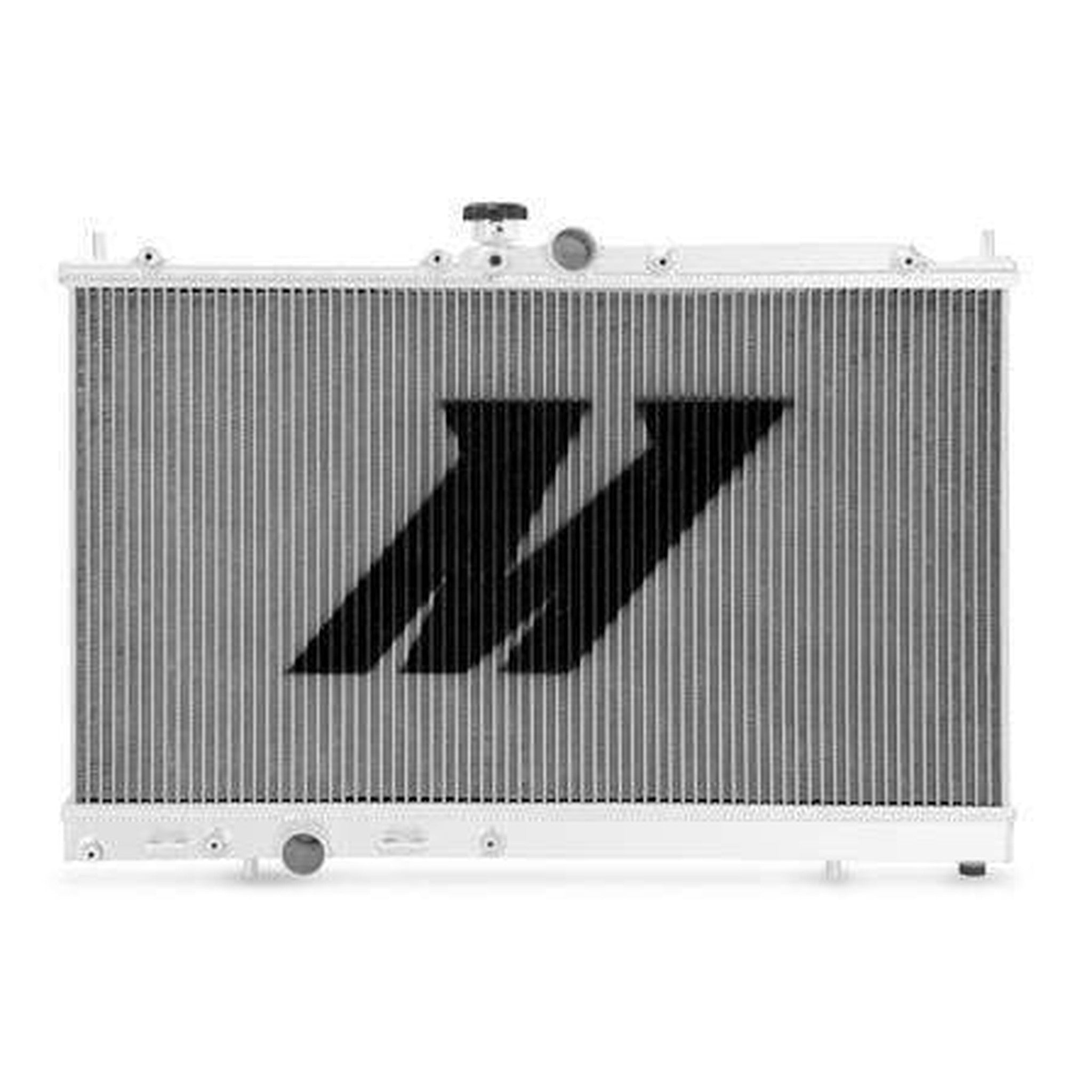

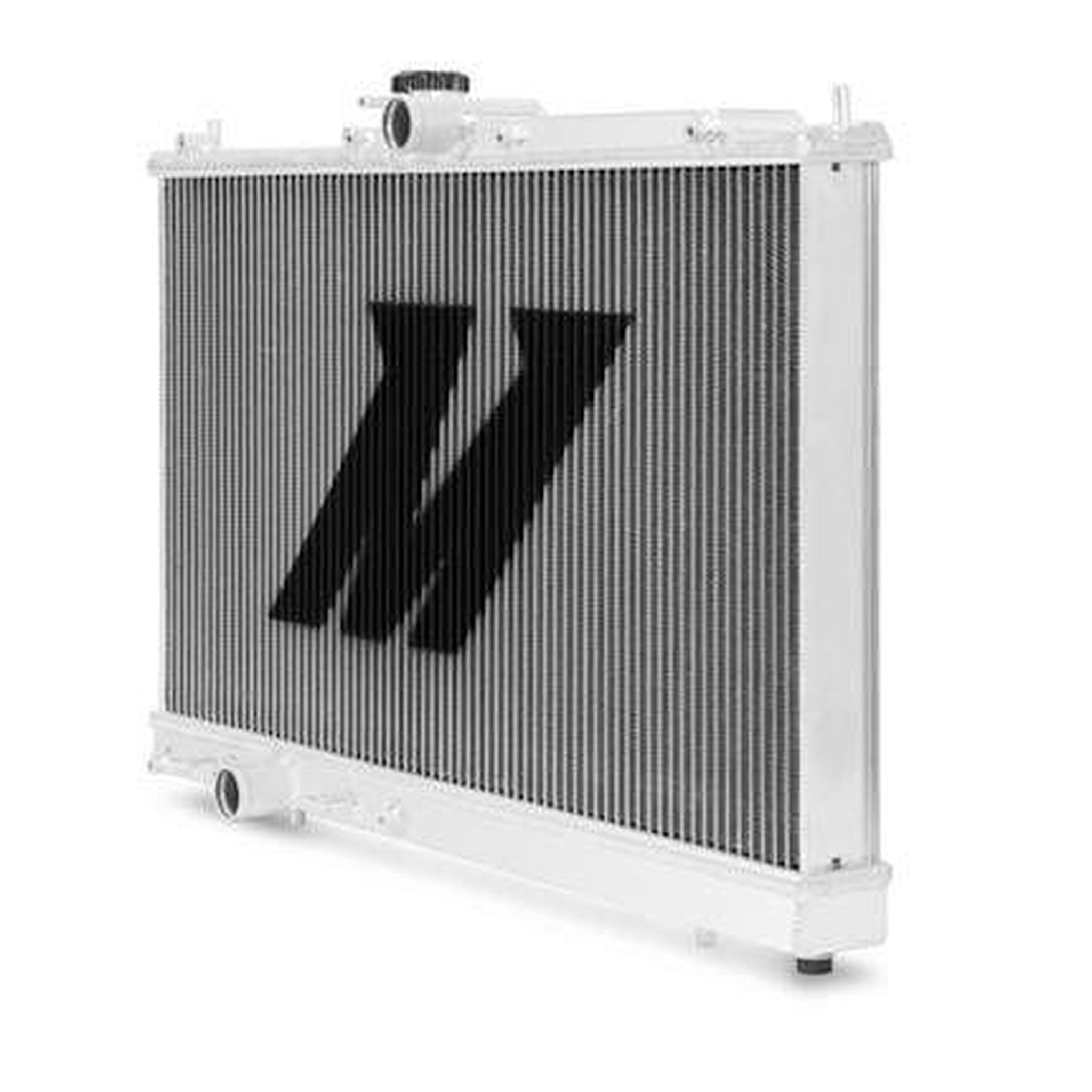

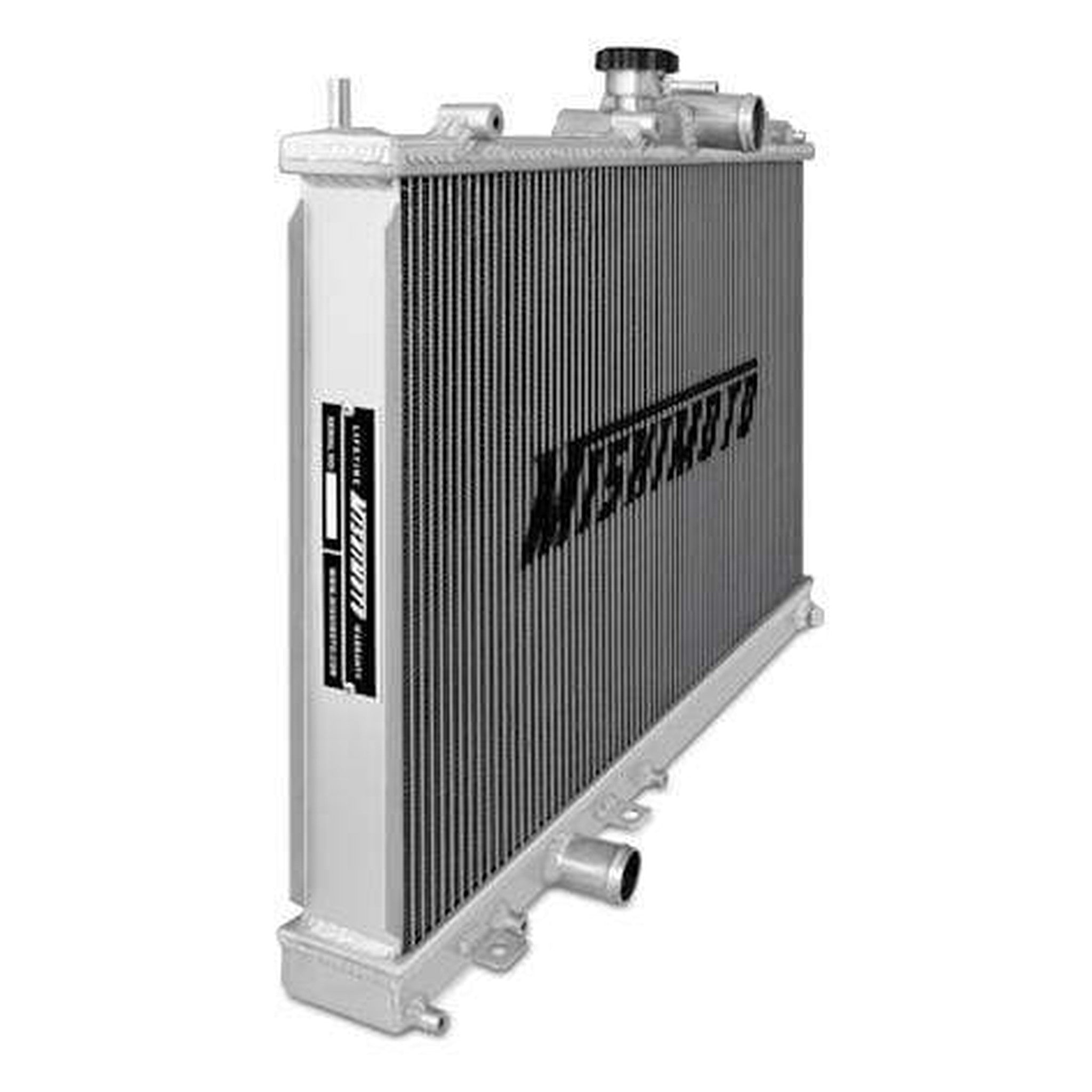

Mishimoto has refined and redesigned their performance aluminum radiator for 2001-2007 Mitsubishi Evolution 7/8/9. These changes include robotic tig welds, brushed aluminum finish, a magnetic drain plug, and an additional 1/8 NPT port for additional temperature sensors. The Mishimoto Performance Aluminum Radiator is a direct fit unit and ideal for maintaining optimal coolant temperatures. As with all Mishimoto products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

Features

• Robotic TIG-welding
• Brushed aluminum finish

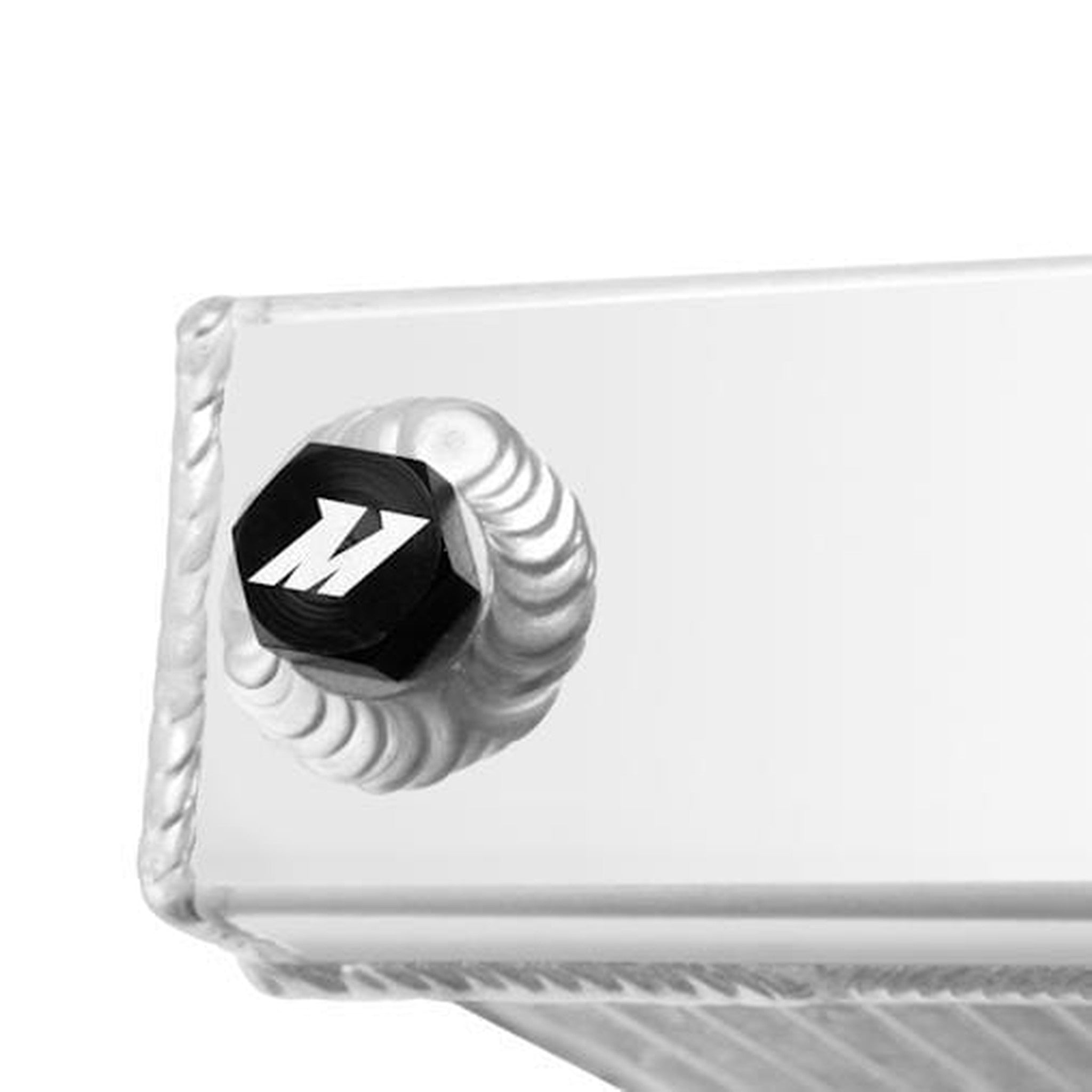

• Includes magnetic drain plug with dowty seal
• Direct fit for the 2001-2007 Mitsubishi Lancer Evolution

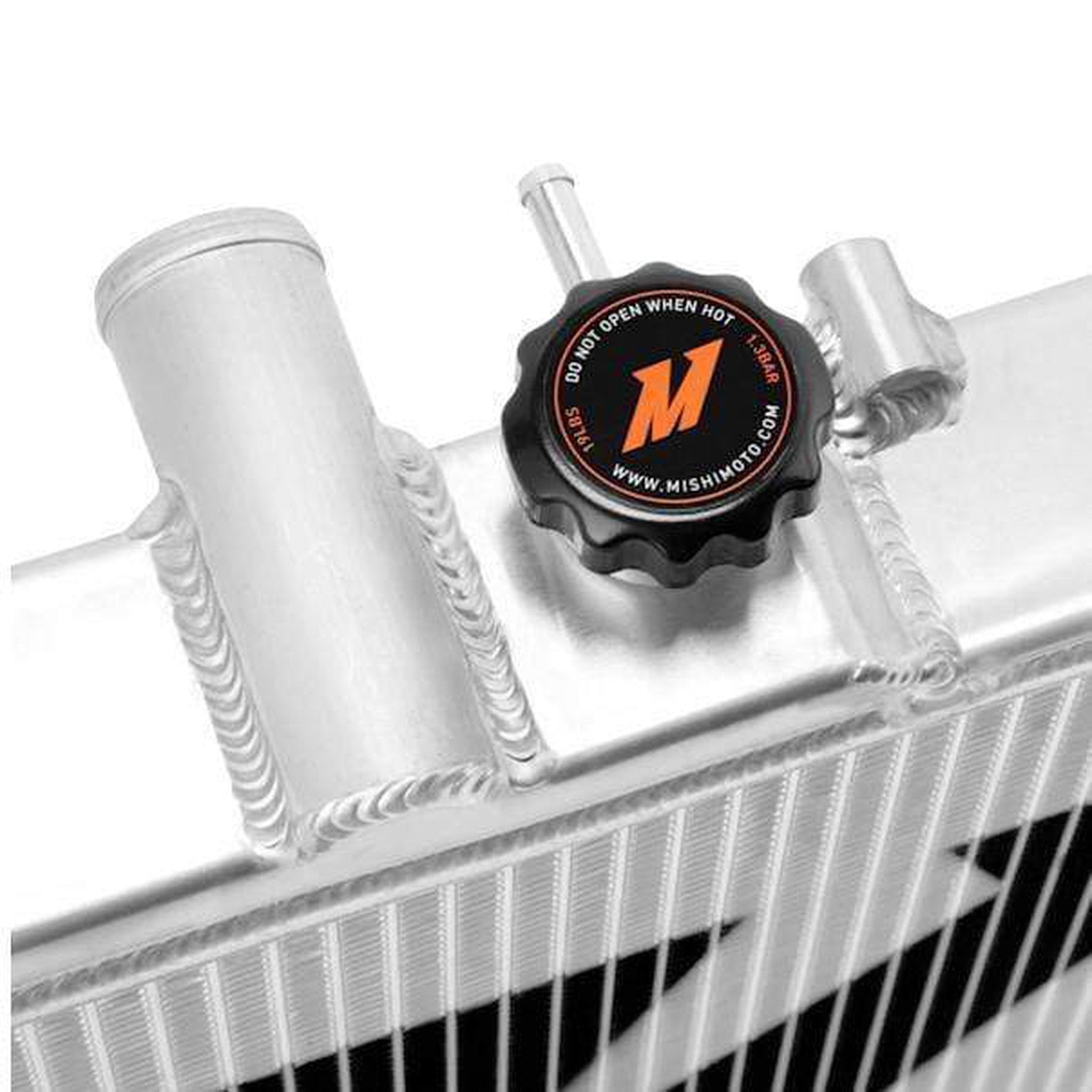

• Includes 1.3 bar high-pressure radiator cap
• Includes 1/8" NPT port for use with additional temperature sensors

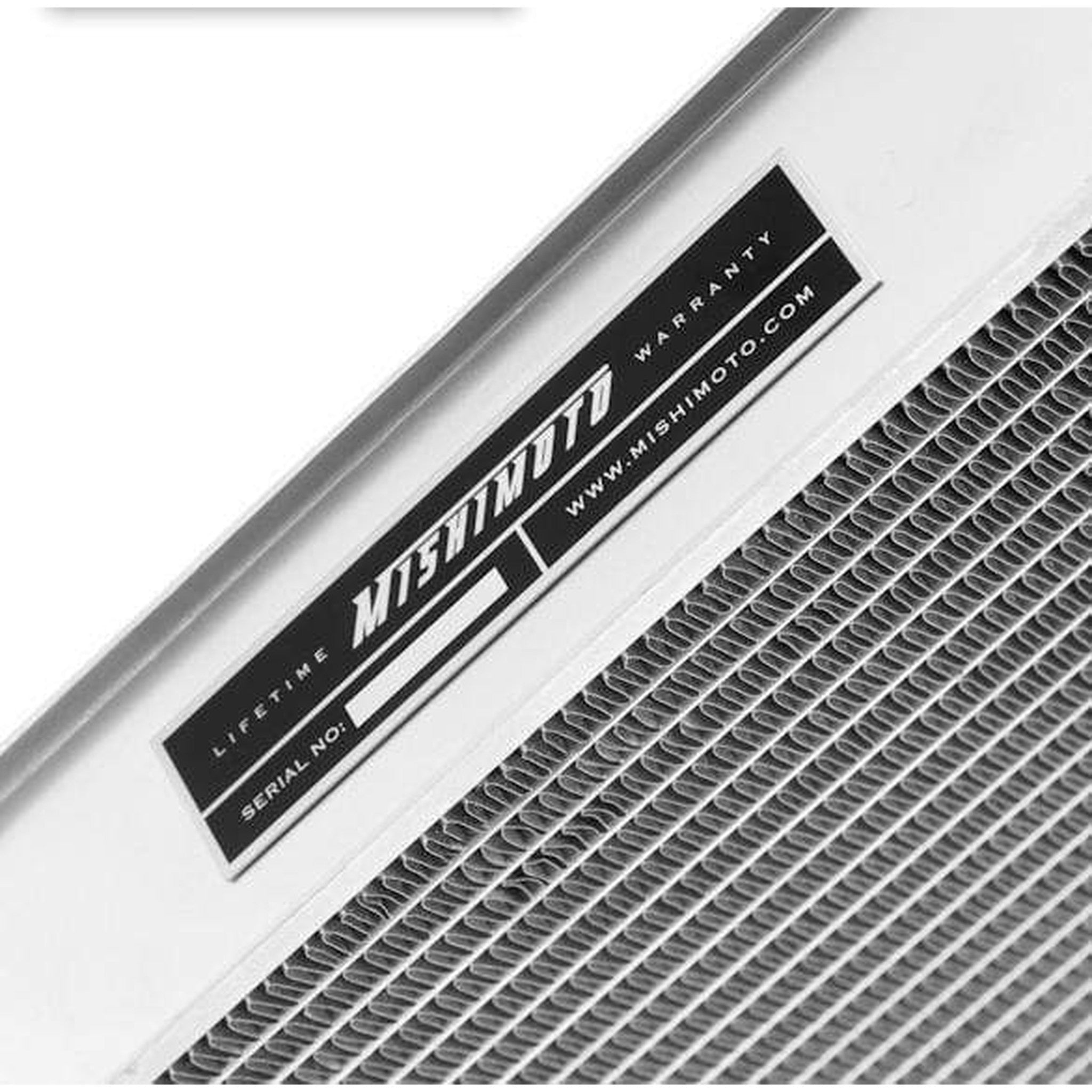

• Mishimoto Lifetime Warranty

Details

• Overall Size: 28.2" x 19.5"x 2.47"
• Core Size: 14.76" x 27.08"
• Rows:2
• Inlet: 1.4"
• Outlet: 1.4"
• Core Thickness: 1.97"
• Tank Wall Thickness: .08"
• Fill Neck: 1.25"
• Drain Plug Thread Lenth: .047"



  Fitment:


    2001-2007 Mitsubishi Evolution 7/8/9
