Part #: MSI-MSISUB02-19-001

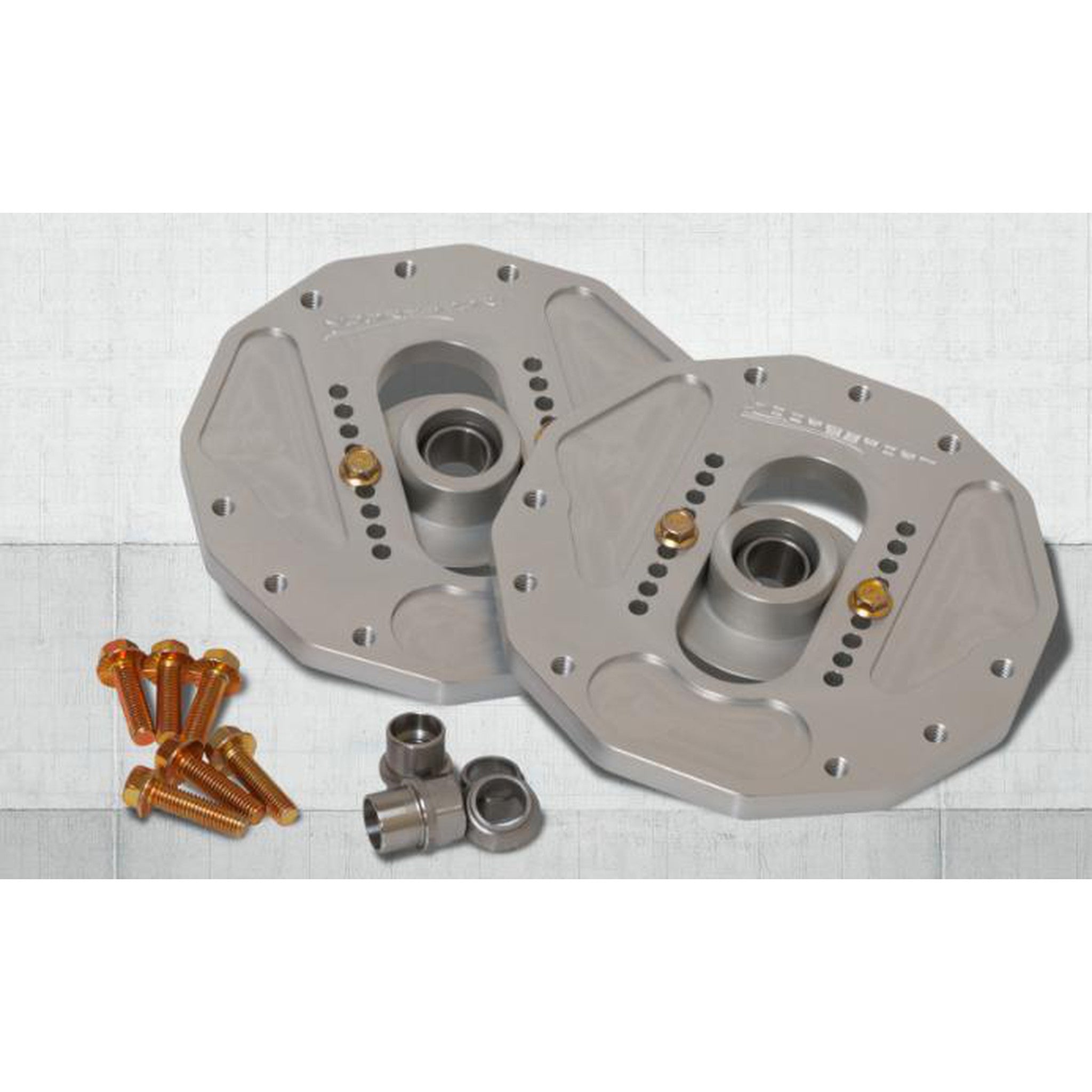

These adjustable units are manufactured using state of the art machining techniques. These upper mounts feature a design that is unique to the market and have set a new standard for which others will be measured against.
The unique design allows easy adjustment with fixed reference points from left to right. You either add one, or remove one. The settings will be the same on both sides. No longer do you have to measure and clamp both sides to get it perfect.
The pillow ball bearings are custom made and have been tested to withstand the abuse of off road racing and rally competitions. The tolerances are so tight that there are no clunking sounds that are common in other pillow ball bearings.
This work on both the GC and GD chassis Imprezas. The mounting holes are marked for the side/chassis you are looking to install the mount on. There are holes for the GC left and right and the same for the GD.
All parts are made using state of the art 5-axis CNC machining out of T6-6061 aluminum, and use graphite impregnated bushings. The bolt holes are made from a technique called "thread forming" which is superior to the typical cutting tap that others use. It creates a smooth thread that has no sharp points which means the chance of the adjustment bolts seizing and jamming on the burrs is significantly reduced.
Based on our popular motorsport design, these plates offer a perfect balance between performance, reliability, and ease of use at an affordable price point. KW adjustable camber plates ship with an additional tube nut for some KW shocks. Both M12x1.25 and m14x1.5 threads for all Subaru front applications. There are no other differences with the standard kit.
Notes: Fits only KW coilovers.
