Perrin Oil Cooler Kit Scion FR-S 2013-2016 / Subaru BRZ 2013-2020 / Toyota FT-86 2017-2020 | PSP-OIL-113

Fitment Information:

2013-2016 Scion FR-S

2013-2020 Subaru BRZ

2017-2020 Toyota GT86

Features:

• Reduces Engine Oil Temperatures
• Extends Life of Engine
• Helps keep temperatures within the desired temperature range

• Estimated Installation Time - 2 Hours
• Installation Guide
• 5 Year Manufacturer Warranty

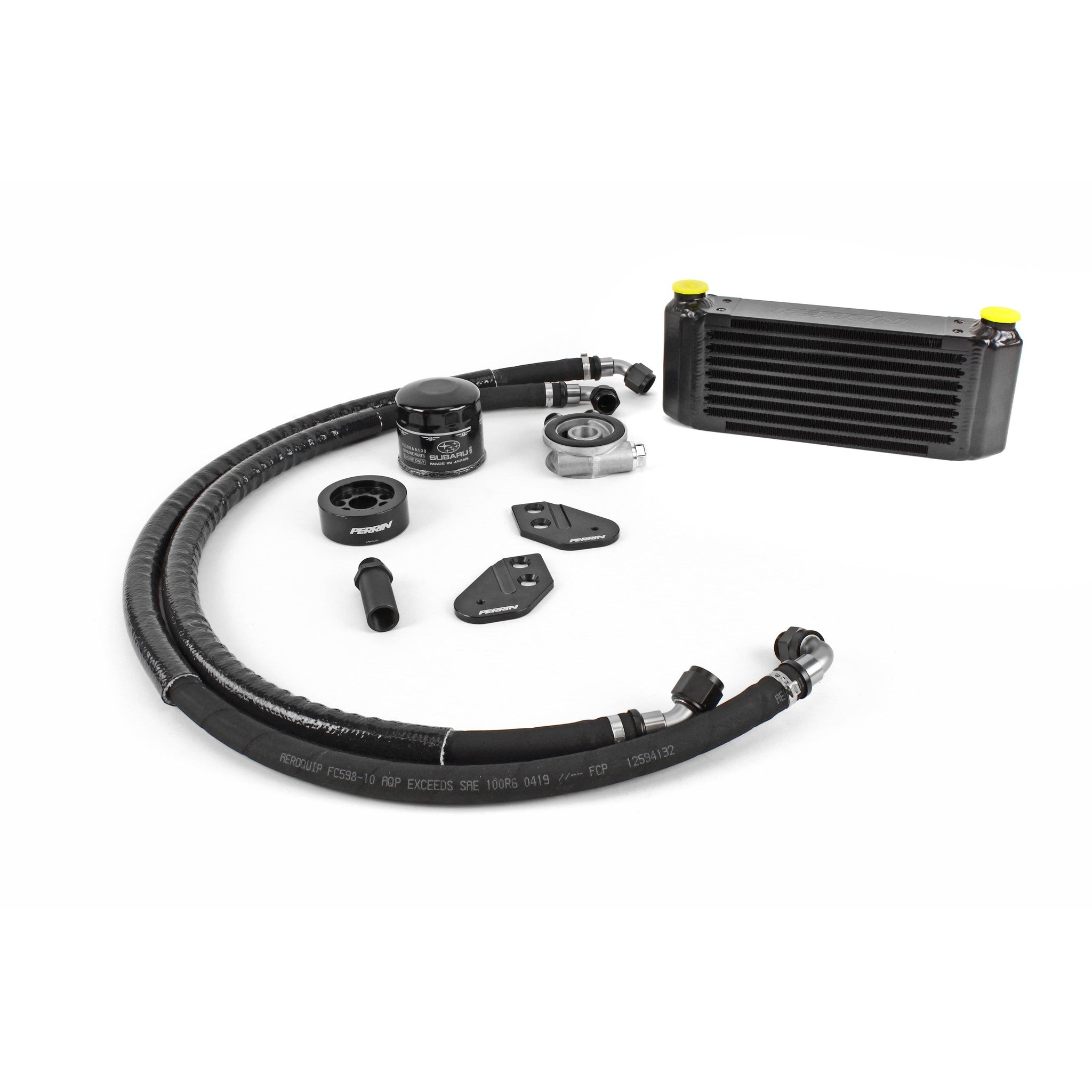

Included:

• (1) PERRIN Oil Cooler Core
• (1) PERRIN Oil Filter Spacer
• (1) Thermostat Oil Filter/Cooler Adapter
• (1) M20 Threader Adapter
• (1) Long High-Pressure Hose
• (1) Short High-Pressure Hose
• (1) Subaru Factory Oil Filer
• (2) PERRIN Oil Cooler Mounting Brackets
• (2) 1.25" OD Fender Washers
• (2) M6x50 Socket Cap Screws
• (4) M6x15 Button Head Bolts
• (15) Zip ties
• (1) PERRIN License Plate Frame
• Warranty & Instructions

Specs:

• Oil Cooler Core Dimensions 9.5" x 4.75" x 2.2"
• Core Delta PSI 3.0/3.5 PSI
• Core BTU/hr Range 22,000-29,000
• Additional Oil Required 1 quart
• Mounting Brackets 6061 T6 aluminum
• Filter Spacer 6061 T6 Aluminum
• Oil Cooler Thermostat 85°C Activation Temp
• Hose Size -10
• Hose Construction AQP Elastomer Tube, Textile Braid Reinforcement, AQP Elastomer Cover

Why You Want This
In racing conditions engine oil temperature skyrockets, especially when aftermarket turbo and supercharger kits are installed. This causes decreased engine performance and reduces the oil's ability to properly lubricate. A well designed engine oil cooling system like the PERRIN Oil Cooler Kit will help keep temperatures within the desired temperature range, thus maintaining performance and prolonging engine life. Most setups can see a drop of approximately 15°-20°F at 7000 RPM.
Heat Exchanger
Using a bar and plate core maximizes heat dissipation without pressure build-up. Oil-ways are interspaced with in-line turbulators to gently stir the fluid being cooled, thereby ensuring that the fluid has exposure to the entire internal surface area of the oil cooler with low pressure lost.
Integrated Thermostat
The PERRIN Filter Adapter features an integrated 85°C (185°F) thermostat. This means your oil will reach it’s optimum operating temperature of 85°C within the engine before it is released to the oil cooler.
Oil Spacer
In addition to a new OEM oil filter from Subaru, we Include a PERRIN oil spacer which allows for easy installation of the thermostat-filter assembly.
Mounting Brackets
The PERRIN Oil Cooler comes with custom brackets that allow the oil cooler core to mount directly to existing holes in the OEM core support of your vehicle. Made from CNC machined 6061 T6 aluminum, the brackets look sleek and stylish while blending seamlessly behind your bumper.
Preassembled Hoses
The PERRIN Oil Cooler Kit features lightweight Aeroquip brand -10 hose that are rated for 250psi and 300°F continuous temperature. Each hose comes pre-assembled and wrapped with our Industrial grade Pyrojacket that can withstand continuous exposure to 500° F (260°C) and up to 2000°F (1090°C) for 15-20 minutes.
