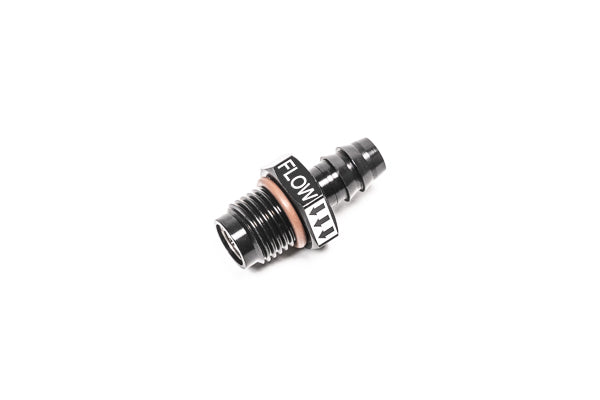

Radium Engineering 6AN ORB to 10mm Barb Check Valve Fitting - 20-1534

Fitment:

• Universal — any female 6AN ORB port with 9.5–10.5mm ID hose
• No vehicle-specific fitment

Features:

One-way check valve that prevents backflow and maintains flow direction in custom fuel, oil, and fluid plumbing. Flow direction is laser etched on the side of the hex.

• Lightweight anodized aluminum body
• FKM seals, stainless steel hardware
• Length under the threads is extended — adds an additional 3.4mm compared with a standard 6AN ORB fitting

Specs:

• Valve type: One-way check valve
• Inlet: 6AN ORB (9/16"-18), screws into a female 6AN ORB port
• Outlet: Male 10mm hose barb
• Compatible hose ID: 9.5–10.5mm (3/8 in)
• Compatible fluids: Gasoline, ethanol, methanol, diesel, water, coolant, oil, etc.

What's included:

• Check valve fitting (single)
