Radium Engineering Dual Catch Can Kit Fluid Lock Nissan 350z / 370z VQ35DE/HR | 20-0729-FL

Fitment Information:

2007-2009 Nissan 350z

2009-2020 Nissan 370z

2008-2013 Infiniti G37

Features:

The Radium PCV catch can runs inline between the PCV valve and the intake pipe. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valves close and, thus, this hoses experience no flow. Conversely, the PCV hoses will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run. Note: No inline check valve is required since Radium catch cans are pressure sealed. This means a direct intake manifold connection is permitted.

The CCV catch can runs inline between the crankcase vent (CCV) port and the intake pipe. At low loads, it experiences atmospheric pressure. However, when the engine is at high load (WOT), the line will experience high flow from the crankcase into the intake system. This would normally lead to oil and sludge accumulation in the air filter intake pipe. The CCV catch can captures this and promotes clean filtered air back into the intake.

• Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned

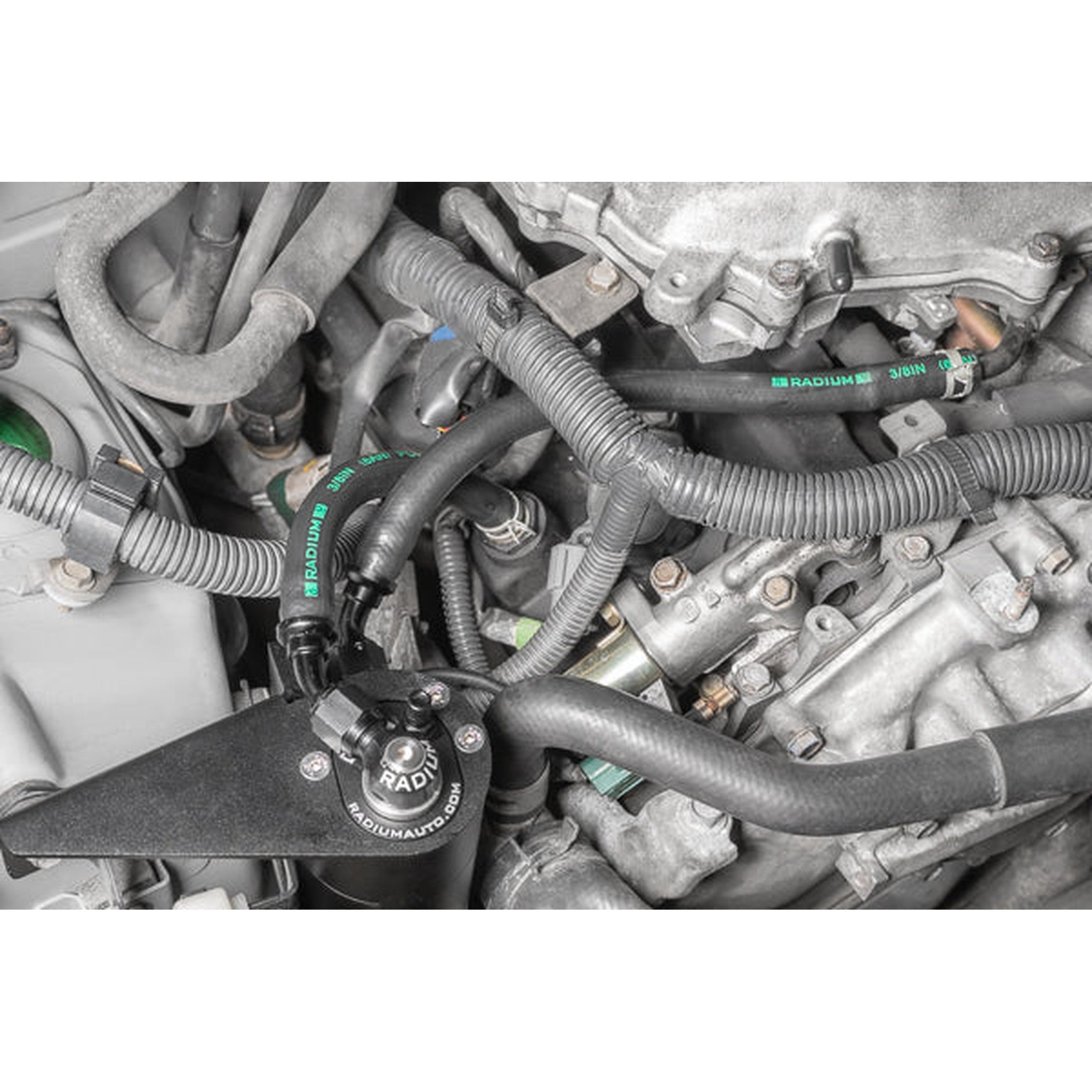

• Dual catch can bracket mounts in the front LH portion of the engine bay and is NOT compatible with the factory air box.
• Traps unwanted "metered" crankcase vapor, unspent fuel, and oil sludge
• Promotes clean filtered air back into the intake manifold
• Include large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick
• Do NOT vent to atmosphere (VTA), thus are emissions and track legal
• No cutting, drilling or permanent modifications are required.
• Installation Instructions

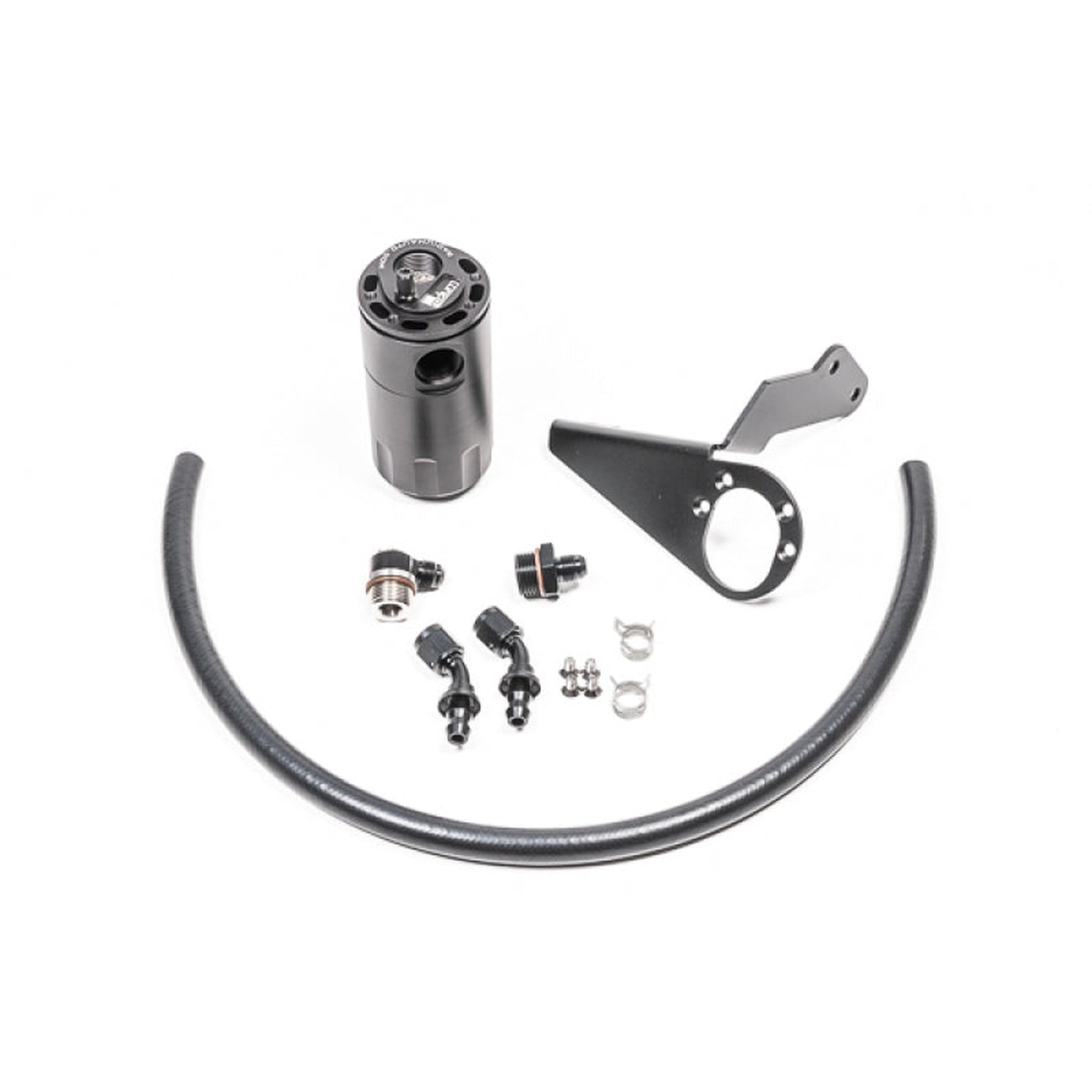

What's Included:

• Baffled oil catch can (x2) PCV and a CCV catch can
• Nissan specific mounting bracket
• AN adapter fittings and hose ends
• Stainless steel hardware
• Radium PCV hose

NOTE: Not compatible with OEM Nissan air filter box.
