Radium Engineering Fuel Line Retaining Kit Nissan GT-R 2009-2024 | 20-0560

Secure your aftermarket fuel system properly with the Radium Engineering Fuel Line Retaining Kit for the Nissan R35 GT-R. Designed to safely support up to two aftermarket fuel lines, this kit provides a clean and secure routing solution underneath the vehicle chassis.

Unlike the factory routing path, these retainers allow fuel hoses to be positioned in an alternate channel separate from the OEM fuel and brake lines. They are most commonly installed along the right-hand (RH) side of the vehicle but can also be mounted on the left-hand (LH) side depending on your fuel system layout.

Constructed from high-quality 6061 aluminum and anodized for corrosion resistance, these retainers are built to withstand harsh underbody conditions while maintaining long-term durability. Installation is straightforward and requires no drilling, utilizing five OEM threaded mounting locations for a true bolt-on fit.

This kit is ideal for performance builds running upgraded return systems, flex-fuel setups, or larger AN fuel lines that require secure and professional routing.

Specs & Features

• Supports up to 2 aftermarket fuel lines

• Maximum hose outer diameter: 0.89" (22.6mm)

• Compatible with 6AN, 8AN, and 10AN PTFE hose

• Made from 6061 aluminum

• Anodized finish to resist oxidation

• Utilizes five OEM threaded mounting holes

• No drilling required

• Designed for underbody installation (RH or LH side)

Note:
This kit does not include aftermarket fuel lines. Due to variations in hose materials (rubber, braided, PTFE, aluminum, steel, etc.), exact compatibility may vary based on hose construction and outer diameter.

What’s Included

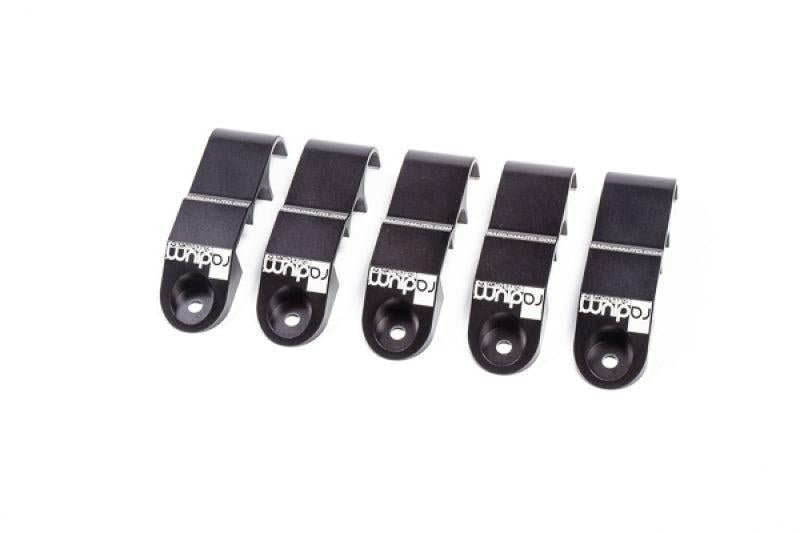

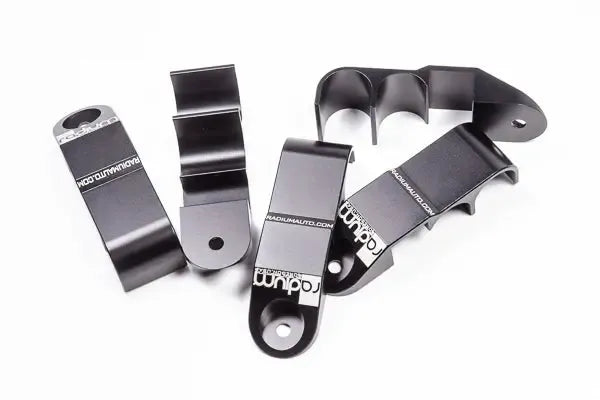

• (5) Anodized aluminum fuel line retainers
