Radium Engineering PCV Catch Can Kit Fluid Lock Nissan 350z 2003-2006 VQ35DE | 20-0728-FL

Fitment Information:

2003-2006 Nissan 350z

2003-2007 Infiniti G35

Features:

The Radium PCV catch can kit runs inline between the PCV valve and the intake manifold. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valve closes and, thus, this hose experiences no flow. Conversely, the PCV hoses will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run.

• Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned
• Mounts to the OEM power steering reservoir bracket
• Traps unwanted "metered" crankcase vapor, unspent fuel, and oil sludge
• Promotes clean filtered air back into the intake manifold
• Include large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick
• Do NOT vent to atmosphere (VTA), thus are emissions and track legal
• No cutting, drilling or permanent modifications are required.
• Installation Instructions

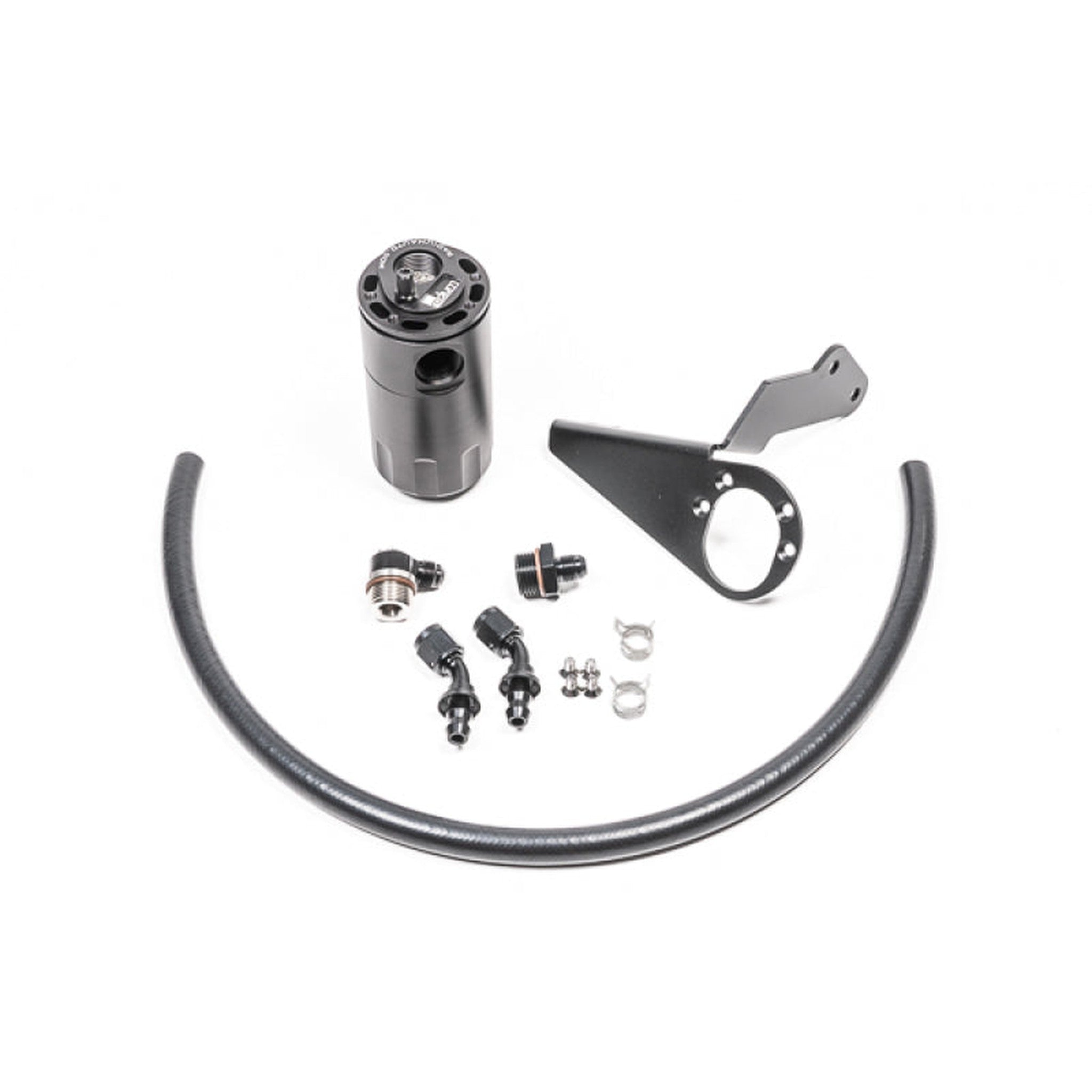

What's Included:

• Baffled oil catch can
• Nissan specific mounting bracket
• AN adapter fittings and hose ends
• Stainless steel hardware
• Radium PCV hose

Note: No inline check valve is required since Radium catch cans are pressure sealed. This means a direct intake manifold connection is permitted.
