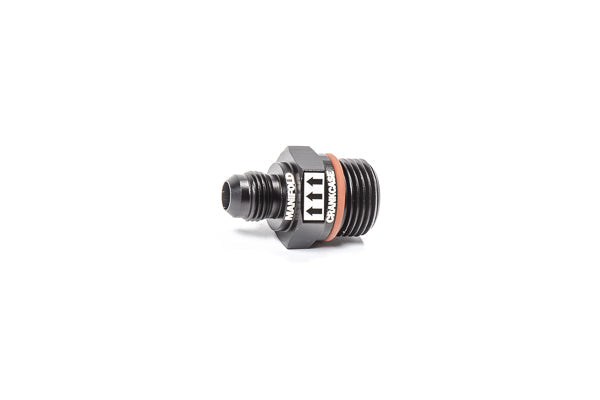

Radium Engineering PCV Valve 10AN ORB to 6AN Male | 20-0561

Fitment:

• Universal — any 10AN ORB female port
• Compatible with all versions of Radium catch cans and Radium PCV baffle plates
• No vehicle-specific fitment

Features:

PCV valve, not a simple one-way check valve. Its internal plunger dynamically meters crankcase vent airflow based on engine load, so it does not create the vacuum leak a check valve would at low loads. On intake-manifold backfire it closes, preventing combustible vapors igniting in the crankcase, and in turbo / supercharged applications it closes in boost to prevent positive intake pressure entering the crankcase. Use it when the OEM PCV is removed, needs to be moved to the catch-can outlet, or for engines that may not already have a PCV system.

• Straight, non-swivel valve
• Threads into any 10AN ORB female port

Specs:

• Material: 6061 Type-II anodized aluminum
• Sealing O-rings: FKM and silicone
• Inlet: 10AN ORB (7/8"-14 threads)
• Outlet: 6AN Male

What's included:

• PCV valve, fully assembled, with 10AN ORB FKM O-ring preinstalled
