Torque Solution Fast Response SD IAT Sensor Kit GM Style IAT Sensor w/ Pigtail & Stainless Weld Bung | TS-ES-IAT-GMPS

The Torque Solution Fast Response Speed Density IAT Sensor Kit provides everything needed to install or replace a GM-style Intake Air Temperature (IAT) sensor in a speed density tuning setup. Designed for standalone engine management systems, aftermarket ECUs, and custom turbocharged applications, this complete kit includes a fast-response IAT sensor, pigtail wiring harness, and a stainless steel weld-on bung for easy installation.

Whether you're converting from a MAF-based setup to speed density or replacing an existing sensor, this kit delivers accurate intake air temperature readings for improved tuning precision and engine management performance.

Key Features & Benefits

• Fast-response GM-style IAT sensor
• Ideal for speed density conversions
• Includes wiring pigtail harness
• Stainless steel weld-on bung included
• Direct replacement for most GM-style IAT sensors
• Compatible with many aftermarket ECUs
• Durable brass sensor construction
• 1-Year Manufacturer Warranty

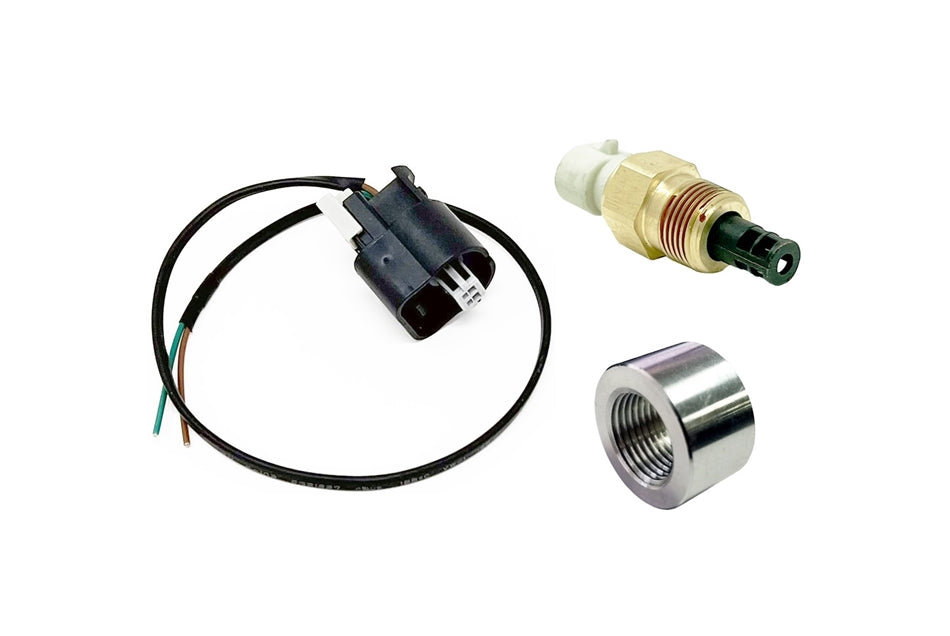

Kit Contents

• Torque Solution Fast Response IAT Sensor
• Torque Solution IAT / Speed Density Pigtail Harness
• 3/8"-18 NPT Female Stainless Steel Weld Bung

Performance Benefits

Accurate intake air temperature data is critical for:

• Proper fuel delivery calculations
• Ignition timing adjustments
• Boost compensation strategies
• Speed density tuning accuracy
• Consistent engine performance

The fast-response sensor design helps provide quicker temperature feedback to the ECU, improving tuning precision during rapidly changing operating conditions.

Sensor Specifications

Compatibility

Compatible with most GM-style IAT sensor applications and aftermarket engine management systems including:

• AEM Engine Management Systems
• Haltech Engine Management Systems
• Custom Speed Density Setups
• Standalone ECU Applications
• Turbocharged and Naturally Aspirated Builds

Interchangeable Part Numbers

GM / AC Delco

• 25036751
• 25037334
• 25037034
• 25037225
• 25036950
• 25095187
• 213-190
• 213191
• 213192
• SU107
• 5S1007
• AJ0005
• TS10077

Aftermarket Cross References

• AEM 30-2010
• Haltech HT-010204

Installation Notes

• Requires welding the supplied stainless steel bung into the intake piping.
• Common installation locations include charge pipes, intercooler piping, or intake manifolds depending on ECU calibration requirements.
• Proper wiring and ECU calibration are required for accurate operation.
• Verify sensor calibration settings within your engine management system before use.

Why Upgrade to a Fast Response IAT Sensor?

A fast-response IAT sensor allows the ECU to react more quickly to temperature changes caused by:

• Boost pressure fluctuations
• Heat soak conditions
• Rapid throttle transitions
• Changing ambient temperatures

This results in more accurate fueling calculations, improved drivability, and greater tuning consistency in high-performance applications.
