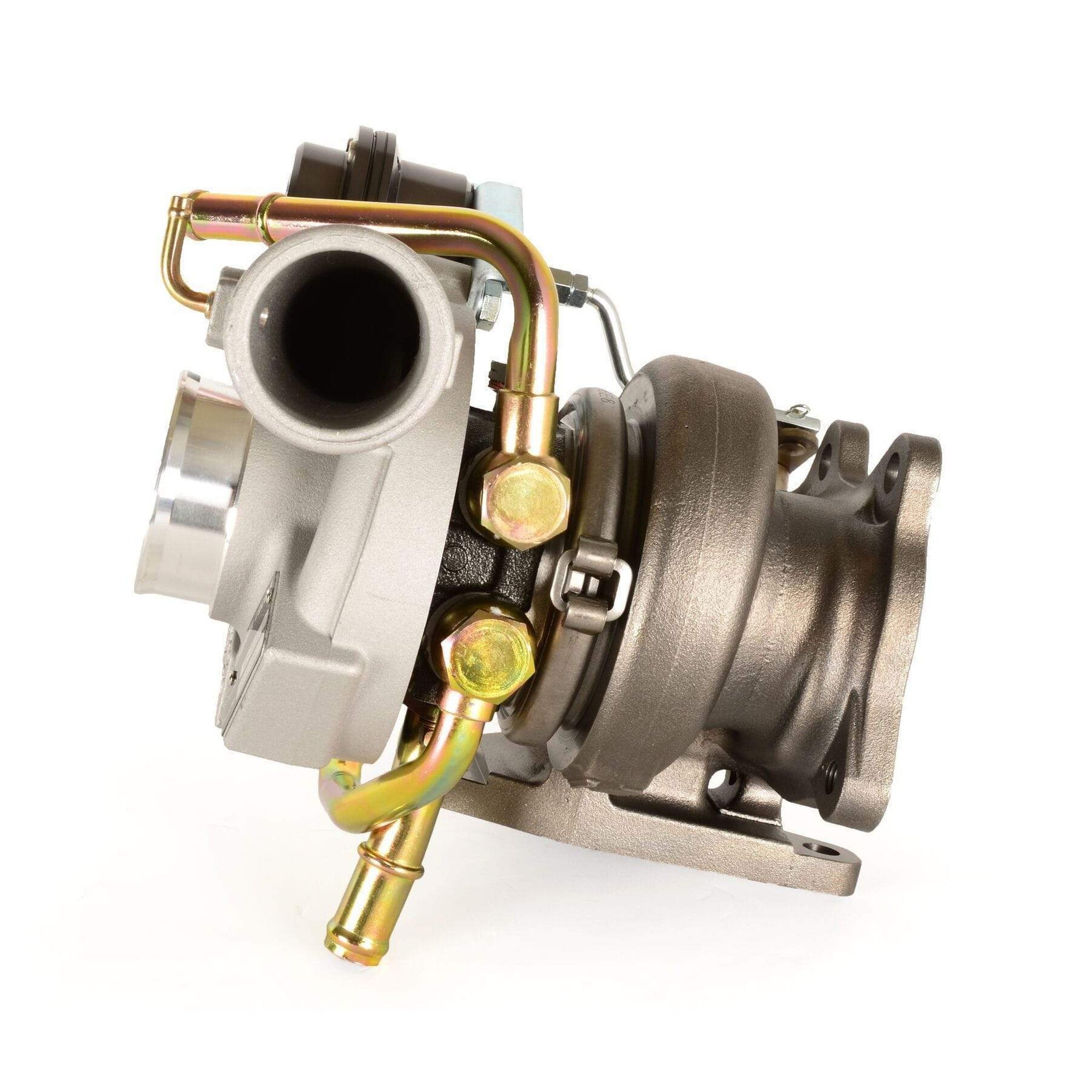

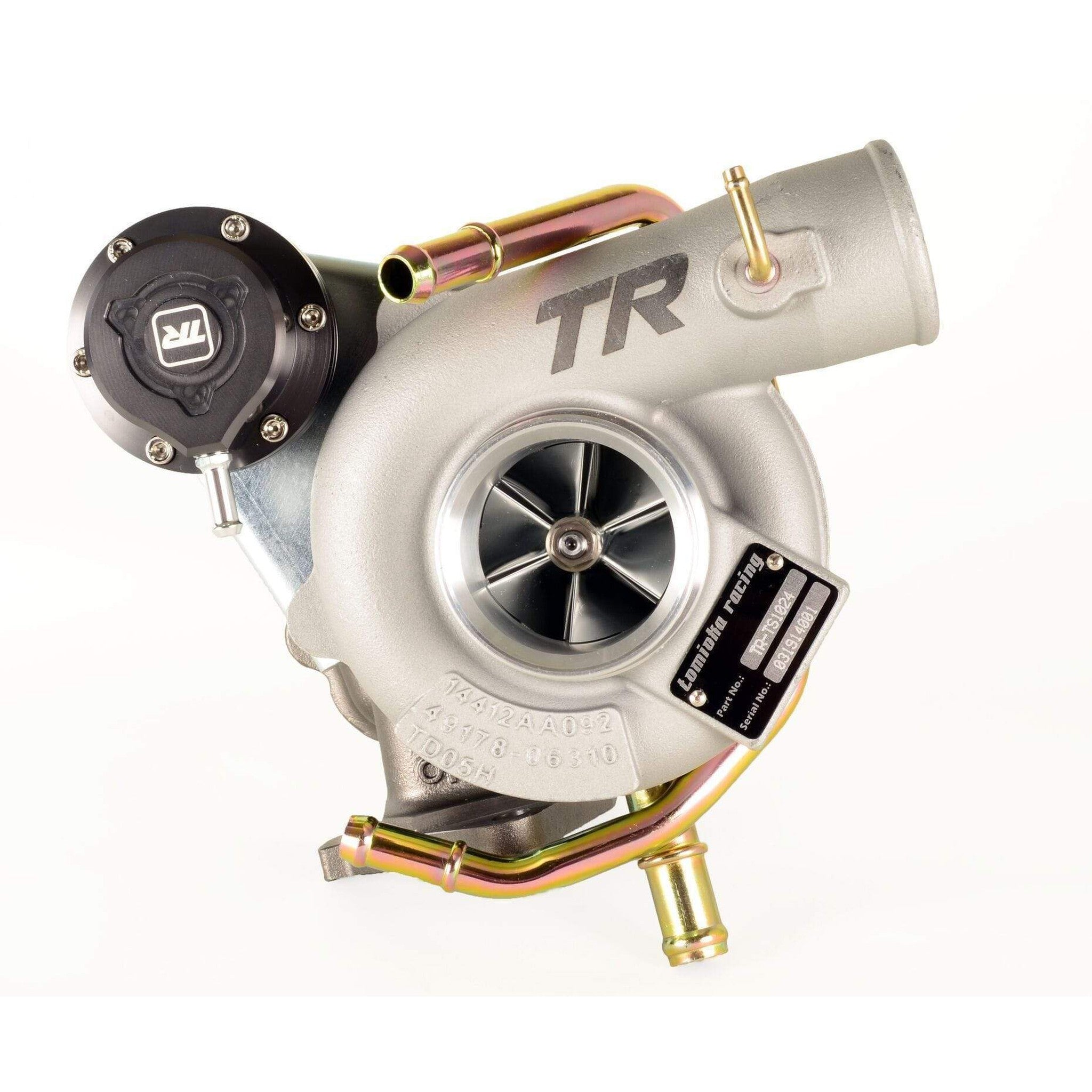

Tomioka TD05-16G Billet Wheel Turbocharger w/ Billet Actuator Subaru WRX 2002-2007 / STI 2004+
Tomioka TD05-16G Billet Wheel Turbocharger w/ Billet Actuator Subaru WRX 2002-2007 / STI 2004+ Tomioka TD05-16G Billet Wheel Turbocharger w/ Billet Actuator Subaru WRX 2002-2007 / STI 2004+ Tomioka TD05-16G Billet Wheel Turbocharger w/ Billet Actuator Subaru WRX 2002-2007 / STI 2004+

Tomioka TD05-16G Billet Wheel Turbocharger w/ Billet Actuator Subaru WRX 2002-2007 / STI 2004+

Tomioka
SKU: TR-TS1024
Availability: Out Of Stock
Type: Turbos
$1,190.00
$1,190.00


Subtotal: $1,190.00

Delivery Options:

  • Economy $4.97
Fastrak Delivery: , Order within hours minutes
Overview
Part #: TR-TS1024

One of the most popular TD05-16G replacement turbocharger now comes in billet compressor wheel. Supersize your mild upgrade from the factory VF turbo. The billet compressor wheel improves air flow by at least 10% over TD05-16G in standard compressor wheel which results in higher horse power capacity. The turbo comes with all fitting and gaskets, ready to bolt on out of the box. The best all around turbo upgrade just got better!

TURBO CHARACTERISTICS:

Type: TD05-16G
Bearing: Journal
Flange: Standard Subaru 5 Bolt
Compressor Diameter: Inlet = 48.3 mm | Outlet = 68 mm
Turbine Diameter: Inlet = 56 mm | Outlet = 49.2 mm
Turbo Boost: 1.3 bar / 19 PSI
Maximum Power: 400 HP

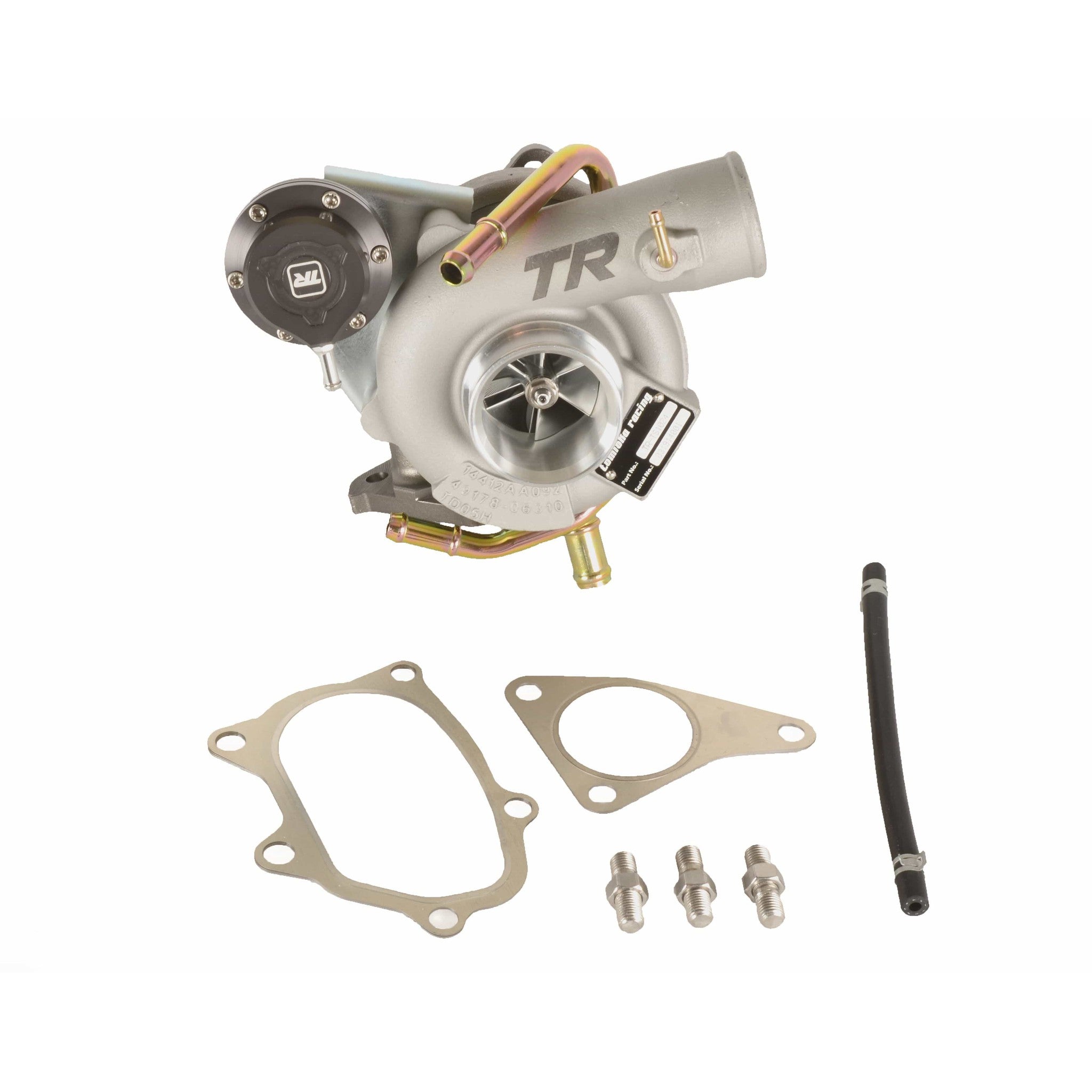

KIT CONTENTS:

  • Turbocharger
  • Actuator
  • Oil Pipe
  • Water Pipe
  • Gaskets
