Part #: verA0037A
A well thought out and executed brake cooling kit which installs in an OEM type format with an emphasis on shortest route possible, maximizing cooling, and increasing the brake's ability to do their job by keeping them at a more reasonable temperature. Using the OEM fog lights as the inlet to the kit and a well formed duct in the inner fender line this is the brake cooling kit to have. At the knuckle the stainless backing plate and well formed carbon duct direct cool air into the center of the rotor to maximize cooling benefits. Kit comes with everything necessary for an install, including pre-cut hoses to length.
OEM or similar fog light bezel is necessary for a seamless install. Winjet sells these for FR-S for $20 for both sides, Subaru sells these for the BRZ for $40 for both units.
Depending on wheels/tires/suspension setup, steering rack limiters may need to be installed (included in kit).
In some severe cases backing plate may need trimmed. IE: AP sprint kit with whiteline roll center adjusters due to lower control arm to rotor clearance being less than the thickness of the backing plate. AP Sprint BBK will fit without trimming on stock ball joints.

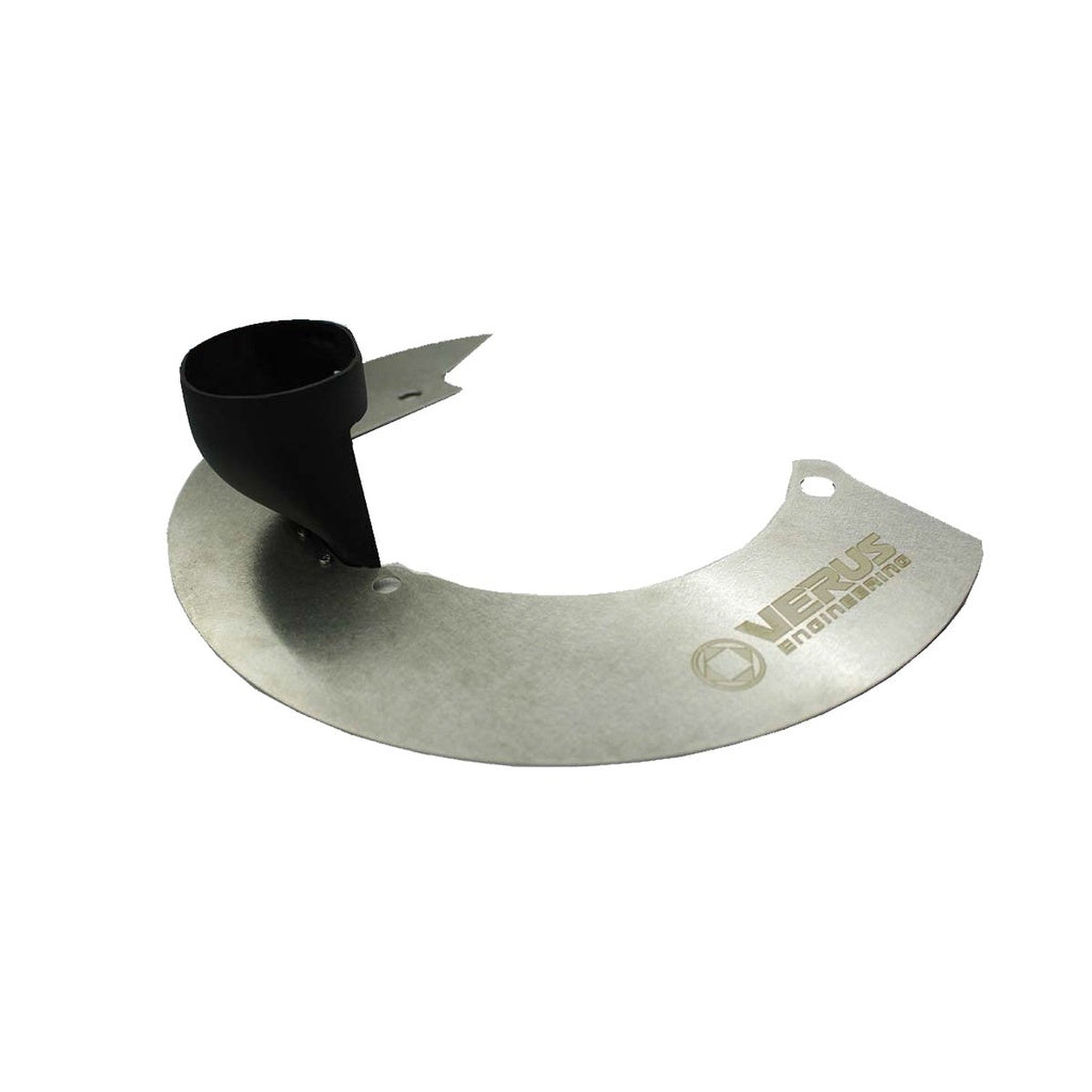

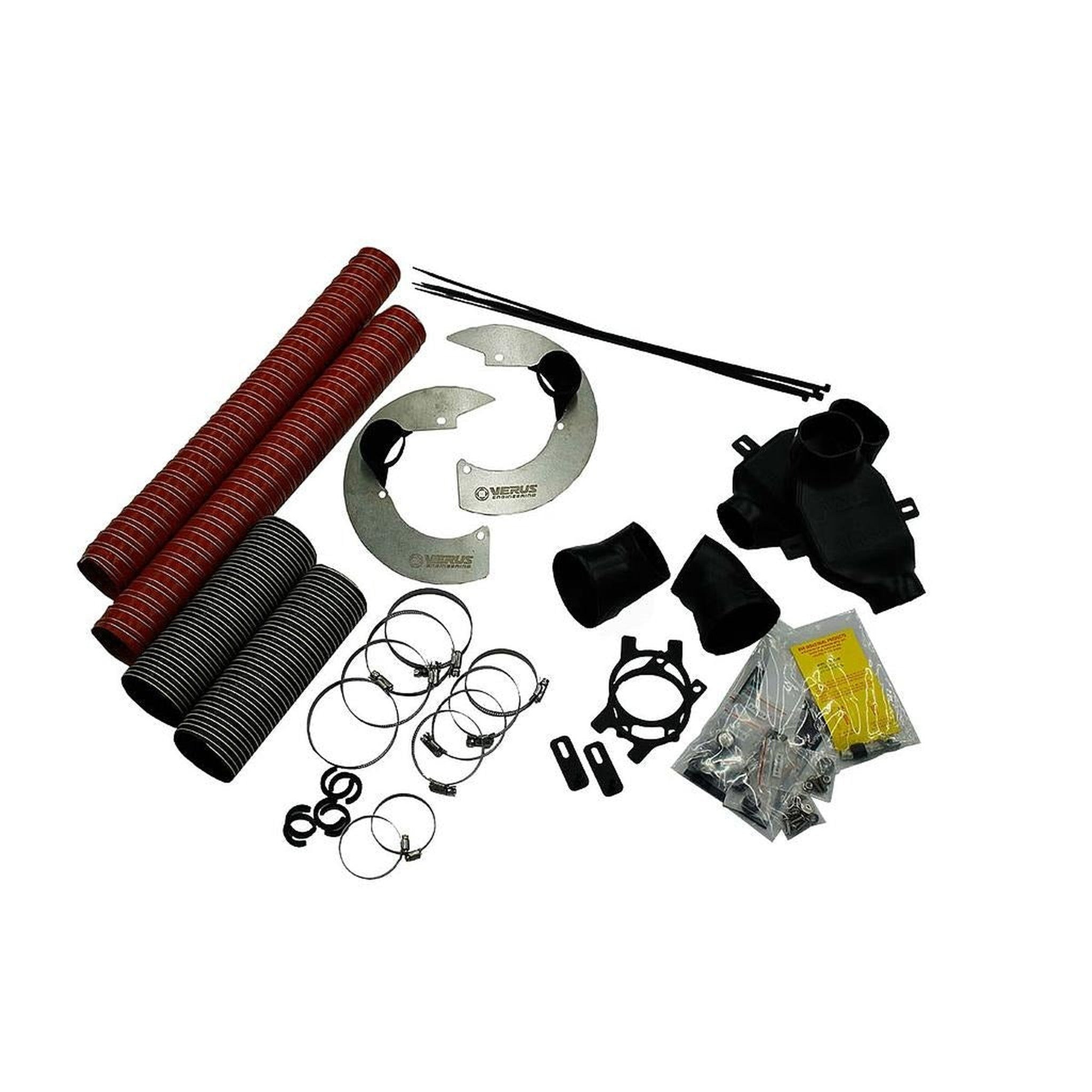

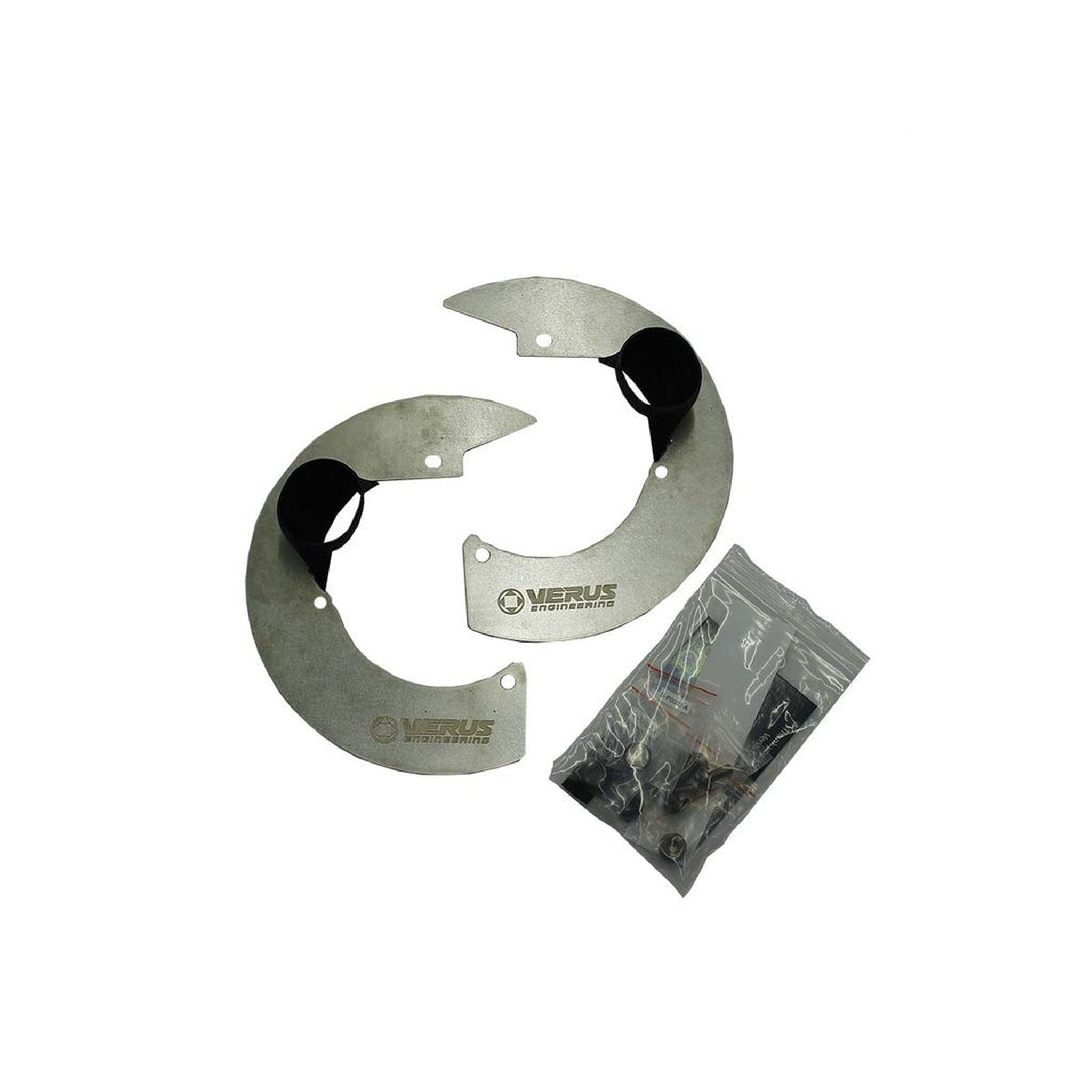

Stainless backing plate
Dry carbon air duct
Hard plastic fender ducts (pancake duct)
Hard plastic fog light ducts
Pre-cut to size 3" and 2.5" brake duct hose (Neoprene for foglight, high temp silicone for backing plate)
All necessary hardware included
Dry carbon duct directing air into the center of the rotor
Stainless backing plate further encouraging airflow into center of rotor
OEM type install
Installs in a few hours with minimal hand tools and know how
Extremely short routing for cooling brakes with maximum efficiency
