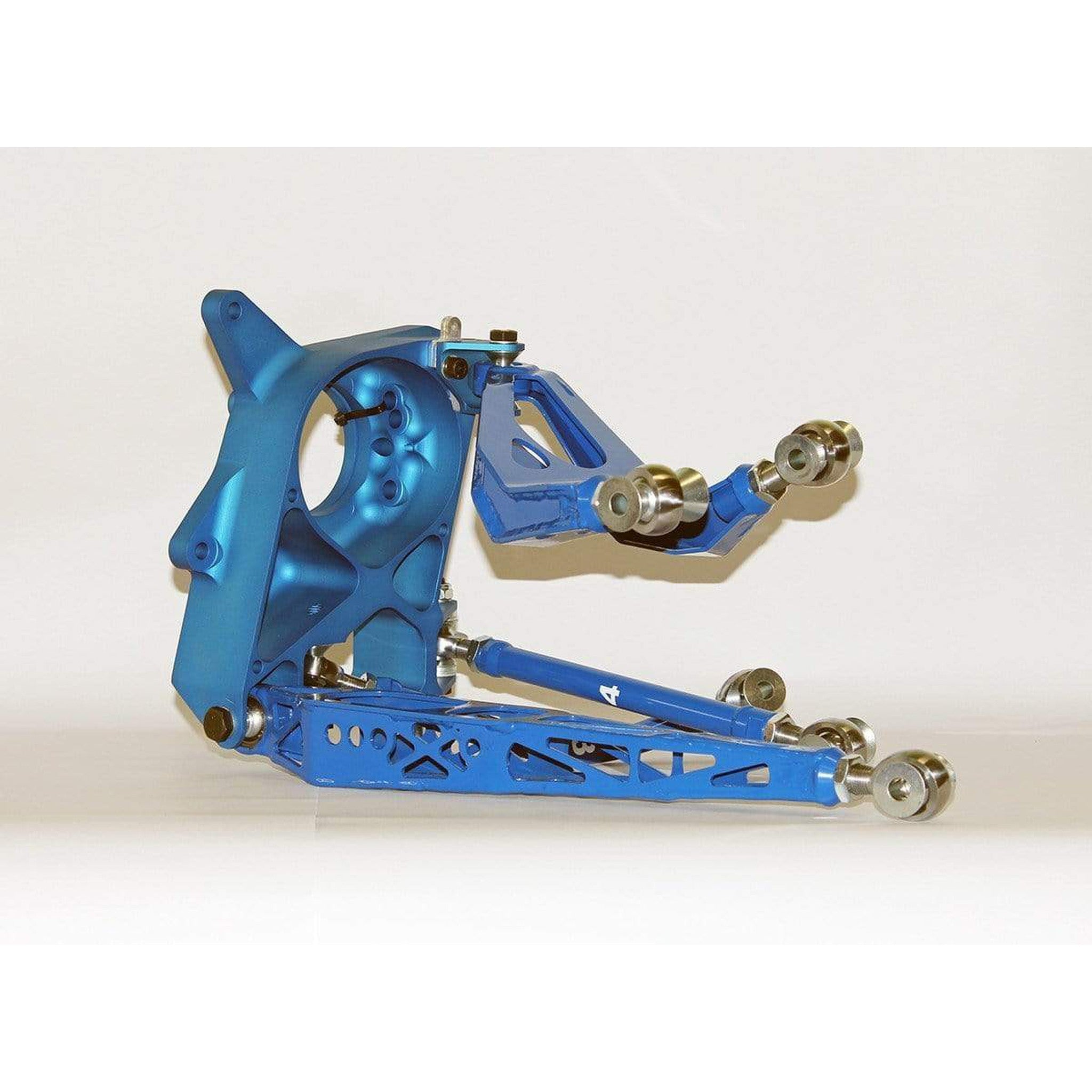

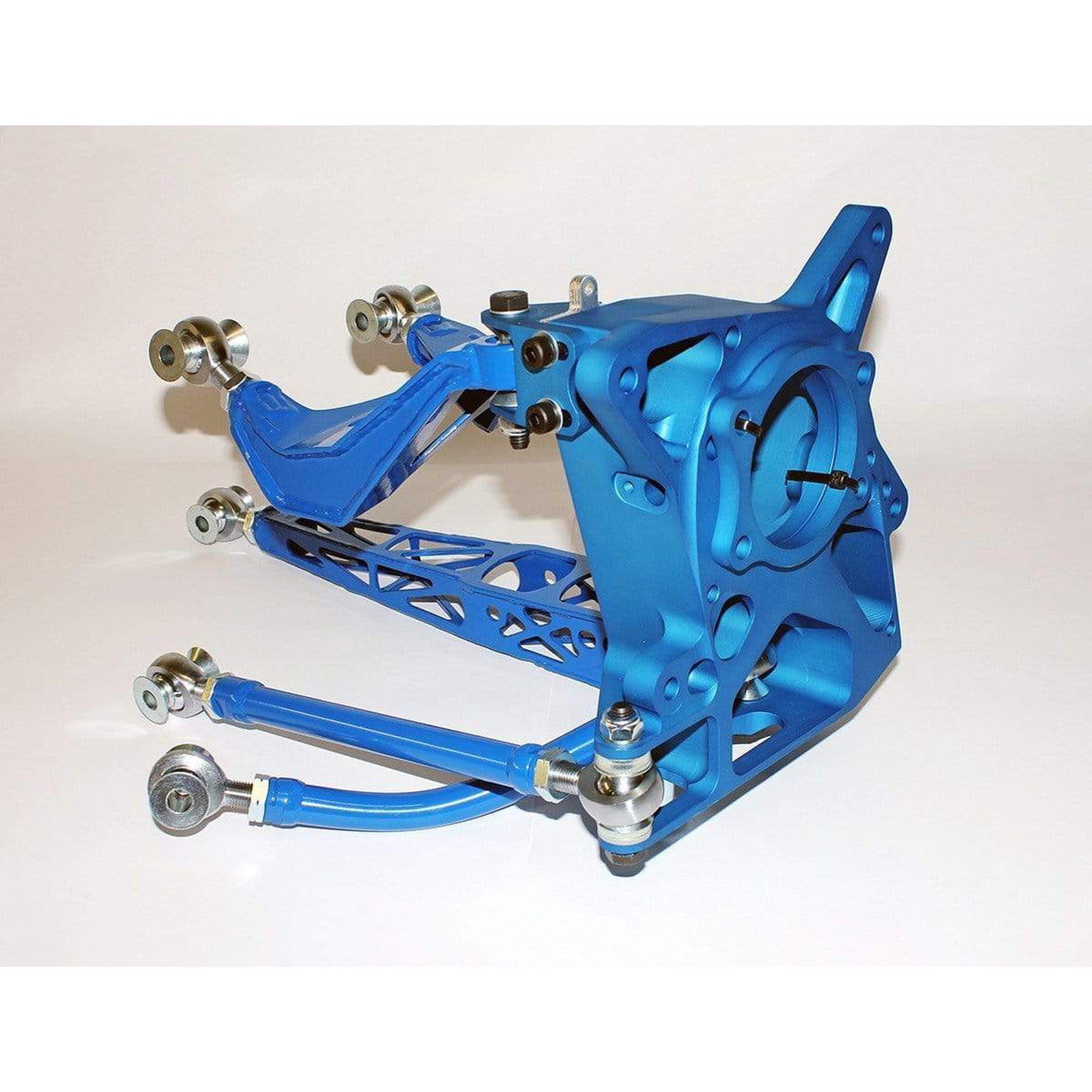

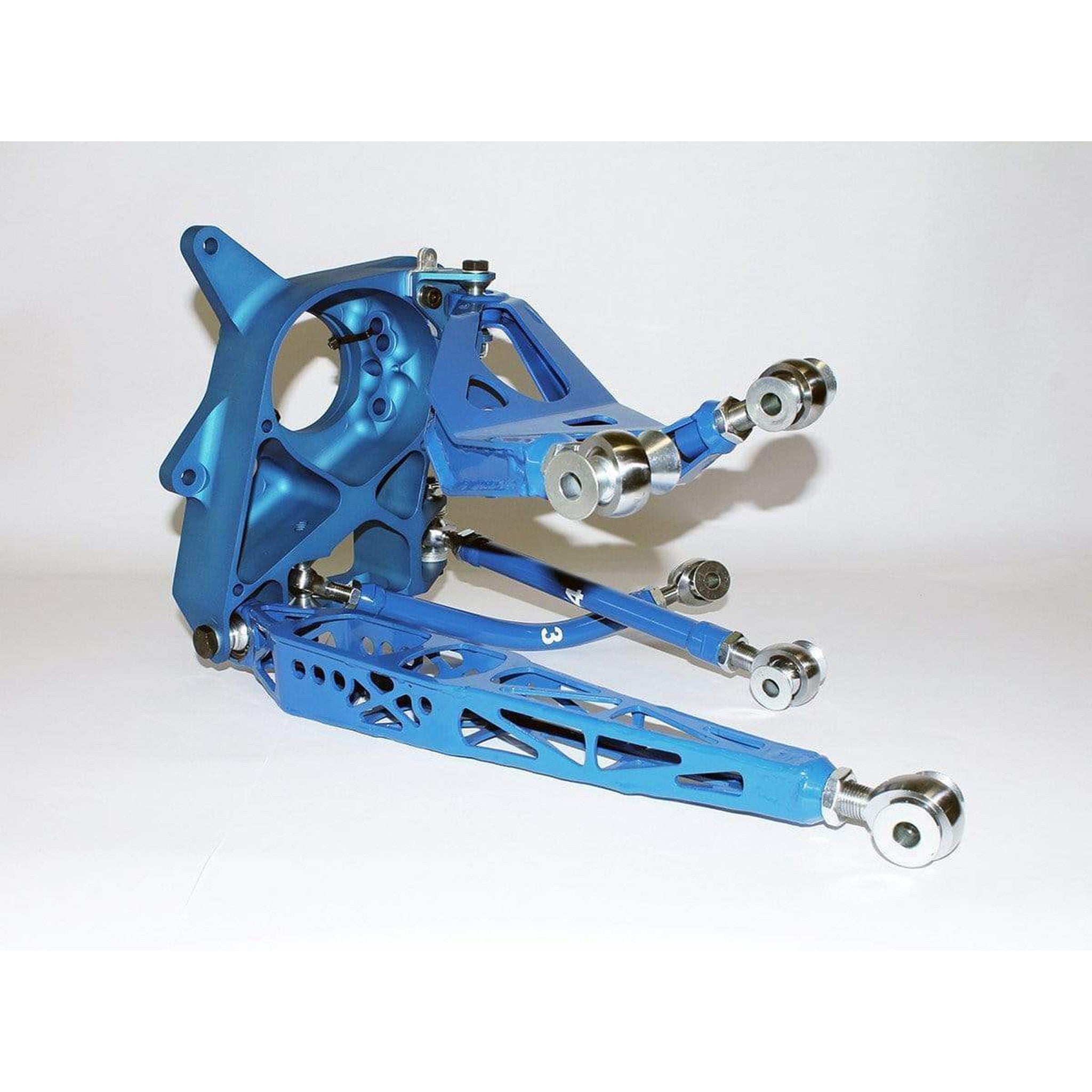

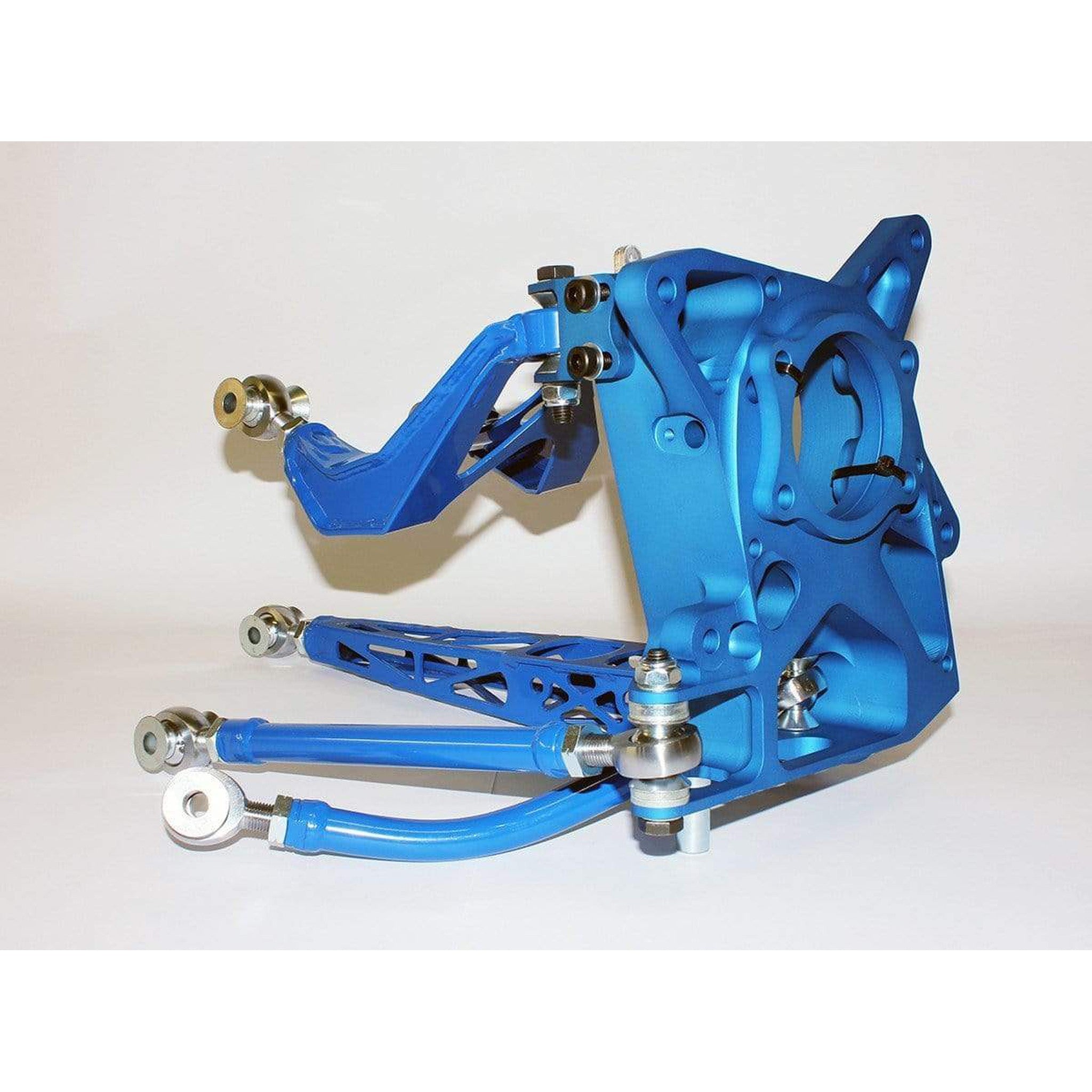

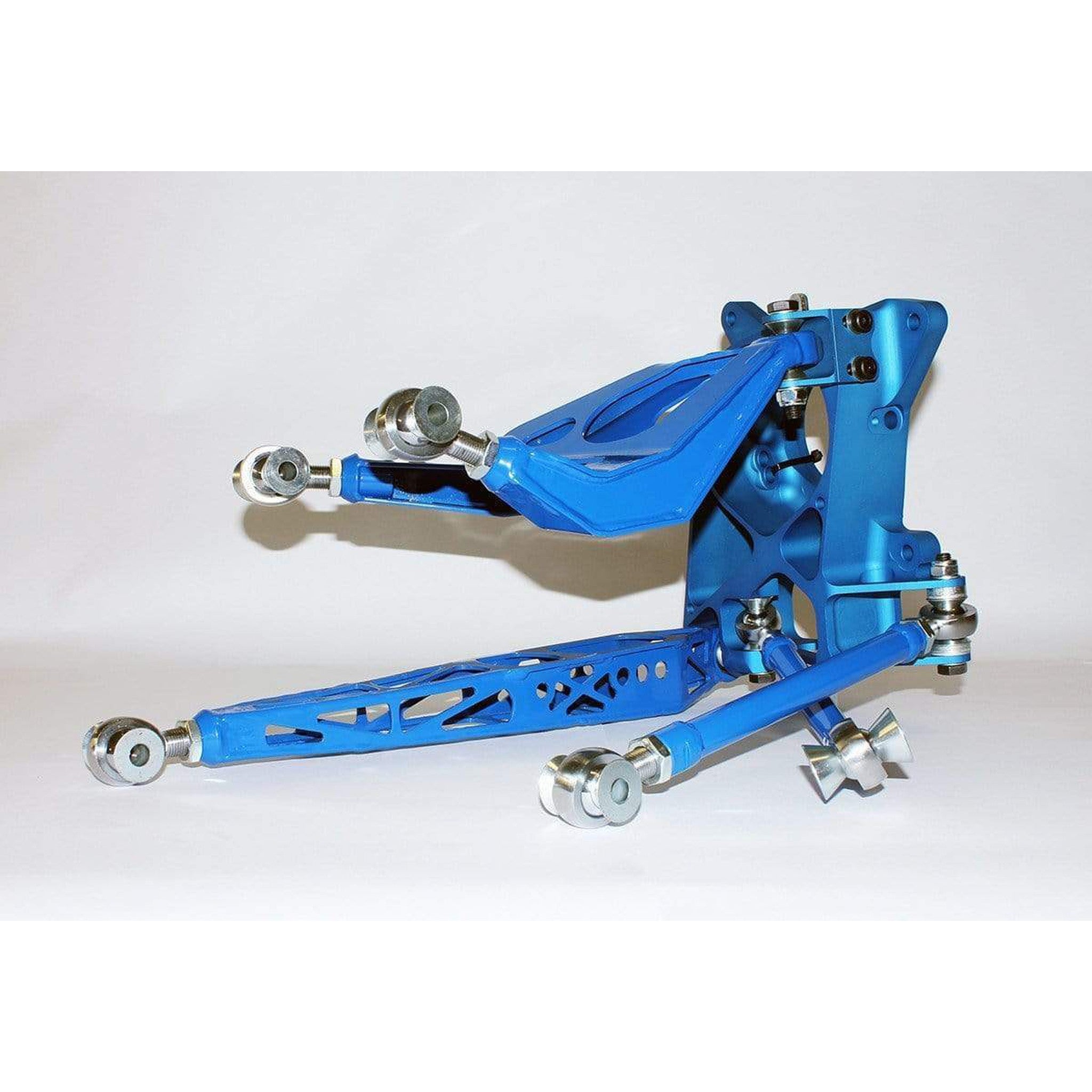

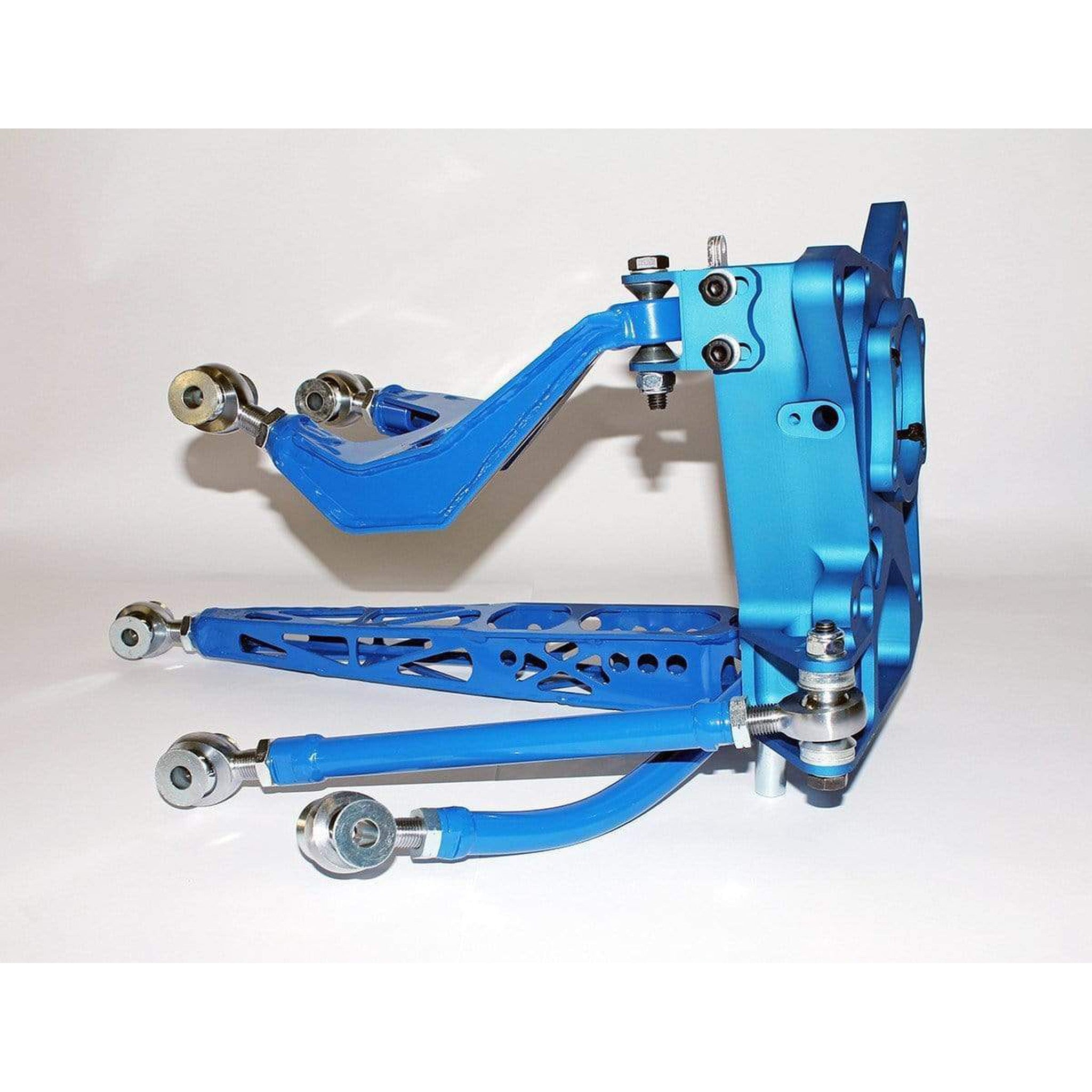

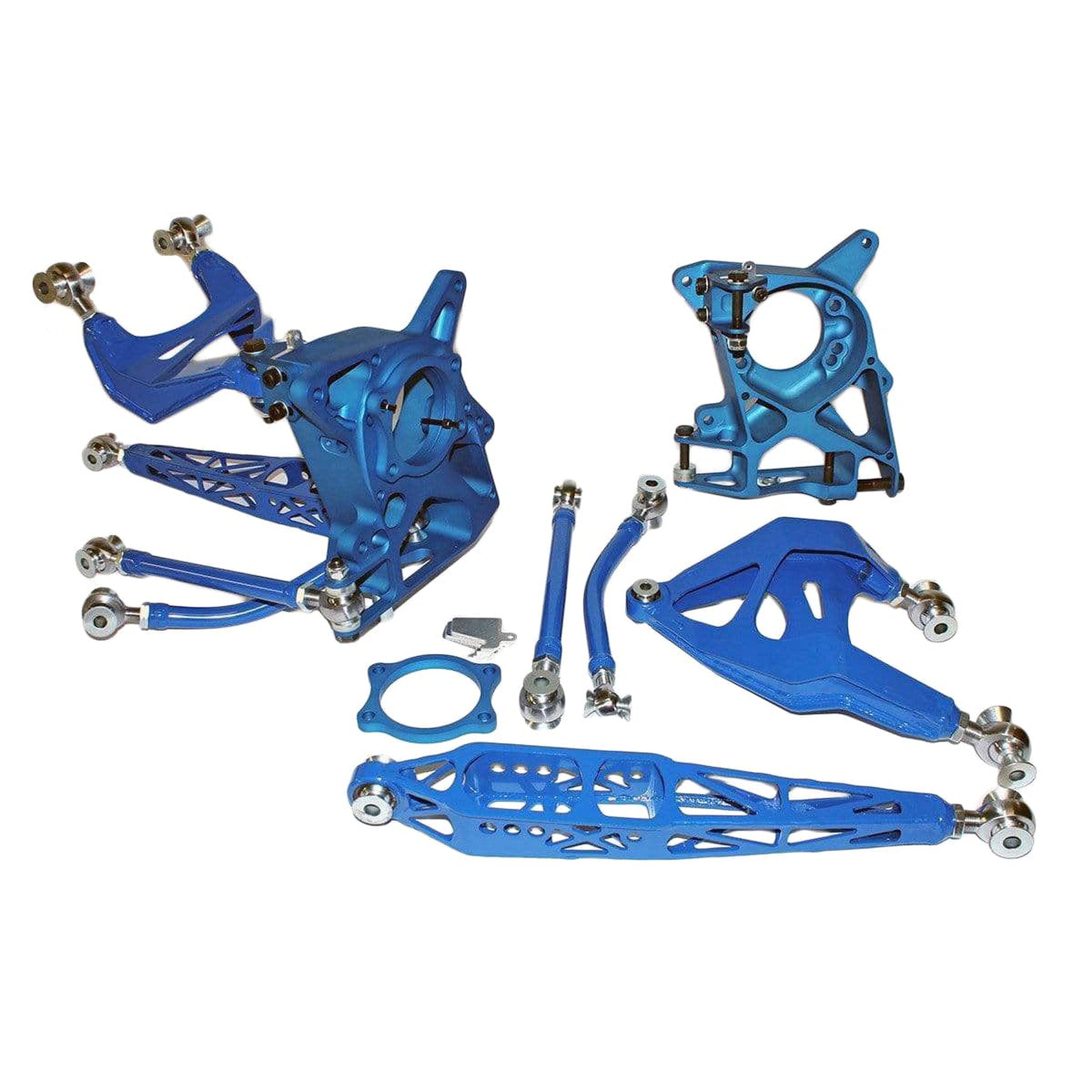

Wisefab Rear Suspension Kit 2013-2020 Subaru BRZ / Toyota GT86 / Scion FR-S | WF861
SKU:
WF861
Availability:
Out Of Stock
Type:
Suspension Packages
- Regular price
- $3,260.25
- Regular price
-
$3,300.00 - Sale price
- $3,260.25
- Unit price
- per
Instant Discount
Regular Price:
$3,300.00
- Instant discount: $39.75 = $3,260.25
Regular Price: $3,300.00 - Instant discount: $39.75 = $3,260.25
Fitment Information:
2013-2020 Subaru BRZ
2017-2020 Toyota GT86
2013-2016 Scion FR-S
Features:
Toyota GT86 / Subaru BRZ /Scion FRS is a well designed car for enthusiast driver. The car performs well on streets and can be taken to a race track. If the focus is more towards performance, then the car can act even better with lowered ride height, but then the factory designed kinematics wouldn’t work as it supposed to. The Wisefab kit would give a good kinematics with lowered car - higher roll center, lowered antisquat, revised cambergain and bumpsteer for maximum grip.
14 kg of weight reduction over original components and still maintaining required strength and stiffness.

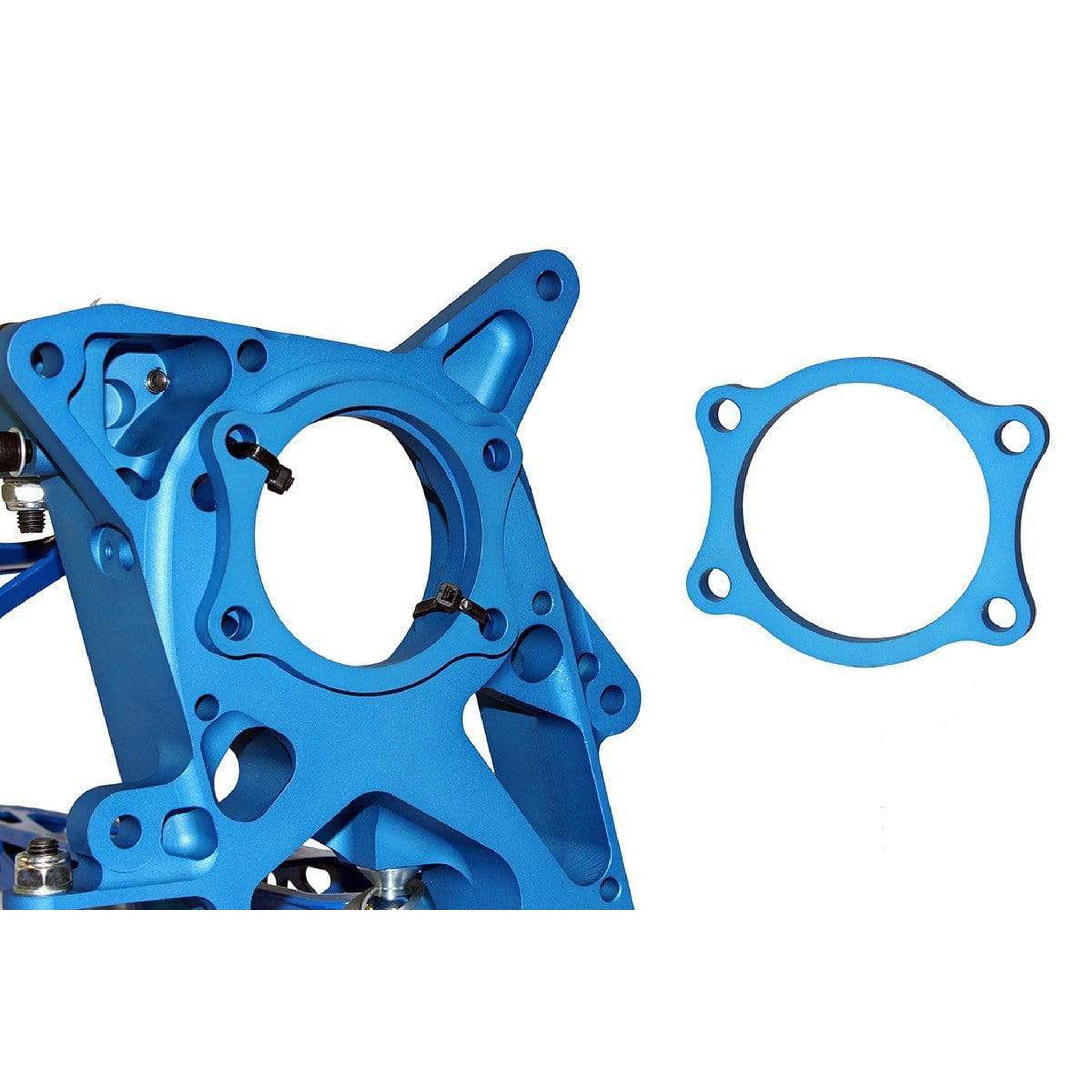

7075-T6 aluminium billet CNC rear upright with optimized design and all double shear connections provide low weight and high strenght.
High strenght steel links and arms.

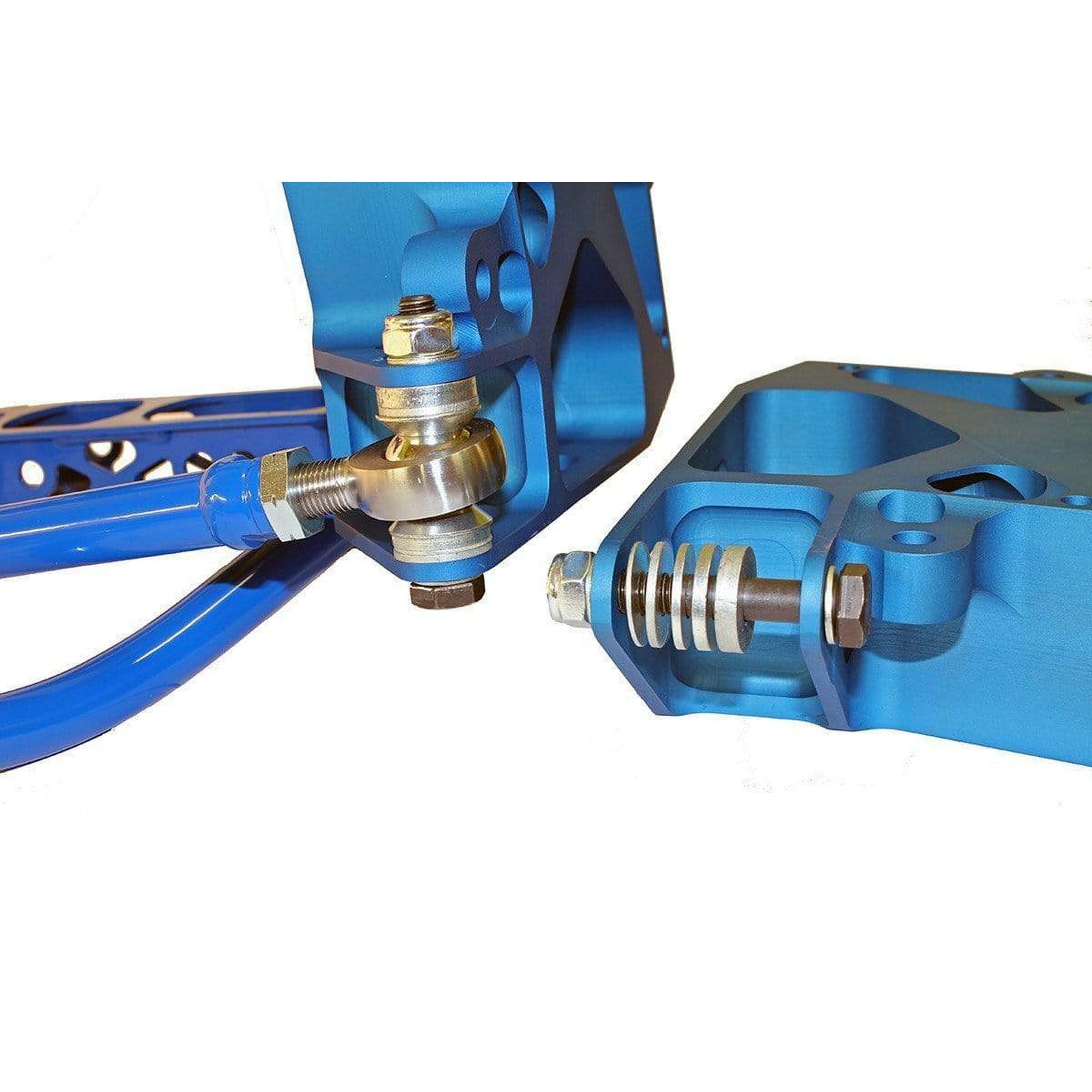

CrMo rod ends and sphericals used instead of rubber bushings.
Adjustable spring and shock absorber motion ratio

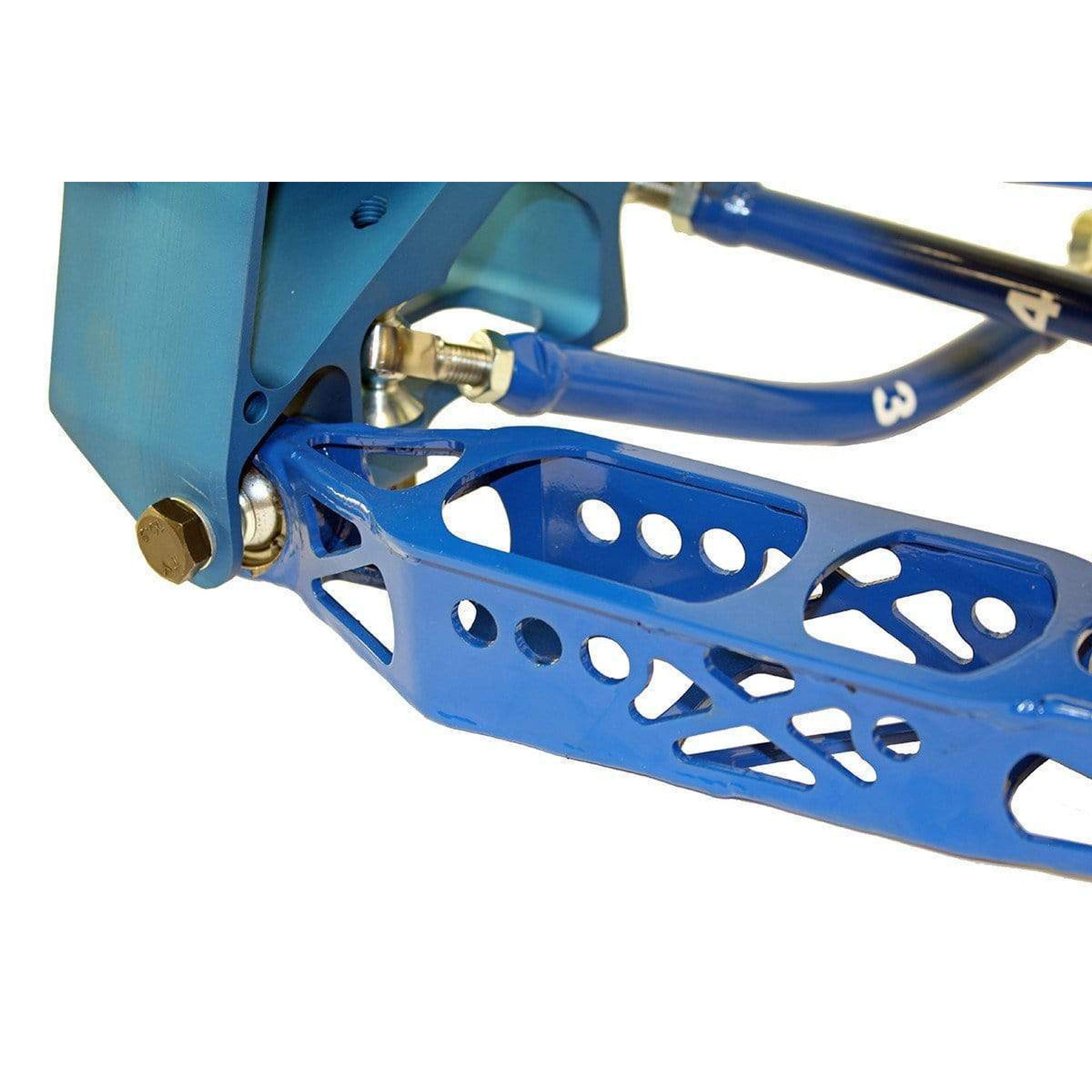

The shock has 3 attachment possibilities on rear arm, which allow to change suspension stiffness and handling very quickly without changing the spring and messing up ride heights. This option gives about 20% wheelrate adjustment range.
Easy camber adjustment

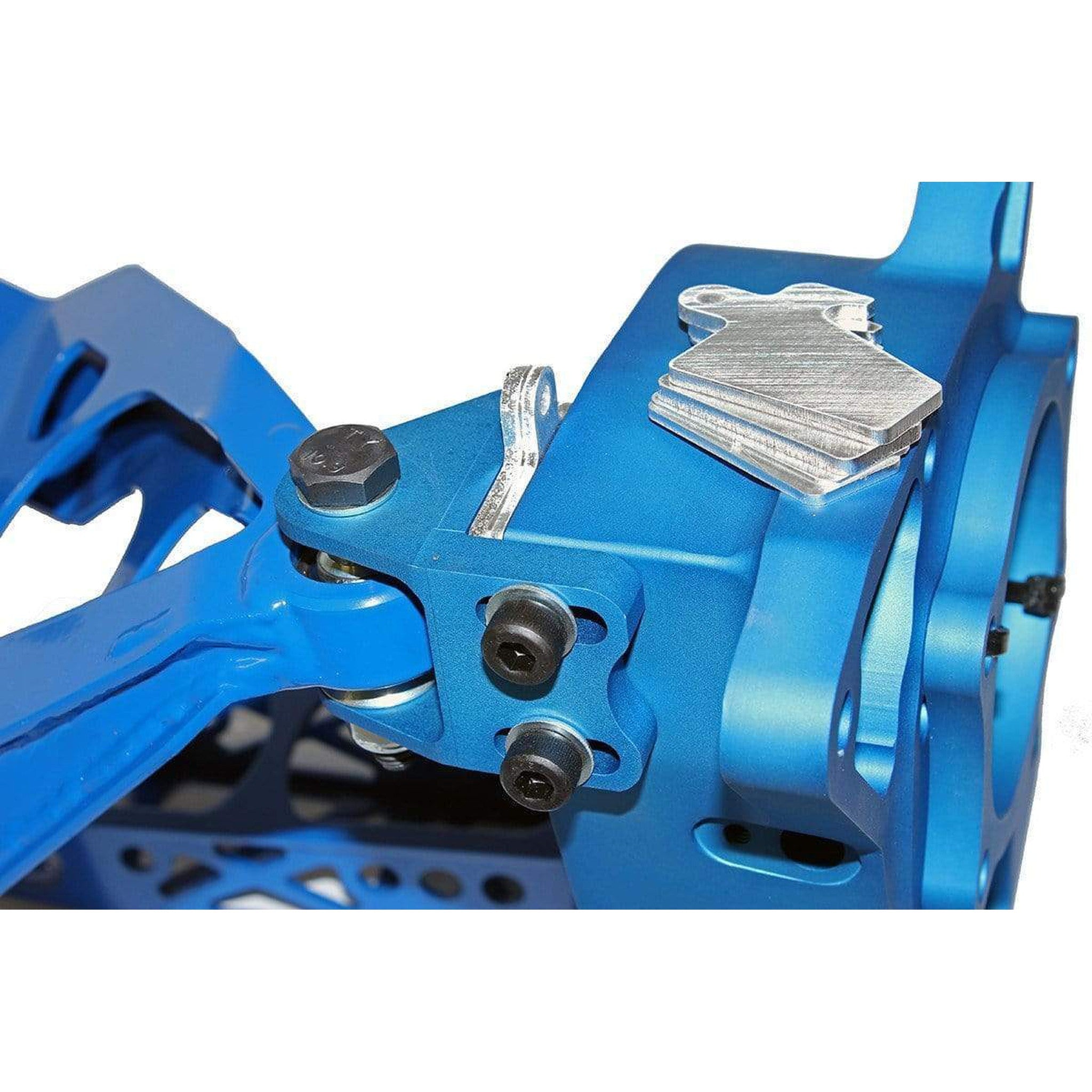

Camber shims are used for adjustment
Bump steer adjustment
Possibility to adjust bumpsteer by changing washer locations.
Other components
Hub to hub length (track) is the same as original, as this is defined by halfshaft lengths.
This kit assumes coilovers to adjust ride height.
Original wheel speed sensor can be used.
Possibility to use Nissan S-Chassis hub with bigger CV joint.
Minimum rim size is 17“
