Fitment Information:

1992-2007 Subaru Impreza, WRX, and STI

Features:

Subaru Impreza is a good performance car designed for rally. Because of its good performance it’s more and more used for grip racing as well. Lowering the car will give more grip and better handling, but then the factory designed kinematics won’t work as they are supposed to. Wisefab Subaru Impreza uprights / knuckles bring the roll center, bumpsteer, anti-squat and camber curve back to normal range, providing better roll stiffness, handling and grip.

-1 kg lighter over OEM knuckle / upright
But still maintaining required strength and stiffness
Rollcenter correction
-50mm drop from the knuckle / upright
2000 - 2007 WRX/STI 72x42x52 wheel bearing needs to be used
Either 5x100 hub (28462FE001) or 5x114,3 hub (28462FE011) can be used. Both are for STI/WRX 72x42x52 wheel bearing
Brake caliper tabs moved to upright / knuckle
In OEM solution the rear brake caliper attached to the brakeshield. Wisefab solution provides higher stiffness for brake caliper
OEM handbrake fitmet
OEM handbrake can be used, but the brake caliper tabes need to be removed for clearance
CrMo sphericals
Traction link bushing replaced with sperical bearing

Kit includes:

Left and Right Knuckles with hardware
Installation guide

Other information:

This kit assumes coilovers fro ride height correction
Original wheel speed sensor can be used

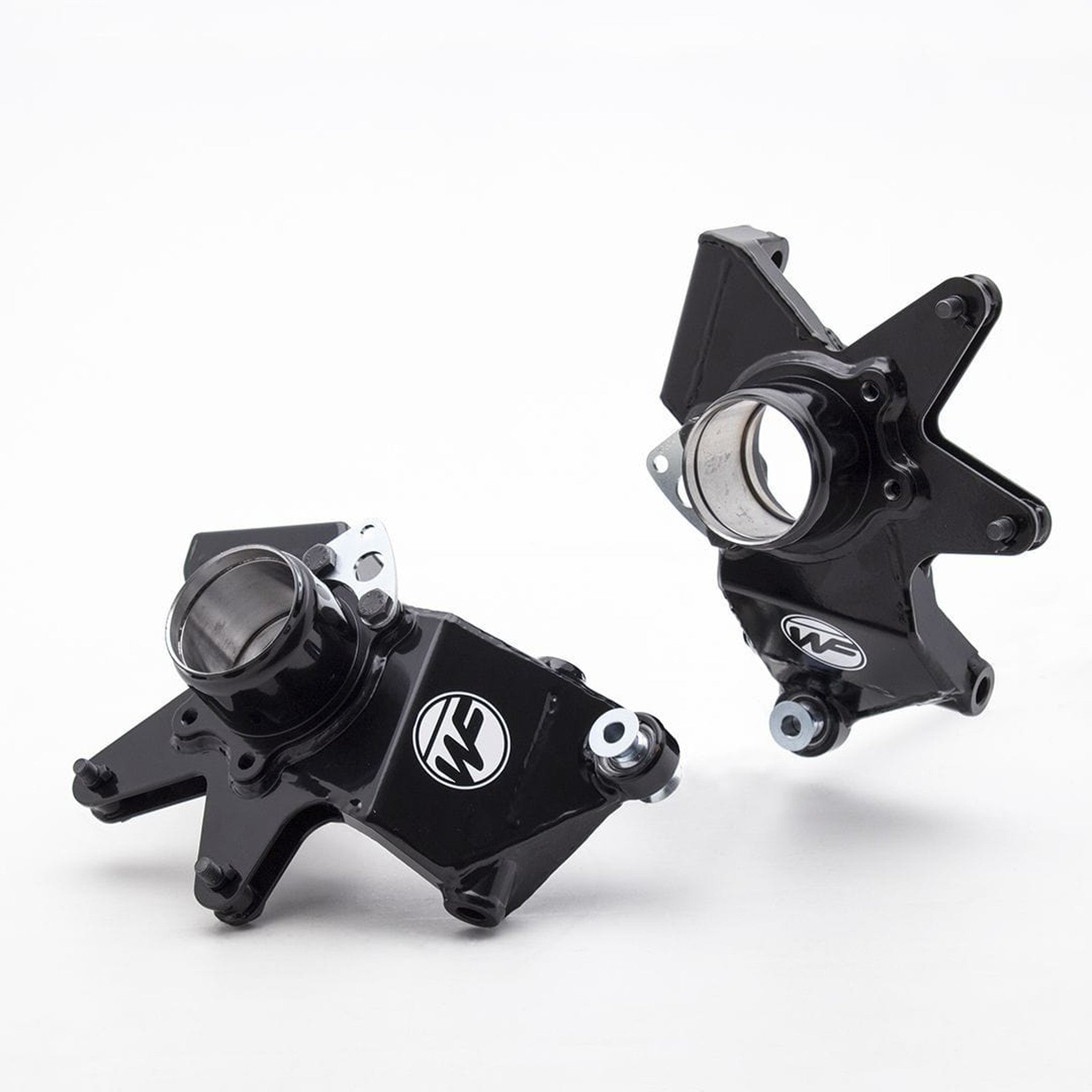

Wisefab Rear Drop Knuckles 1992-2007 Subaru Impreza / WRX / STI | WFGD4
