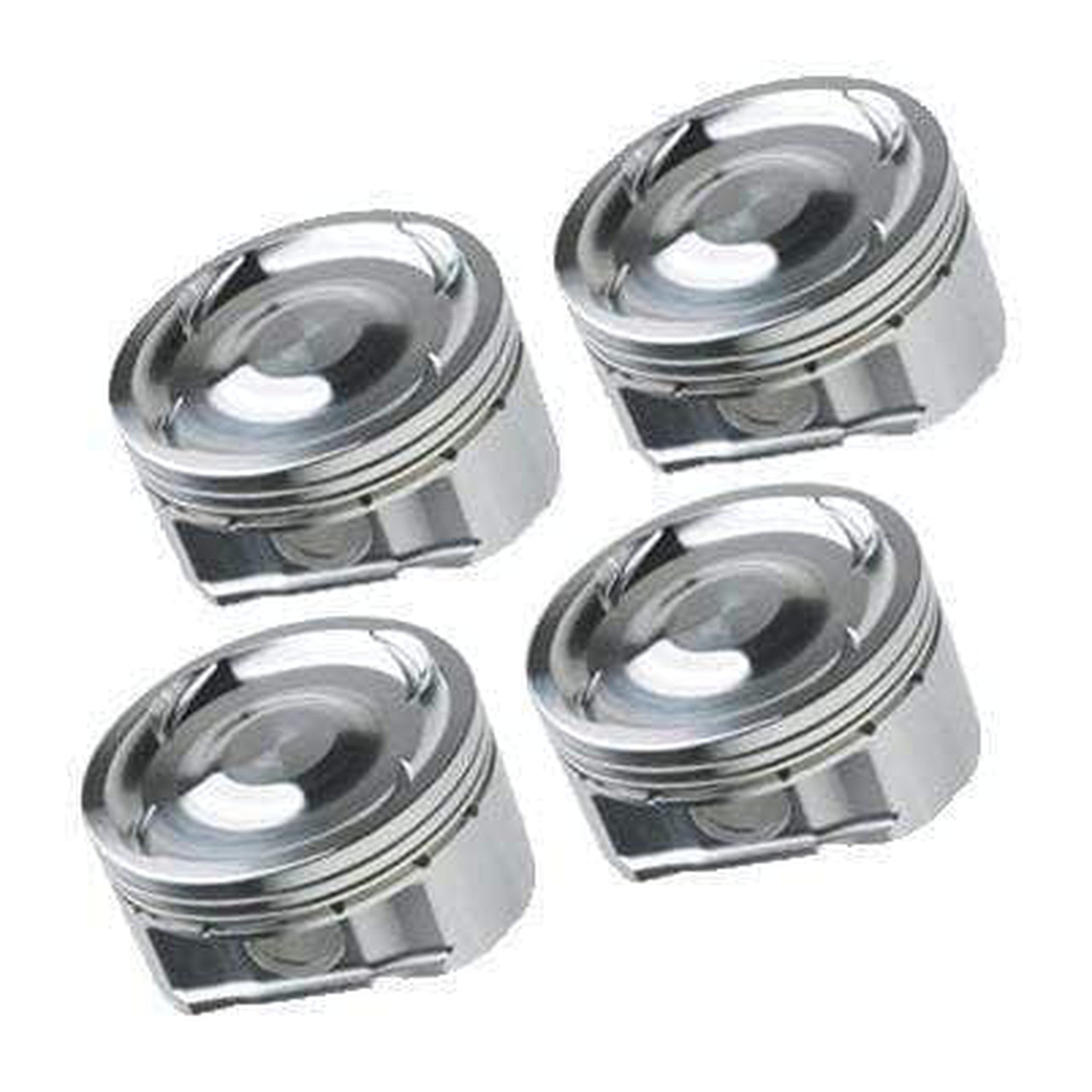

JE Pistons & Rings 86 Bore 100mm Stroke 8.5:1 Comp Mitsubishi Eclipse / Talon 1993-1999 / EVO 8 / EVO 9 2003-2006
jep270667
Pre-Order
Engine Pistons/Rings
🚀 If you were a VIP member, you'd be getting $31.94 in BuildBUX for buying this part 🤷 Join us!
🚀 If you were a VIP member, you'd be getting $31.94 in BuildBUX for buying this part 🤷 Join us!
$638.81
Part #: 270667
MITSUBISHI 1998-2007 Evolution VII - IX / /Eclipse / Talon 4G63
TRADITIONAL FULL ROUND - PART #'S 208477 & 254006 USE 1.2, 1.5, 3.0mm RING PKG
Crown requires no deburring or preparation
2618 T6 high tensile forged aluminum
In this environment, higher boost levels or heavy nitrous usage necessitate JE's wrought 2618 alloy.
Dished pistons feature new Smooth Finished Crown process for excellent flame travel.
1.0 x 1.2 x 2.8mm ring widths
.866 x 2.250 straight wall carbon steel wrist pin provided.
Pin fitting and wire locks included
Part numbers 289311, 289312 and 289313 are excellent for E85 fueled engines (Skirt Style R)
Includes 4 pistons and 4 rings
JE designs are specifically engineered for extreme applications up to, and including, professional competition. In this environment, the higher compression ratios, highest boost or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy.
Fitment:
MITSUBISHI 1998-2007 Evolution VII - IX / /Eclipse / Talon 4G63
TRADITIONAL FULL ROUND - PART #'S 208477 & 254006 USE 1.2, 1.5, 3.0mm RING PKG
Specs:
Stroke: 100mm
Comp Ratio: 8.5:1
Rod: 150mm
C/D: 1.13mm
Gram Weight: 286
Bore: 86mm
Head CC: 47
Oversized: 1mm
Dome CC: -22
Skirt Type: Full Round
Features:
