ACT 6 Pad Sprung Race Disc Subaru WRX 2006-2021 / Forester XT 2006-2008 / Legacy GT 2005-2012 | 6240518

Fitment Information:

2006-2021 Subaru WRX

2006-2008 Subaru Forester XT

2005-2012 Subaru Legacy GT

2005-2009 Subaru Outback XT

Note: 240mm upgrade. Must use with ACT 240mm pressure plate and flywheel (not included).

Features:

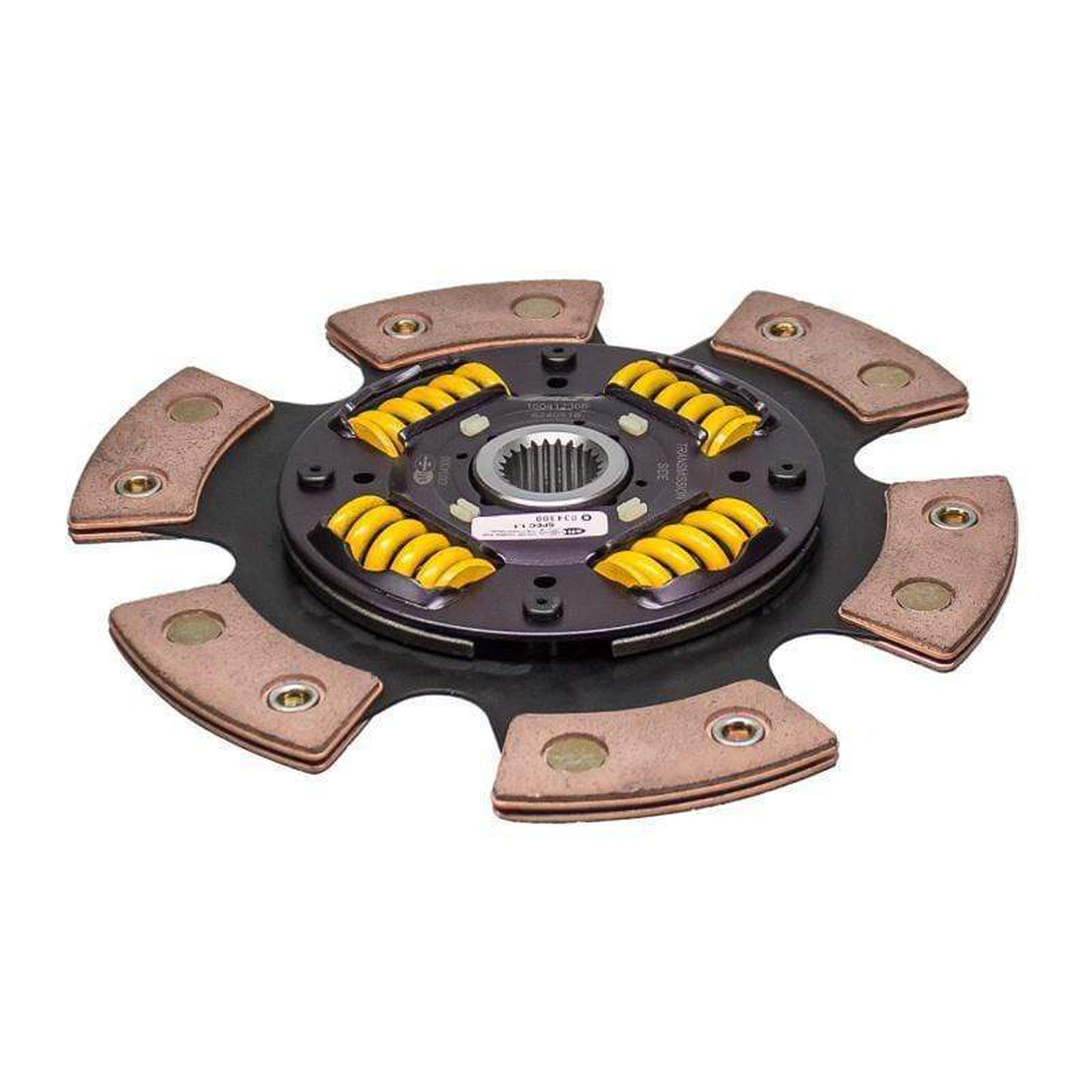

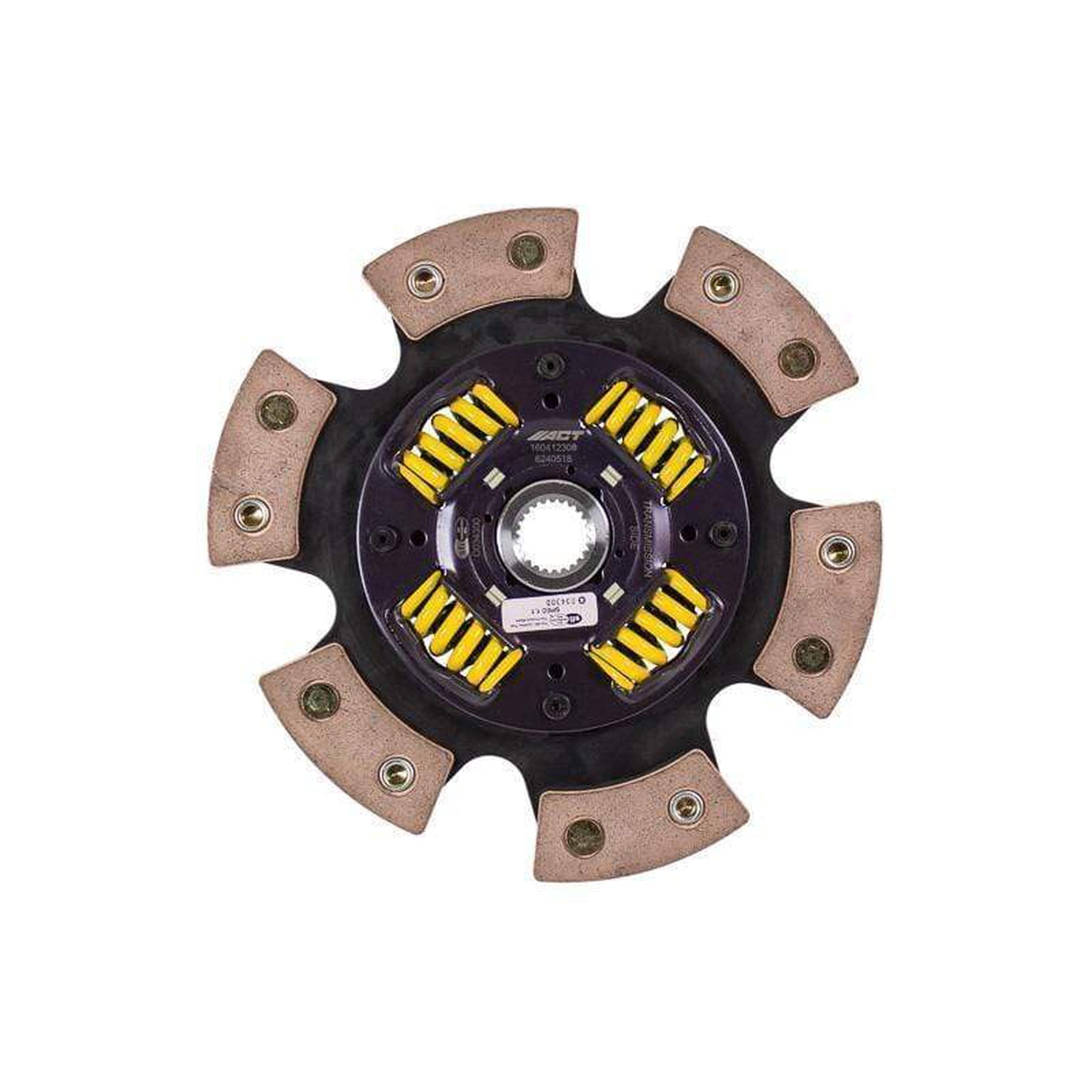

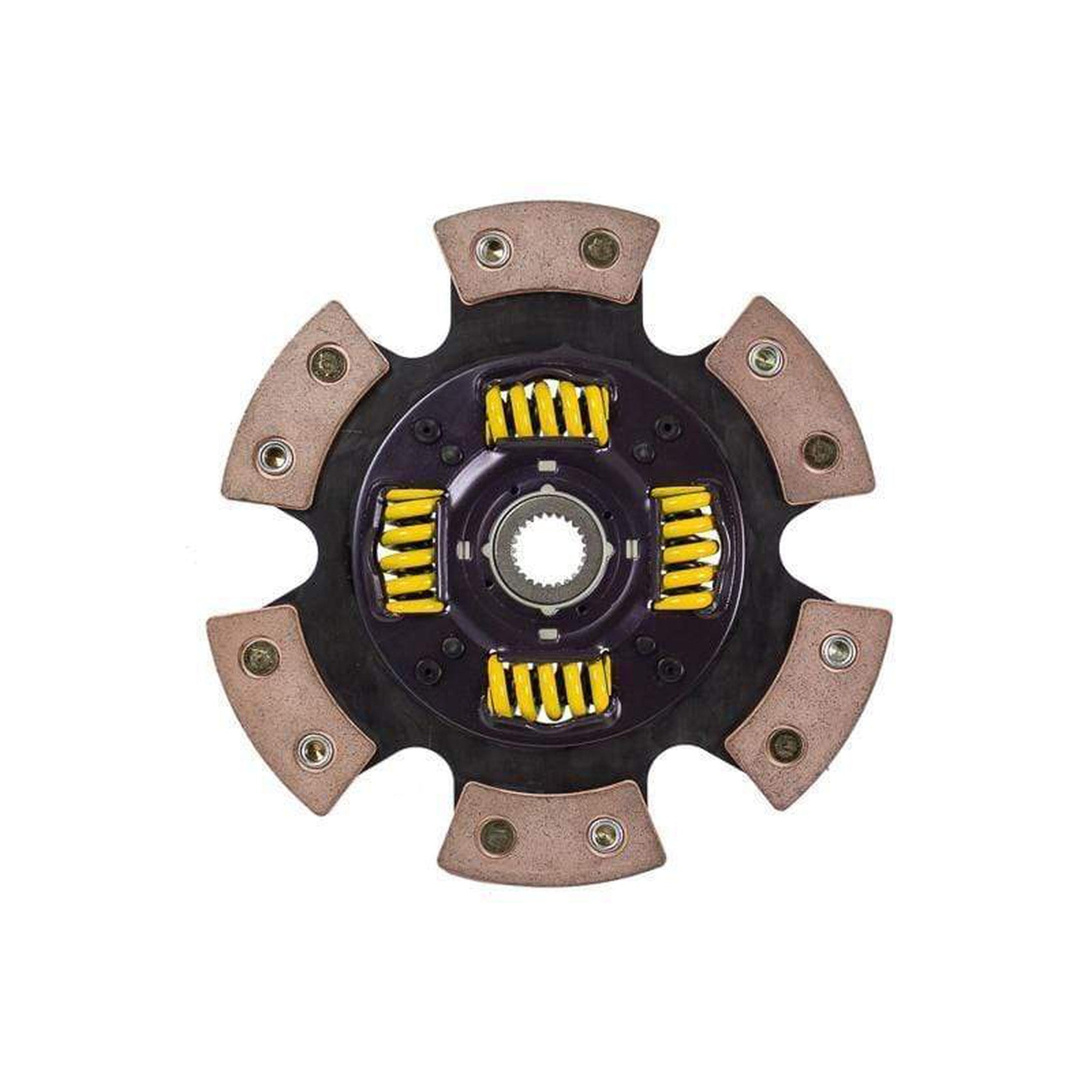

ACT's 6 Pad Sprung Race Disc (6240518) is a 6-pad spring-centered race discs made with high quality ceramic friction materials. The engagement is harsher, but shifting is faster. The heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat and for smoother engagement.

• Feel - Aggressive engagement, quick shifts, mild to moderate gear rattle
• Recommended Use - Recommended for high horsepower street or race use
• ACT Difference - High burst strength and holds 28% more torque than typical organic materials
• Manufacturer Warranty - Limited Retail Warranty
• Installation Instructions - ACT's General Installation Instructions

Can an ACT Race puck-style disc be used for daily driving, and is it recommended?

ACT's race discs are very aggressive and provide no-nonsense performance response. As a result, the engagement is harsh. Taking off from a stop can cause judder and/or an uncomfortable noise. These characteristics have no effect on the performance on the clutch or the drive line components. This type of disc should only be used in a professional race setting and never on the street. ACT always recommends using an organic disc on the street because it offers a smoother engagement and a longer lasting performance value for everyday drivers.

When should a clutch disc be replaced?

The majority of new discs measure .312-.315” (7.93 – 8.00mm) thick – fully worn is .275” (7.00mm) or below. A few applications (mostly Audi and BMW) start out at .332 - .335” (8.43 – 8.50mm). These are to be replaced when below .295” (7.50mm). It’s best to measure with a micrometer. Puck discs are measured as-is, where organic street discs are correctly measured by fully compressing the engagement cushion (marcel) between the linings. If the lining rivets on either side of the disc have made contact with the flywheel or pressure plate face, the disc must be replaced. Note: Using a disc that is thicker or thinner than the working range the pressure plate is designed for will have varying, and often very poor, results.
