AMS Performance Alpha Race Front Mount Intercooler w/Logo Nissan GT-R 2009-2021 | ALP.07.09.0008-1

Product Fitment:

2009-2021 Nissan GT-R

Engineered for serious power and real-world performance, the AMS Alpha Race Intercooler is the ultimate mid-size intercooler upgrade for high-horsepower R35 builds. Designed to support 1000–1400 horsepower (approx. 800–1200 WHP), this race-proven system delivers exceptional cooling efficiency, minimal pressure drop, and perfect OEM-style fitment — without cutting the crash beam or bumper cover.

If you’re running a large turbo setup or driving in hot climates, this is the intercooler built to keep intake temps under control and power delivery consistent.

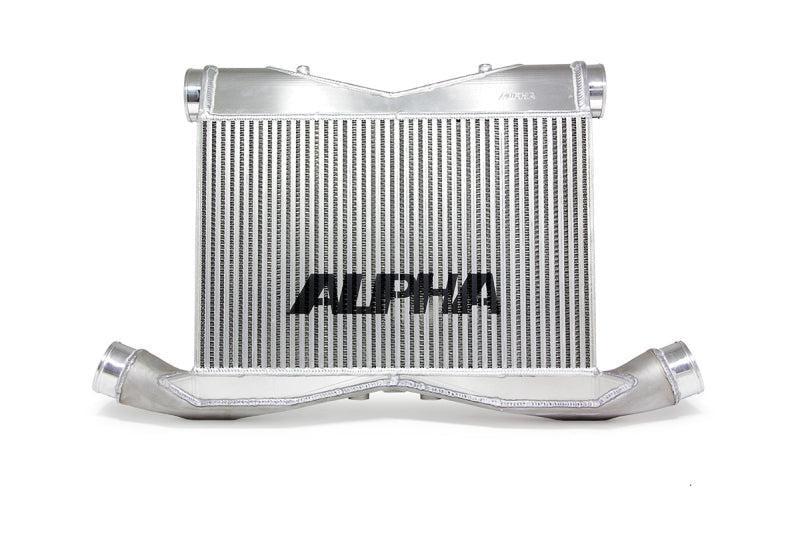

At the heart of the system is a massive 22” x 14” x 4.5” Garrett bar-and-plate core, delivering:

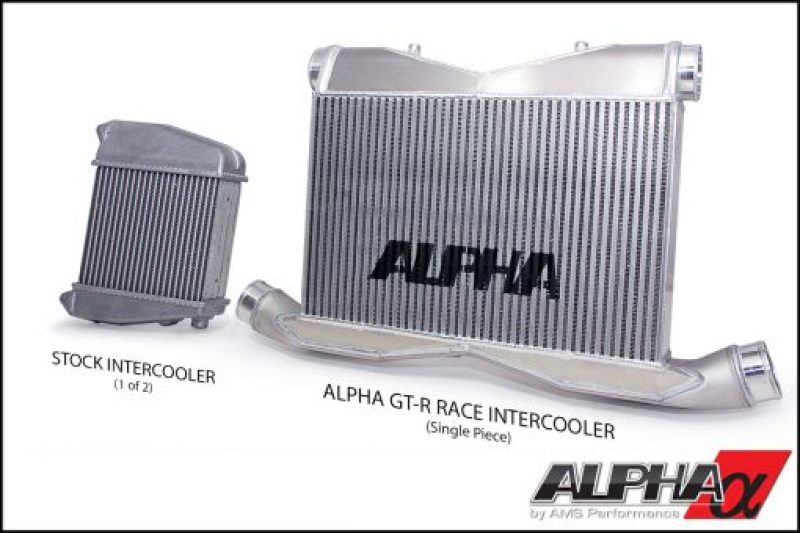

• 92.5% more air volume than stock intercoolers

• Vertical flow design for maximum cooling efficiency

• Up to twice the fin density of typical aftermarket cores

• Less than 1 PSI boost pressure drop

The vertical airflow configuration maximizes contact between charged air and cooling fins, dramatically lowering intake air temperatures while preserving turbo response.

CNC-Engineered for Maximum Flow

AMS engineers designed the end tanks using advanced 3D CAD modeling to eliminate sharp transitions and airflow restrictions found in box-style sheet metal tanks.

Key design features:

• 3” CNC billet aluminum inlet and outlet ports

• Smooth, tapered transitions for improved airflow velocity

• Custom-molded 4-ply silicone couplers

• Optimized geometry for maximum response

The result is improved throttle response, stronger mid-range torque, and consistent top-end power.

Complete Air Management System

Unlike many intercooler kits that focus only on the core, AMS engineered a full air-channeling solution.

Included bridge plates and shroud panels:

• Create a tight seal around the core

• Prevent air from escaping around the intercooler

• Force cool ambient air directly through the fins

• Improve overall thermal efficiency

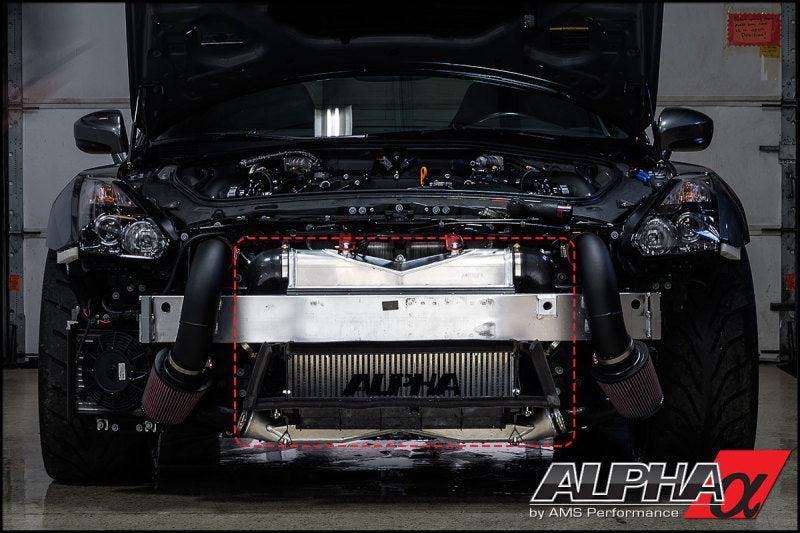

All of this fits neatly in front of the core support and does not require trimming the crash beam or bumper cover.

Built for Strength & Longevity

• High-quality TIG-welded aluminum construction

• Gusseted aluminum mounting brackets

• Pressure tested to 50 PSI

• Durable 4-ply silicone couplers

• Murray Turbo Seal clamps for secure connections

This system mounts firmly and is built to withstand the abuse of high-boost street and track use.

Proven on World-Record Alpha Builds

The Alpha Race Intercooler was developed to meet the demands of AMS’s world-record Alpha GT-R program. It has been tested, refined, and validated under extreme racing conditions — ensuring reliability when pushing your VR38 to its limits.

Kit Includes

• Front-mount intercooler

• 4-ply silicone couplers

• Hose clamps

• Shroud and bridge plates

• Mounting brackets

• Fasteners and hardware

• Horn relocation brackets

Product Notes

• Requires minimal trimming of plastic OEM shroud

• Works with AMS Alpha piping or any aftermarket 3” intercooler piping following stock routing

• As of 12/1/22, part numbers ALP.07.09.0008-1 and ALP.07.09.0008-3 have been consolidated into one universal part number

• Now fits both 2009–2011 and 2012+ models with included shroud pieces

• Previous 2012+ specific part number has been discontinued
