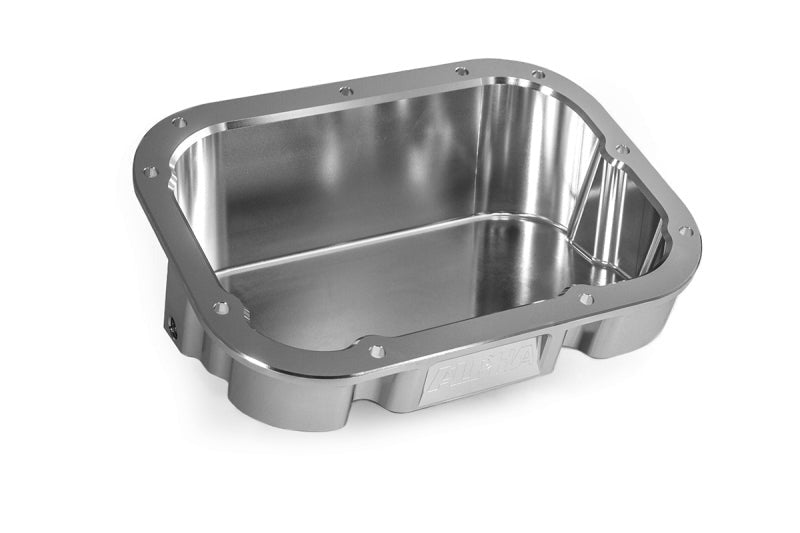

AMS Performance Alpha CNC Billet VR38 Oil Pan Nissan GT-R 2009-2021 | ALP.07.04.0024-1

Applications

• 2009–2011 (CBA) Nissan R35 GT-R

• 2012+ (DBA) Nissan R35 GT-R

• Fits USDM, JDM, and European models (LHD & RHD)

Notes

• Installation Tips: Easiest with engine out; can be done with engine in place by raising the motor via unbolting mounts.

• 2015+ models require full undertray trimming but oil pan remains protected below subframe.

The Alpha CNC Deep Wet Sump Oil Pan is engineered to solve one of the VR38 engine’s critical weak points: oil pressure drop at high RPMs. In big bore, stroker, and high-revving engines, air turbulence inside the crankcase can introduce bubbles into the oil, sometimes reaching the pickup and causing a dangerous drop in oil pressure. This pan ensures consistent oil delivery and improved engine reliability without the complexity and cost of a dry sump system.

Why It Matters

• Prevents oil aeration at high RPMs

• Protects engine bearings and critical components

• Provides a cost-effective alternative to a full dry sump conversion

Design & Features

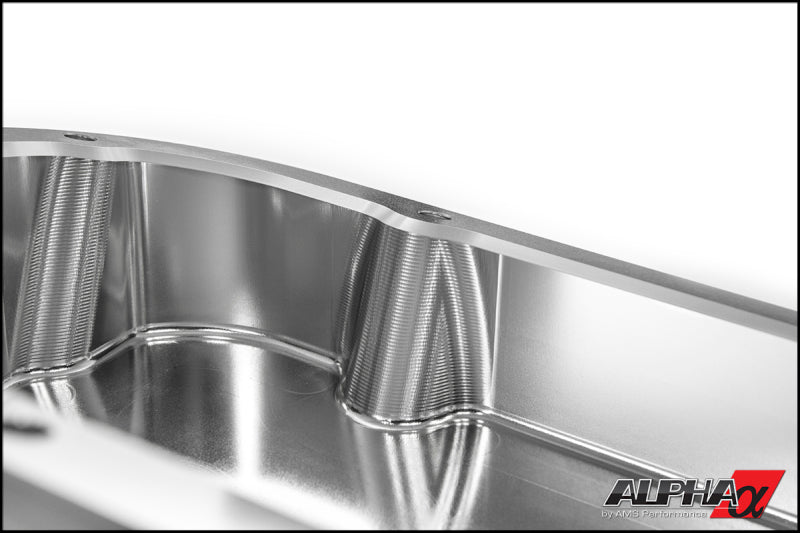

• CNC billet aluminum construction for strength and durability

• Deep sump design to reach below aerated oil without interfering with subframe clearance

• Factory undertray retains aerodynamic function with minimal trimming

• 1.5 quarts additional oil capacity for increased reliability and thermal capacity

• Reduces windage in the crankcase for lower oil temps and better performance

Exclusive Benefits

• Improved oiling at high RPMs

• Increased engine reliability under stress

• Cooler oil temperatures thanks to added capacity

• Protection against oil starvation without a dry sump system

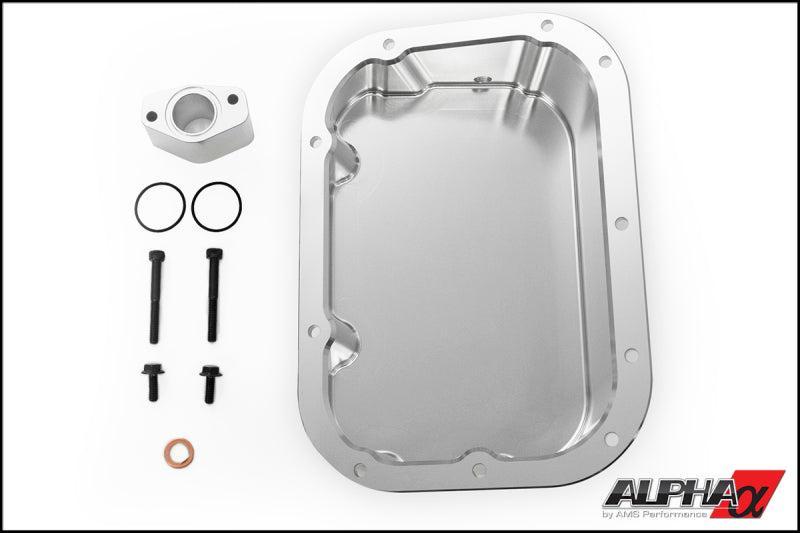

Kit Includes

• CNC billet aluminum deep oil pan

• Oil pickup extension

Optimize VR38 performance, protect your engine, and maintain proper oiling under extreme conditions with the Alpha R35 GT-R CNC Deep Wet Sump Oil Pan.
