Cobb Upper Hard Pipe Kit Mitsubishi Evo X 2008-2015 | 752530BK

SKU: cobb752530-BK
Availability: 3 In Stock Learn more
Type: Intercooler Piping
Regular price
$395.00
Regular price
$395.00
Sale price
$395.00
Instant Discount


Cobb Tuning Dealer Authorized Cobb Tuning Dealer
Subtotal: $395.00

Delivery Options:

  • Economy $4.97
Fastrak Delivery: , Order within hours minutes

Fitment Information:

2008-2013 Mitsubishi Evolution X

The COBB intercooler upper hard-pipe kit replaces all upper intercooler pipes and the BPV pipe with weld-free single-pipe aluminum tubing.

Features:

  • Weld-Free Mandrel Bent Aluminum
  • 2.5" Hot Pipe
  • OEM BPV Location and Orientation Maintained
  • Fits with OEM Airbox or Optional COBB SF Intake
  • Fits with OEM Engine Cover
  • Intermediate to Difficult Installation Effort
  • Installation Guide

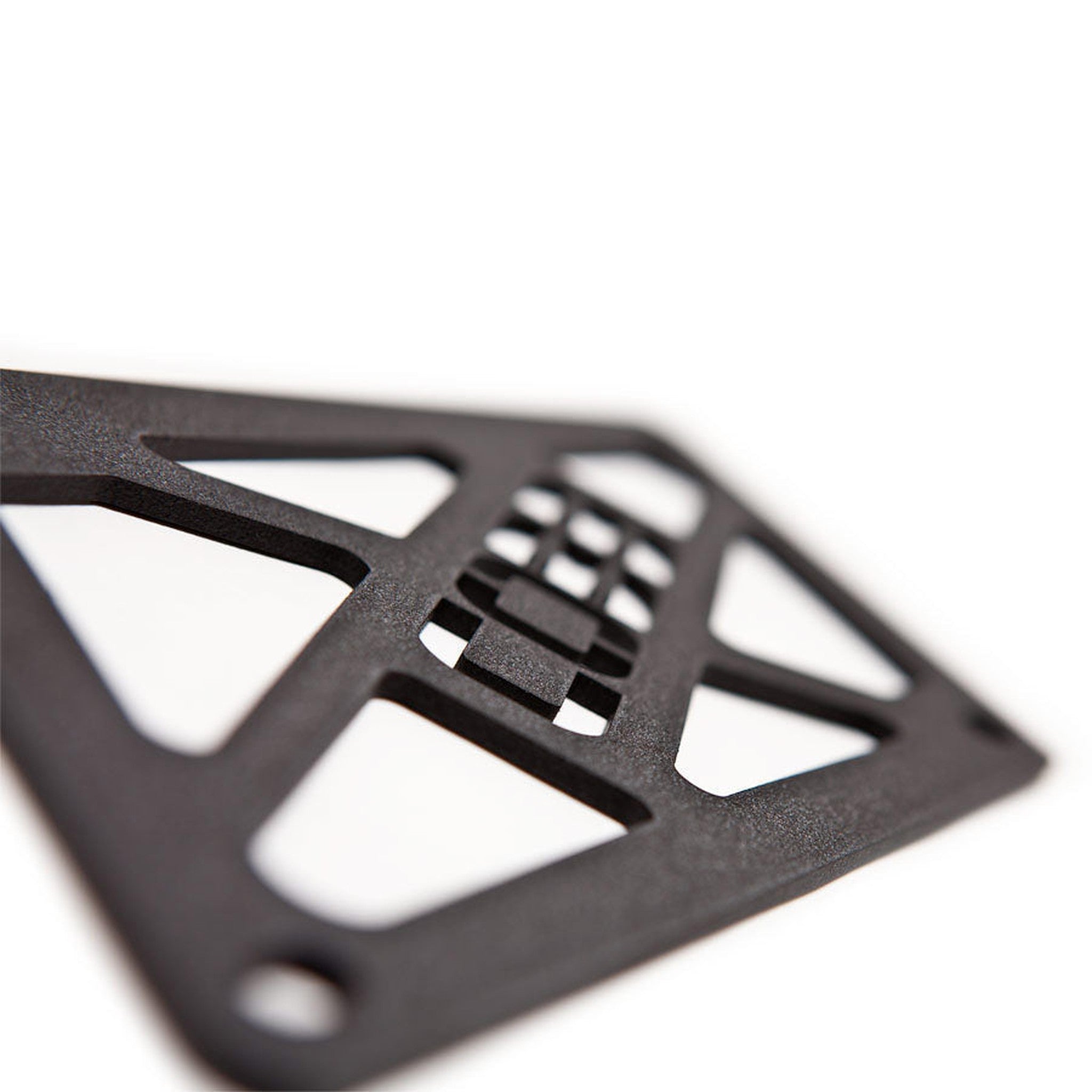

As with all intercooler hard-pipe kits, the stock rubber hoses to the intercooler are replaced with solid pipes to eliminate distortion under boost. But the devil is in the details, and that is where similarities end. The COBB EVO X Intercooler Upper Hard-Pipe Kit consists of single piece pipes made from mandrel bent aluminum tubing. The results are weld-free pipes from the turbo outlet to intercooler inlet without unsightly mid-pipe silicone hose couplings that can disrupt flow or potentially blow off under boost. The pipe diameter has increased from the stock 2.375" to 2.5", enhancing flow even further. The By-Pass-Valve (BPV) gets its own hard-pipe from the cold side of the intercooler, maintaining the factory location and orientation. Retaining this connection from the cold side ensures that cool air is fed back to the intake system when the valve is in bypass mode, preventing overheating of the air-charge post turbo. The BPV is located using a unique COBB logo bridge that connects the BPV hard-pipe to the hot side hard-pipe. The COBB EVO X Intercooler Upper Hard-Pipe kit is one of the very few that will fit with the factory air box in place (or the optional COBB SF Intake) as well as the stock front engine cover. The kit is completed with high quality COBB silicone hose couplings and heavy duty T-Bolt hose clamps to eliminate those embarrassing hose blow-offs than can occur when demanding the most from your EVO X.
