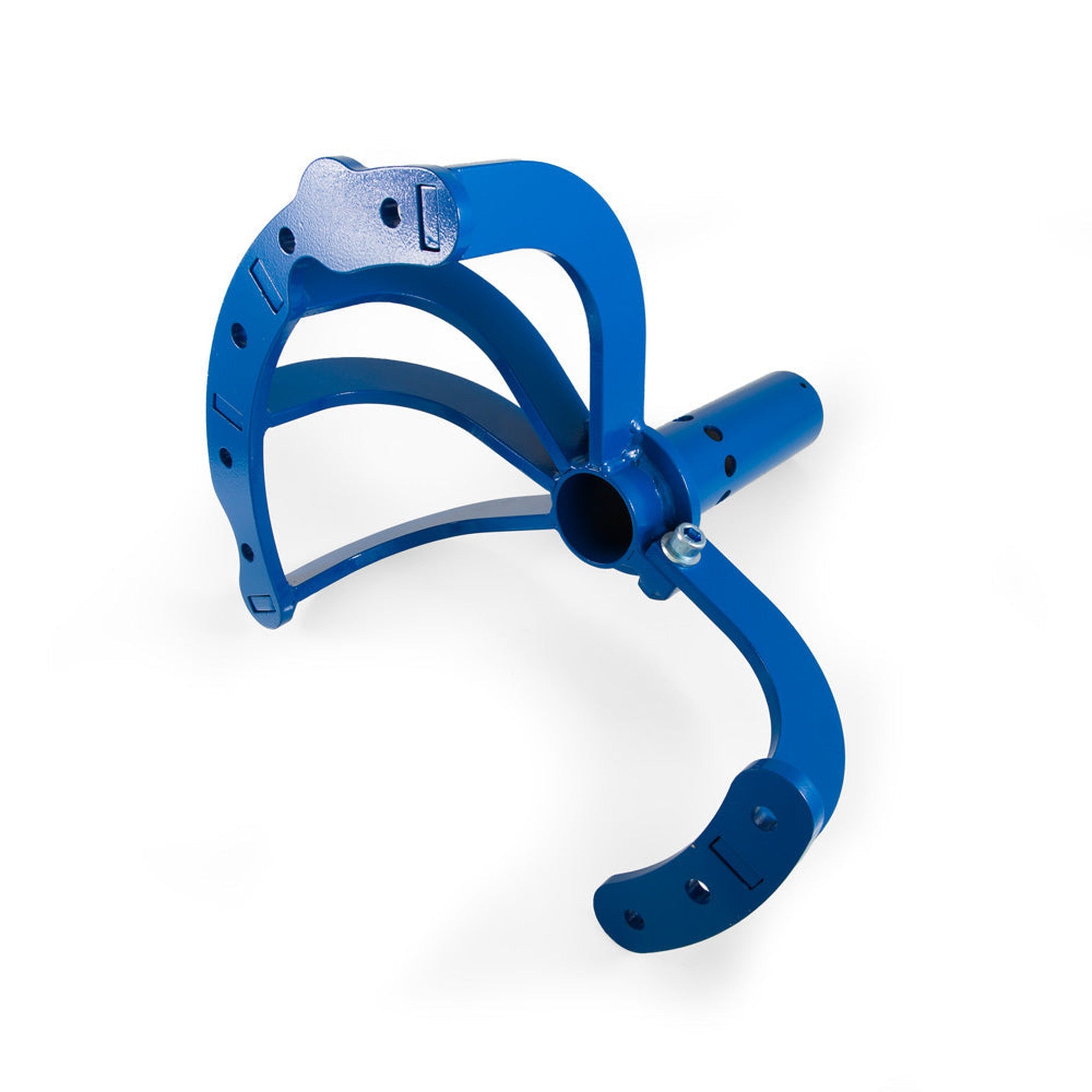

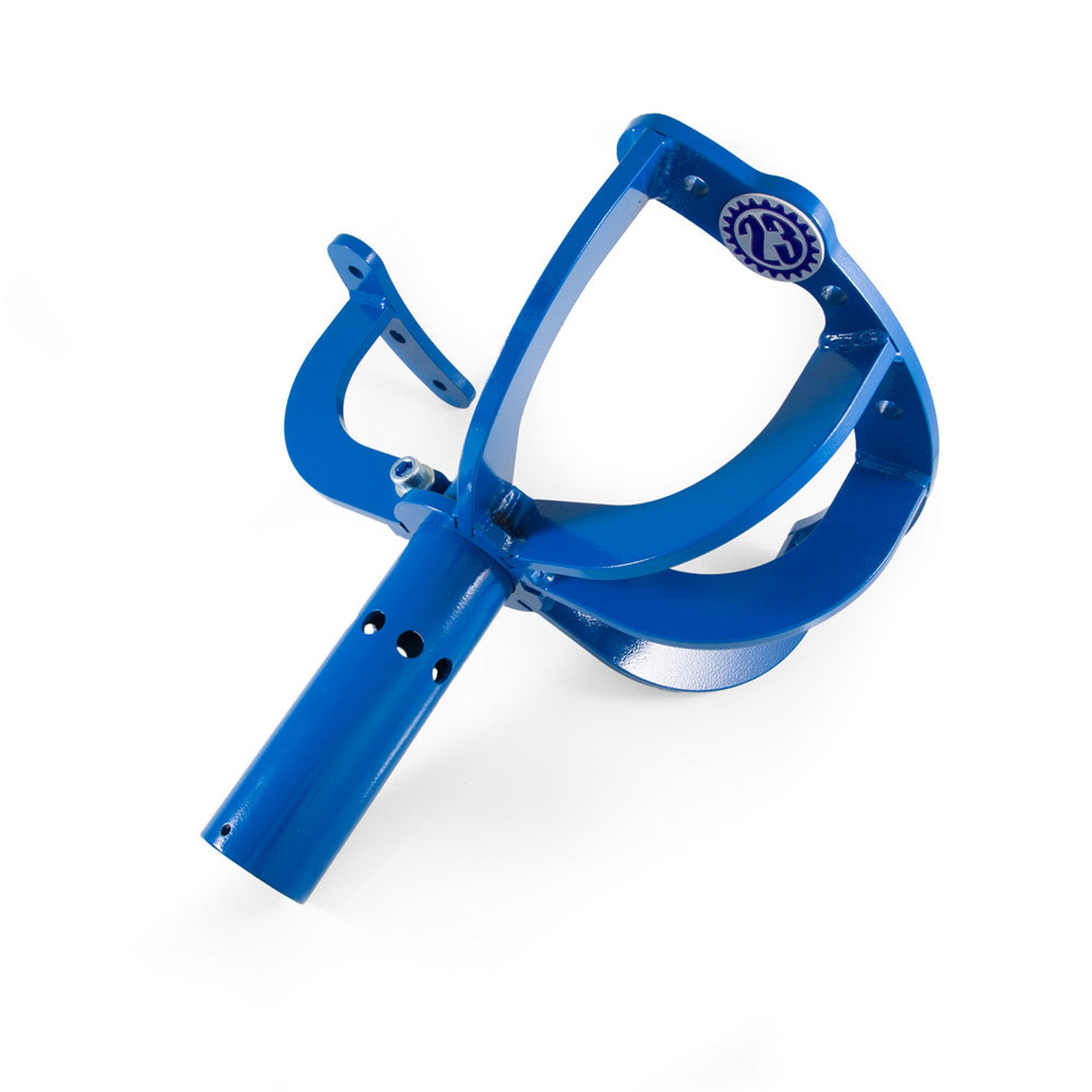

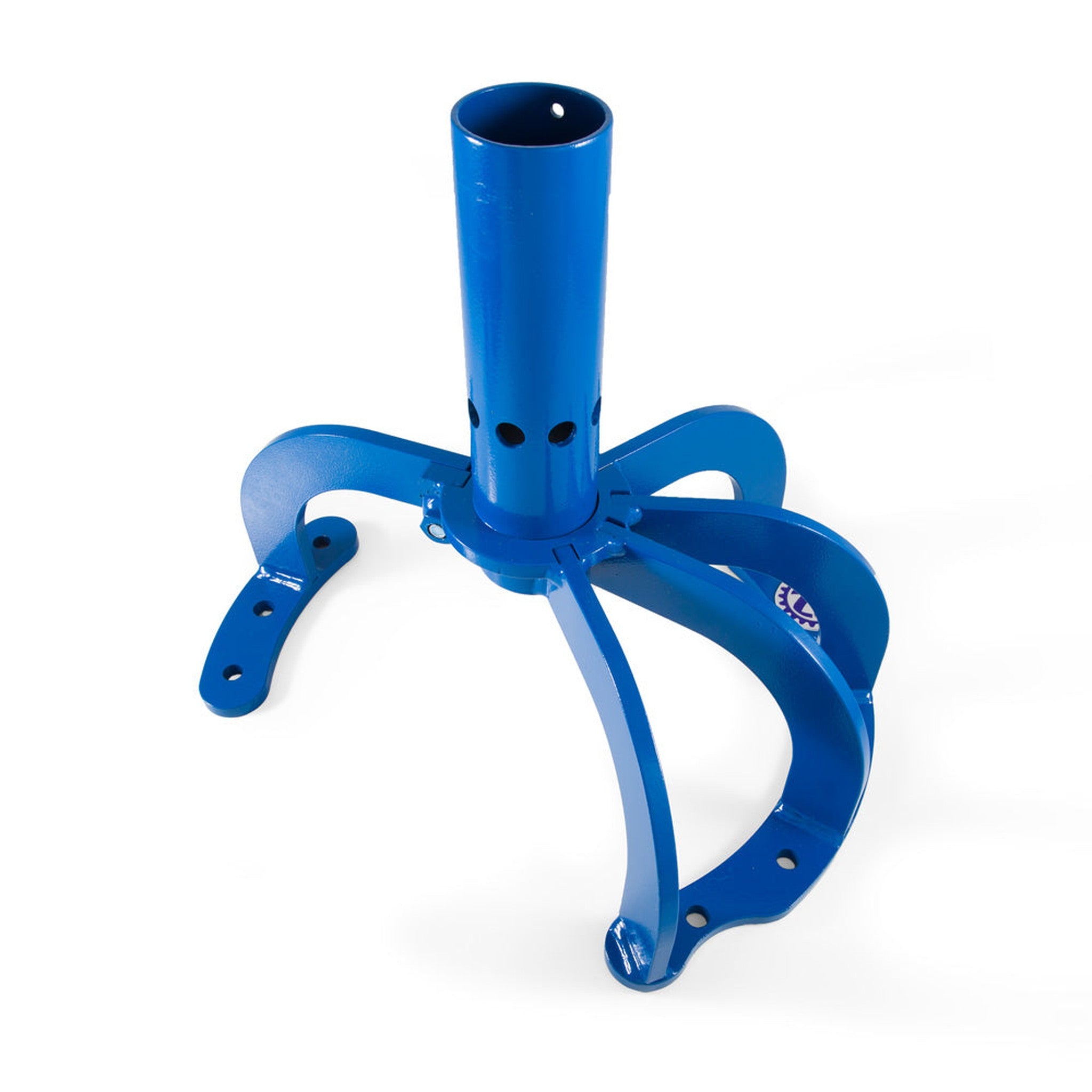

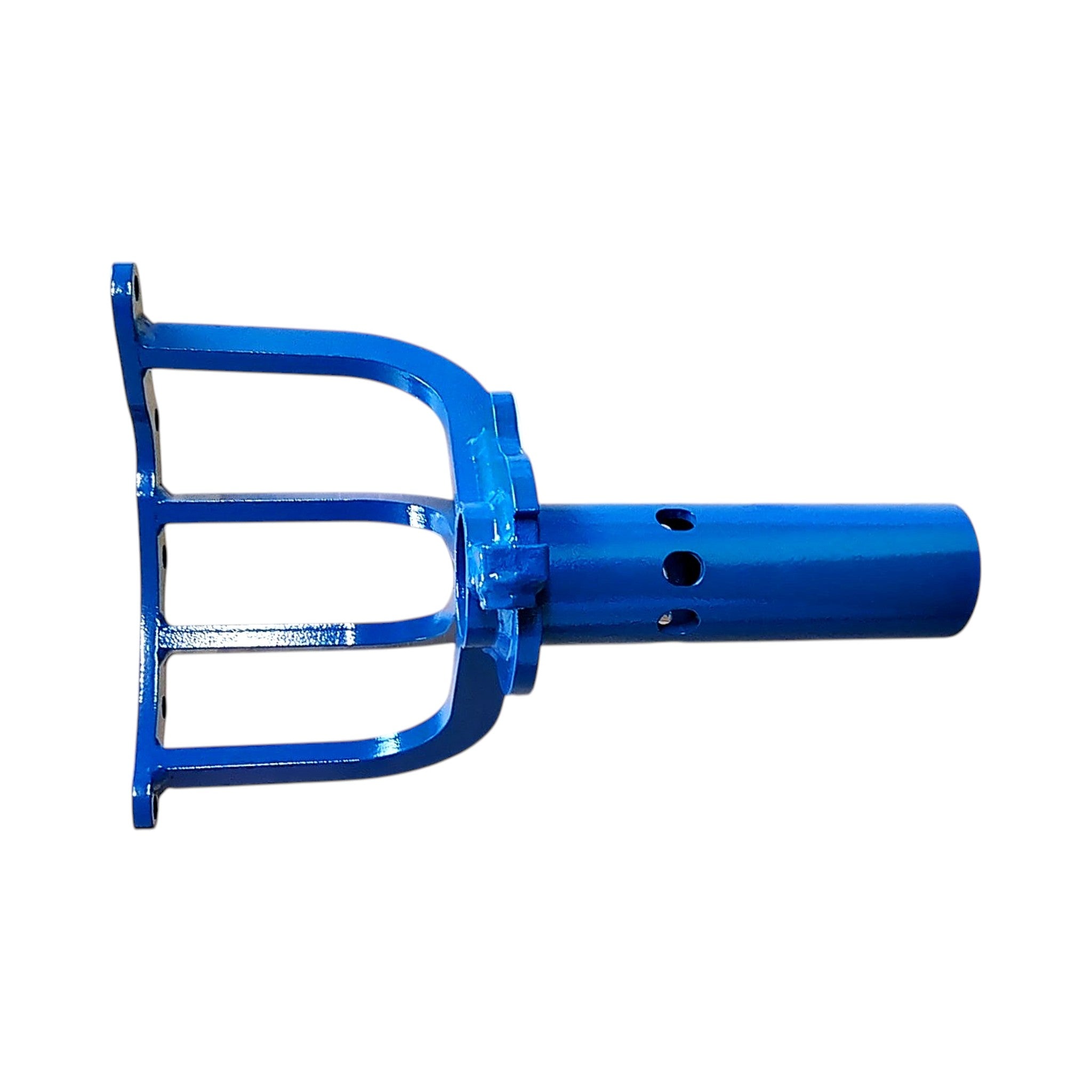

Company23 Subaru Engine Adapter | 564

The Company23 Subaru Engine Adapter allows for easier access to Subaru's horizontally opposed boxer engines.

All Your Maintenance, On the Stand - Rear main seal? Resealing Piston access covers? Installing a flywheel and clutch? You can do ALL of that now ON THE STAND. No more working on a swaying engine while it dangles from a crane.

• CAD designed, Patent Pending, Laser Cut, Welded in-house in Central WI, USA
• Legs and mounting plates are made from robust 3/8" inch steel plate
• Durable hammer powder coat finish in blue

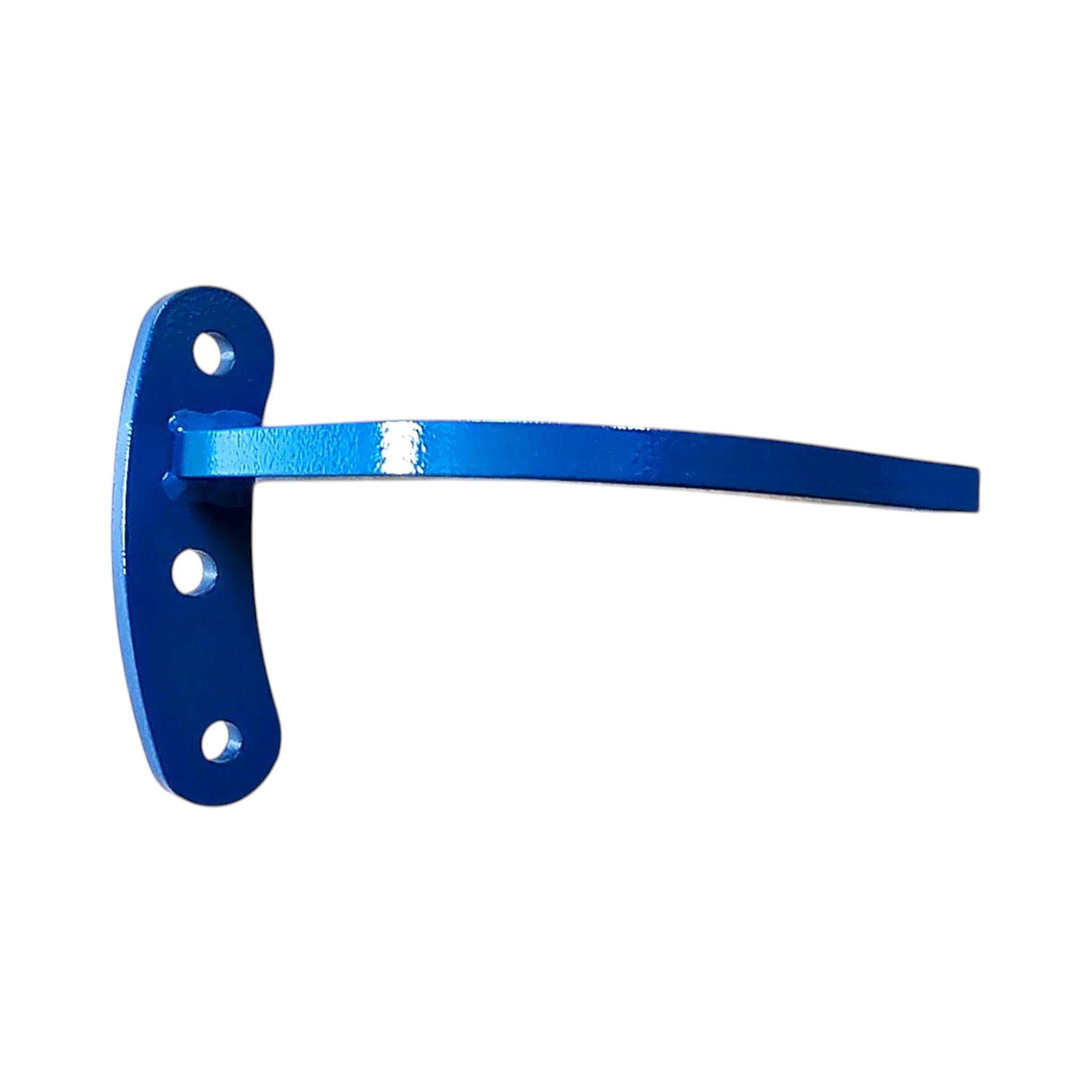

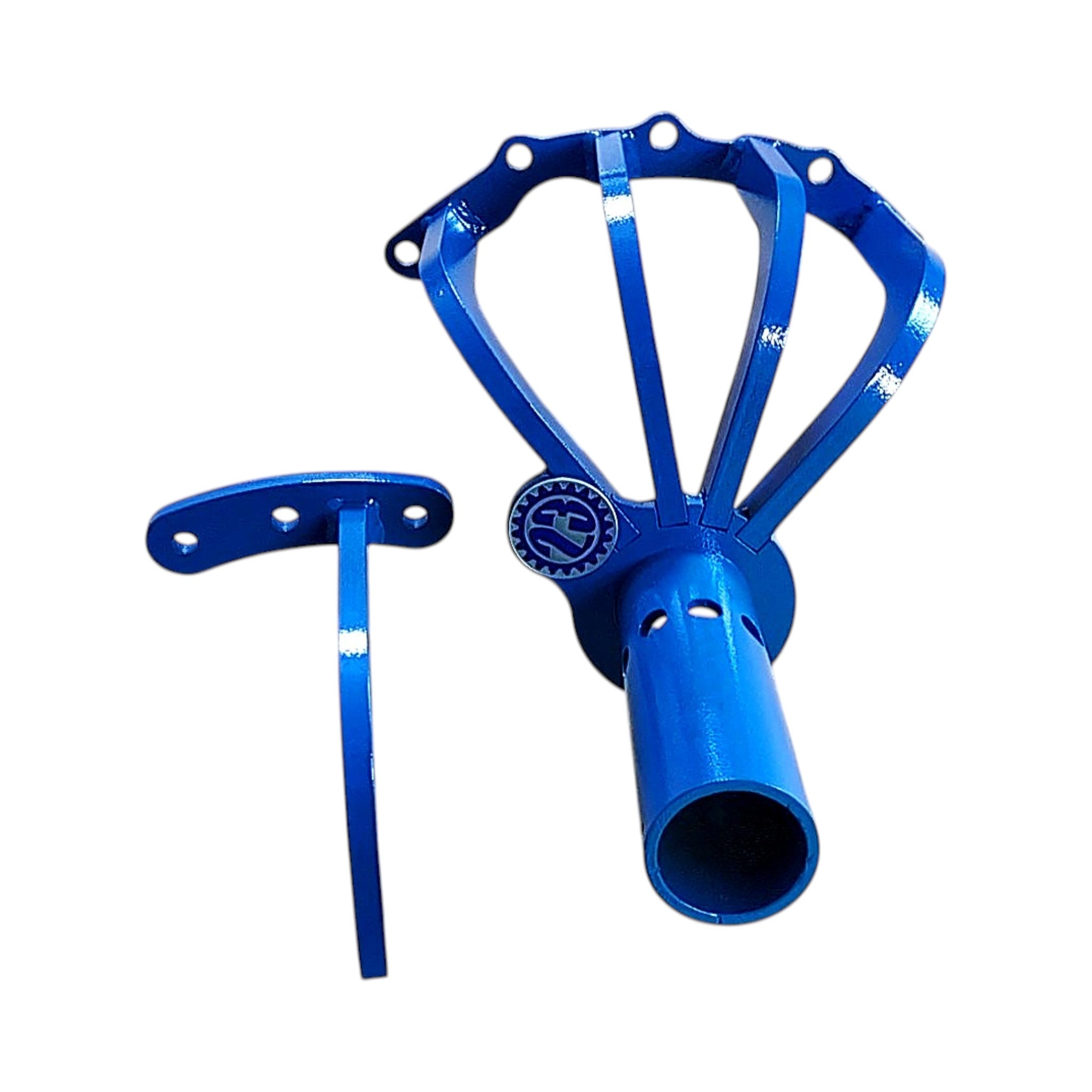

• Removable left hand brace allows cases to be split with the engine on the adapter
• Clearance for installation of flywheel/clutch
• Cutouts allow for complete engine hardware access as well as engine mount access

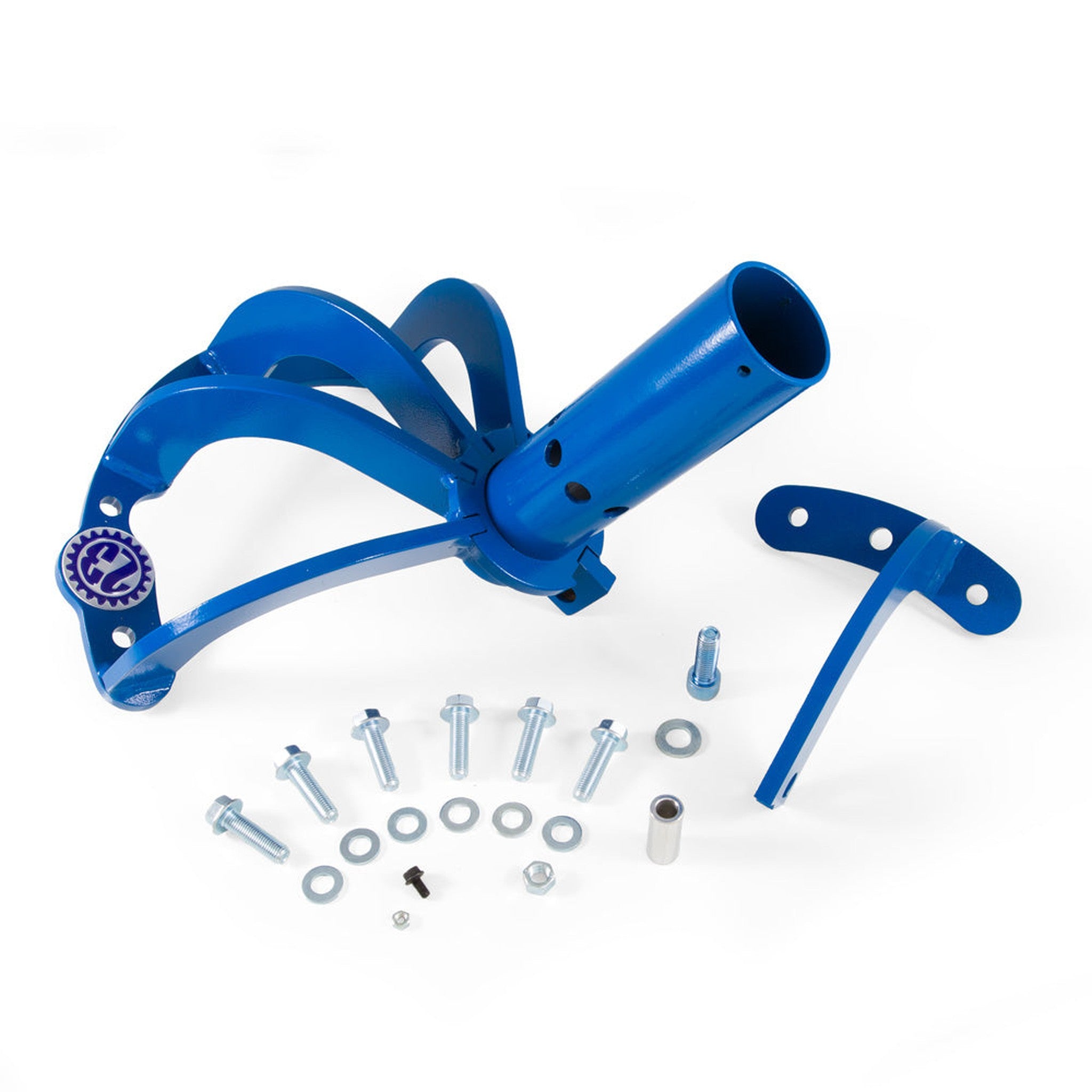

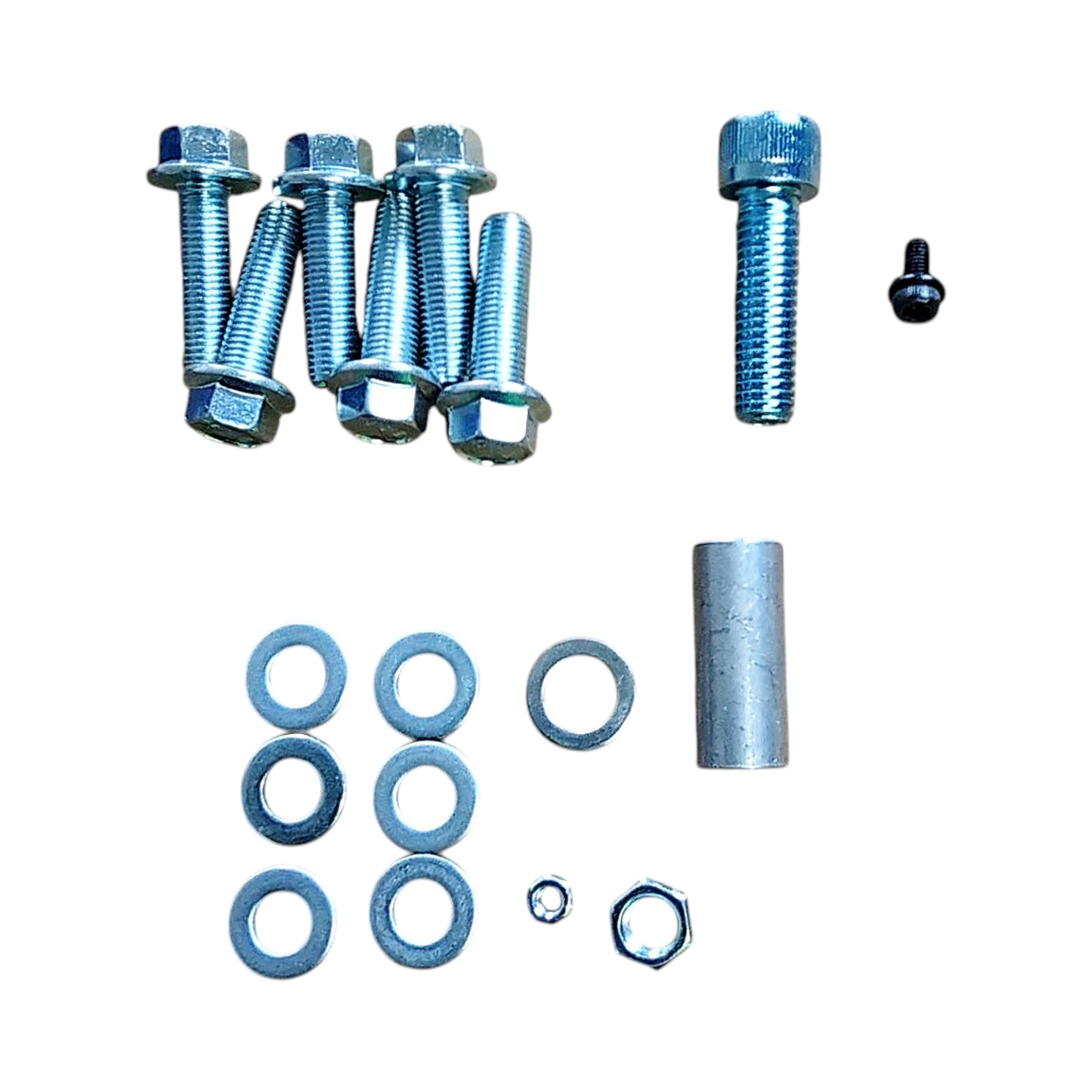

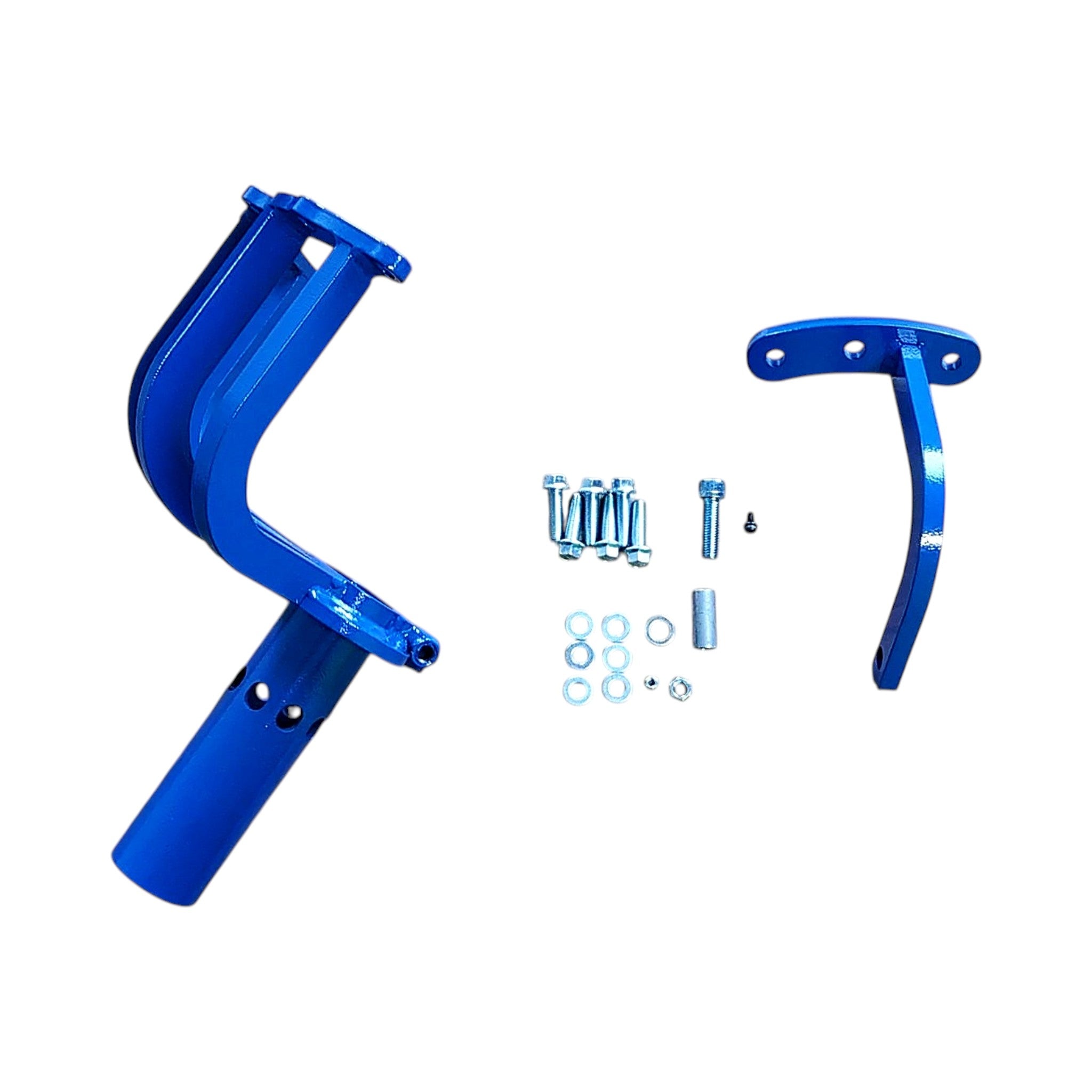

• Includes mounting hardware for the engine to bolt onto the adapter
• Modular design allows compatibility with most commercially available rolling engine stands
• Pivot tube OD 2.375"
• Pivot face to pin hole center 2.43"
• Pin hole diameter .540"

Note: This item is compatible with most engine stand carts. Company23's Engine Adapter Bench Mount and Engine Adapter Pedestal are sold separately.

Engine Case Splitting – On the Stand

The biggest problems we set out to solve was having to move a heavy short block by hand from an engine stand to a workbench to allow a mechanic to split the cases. By designing our engine adapter with robust 3/8-inch steel plate, the left side brace is optional regardless of the assembly state of the engine. It is included as a belt + suspenders approach.

Short Block Assembly

The right-hand side of the cases can remain on the engine stand, this allows the engine builder to place the crank / pistons / o-rings into the case half before assembling the left hand side of the engine.

Piston Pin Access

The Company23 engine adapter has been designed to allow ample clearance to the rear piston pin access ports while the engine is on the stand.

Access Cut Outs

Because we are Subaru enthusiasts, we understand even the smallest frustrations. To combat everything we could, we included cut outs for screw access on the rear oil separator plate, and for certain year engine mounts.
