Diode Dynamics C2R 4th Brake Light Kit Subaru WRX 2008-2014 | DD8069

Product Fitment:

2008-2014 Subaru WRX

Enhance the rear of your Subaru WRX with the Stage Series C2R 4th Brake Light Kit. This all-in-one upgrade adds a powerful reverse light, F1-style 4th brake light, and red running light—all with OEM-grade fit and plug-and-play installation.

Features:

• Simple Installation
  Plug-and-play wiring harness for easy, no-splice setup.

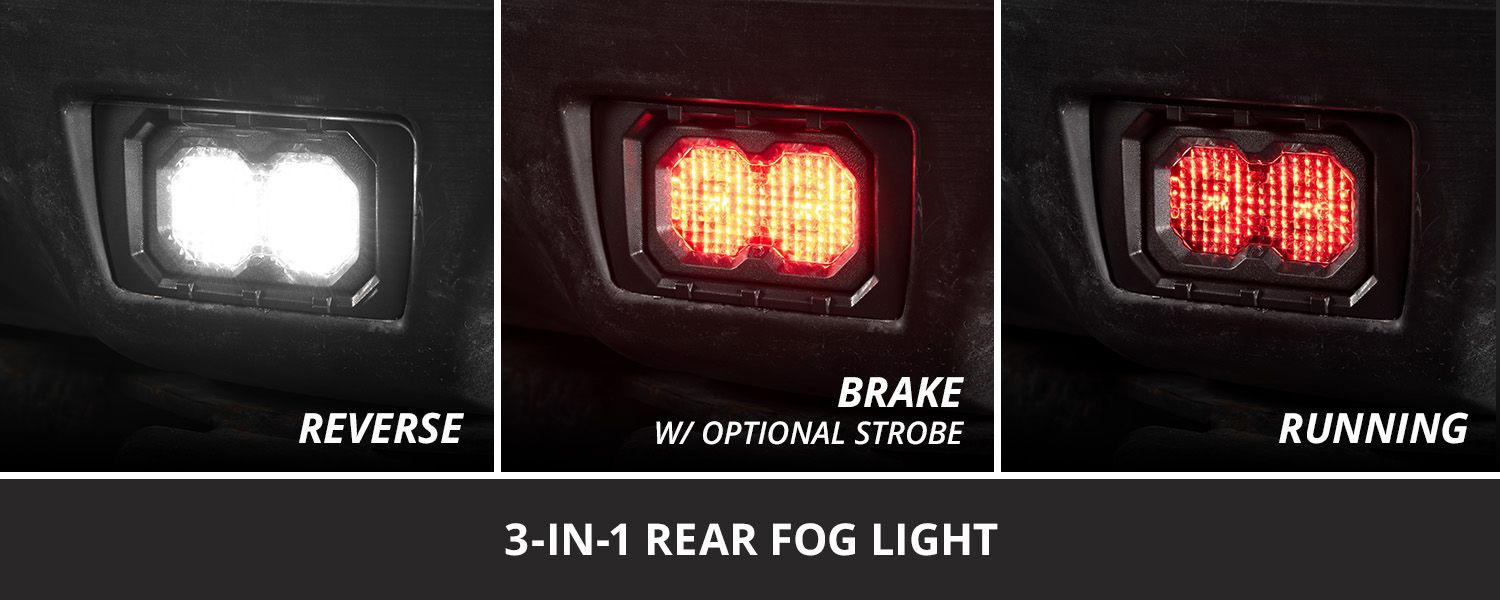

• 4-in-1 Functionality
  Combines a powerful reverse light, F1-style 4th brake light, red running light, and rear fog light.

• Optional F1-Style Flash Pattern
  Includes a unique SafetyStrobe brake flash for added visibility, which can be easily enabled or disabled.

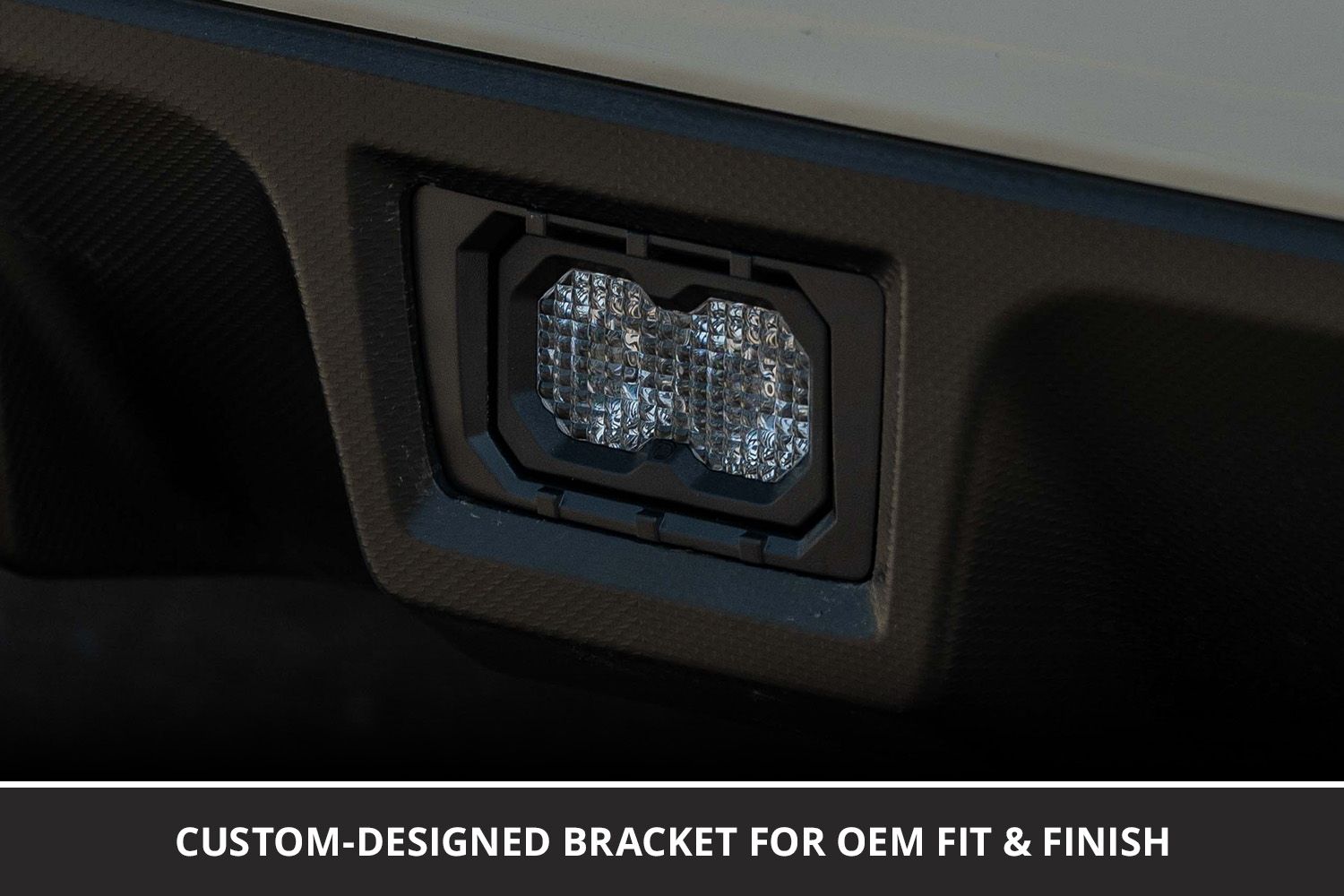

• OEM-Grade Fit & Finish
  Custom-molded bracket designed specifically for Subaru WRX; matches factory trim with a seamless appearance.

• Maximum Output, Minimal Glare
  Custom-engineered TIR optics ensure optimal light direction with reduced glare and high total efficiency.

• Superior Brightness for Reversing
  Automotive-grade high-intensity LEDs deliver significantly better visibility compared to stock reverse lights.

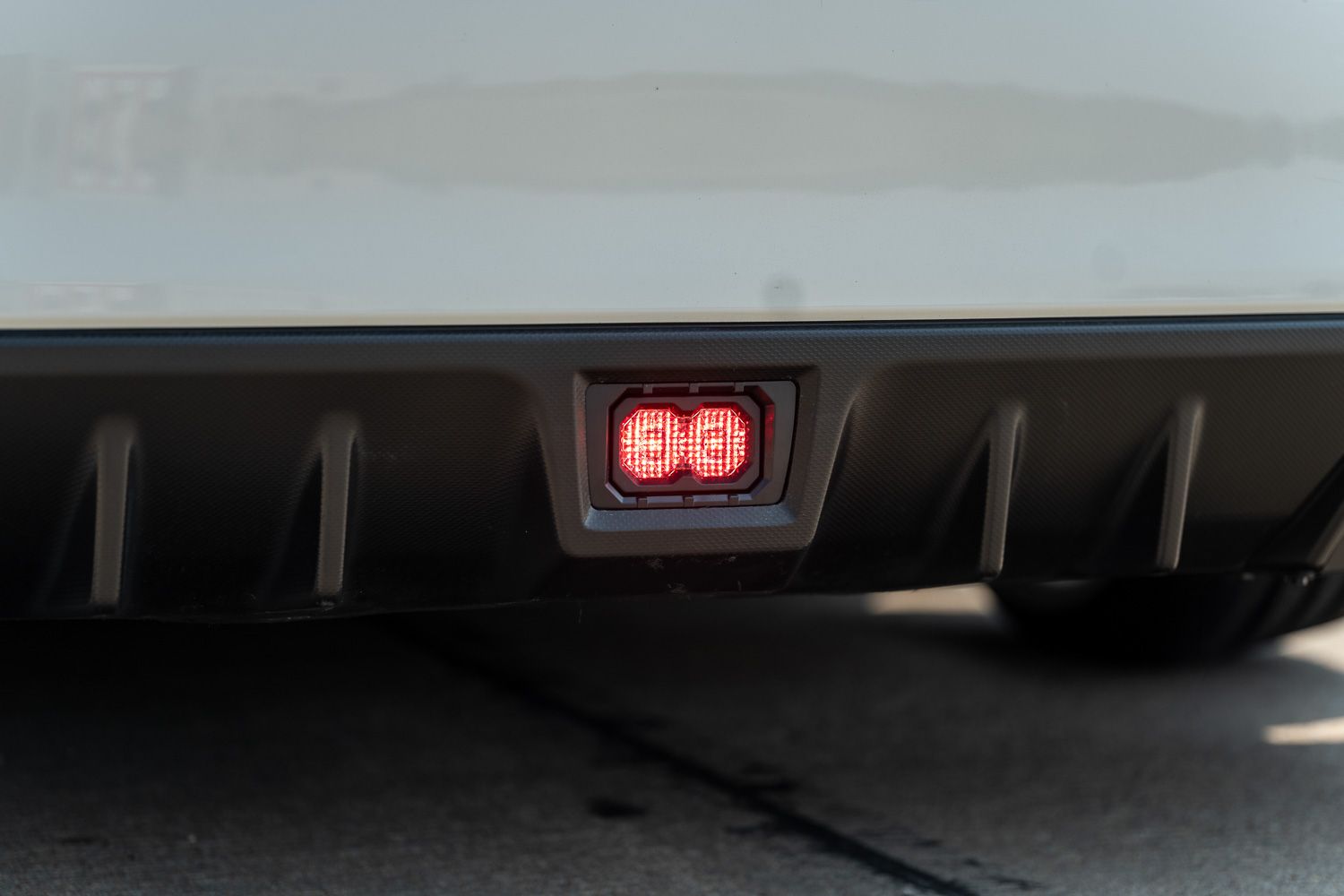

• Distinctive Running Light
  Integrated red backlight provides an additional running light with a modern appearance.

• High-Quality Construction
  All-aluminum housing with copper PCB, passive cooling, and weatherproof design (IP67 rated).

• Proven Performance
  Tested to SAE durability standards for temperature, moisture, vibration, and corrosion resistance.

• Made in the USA with Global Materials
  Engineered and manufactured by Diode Dynamics, a trusted leader in LED lighting.

Specifications:

• Raw Lumens: 2900 lm

• Beam Pattern: Flood (70° x 45°)

• Color Temperature: 6000K

• Power: Reverse: 18.3W, Brake: 3.3W, Parking: 0.36W

• Operating Voltage: 9–30V

• Current Draw (12.8V): Reverse: 1.43A, Brake: 0.25A, Parking: 0.03A

• LED Chips: Cree XP-L HI, Osram 1414

• Material: Polycarbonate lens, aluminum body, copper PCB

• Weatherproof Rating: IP67

• Operating Temp: -40°F to 185°F

• Weight: Unit: 0.55 lb | Total Shipped: 1.8 lb

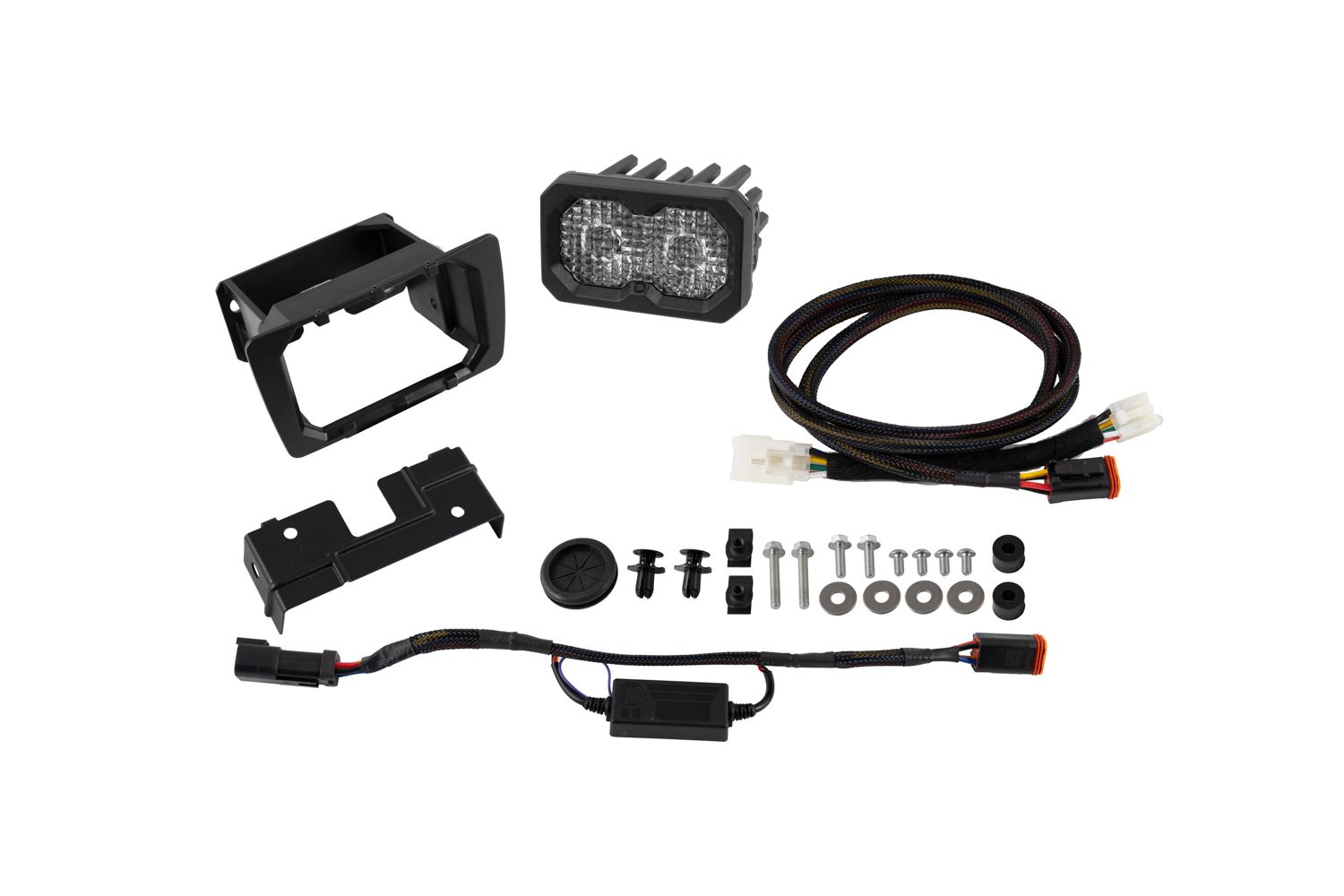

Included:

• (1) Stage Series C2R LED Pod

• (1) 4th Brake Light Plug-and-Play Harness

• (1) Safety Strobe Module

• (1) Custom Mounting Bracket + Hardware

• Lifetime Warranty

• 30-Day Return Policy – No Restocking Fee

Installation:

• Time Required: 30–60 minutes

• Tools Needed: Basic toolset

• Skill Level: Beginner-friendly plug-and-play install
