2022-2025 Subaru WRX
Upgrade the look and performance of your WRX or STi with the Diode Dynamics Stage Series C2R 4th Brake Light Kit. Designed to replace the blank trim panel found on many USDM Subaru rear bumpers, this high-performance LED pod combines a reverse light, 4th brake light, and running light into a sleek, OEM-style package.
With its patented TIR (Total Internal Reflection) optics, advanced LED technology, and a custom-molded bracket, the C2R provides exceptional light output, safety, and style—backed by a lifetime warranty and simple plug-and-play installation.
Multi-Function LED Pod:
Combines a high-output reverse light, 4th brake light, and red running light in one unit.
Optional F1-Style Flash Pattern:
Activate the SafetyStrobe feature for an aggressive, attention-grabbing 3-flash brake sequence.
Superior Light Performance:
TIR optics maximize output and efficiency
2900 raw lumens (reverse)
6000K color temperature
Flood beam with a 70° x 45° spread
OEM Fitment:
Custom-molded bracket fits flush in the bumper, matching factory trim textures for a clean, integrated appearance.
Built to Last:
All-aluminum housing, polycarbonate lens, and passive cooling
IP67 weatherproof, vibration-resistant, and tested to SAE J575 standards
Operating temp: -40°F to 185°F
Deutsch DT connector and constant current driver
Simple Plug-and-Play Install:
No splicing or modification required. Installs in 30–60 minutes using basic tools.
Made in the USA with global materials
Backed by Diode Dynamics’ Lifetime Warranty

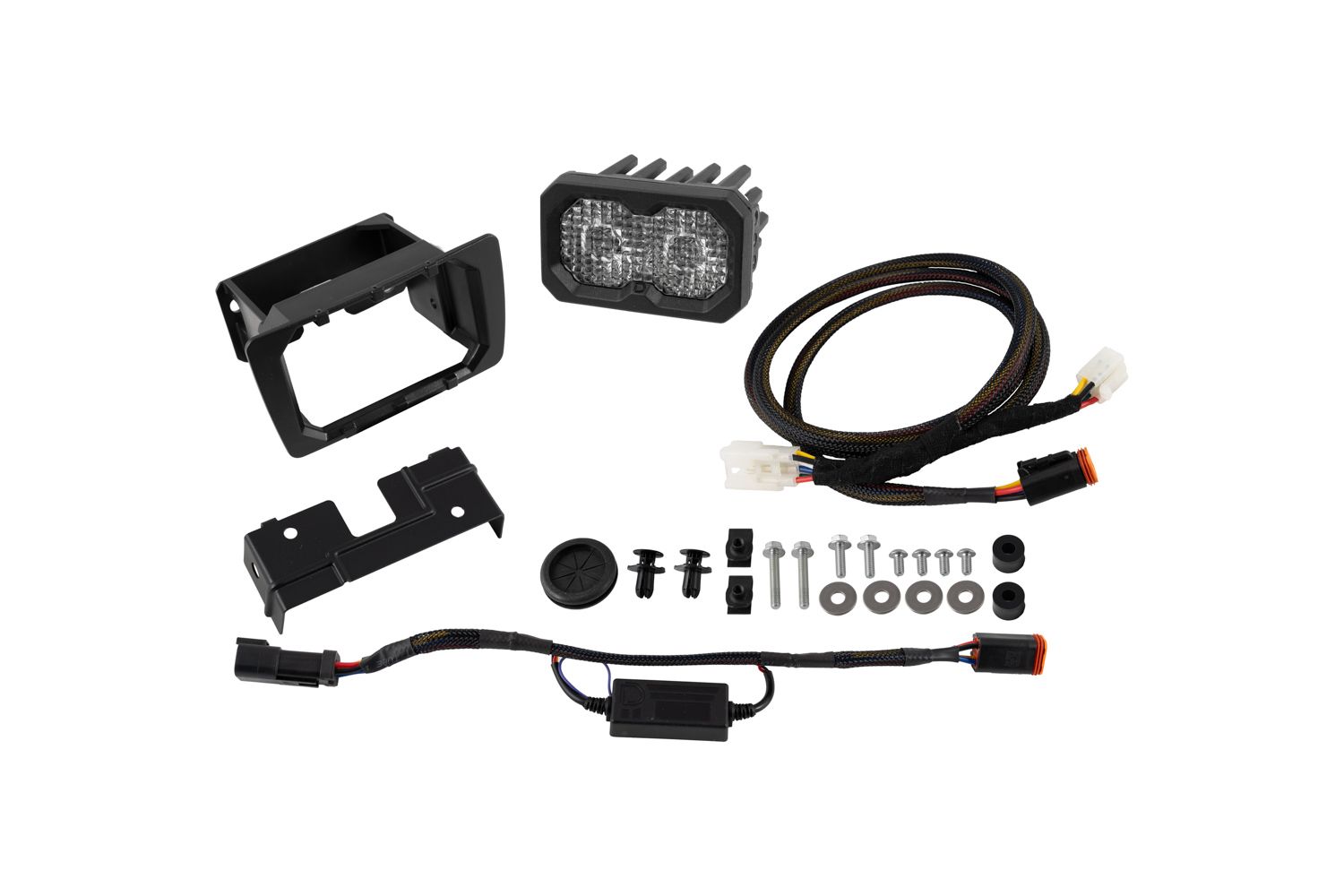

(1) Stage Series C2R LED Pod
(1) Plug-and-play 4th Brake Light Harness
(1) 4-Pin DT Safety Strobe Module
(1) Mounting bracket & hardware
Quantity: One (1) Kit
Warranty: Lifetime
Return Policy: 30-day, no restocking fee
Satisfaction: 100% Guaranteed
| Feature | Spec |
|---|---|
| Raw Lumens | 2900 lm |
| Beam Pattern | Flood, 70° x 45° |
| Color Temp | 6000K |
| Power (Reverse/Brake) | 18.3W / 3.3W |
| Operating Voltage | 9–30V |
| Current Draw | 1.43A (reverse), 0.25A (brake) |
| Materials | Aluminum casting, copper PCB, poly lens |
| Cooling | Passive, pin-fin heatsink |
| Intrusion Rating | IP67 Weatherproof |
| Operating Temp | -40°F to 185°F |
| LED Emitters | Cree XP-L HI, Osram 1414 Pure |
| Compliance | SAE J575 Durability Tested |
| Weight (Shipped) | 1.8 lbs |
