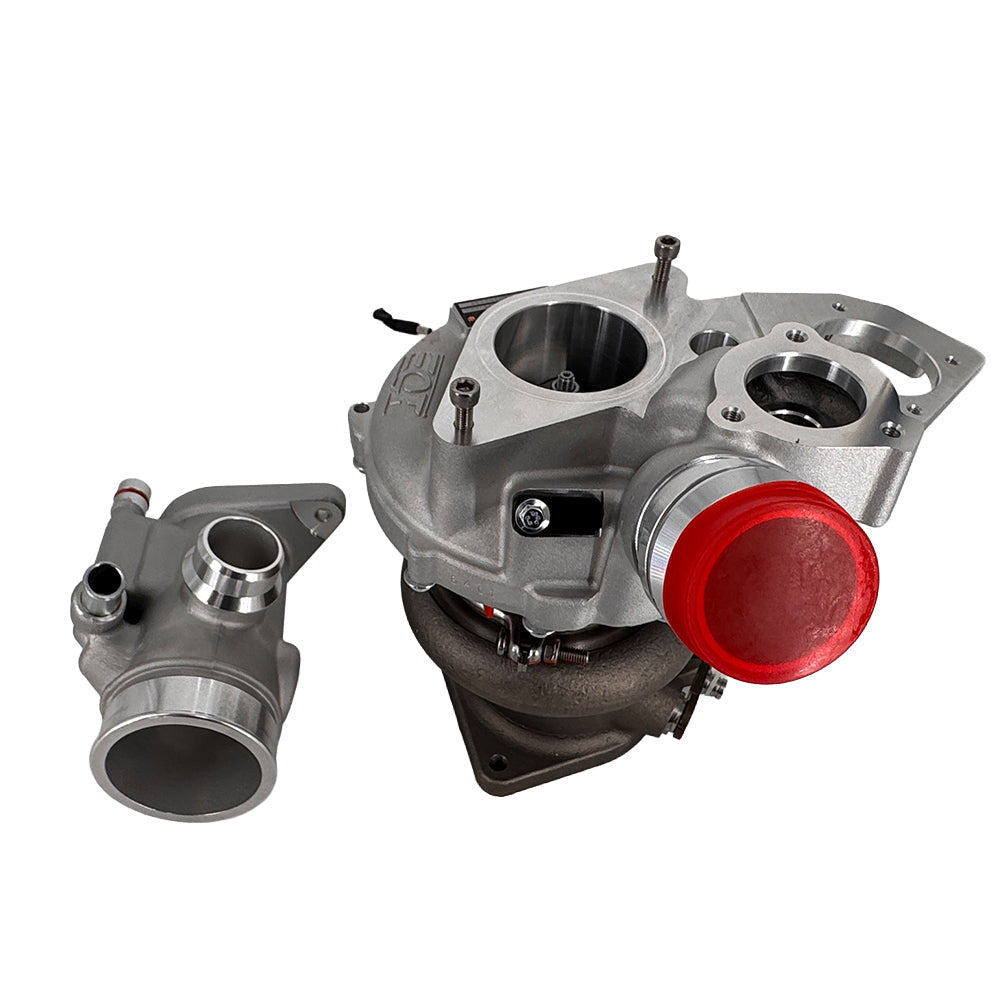

Equilibrium Tuning EQT-770 Turbocharger Subaru WRX 2022-2026 | EQT-02A06A02A

Equilibrium Tuning EQT-770 Turbocharger Subaru WRX 2022-2026 | EQT-02A06A02A

SKU: EQT-02A06A02A
Availability: Out Of Stock
Product Type: Turbos
$1,999.99
$2,399.99
$1,999.99
Save $400.00

BuildBUX Rewards

Great news – on this purchase, you'll enjoy a BuildBUX bonus of $20.00.

Regular Price: $2,399.99 - Instant discount: $400.00 = $1,999.99

Subtotal: $1,999.99
🕒 Order within hours minutes
📦

Fasktrak

$7.99

Estimated: ,

🚚

Express

Starts at $8.99

Loading...

Fastest

Starts at $10.99

Loading...

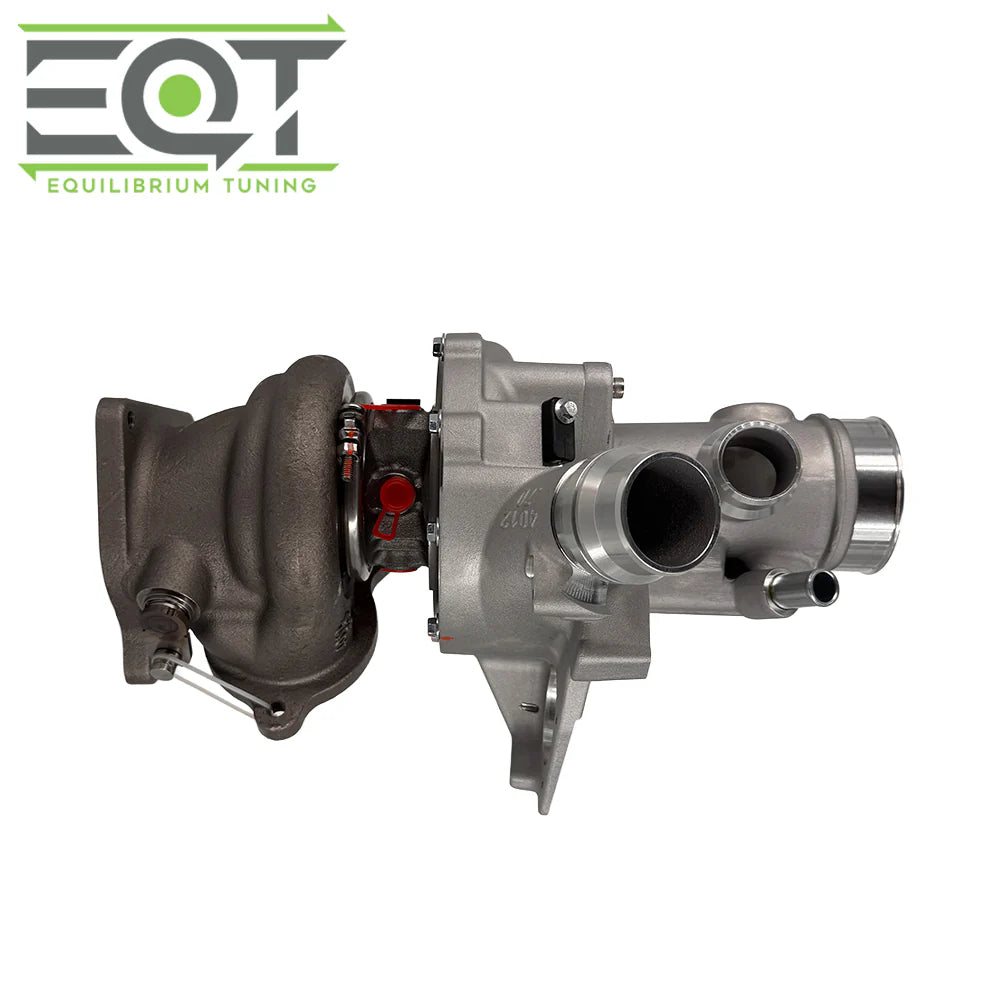

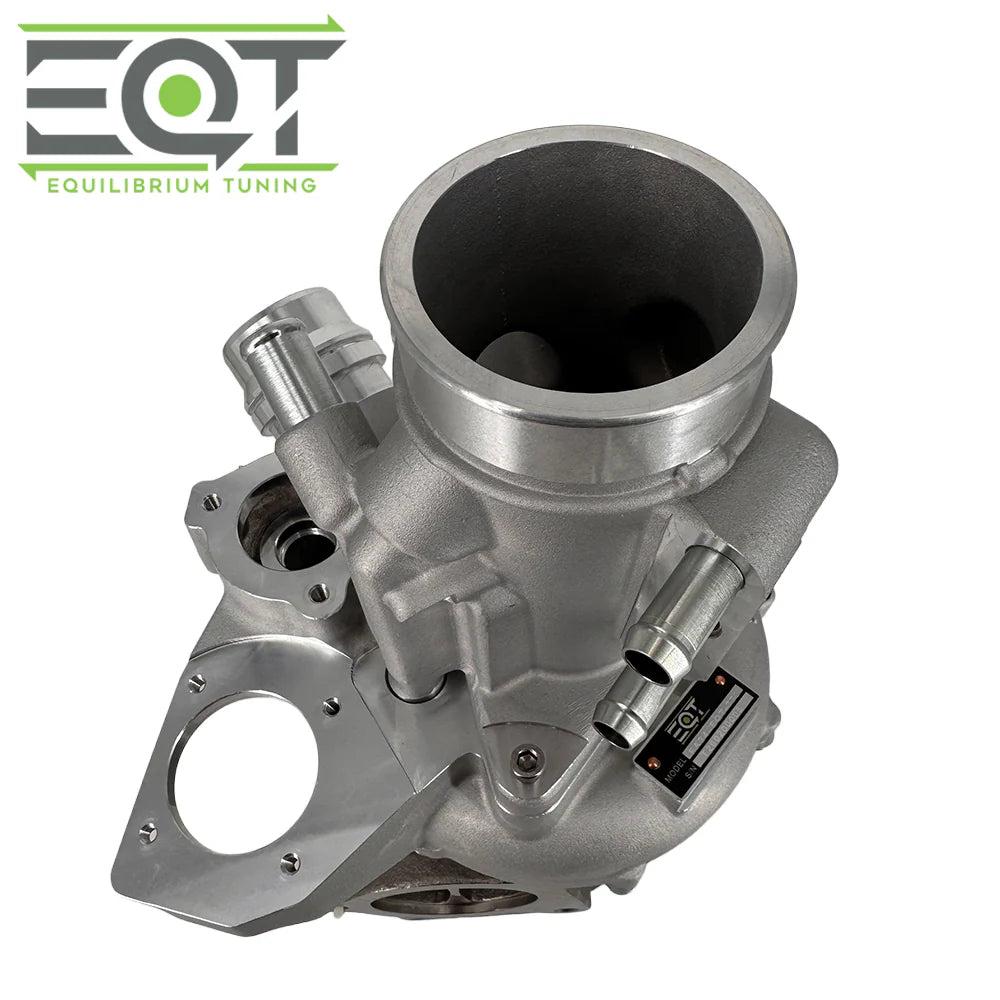

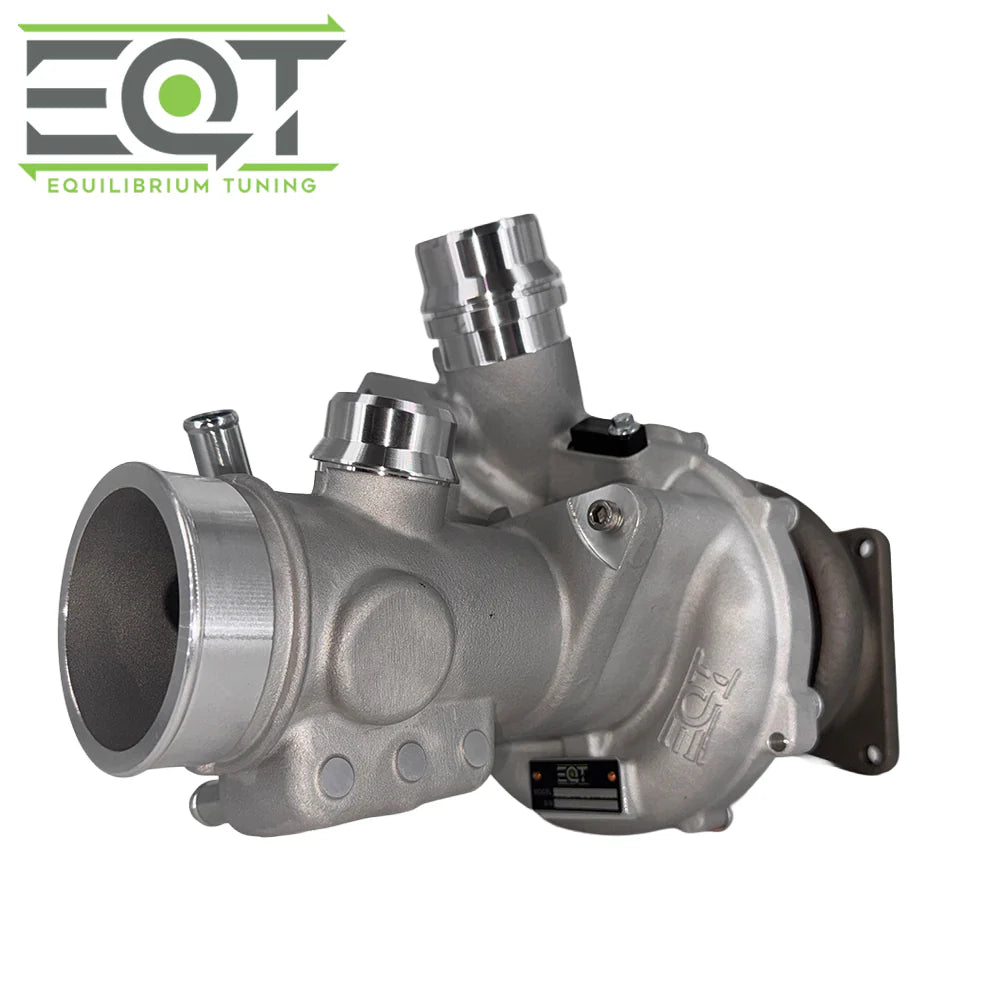

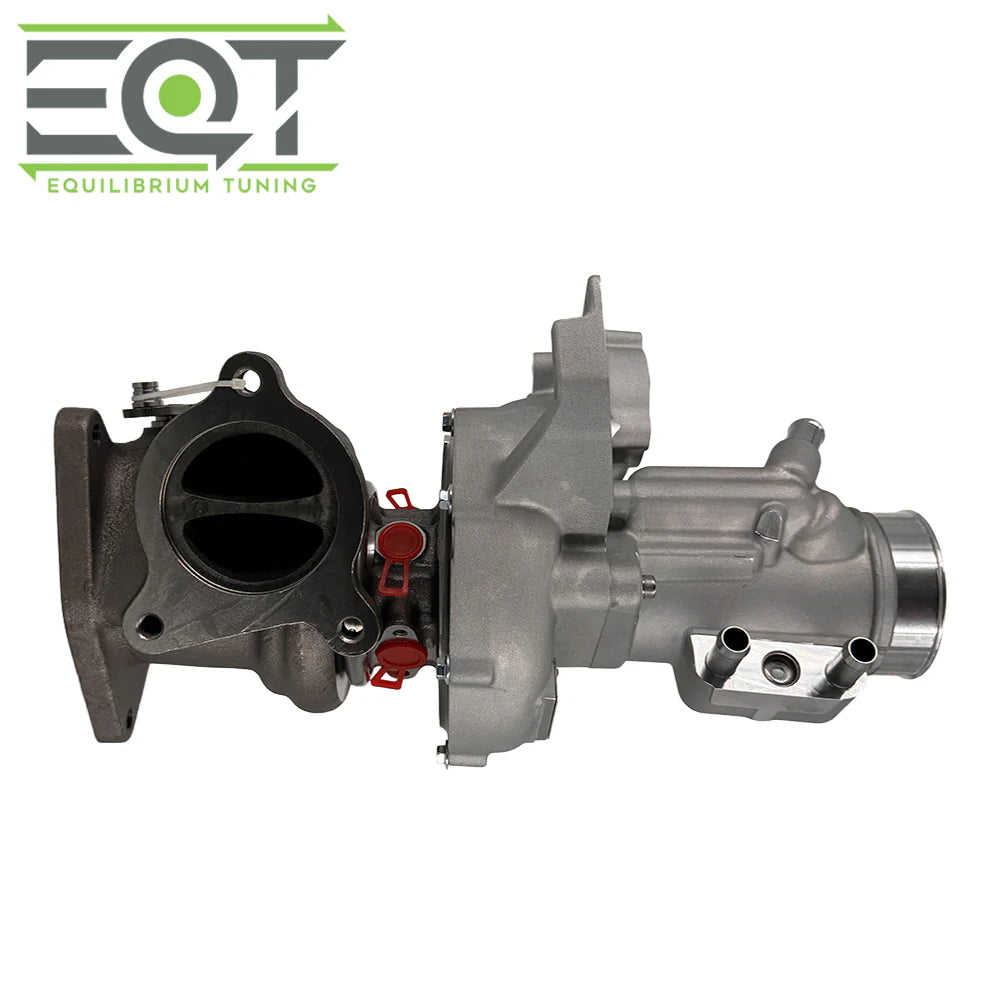

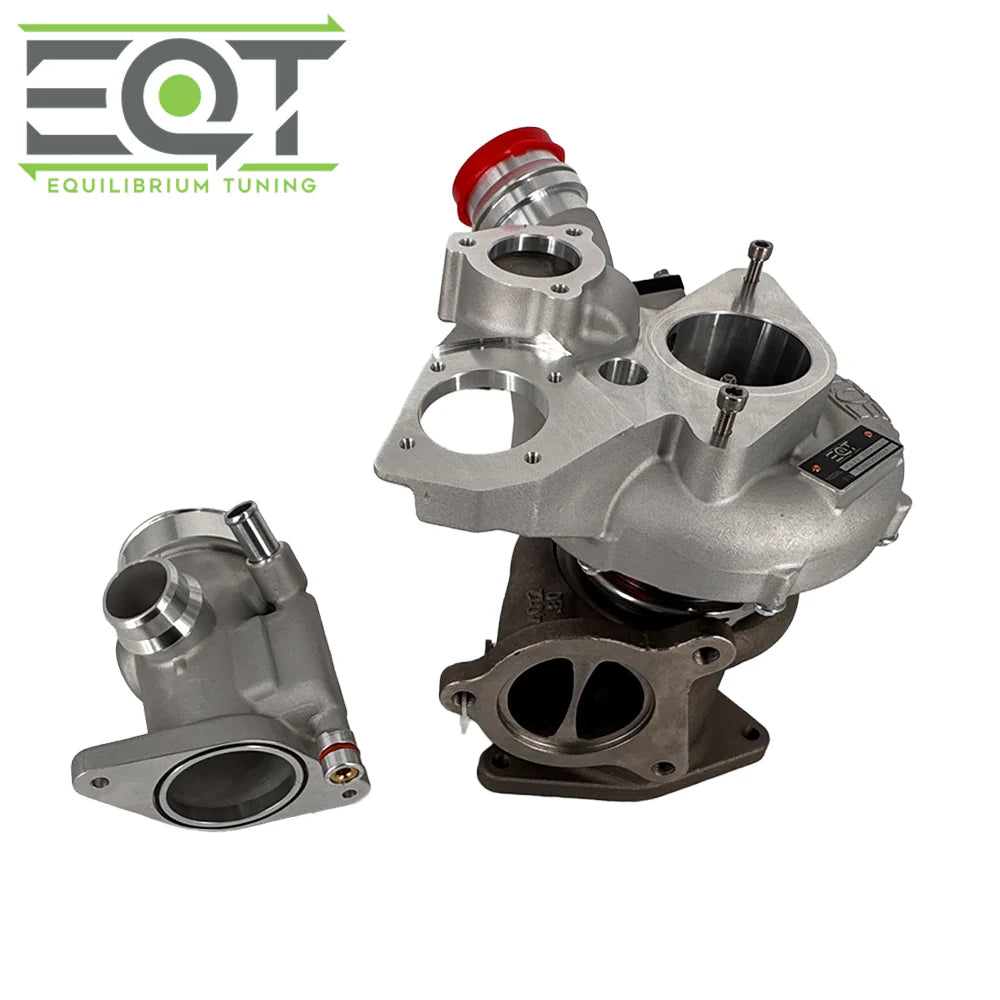

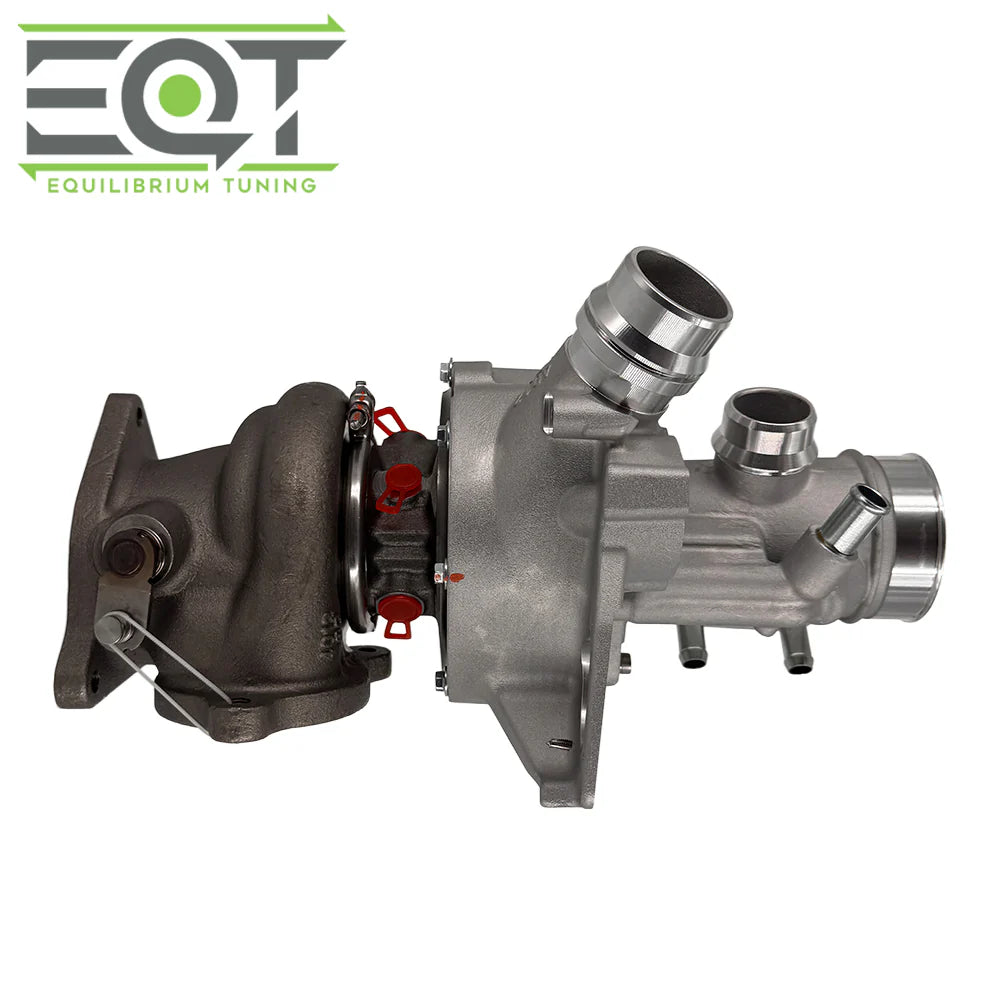

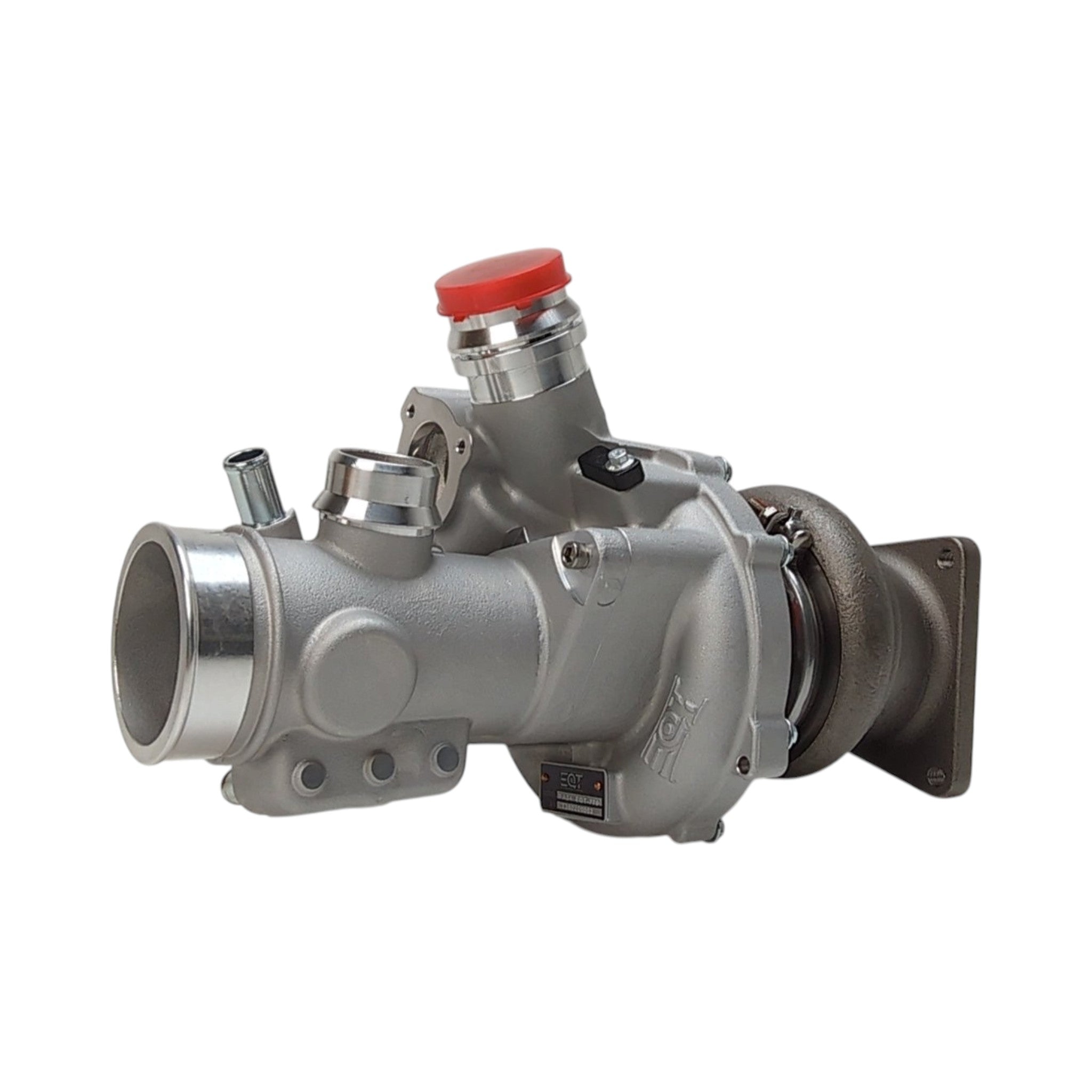

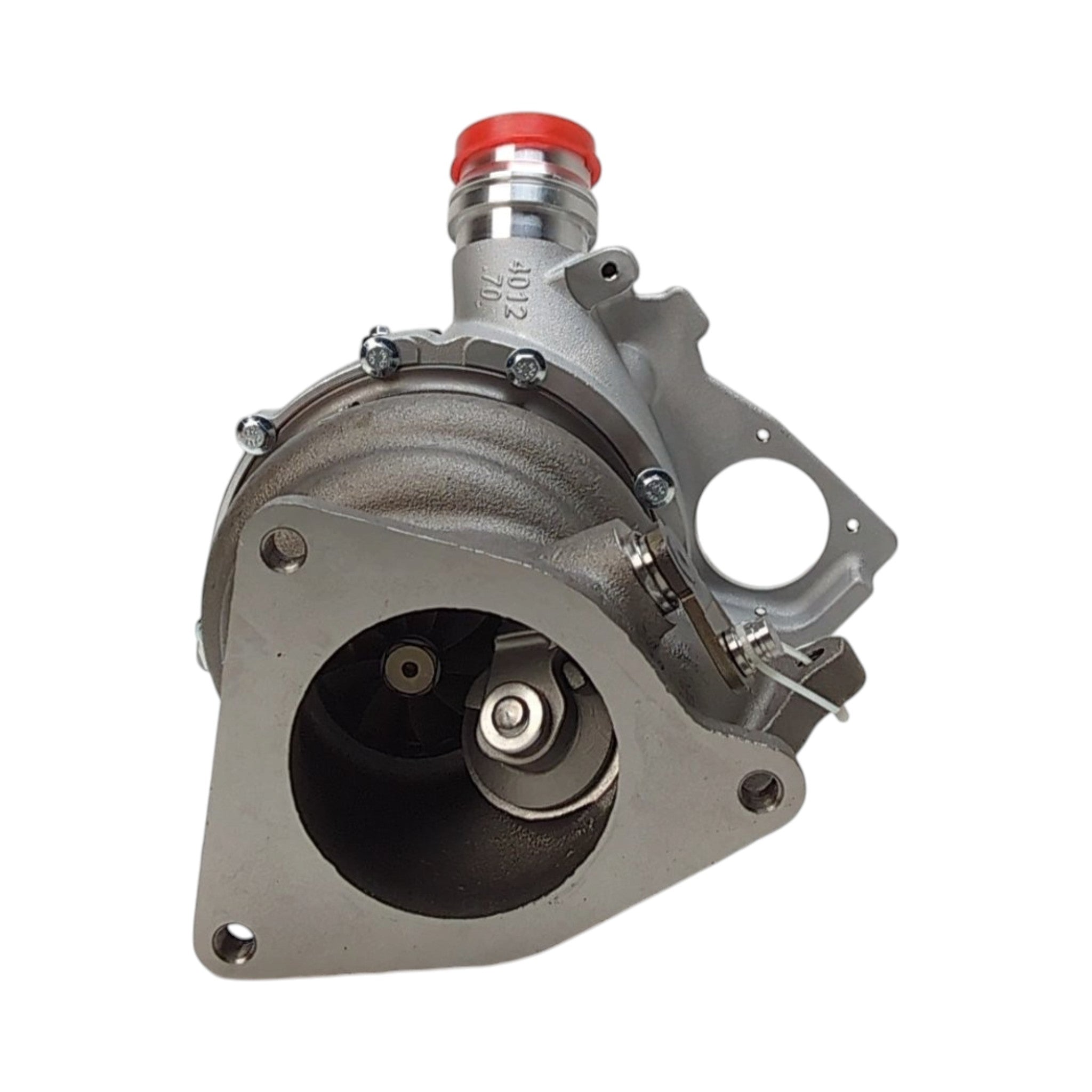

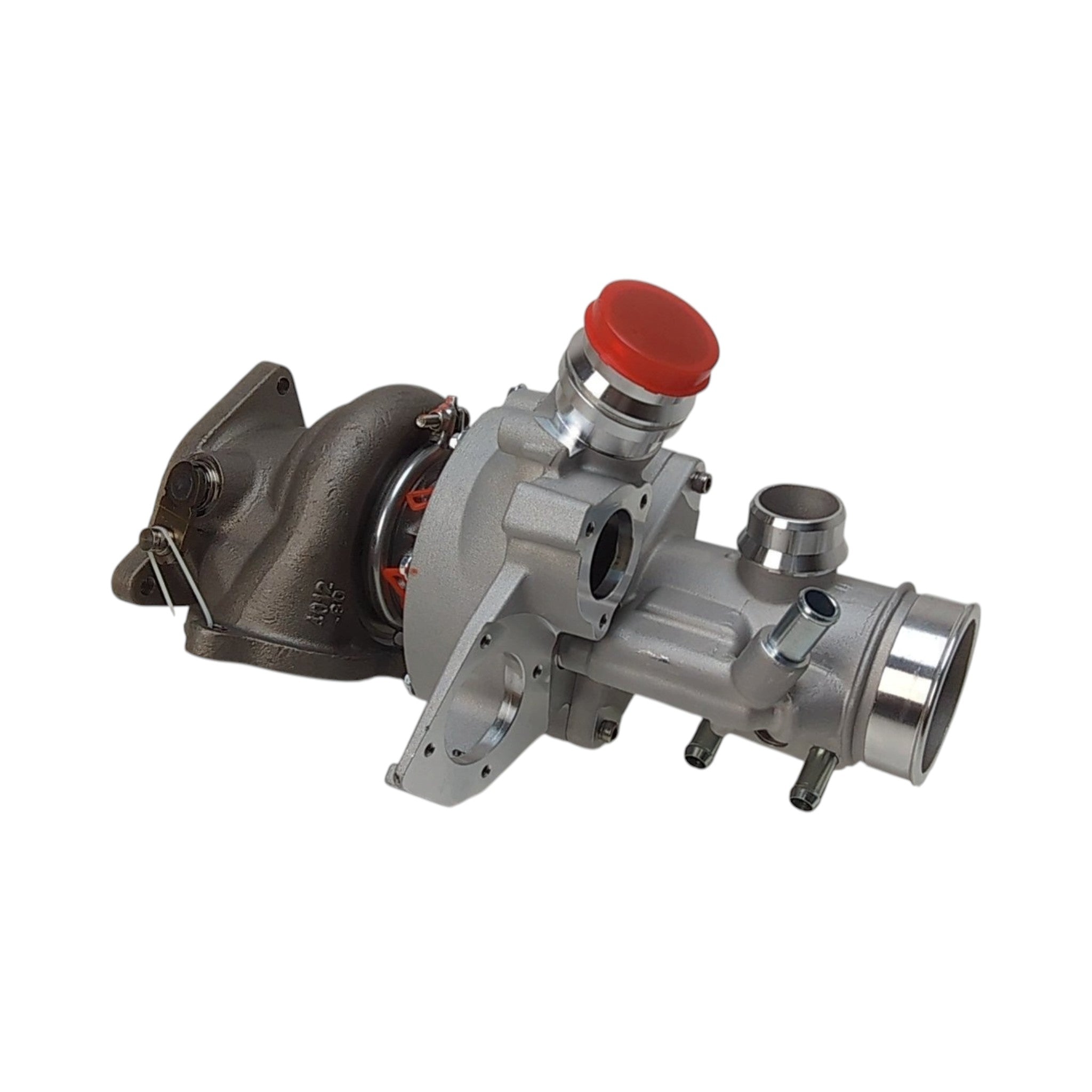

The EQT-770 Turbocharger is one of the largest direct-fit turbocharger upgrades available for the 2022+ Subaru WRX (VB) equipped with the FA24F engine. Designed for enthusiasts seeking serious horsepower potential while maintaining factory-location installation, the EQT-770 combines a large-frame compressor and turbine with a dual-row ceramic ball bearing center section for excellent airflow and durability. According to EQT, the turbo is capable of supporting up to 650 wheel horsepower with appropriate fueling, tuning, and supporting modifications.


Key Features & Benefits

  • Direct bolt-on turbocharger for the FA24F platform
  • Dual-row ceramic ball bearing CHRA
  • Large-frame compressor and turbine design
  • Supports up to 650 WHP with supporting modifications
  • Factory-location installation
  • Complete installation hardware kit included
  • Improved top-end power capability
  • Designed for ethanol and race-fuel builds

Turbocharger Specifications

Specification Size
Compressor Wheel 58mm Inducer / 71mm Exducer
Turbine Wheel 55mm Inducer / 60mm Exducer
Bearing Type Dual-Row Ceramic Ball Bearing
Power Capability Up to 650 WHP
Engine Platform Subaru FA24F
Fitment 2022+ Subaru WRX VB




Performance Benefits

The EQT-770 is designed for high-horsepower applications where airflow becomes the limiting factor of smaller hybrid turbos. Benefits include:

  • Significantly increased airflow capacity
  • Strong top-end horsepower gains
  • Improved power carry to redline
  • Reduced turbine backpressure compared to smaller-frame turbos
  • Excellent durability from ceramic ball bearing construction
  • Greater headroom for future engine builds

For enthusiasts targeting 500+ WHP, the EQT-770 provides substantially more airflow than stock-frame turbo upgrades.

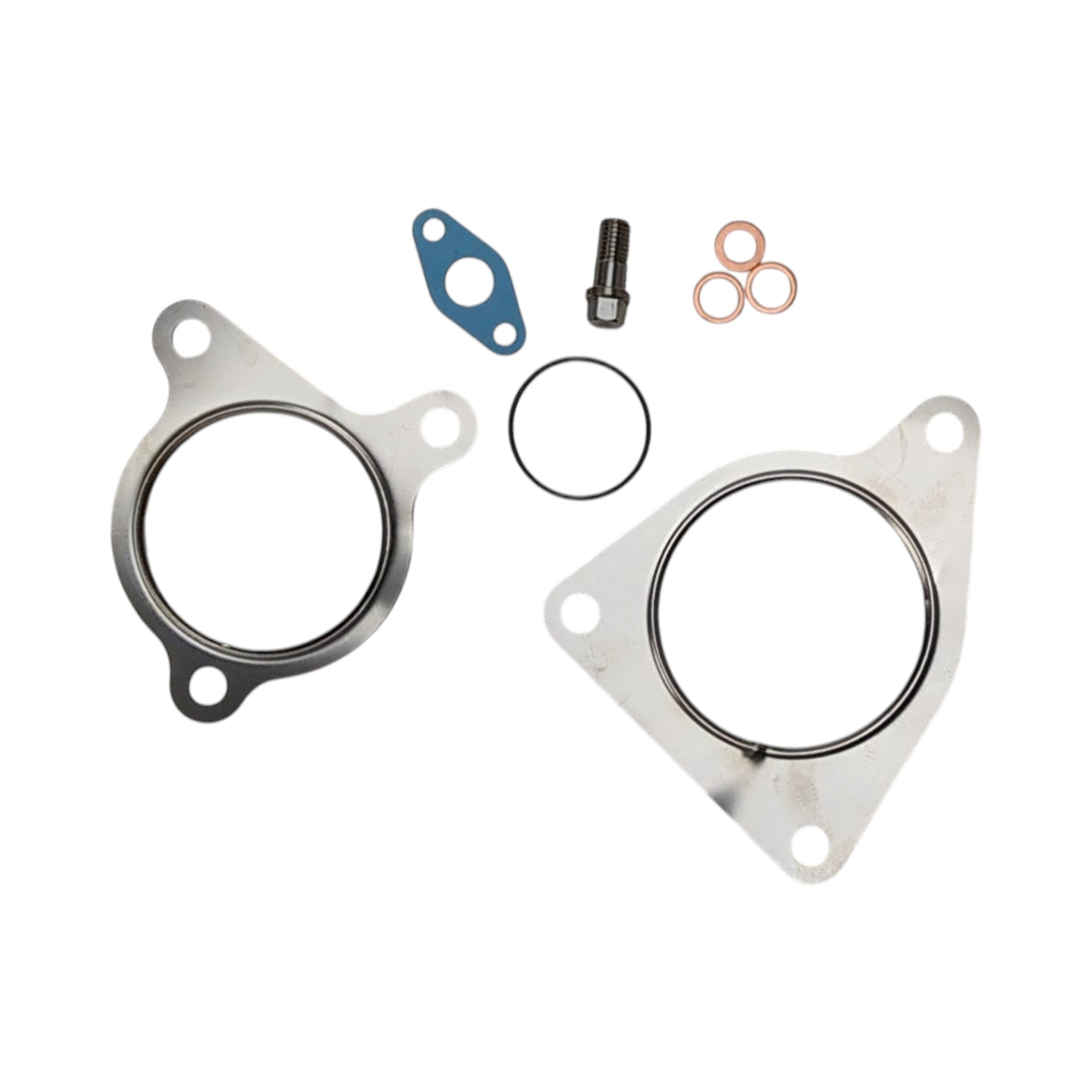

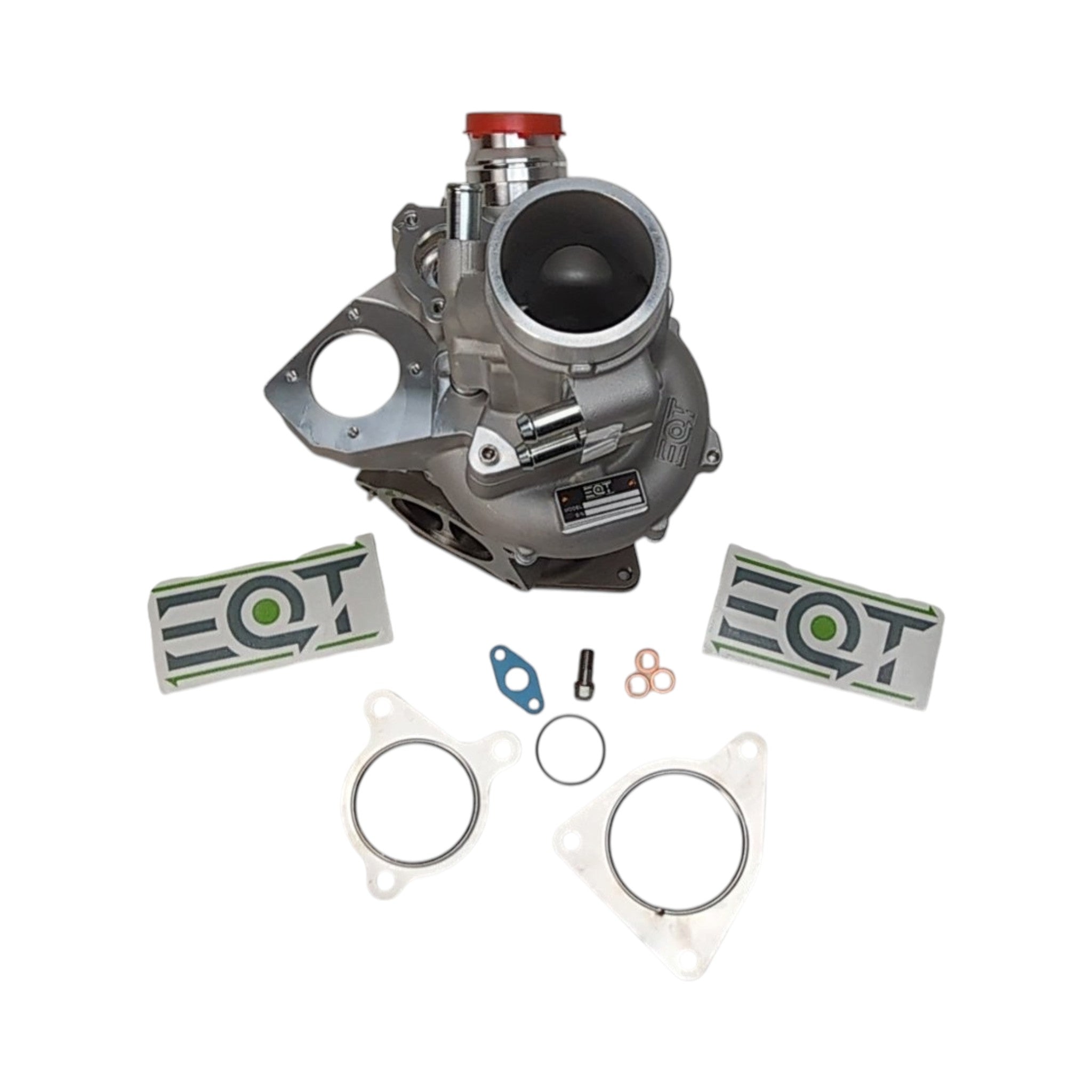

Included Components

EQT includes a complete installation package featuring:

  • EQT-770 Turbocharger Assembly
  • Oil feed fittings
  • Coolant fittings
  • Required gaskets
  • Installation hardware

This helps simplify installation compared to piecing together individual components.


Recommended Supporting Modifications

To maximize performance, EQT recommends:

  • High-flow intake system
  • Upgraded intercooler
  • Performance downpipe
  • Upgraded exhaust system
  • Additional fueling upgrades
  • Professional custom ECU calibration

These modifications are essential when targeting the upper horsepower range of the turbocharger.
