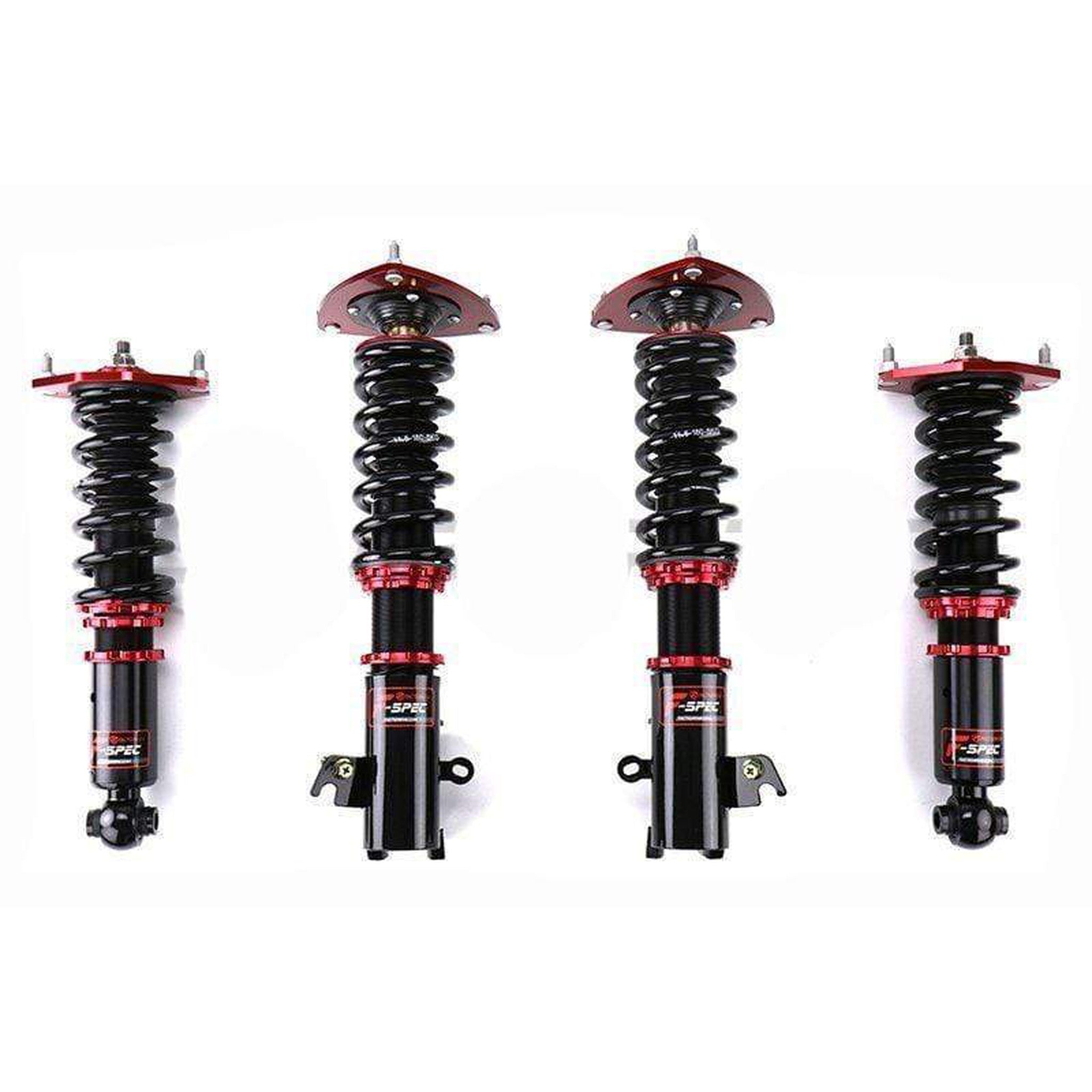

FactionFab F-Spec Coilover Kit Subaru WRX / STI 2015-2021 | FFA1.10177.1

FactionFab F-Spec Coilover Kit Subaru WRX / STI 2015-2021 | FFA1.10177.1

Rated 4.8 out of 5
Based on 18 reviews
SKU: FFA1.10177.1
Availability: Out Of Stock
Product Type: Suspension Coilovers
$890.00
$890.00
$890.00
Save $0.00

BuildBUX Rewards

Great news – on this purchase, you'll enjoy a BuildBUX bonus of $8.90.


Subtotal: $890.00

These are ideal for those of you looking to achieve that aggressive lowered look while improving the handling and steering response of your vehicle. These have been engineered using the right spring rates so that you can have an efficient suspension package without compromising the overall ride quality.

DETAILS

  • Increased spring rates and shock valving over stock suspension with emphasis on street performance while not jeopardizing ride quality and comfort
  • 32-way adjustable monotube shocks allow for stock-like ride quality on the soft setting while providing enough adjustment to stiffen up the ride for the weekend track days or canyon drives
  • The adjustment allows customers to fine-tune ride quality from soft to stiff in order to meet their road surface and driving environmental needs
  • Rubber isolated top-hats feature a high durometer rubber mount to reduce deflection while isolating unwanted minor vibrations and road imperfections
  • Includes height adjustment tools
  • Includes damping adjustment tools

GENERAL

  • Japanese steel tube construction using SAE1010 STKM13c
  • Monotube shock design with high-performance mono-tube shock construction allowing for better rider control, fluid life, and thermal fluid stability
  • Synthetic high-performance oil
  • Independent ride-height adjustability separate from spring pre-load allowing the customer to set the ride height without having to worry about shock travel
  • Top hats included allowing this suspension system to be a direct replacement for your factory suspension setup
  • Forged 6061 anodized adjustable collars and spring seats for easy adjustment and prolonged cycle life
  • Robotic welded and electroplated lower shock mounts for consistent fit and finish
  • Dust boots and bump stops for shock protection and longevity
  • Individually sold components allowing for replacement or upgrade of components as desired or needed
  • Plastic lower spring seat isolator to aid ride height adjustment and reduce unwanted audible noise

SPECS

  • Brand: FactionFab
  • Adjustable: Yes
  • Camber Adjustable: No
  • Caster Adjustable: No
  • Dampening Adjust Type: 32 Way
  • Damper Type: Monotube
  • Drop Height Front: 0.3-3.0in
  • Drop Height Front Metric: 6-76mm
  • Drop Height Rear: 0.4-2.3in
  • Drop Height Rear Metric: 10-57mm
  • Height Adjustable: Yes
  • Independent Height Adjustable: Yes
  • Spring Rate Front: 448lbs/in
  • Spring Rate Front Metric: 8Kg/mm
  • Spring Rate Rear: 392lbs/in
  • Spring Rate Rear Metric: 7Kg/mm
  • Top Hats Included: Yes
  • Mfgr. Warranty: 1 Year
  • Condition: New Product



Reasons to get BuildBUX GOLD?
We could name a few

BuildBUX Gold: $4.98/mo

More Cashback

Get more cashback! Items are changing weekly. Anywhere from 1% to 20% Back in BuildBUX when you make purchases. Products

Free Money

Every month when you are charged your $4.98 subscription fee, you will get $15 in BuildBUX

Easy To Cancel

Cancel anytime, month to month terms.

Get Started

BuildBUX: Free

Cashback

Get 1% back on every purchase on eligible brands.

Free

Completely free to use. Just place an order!

Get Started
average rating 4.8 out of 5
Based on 18 reviews
  • 5 Stars
    15 Reviews
  • 4 Stars
    3 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Review posted
Reviewed by David E.
Verified Buyer
Rated 5 out of 5

Aweosme

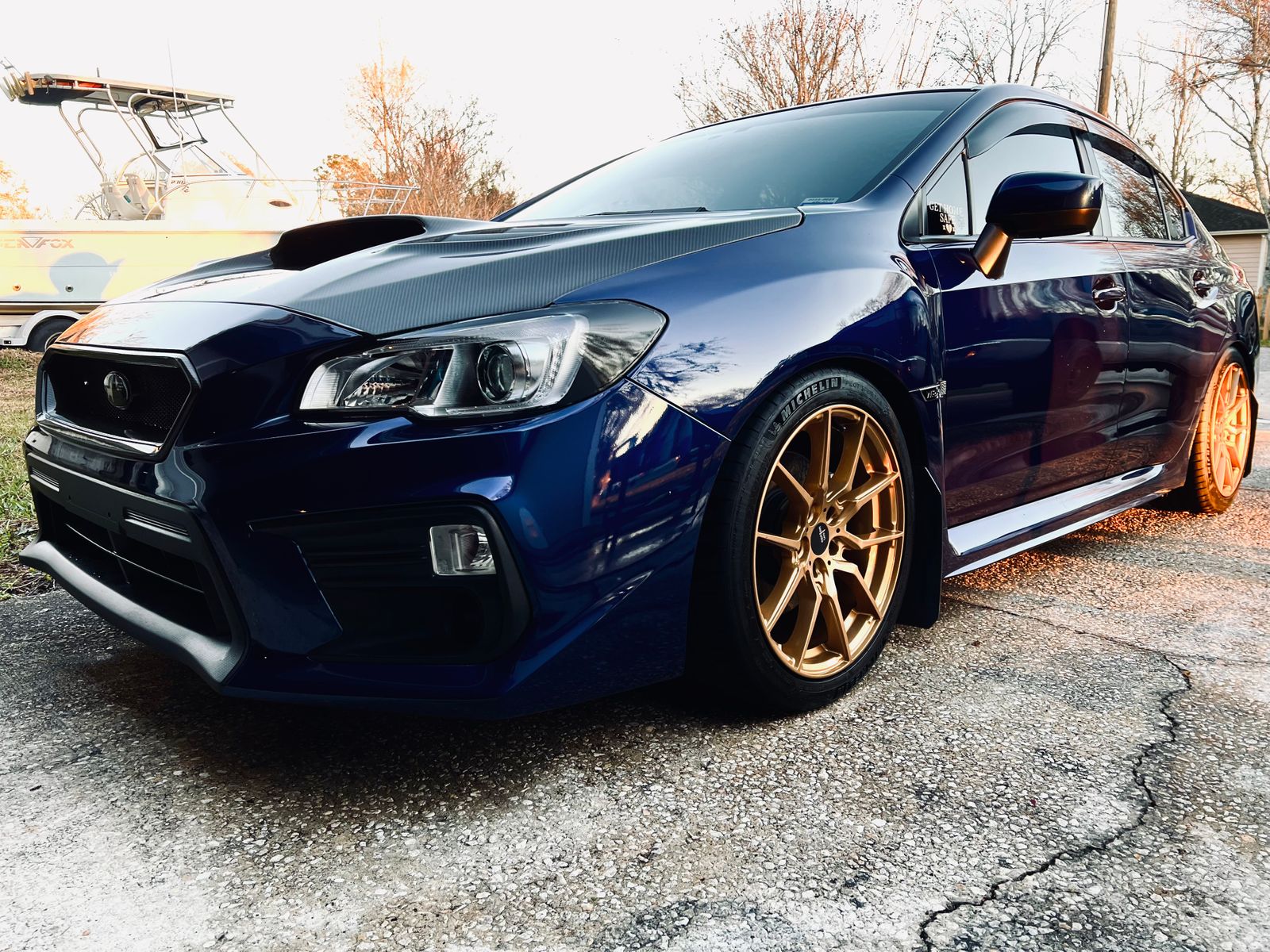

Looks and rides great

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Ashley S.
Verified Buyer
Rated 5 out of 5

Very close to stock feel.

I entered doing coils for the first time. I think the ride is very close to stock. Easy install and easy to dial in. Don’t mind the coil ride.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by James D.
Verified Buyer
Rated 4 out of 5

Good product

Well built, quality coilovers for the price. With 55mm rear and 95mm front of thread spacing it is higher than stock. I will let them settle and adjust in a week.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Brian L.
Verified Buyer
Rated 5 out of 5

Fast service

I literally ordered my product and it made the fedex truck same day somehow :)… print service and fast age shipping :)

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Horizon
Verified Buyer
Rated 4 out of 5

Good for daily but....

I got these for my daily (2020 wrx premium). 15/32 damping (front and rear) is perfect in term of daily drive comfort. No weird sound are coming from them. You can go a tap higher than oe stock height or you can drop 2 inches and get a nice fitment with the OEM 18 in. I also have the faction fab 20mm spacer, Blox rear lower control arms and Kartboy sway bar end links (LCA and sway bar end link is a must when getting coilover). The ride is must more comfortable when I goes through roadway with sealed cracks and minor bumps. When you go through speed bump, it is less rough on the the Vehicle and passenger in the back. Below 7 ticks will be softer than OE damping, between 10 - 15 is good for daily. Also you are going feel all of the road imperfections before the fluid inside the damper to warn up. You can still hear and feel the road bump, if you want them to disappear then you being looking at the wrong set (flat out suspension is the for you then)

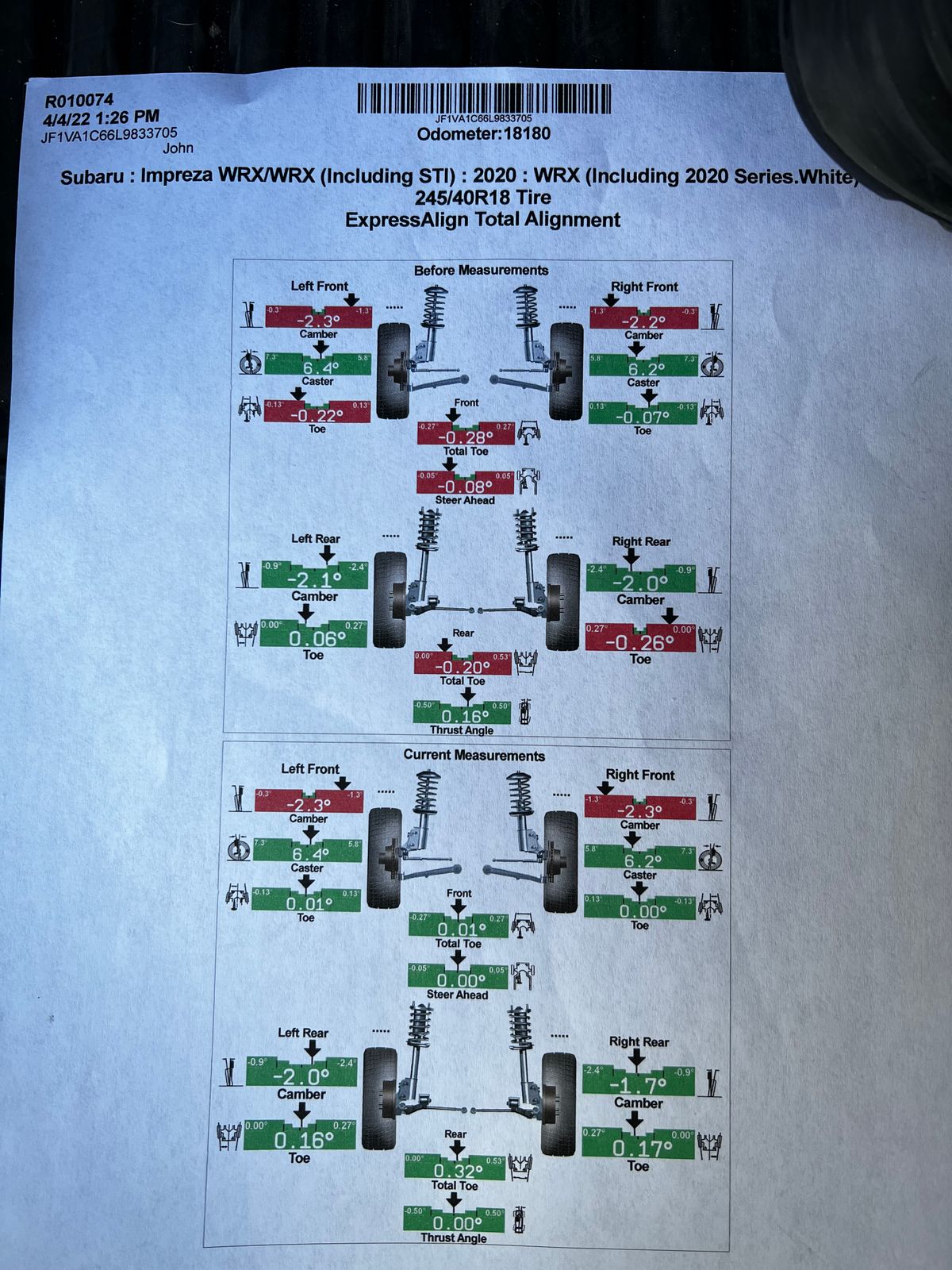

The only bad thing about these is that you will ride with about -2 to -2.5 of camber in the front, Yes that is with the OEM camber bolts max out. The Blox rear LCA has plenty of adjustment but the shop that I use for alignment has to some what match the front and rear so the drivetrains does eat themselves. Also you will lose some caster degree and the car will put to the right, there is no way to adjust caster so you gonna have to live with it.

OEM rear sway bar end links doesn't fit with blox you have to get aftermarket end links.…

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Noel R.
Verified Buyer
Rated 5 out of 5

Love it !

Definitely recommend these coils if you are on a budget ! Definitely ride better than stock and have a decent amount of drop to them !

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Blake H.
Verified Buyer
Rated 5 out of 5

Great

Fast shipping

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Sauce T.
Verified Buyer
Rated 5 out of 5

Bang bang 🔥

These are great for my daily driven wrx, great quality for the price! IIR always great help, thank you Miguel for the awesome service!

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Jason N.
Verified Buyer
Rated 5 out of 5

Coils is great for daily!

Was planning to spend a little more for Silvers or BC. But decided to save a little to spend on LCA and end links so bought these Faction Fab F-Spec and it was great for the money and great for daily car. Always love the team at IIR for helping out!

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Ricardo R.
Verified Buyer
Rated 5 out of 5

Great product!

I’ve only been on these for a few days but noticeably better ride quality. The lowering look was great, very easy to adjust.

Loading...
I recommend this product
Was this helpful?
