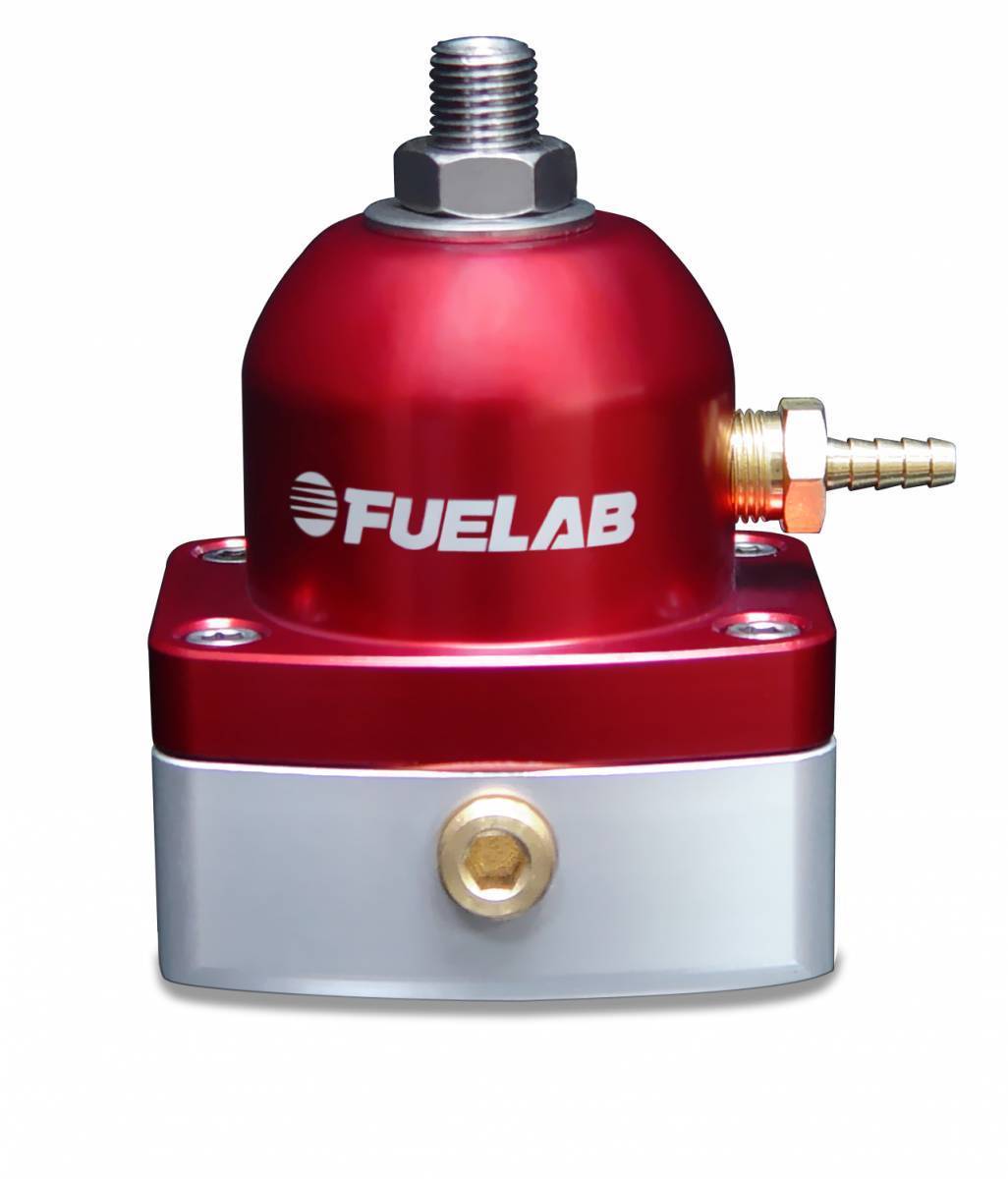

Fuelab 53501 Mini Series Adjustable Fuel Pressure Regulator; EFI Red | 53501-2

FUELAB® 535 Series Fuel Pressure Regulators have all the same great features as our 515 series, only smaller and weigh 50% less. They accept port style and non-port style union fittings without interference. Several configurations are available, supporting fuel injected applications up to 125 PSID. The 535 Series Fuel Pressure Regulator has a -6AN return port located on the bottom.

Dimensions: 1.50” D x 2.00” W x 2.25” H

Weighs Only: 5.25 oz.

Regulator Features

• Two -6AN inlet ports and one -6AN return port
• Gasoline, diesel, methanol, and ethanol fuel compatible
• Billet Aluminum with anodize per military MIL-A-8625, Type II
• Fine thread pitch for precise pressure adjustment
• Versatile mounting bracket and stainless steel hardware
• 1/8” NPT gauge port with plug for external pressure gauge
• 1/8” NPT pressure reference port with barbed fitting
• Backed by a 2-year limited warranty

53501-C -6AN Inlets / Standard Seat / EFI (25-90 PSID)

This item is non application specific. Please verify compatibility before purchase. May require some modification for proper installation.
