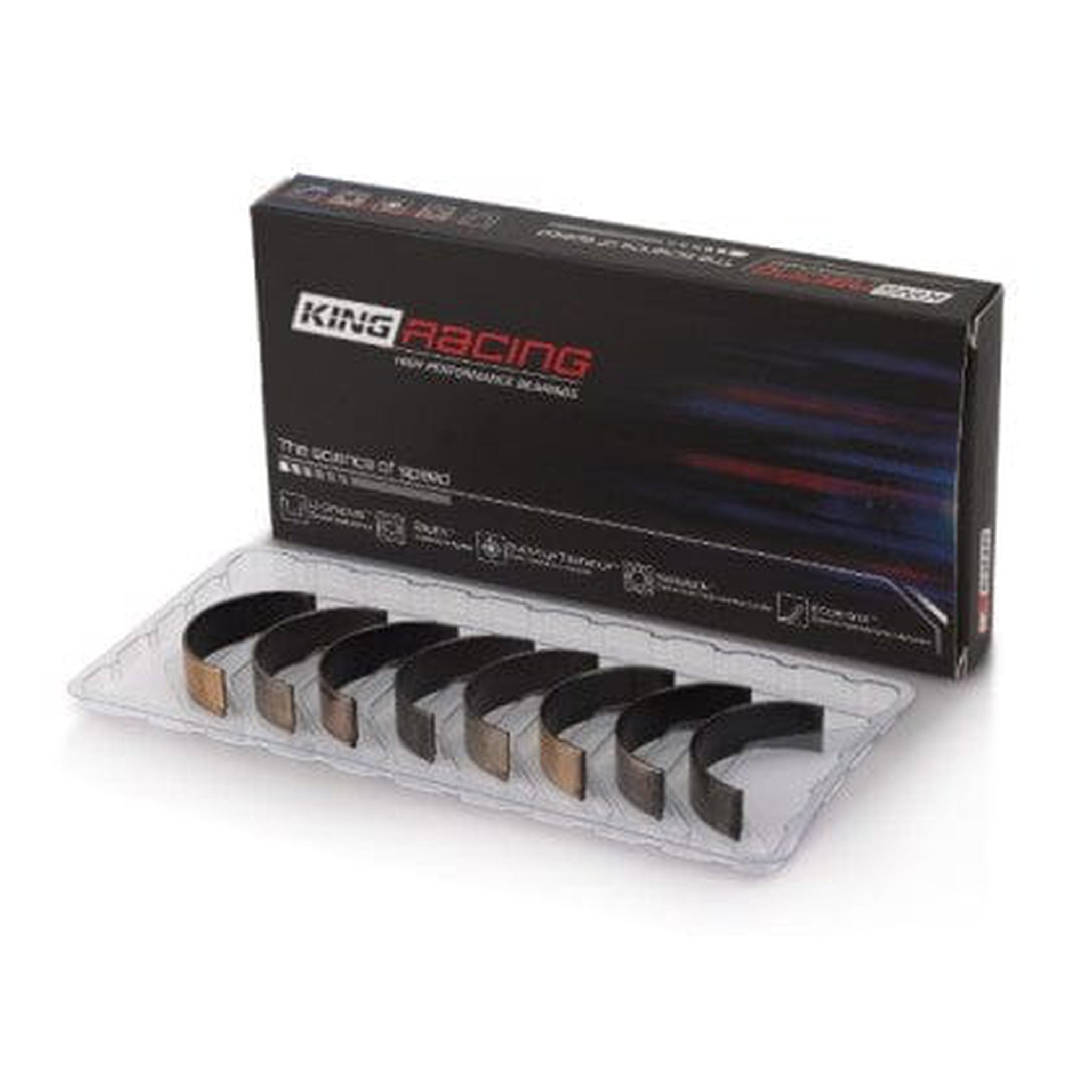

King Subaru EJ205/EJ255/EJ257 (Size STDX) pMaxKote Performance Rod Bearing Set | CR4125XPGCSTDX

• Nano-composite Polymer Coating - With No Added Thickness!
• Anti-Friction Coating
• Material: pMax Black (racing line)
• Journal Size: 52mm
• No Machining Required
• Size: .001 Oversized

pMaxKote™ enhances the following benefits of King XP race bearings:

• Superior seizure resistantce
• Superior cavitation resistantce
• Superior wear resistantce
• Superior protection against oil starvation

pMaxBlack™ tri-metal structure

Intermediate layer

The intermediate layer of a typical race bearing contains 2-3% tin, with hardness values of 90-95 HV. For a superior pMaxBlack™ intermediate layer, we increased the tin content to 4.5%, making it 22% harder at 115 HV, with a load carrying capacity of 17,000 psi.

pMaxBlack™ Overlay

The overlay of a typical high performance bearing consists of a leaded alloy that contains 2-3% copper. It achieves a hardness level of 11 - 14 HV, and a maximum load capacity of 8,000-8,500 psi.

King’s pMax Black™ overlay is significantly stronger than conventional overlays due to its 5% copper content and an innovative nano-scaled hardening process.
