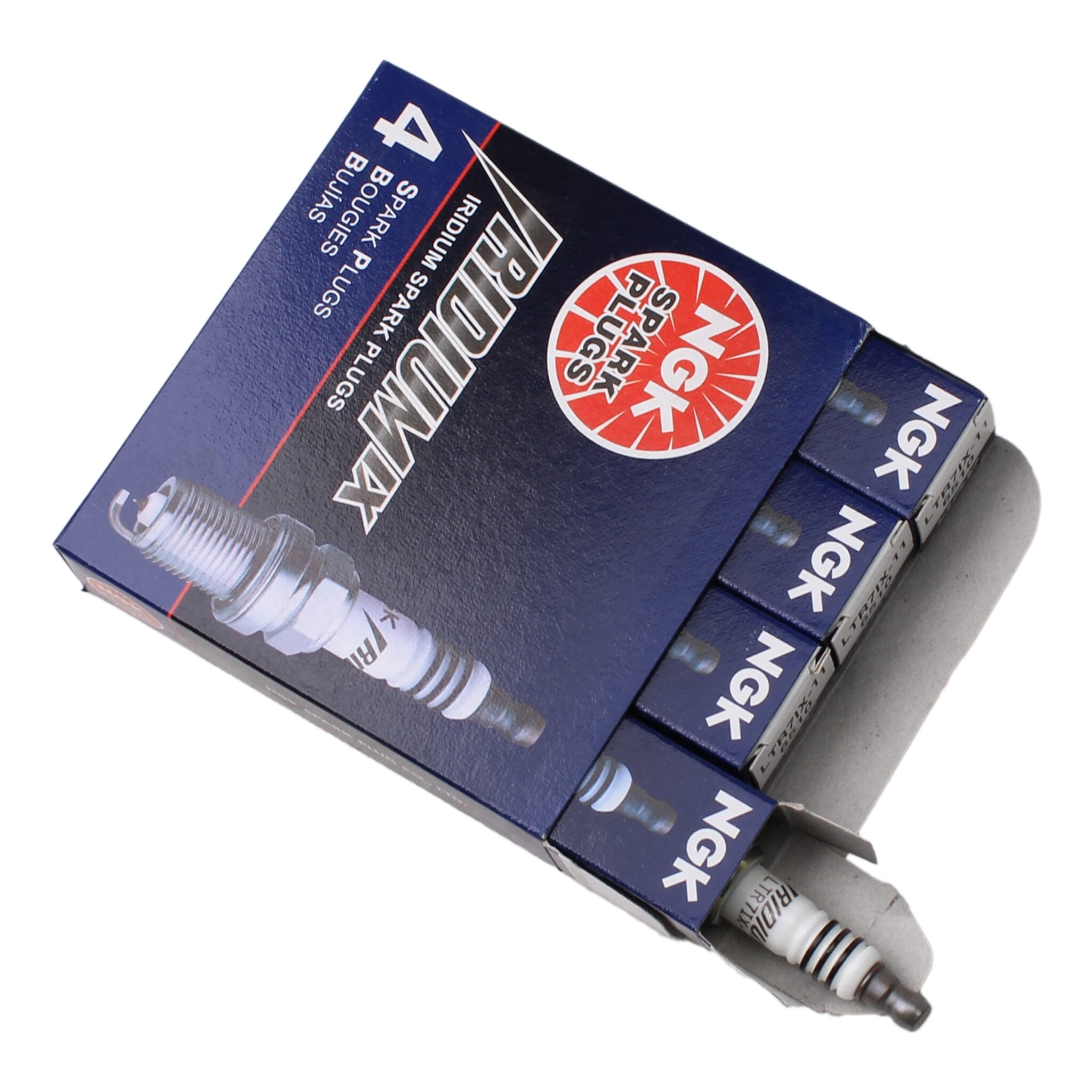

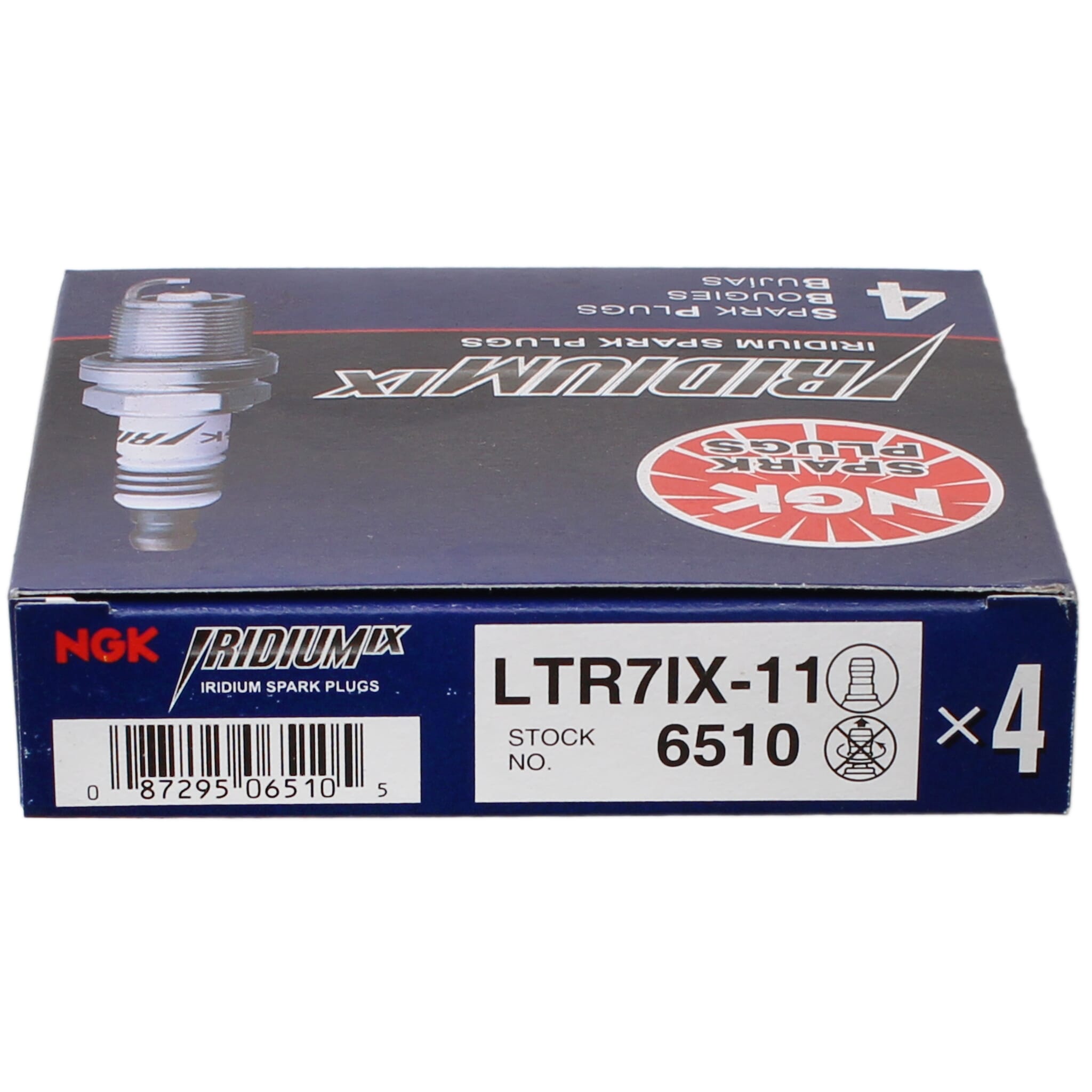

NGK (LTR7IX-11) Iridium IX Spark Plugs 2013-2017 Ford Focus ST/RS EcoBoost | 6510

Fitment Information:

2013-2017 Focus ST/RS EcoBoost

Features:

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs prevent flashover
• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage
• Longevity: 50k Miles
• 60 Days Manufacturer Warranty

Shell
Spark Plug Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Tapered
Reach: 25mm (1")
Wrench Diameter: 5/8" (16mm)
Terminal Type: Solid
Gap: .043" (1.1mm)

Center Electrode
Electrode Tip Material: Iridium
Electrode Core Material: Copper

Ground Electrode
Material: Nickel
Shape: Taper Cut

Specifications
Resistor: Yes
Resistor Value: 5k Ohm
Manufacturer Heat Range: 7
Torque Specs: Cast Iron: 10.8-18 lb. ft. Aluminum: 7.2-14.5 lb. ft.

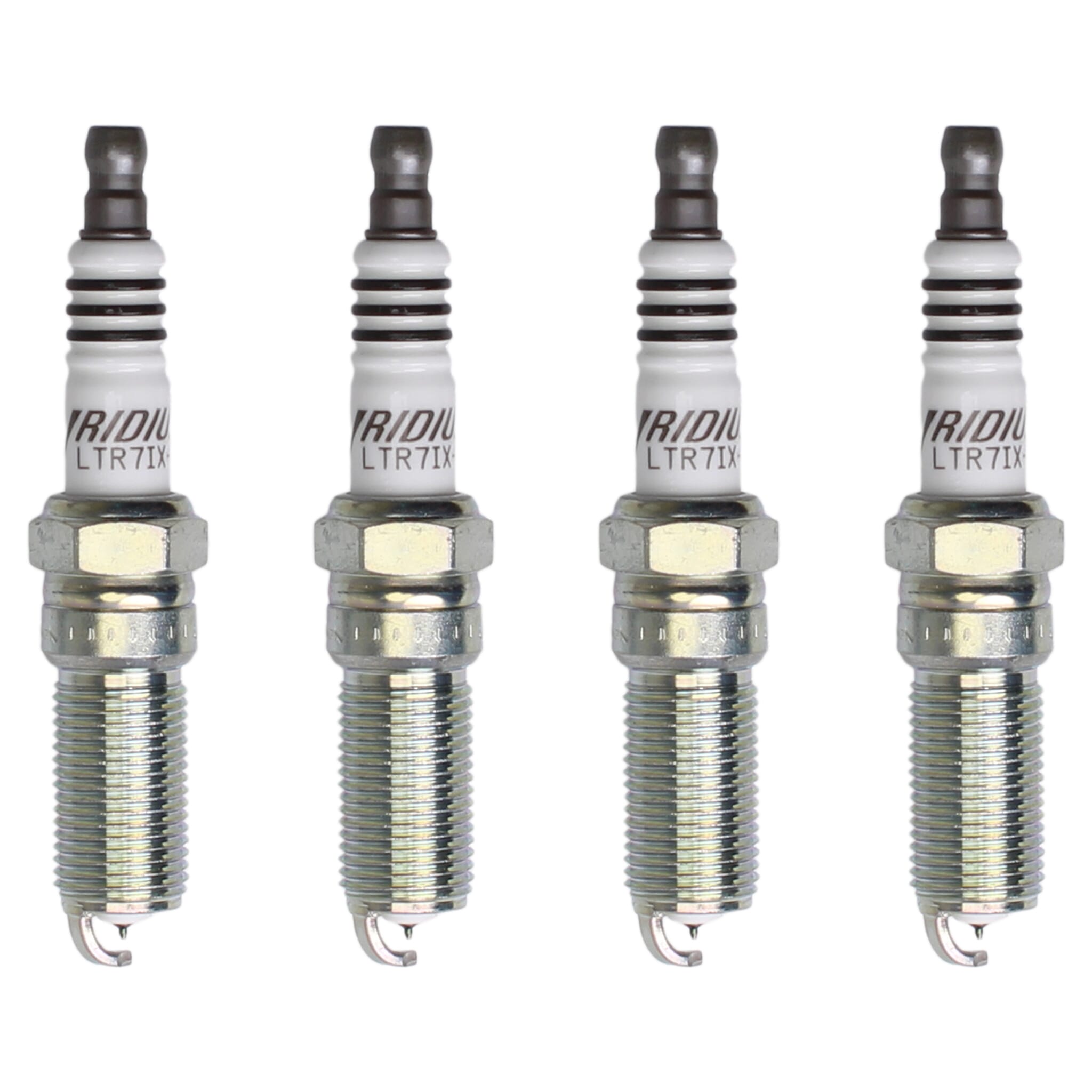

The NGK Iridium IX spark plugs are named after their .6 mm laser-welded iridium tip that delivers a powerful arc while being highly resistantt to corrosion and fouling. The insulator and electrode feature Trivalent metal plating that offers up vastly improved anti-seizure and anti-corrosion properties than traditional spark plugs. These plugs have a tapered electrode that reduces quenching while making regapping extremely simple.
