Perrin Front Mount Intercooler Kit Subaru WRX 2022-2024 - Black core / Red tubes | PSP-ITR-441BK/RD

Fitment Information:

2022 -2024 Subaru WRX

Please note: This FMIC kit does not fit with the Cusco Strut Bar.

Features:

The PERRIN Front Mount Intercooler Kit is ideal for those who want to get the most out of their turbocharged 22-23 WRX. Add power and a bold new look all in one with a PERRIN FMIC!

This Perrin FMIC features the best overall design for cooling and pressure drop! The 3/8-inch bar and plate design is more durable than the factory tube and fin design, and has the ability to withstand rocks and other debris. Each intercooler core comes powder coated to protect your intercooler from the elements.

The end tanks are designed to disperse hot charge air across the intercooler core. Eliminating the 90-degree corners and adding a smooth, gradual taper from top to bottom eliminates turbulence.

The boost tubes are CNC mandrel bent from lightweight aluminum tubing and feature smooth routing while remaining large enough to flow more wheel horsepower than most turbos can put out. Off the turbo, a short bend carries the hot side air charge past the intake system to the intercooler core. The cold side boost tubes are mounted high in the engine compartment clearing all accessories. Their oversized, beaded ends ensure the hose clamps and couplers stay connected and sealed no matter your boost level. These boost tubes are powder coated for protection from the elements and look awesome for years to come.

This kit includes a CNC-machined throttle body adapter to simplify the boost tube connection. The included PERRIN logo intercooler stencil can be used to easily paint the logo across the front of your intercooler- Simply peel, stick, paint, and remove!

• Does not require tuning
• Intercooler is pressure tested to 50 psi

Specs:

• Core Finish: Powdercoat - Stealth Black
• Boost Tubes Finish: Texture Powdercoat - Red
• Core Style: 3/8" inch Bar and Plate
• Core Dimensions (inches): 28" long x 9.25" tall x 3.5" deep
• Core Volume: 906.5 cu/in
• Boost Tubes Size: up to 2.75" inch diameter
• Boost Tubes Construction: CNC mandrel bent Aluminum
• Horsepower Support: 1000+HP

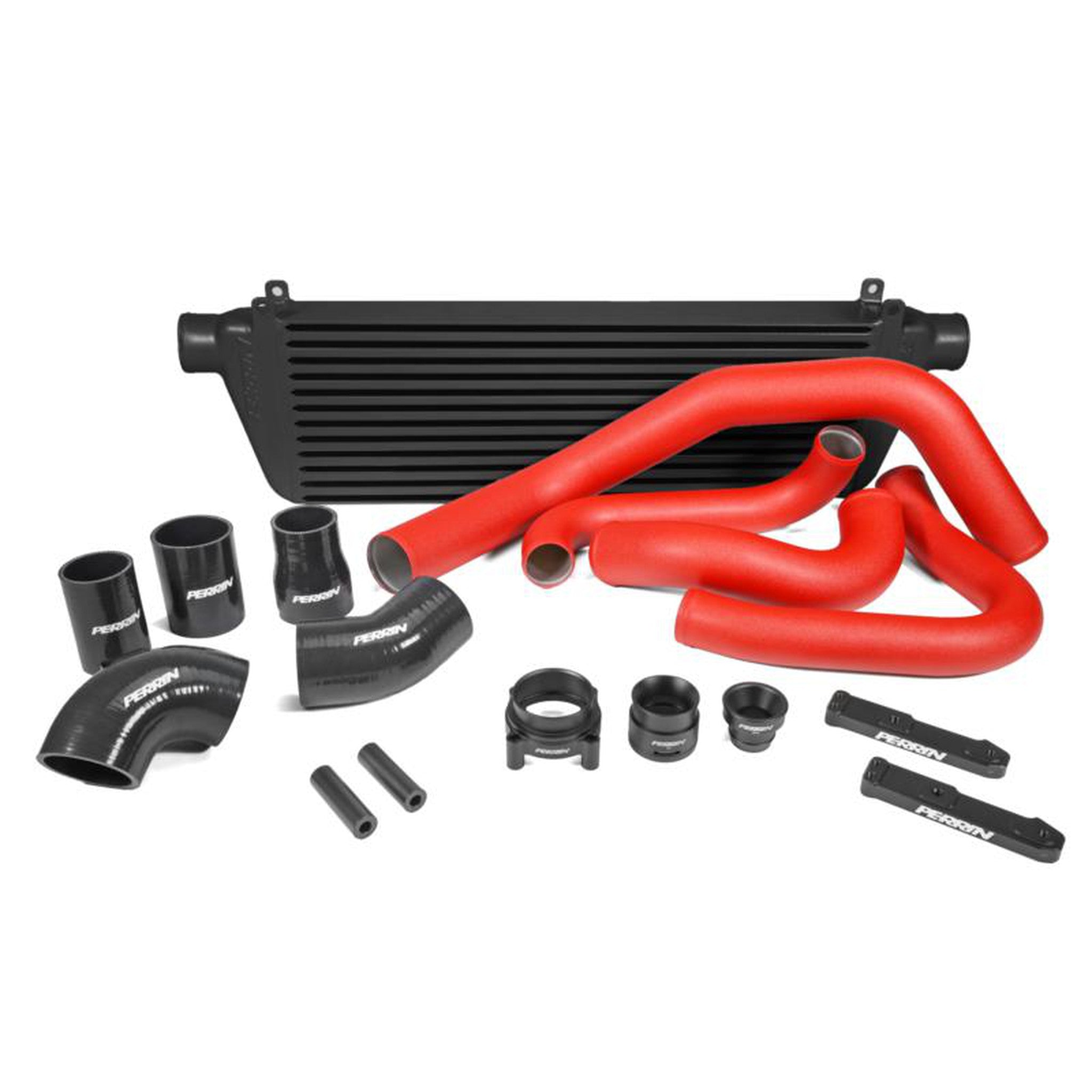

What's Included:

• (1) Front Mount Intercooler Core

• (1) Set of Mounting Brackets

• (1) Set of Boost Tubes

• (1) Set of Clamps

• (1) Set of Silicone Couplers

• (1) Charge Pipe Turbo Adapter

• (1) PERRIN License Plate Frame

• (1) PERRIN Intercooler Stencil

• All necessary hardware for the installation

• Warranty & Instructions
