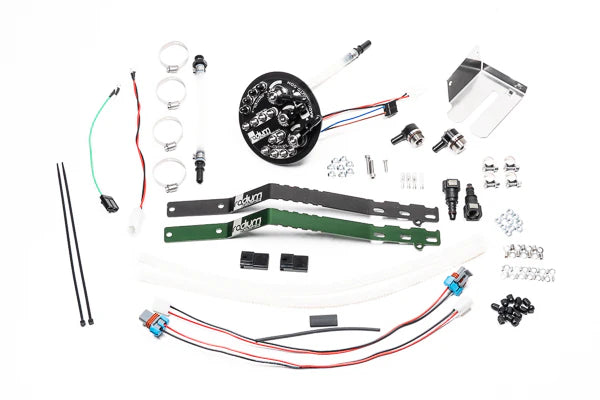

Radium Engineering Fuel Hanger for F90000267/274/285 or E5LM - Pumps Not Included Nissan R33/R34 1995-2002 | 20-0632-00

The Radium Engineering 20-0632-00 Fuel Hanger is a high-performance, drop-in fuel pump hanger designed for select late-model Nissan applications. Engineered to support one or two high-flow fuel pumps, it is compatible with Walbro/TI Automotive F90000267, F90000274, F90000285 (Hellcat series) and Ti Automotive E5LM brushless fuel pumps, making it an excellent choice for high-horsepower street, drag, drift, and motorsport vehicles.

Manufactured from CNC-machined anodized aluminum, this fuel hanger features an unrestricted fuel return system, integrated venturi jet pump siphon, and high-current electrical terminals capable of supporting both conventional and brushless fuel pumps. The included OEM-style adapter fittings allow the factory feed and return lines to be reused without additional fuel plumbing.

Product Features

• Manufacturer: Radium Engineering
• Part Number: 20-0632-00
• Performance fuel pump hanger assembly
• Drop-in installation
• Supports one or two fuel pumps
• Compatible with Walbro/TI Automotive F90000267, F90000274, and F90000285 fuel pumps
• Compatible with Ti Automotive E5LM brushless fuel pump
• Brushless fuel pump compatible
• CNC-machined anodized aluminum construction
• Integrated venturi jet pump siphon
• High-current anti-rotation electrical terminals
• Restriction-free fuel return design
• Stainless steel hardware and clamps
• Compatible with gasoline, methanol, and E85 fuels

Specifications

• Feed Port: 10AN ORB Female (7/8"-14)
• Return Port: 8AN ORB Female (3/4"-16)
• Fuel Pump Capacity: One or Two Pumps
• Fuel Compatibility: Gasoline, E85, Methanol
• Construction: CNC-machined anodized aluminum
• Electrical Connections: High-current serviceable terminals
• Wiring Insulation: Chemical-resistant ETFE

Performance Benefits

• Supports high-horsepower fuel system upgrades
• Eliminates restrictive factory fuel return design
• Maintains consistent fuel pressure under demanding conditions
• Allows installation of one or two high-flow fuel pumps
• Compatible with brushless fuel pump technology
• High-current electrical terminals provide dependable power delivery
• Corrosion-resistant anodized aluminum construction
• Direct-fit installation using factory fuel lines

Why Upgrade to the Radium Fuel Hanger?

Factory fuel systems often become a restriction as horsepower increases. The OEM venturi jet pump can create excessive return-line backpressure when paired with high-flow aftermarket fuel pumps, resulting in unstable fuel pressure and reduced fuel system performance.

The Radium 20-0632-00 Fuel Hanger eliminates this restriction with a redesigned siphon system that maintains proper fuel scavenging while allowing unrestricted fuel return. Its support for dual pumps and brushless fuel pumps makes it an ideal foundation for high-performance fuel system upgrades.

Installation Information

• Direct drop-in replacement
• Factory fuel lines can be reused using the included adapter fittings
• Low-profile AN swivel fittings are recommended when using aftermarket AN fuel lines
• Straight AN fittings may interfere with the factory access cover
• Single fuel pump installations can reuse the factory fuel pump controller wiring
• Upgraded fuel pump wiring is recommended for maximum performance
• Venturi jet pump consumes approximately 15–45 LPH, depending on fuel pressure
• A fuel system check valve is recommended if residual fuel pressure after engine shutdown is desired
