Subaru OEM Axle Circlip Subaru WRX 2002-2004 / STI 2004 | 805329010

Fitment:

2003-2006 Subaru Baja
1998-2002 Subaru Forester
1987-1989 Subaru GL
1993, 1995-2004 Subaru Impreza
1990-2004 Subaru Legacy
1990 Subaru Loyale
1996-2004 Subaru Outback
1985-1989 Subaru RS
1988-1989 Subaru RX
2004 Subaru STI
1995-1997 Subaru SVX
2002-2004 Subaru WRX
1985-1987 Subaru XT

Overview

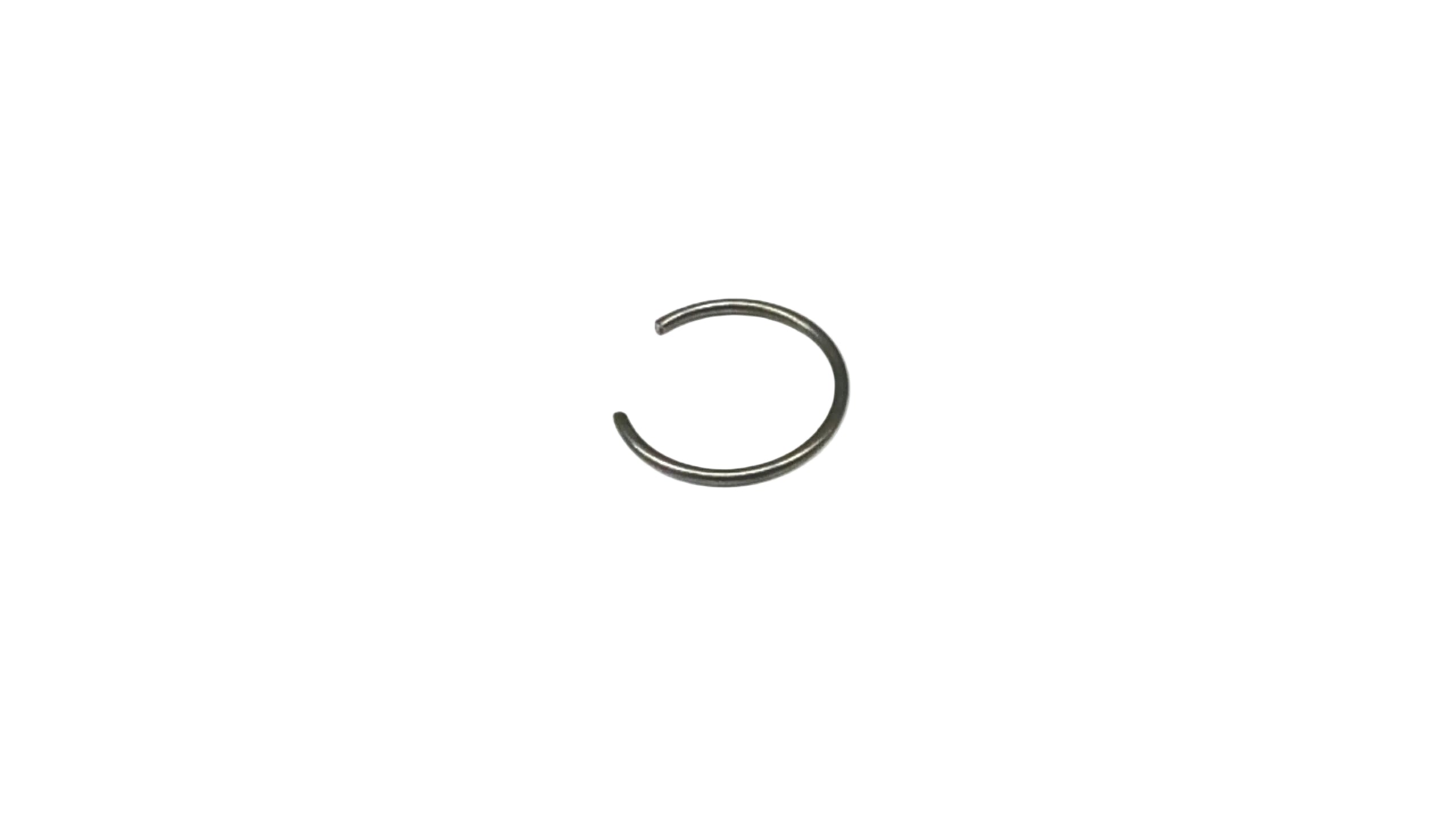

The Genuine Subaru OEM Axle Circlip (Part #805329010) is a precision-engineered retaining clip designed specifically for Subaru 6-speed manual transmission driveshafts. This small but critical component secures the CV axle shaft within the differential or transmission housing, preventing axle walkout under load. If you're rebuilding a drivetrain, replacing a CV axle, or addressing a clicking or popping noise during acceleration, using the correct OEM circlip ensures a factory-spec fit every time.

Key Features & Benefits

• Genuine Subaru OEM Part – Manufactured to exact Subaru factory specifications, ensuring proper retention force and dimensional accuracy that aftermarket clips cannot guarantee.
• 6-Speed Transmission Application – Engineered specifically for Subaru's 6-speed manual gearbox axle interface, providing the correct snap-ring diameter and spring tension for a secure, rattle-free fit.
• High-Strength Spring Steel – Constructed from hardened spring steel that resists deformation under the repetitive loading forces experienced during acceleration, cornering, and gear changes.
• Exact-Fit Guarantee – As a genuine OEM component, this circlip installs exactly like the factory original — no modification, re-sizing, or fitting required.
• Drivetrain Integrity – Prevents CV axle shaft from pulling out of the transmission under torque, protecting your differential, transmission output, and axle assembly from catastrophic failure.
• Cost-Effective Rebuild Component – An inexpensive insurance item that should be replaced any time a CV axle is removed, as circlips can lose retention strength once expanded.

What's Included

• 1x Genuine Subaru OEM Axle Circlip (Part #805329010)

Specifications

Installation

This circlip is a standard drivetrain replacement component. It is installed by snapping it into the retaining groove on the CV axle shaft prior to insertion into the transmission or differential housing. No special tools are required beyond standard circlip pliers. It is strongly recommended to replace this clip any time a CV axle is removed from the vehicle, as the clip may lose its original clamping force once expanded. Professional installation is recommended if you are unfamiliar with CV axle removal and drivetrain service procedures.
