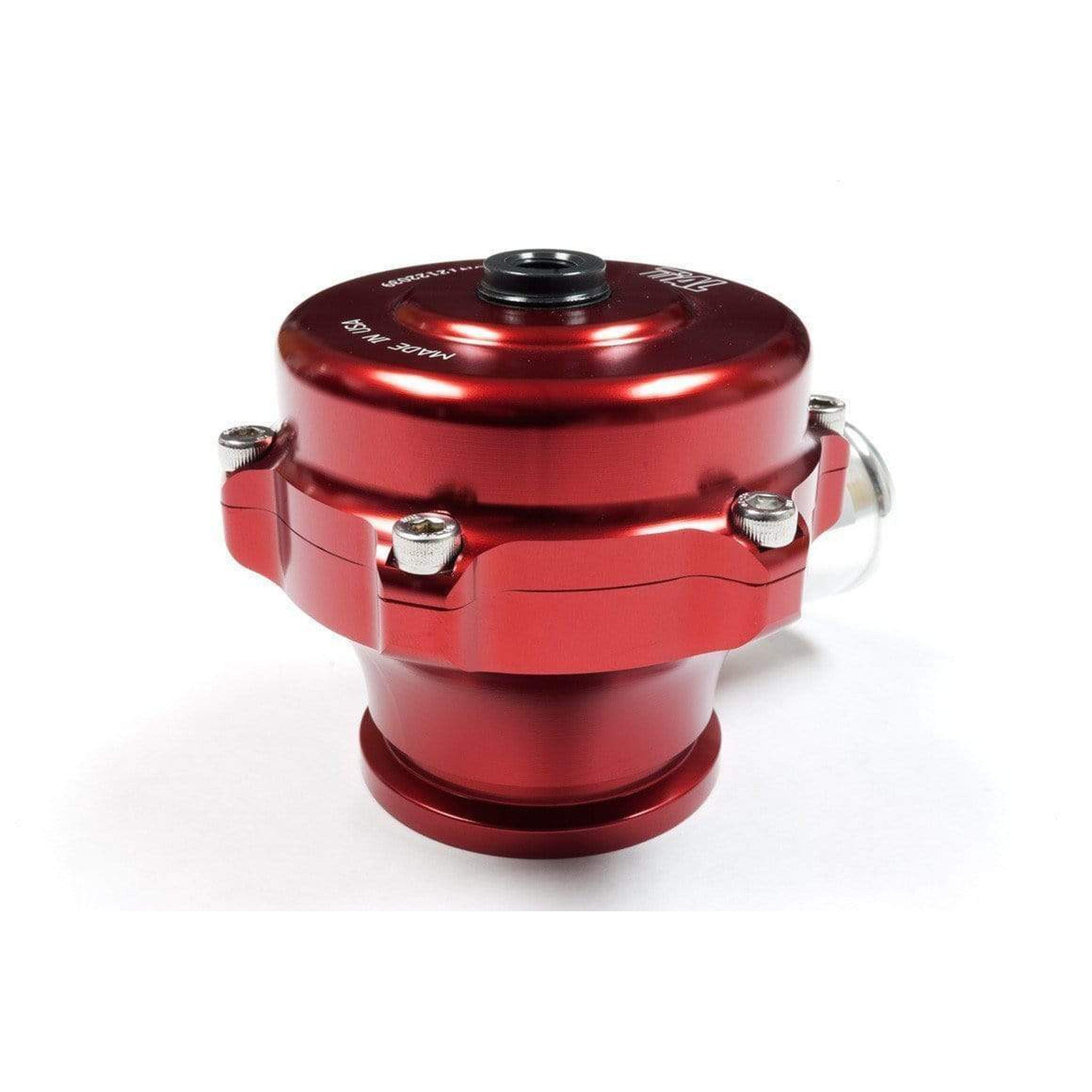

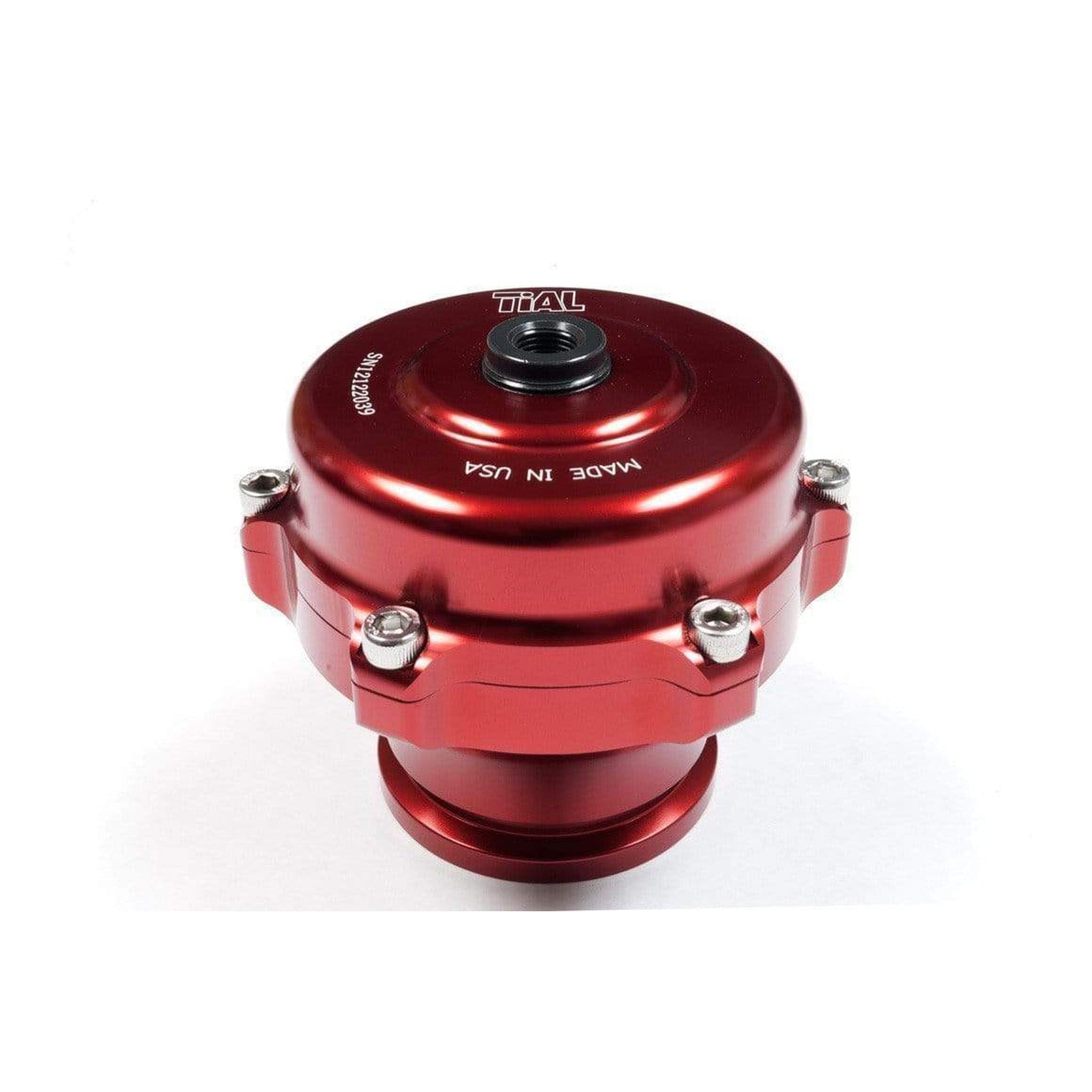

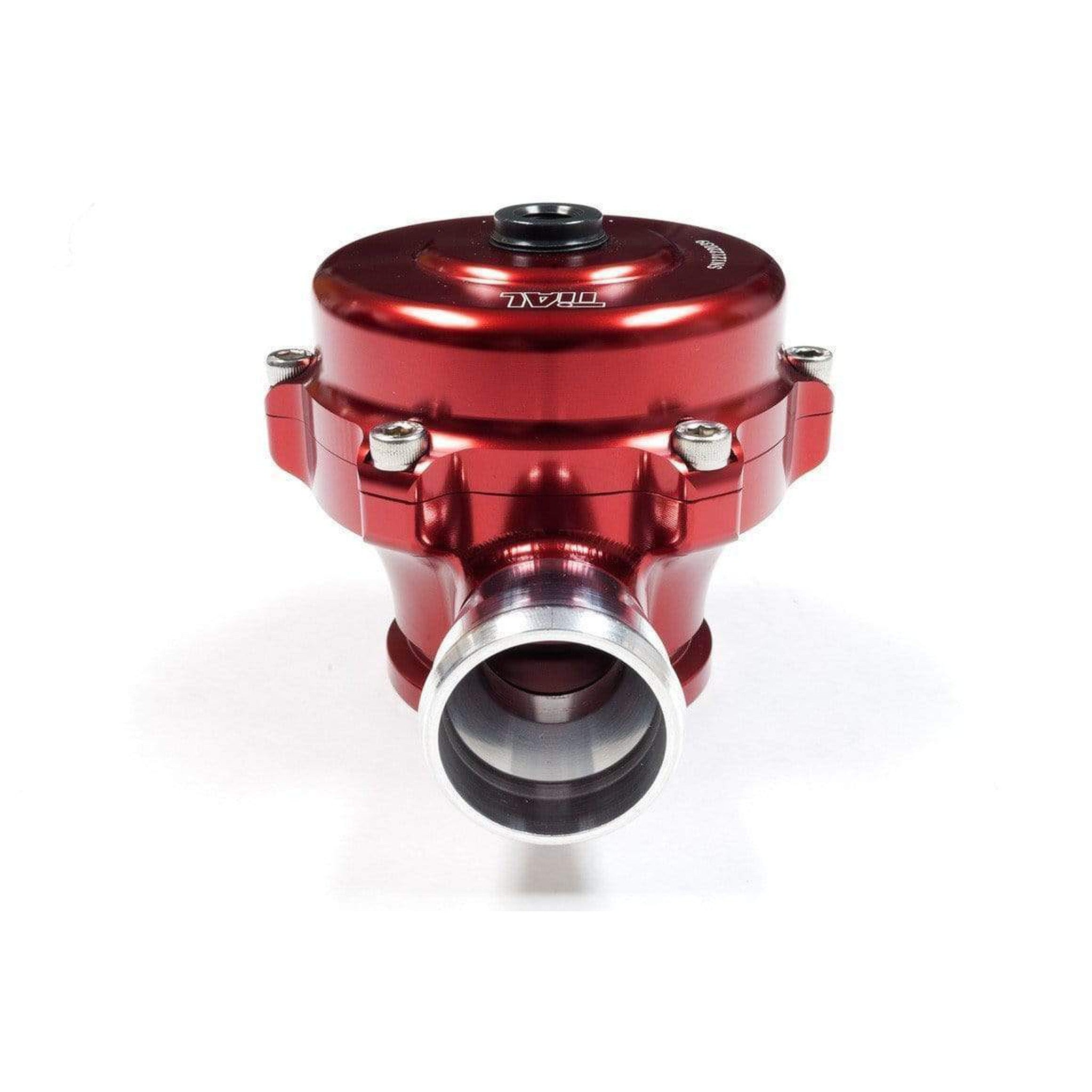

Tial QR Recirculating Blow Off Valve w/ 34mm Recirculation Port

Rated 5.0 out of 5
Based on 3 reviews
TIAL-QR34mm.R10
Pre-Order
Blow Off Valves

Get up to $13.26 in Build Bux by becoming a VIP member
$265.19
0% Financing for 12 months with Affirm!


Delivery Estimate: Order within hours minutes and use Fastrak at Checkout



WTF are Build Bux?
Color :
Red
Black
Blue
Silver
Purple
Spring Pressure :
$265.19

QR is the recirculating valve based on the TiAL high performance Q. Outline interchangeable with the Q and original BV50. It's Offered with a variety of springs for difference vacuum levels, and a special spring for supercharged vehicles. Customizable outlet ports offer flexibility to integrate into custom & existing applications.

Included with every Tial QR:

  • QR Assembly
  • TiAL Vband Clamp
  • Vband Weld Flange
  • TiAL Air Fitting
  • High Pressure O-ring
  • Return fitting of choice (installed on unit)


Features:

  • QR is a recirculating valve based on the high performance TiAL Q.
  • Optional 25.4mm (1.00"), 29mm (1.14") GTR, 34mm Subaru/evo/dsm or 38.1mm 1.50" recirculation port.
  • Uses the standard TiAL V-band flange and can be converted into a standard Q BOV by swapping the bottom piece.
  • For use on turbo-charged and super-charged applications (Paxton, Vortec, etc.). The body and all internal components are CNC-machined from 6061 aluminum alloy. It features a large 1.98 in (50.5mm) valve.
  • The V-Band design aluminum mounting clamp gives a very clean and unique appearance. The clamp uses Stainless Steel hardware for a long lasting, corrosion-free appearance.
  • The valve seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance.
  • The Blow Off Valve also comes with our own machined aluminum banjo-type air fitting and bolt, with over sized 10mm hose barb for quick actuator response. The actuator has a high temp silicone Nomex-reinforced diaphragm for long life.
  • An aluminum or mild steel weld base mounting flange is furnished with each unit. Stainless Steel is available at an additional cost. The use of 6061 aluminum allows the housing to be anodized with a selection of colors.
  • Color anodized aluminum options (Silver, Red, Blue, Purple, Black).
  • -2psi spring for supercharged applications

    Black and silver usually ship same day and all other colors take 1-2 weeks to ship.
This item is non application specific. Please verify compatibility before purchase. May require some modification for proper installation.

RETURNS POLICY

Any returns for an exchange or refund will be allowed within 30 days from the receipt of your order and must be authorized prior to shipping with an RMA Number (Return Merchandise Authorization). To receive your return instructions and RMA# please use our online form under Returns and Exchanges! Once you receive your return instructions please ship out the item at your earliest convenience and provide the tracking number to your customer service rep. The customer will be responsible for all shipping fees. Before shipping your product back please make sure you package it up exactly how you received it and in all of its original packaging. All items must be in brand new and resalable condition. Once the item is received it will be inspected and a credit will be issued accordingly. All returns are subject to a 15% restocking fee. Any returns received without an RMA# will be charged a restocking fee and any shipping fees associated with the return. An item that does not ship directly from IIR's warehouse is considered a "special order" item and no returns will be authorized.

average rating 5.0 out of 5
Based on 3 reviews
  • 5 Stars
    3 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Customer photos and videos
3 Reviews
Reviewed by julio m.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Great bov

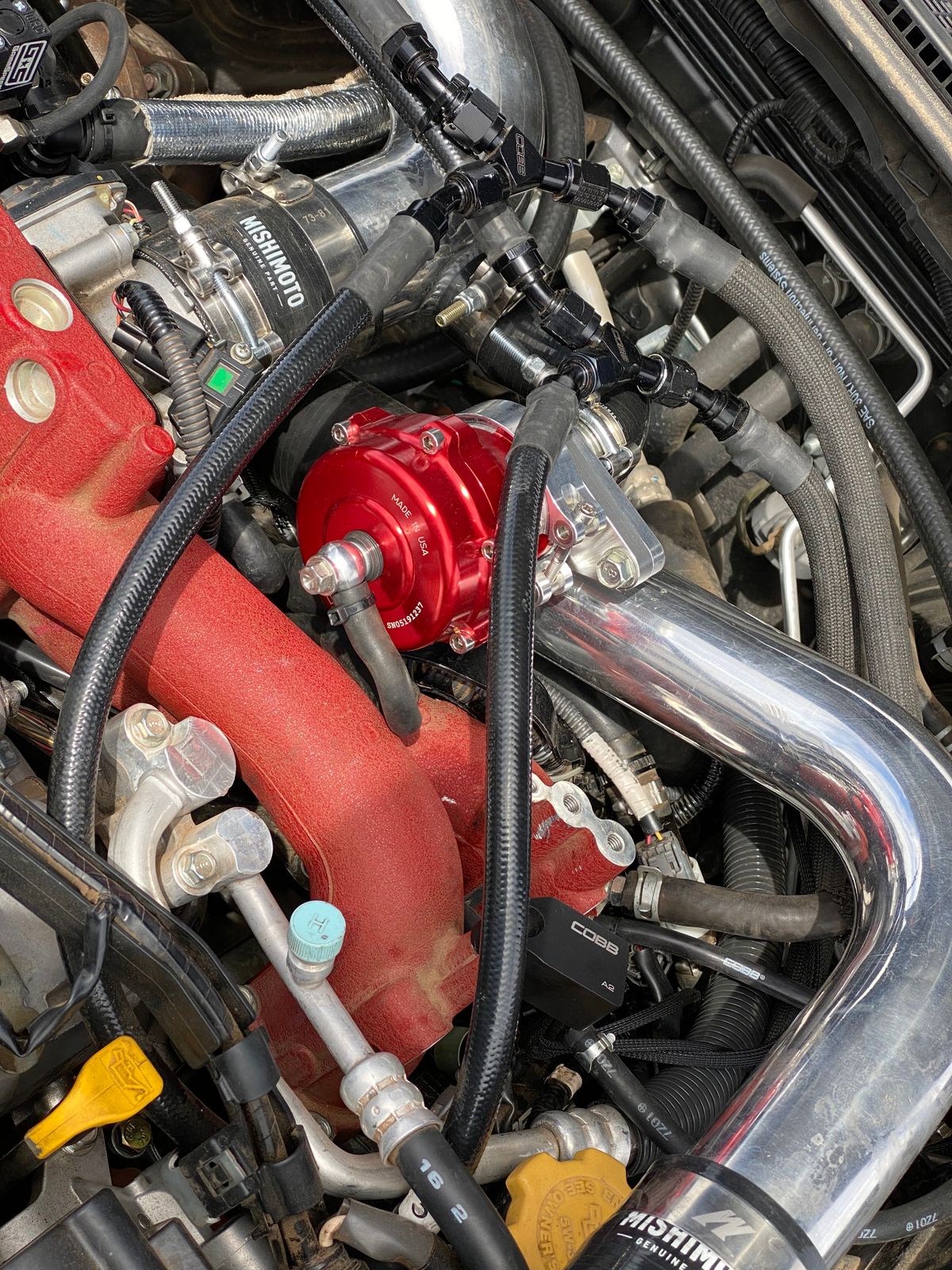

I’m using this tial on the COBB FMIC for my 2017 STI. it fits perfect and sounds great. Holds boost

Loading...
Was this helpful?
Reviewed by Brandon L.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Perfect for holding higher boost levels

While the factory BPV may be fine at stock and slightly elevated boost levels, upgrading is a necessity for holding more boost. There’s no name I trust more for wastegates and relief valves than Tial, and nobody I trust more to get it to me than IIR!

Loading...
Was this helpful?
Reviewed by Nicholas G., from United States
I recommend this product
Rated 5 out of 5
Review posted

Tail

Took a while to get it installed, but does sound great and looks pretty clean in the red!

Loading...
Was this helpful?
