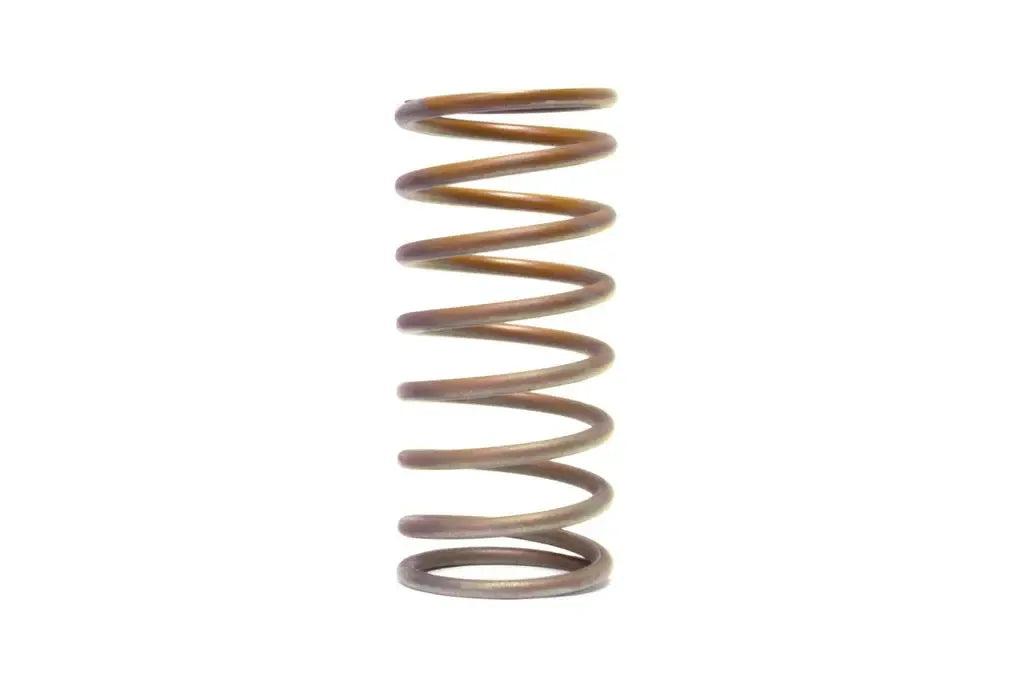

TiAL Sport Replacement Spring - Q 4/QRJ 8 Orange | 004567

Restore or fine-tune your TiAL QRJ blow-off valve with this genuine replacement spring, engineered for reliable performance under extreme conditions. Manufactured from 17-7PH stainless steel, these springs are built to resist heat-related fatigue and maintain consistent pressure ratings—even at temperatures up to 900°F (483°C).

Each spring is color-coded by pressure rating and sold individually. Be sure to reference the official TiAL spring chart to select the correct spring for your vacuum reading and installation type (side port vs. end port inlet).

Available Spring Colors:

• 🌸 Pink 1.5PSI / Engine Vacuum: -3inHG

• 🟢 Green 3PSI / Engine Vacuum: -6.1inHG

• 🔵 Blue 7PSI / Engine Vacuum: -14.3inHG

• 🟠 Orange 8PSI / Engine Vacuum: -16.3inHG

• ⚫ Black 9PSI / Engine Vacuum: -18.3inHG

• 🔴 Red 11PSI / Engine Vacuum: -22.4inHG

• ⚪ White 12PSI / Engine Vacuum: -24.4inHG


Key Features:

• ✅ Genuine TiALSport replacement spring for QRJ BOV

• ✅ Made from high-strength 17-7PH stainless steel

• ✅ Heat-resistant up to 900°F (483°C)

• ✅ Color-coded for easy identification

• ✅ Sold individually – includes (1) spring


Fitment:

• For Use With: TiAL QRJ Blow-Off Valve

• Not Compatible With: TiAL Q or QR models (different spring rates and design)


Tuning Tip:

For best results, match your spring to your engine’s idle vacuum pressure (inHg) and valve inlet orientation. When using the side port as the inlet, TiAL recommends starting with the green spring (-3.0 psi). For end port inlet setups, choose a stiffer spring rated 1–2 inHg above your engine's idle vacuum.
